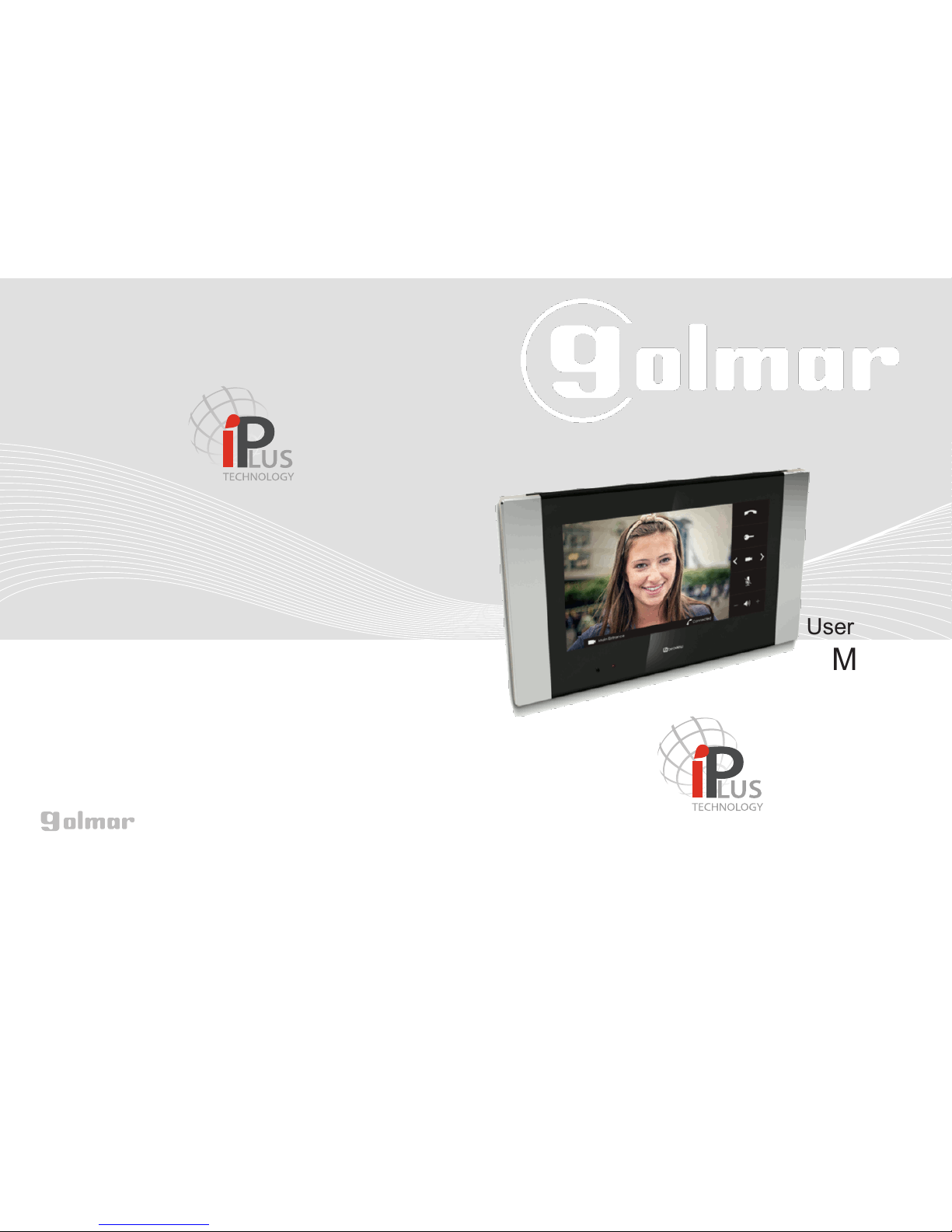

Golmar M700 Manual de usuario

M700

User Manual

Simple and powerful!

BY GOLMAR

Rev. May 2015

FWrevision 1.31

SISTEMASDECOMUNICACIÓN,S.A.

C/ Silici 13. Poligon Industrial Famadas

08940 – Cornellà del llobregat – Spain

www.IPvideoIntercom.com

Telf: 0034-934800696

Mail: golmar@golmar.es

USER MANUAL |M700 |3

SISTEMASDECOMUNICACIÓN,S.A.

CONTENT

1 GENERAL DESCRIPTION.

1.1 Monitor screen status.

2 MENU ICONS DESCRIPTION AND FUNCTIONALITIES.

2.1 View entries.

2.2 Call porter.

2.3 Intercom call.

2.4 Missed calls / picture recording.

2.5 Text messages.

3 COMMUNICATION STATUS DESCRIPTION

3.1 Incoming call from a video entry panel.

3.2 Incoming call from an apartment.

3.3 Incoming call from a concierge station M201/ C.

3.4 Communication.

4 SPECIFICATIONS, CAUTIONS AND MAINTENANCE.

SISTEMASDECOMUNICACIÓN,S.A.

M700 User Manual – Rev FW1.31

2.6 Screen clean lock.

2.7 User guide.

1- GENERAL DESCRIPTION

USER MANUAL |M700 |7

SISTEMAS DE COMUNICACIÓN, S.A.

|M700 | USER MANUAL

2- MENU ICONS DESCRIPTION AND FUNCTIONALITIES

2.1 View entries

M700 User Manual – Rev FW 1.31

M700 is an advanced and future proof monitor engined with the latest IP technology.

Constructed with the best quality materials, the monitor is made of aluminium, ASA

plastics and is equipped with a 7 inch. capacitive glass.

Its technology uses eco cancelling drivers and active filters to get the higher audio

fidelity and best quality image.

There can be differentiated four basic status of the monitor screen:

a- Stand by: the monitor screen is off (black).

b- Main menu: the screen is on and displays a menu as shown on the picture bellow.

c- Notification: the monitor led at the bottom left side blinks.

d- Communication: Any of the possible situations described on point 3.

1.1 Monitor screen status

When this button is pressed, video streaming from latest tracked camera will be

dsplayed.

The screen shows at the bottom the panel label, which identifies the camera that is

being tracked at this moment.

At this stage it is possible to do any of the following actions:

Start the audio communication with the active entrance panel.

Move through the available entrance panels in the installation using arrows right and left.

Door lock activation, by pressing the button with the key.

Go back to main menu by pressing the cross button

2- MENU ICONS DESCRIPTION AND FUNCTIONALITIES

2.2 Call Porter

the available concierges to be called. If there isn't any

concierge this icon will be highlighted in red when pressed.

USER MANUAL |M700 |7

SISTEMAS DE COMUNICACIÓN, S.A.

|M700 | USER MANUAL

2- MENU ICONS DESCRIPTION AND FUNCTIONALITIES

2.3 Intercom call

How to call a monitor: Scroll and navigate among the available monitors by

using the arrows up and down. Press shortly over the label of the desired

apartment. A call will be generated.

If the apartment monitor starts the call, it will show the call process on screen.

In case the apartment is busy or the targeted monitor can not be reached, the

monitor label will be highlighted in red.

Press on the intercom call button again in order to come back to main menu.

M700 User Manual – Rev FW 1.31

By pressing the button with this icon, a list will be displayed showing

To start a call, move through the available concierges using arrows up and

down. Once the desired concierge appears on screen press shortly over.

A call will be generated.

To go back to main menu, press again the icon from the concierge.

Two icons refer to an intercom call. Call inside, refers to those monitors which

are in the same apartment. Call outside, refers to those monitors which are

out from the apartment and we have authorization from the administrator to

establish an intercom call.

2.- MENU ICONS DESCRIPTION AND FUNCTIONALITIES

2.4 Missed calls and picture recording

By pressing the missed calls button, last picture will appear on screen.

Each image corresponds to a Missed call being generated when an incoming

call has not been answered from the monitor.

There are two methods to know that there are pictures from missed calls

unchecked:

– The monitor's red led at the bottom left part blinks.

Once the images are checked the led will not blink until new images are

stored.

– On the main menu, the icon of the missed calls will display a number in orange,

notifying the number of images that have been unchecked. Once checked, this

number will disappear.

To delete an image, simply press the bin button when the image is displayed.

2.- MENU ICONS DESCRIPTION AND FUNCTIONALITIES

2.5 Text Messages

By pressing the messages button a list of text messages will appear.

TextMessagesaresentbytheconciergeorbuildingadministratorlocallyorremotely.

There are two methods to know that there are text messages unchecked:

– The monitor blinks the red LED at the bottom left.

– On the main menu, the icon of the Text messages will display a number

notifying the number of messages that have been unchecked. Once

checked, this number will disappear.

USER MANUAL |M700 |9

SISTEMASDECOMUNICACIÓN,S.A.

|M700 | USER MANUAL

M700 User Manual – Rev FW 1.31 M700 User Manual – Rev FW 1.31

It is possible to move through the stored messages by using arrows up

and down.

To delete a message, simply press the bin button linked to the corrresponding message.

Note: To send a message it is necessary the software Configuration Manager.

2.- MENU ICONSDESCRIPTION AND FUNCTIONALITIES

2.6 Screen clean lock

Press this button and keep it pressed. After hearing three beeps, the monitor will

disable the capacitive sensor for a period of 15 seconds, allowing to wipe the screen.

A timer shows the time left for cleaning.

Follow the maintenance advises from 4th chapter.

2.7 User Guide

This function is now not being activated in FW 1.31.

USER MANUAL |M700 |11

SISTEMASDECOMUNICACIÓN,S.A.

|M700 | USER MANUAL

M700 User Manual – Rev FW 1.31 M700 User Manual – Rev FW 1.31

3- COMMUNICATION STATUS DESCRIPTION

3.1 Incoming call from a video entry panel

When a call is generated to the apartment, the monitor starts to ring. It rings 6

times while the video image will appear on screen. It is shown as well the panel

label from which thecall iscomingin order to identifythe entrypanel of thecall.

At this point it is possible to:

Start the audio communication: by pressing the answer button.

Activate the lock: without need of starting the communication. If enabled in the

configuration of the monitor.

If the monitor has been programmed accordingly, a secondary lock can be activated

by pressing the second lock button.

Cancel the call: by pressing the cross, the incoming call will be ended,

independently if the audio communication started. It is possible to finish

the audio communication once started, by pressing the cross.

Mute the ring tone: the monitor stops ringing but the incoming call still is on hold.

3- COMMUNICATION STATUS DESCRIPTION

3.2 Incoming call from an apartment

When a call is generated from an other monitor, the monitor starts to ring.

It is shown as well the monitor label from which the call is coming.

At this point it is possible to:

Start the audio communication: by pressing the answer button.

Cancel the call: by pressing the cross, the incoming call will be ended,

independently if audio communication started or not. It is possible to finish

the audio communication once started by simply pressing the cross button.

Mute the ring tone: the monitor stops ringing but the incoming call still is

on hold.

3.3 Incoming call from a concierge station M201/ C

The operation is the same as described for incoming calls from an

apartment in the previous point.

USER MANUAL |M700 |13

SISTEMASDECOMUNICACIÓN,S.A.

|M700 | USER MANUAL

M700 User Manual – Rev FW1.31

3- COMMUNICATION STATUS DESCRIPTION

3.4 Communication

Once the communication is started it is possible to:

Activate the lock: depending on the configuration of the monitor two locks

can be activated.

Finish the call: by pressing the cross button.

4- SPECIFICATIONS, CAUTIONS AND MAINTENANCE

A- Specifications

B- Cautions

This product isan electronicvideo monitor.

Do not through liquids over the unit. Anyliquid coming into the product may cause

failure or fire.

Do not expose the unit at high temperatures, corrosive environments or high

humidity grade.

Do not hang neither place any other product on it. The bracket might brake as is

designed tu support its own weight. Pulling, pushing or climbing on it may cause the

monitor to fall.

This is a professional product. It is strongly recommended to follow the installation

specifications and to leave the installation to a Golmar installer.

C- Maintenance

The product ismanufactured in high quality materials. Do not use chemical

products or abrasives or cleaning agents. Clean the product with a soft cloth

dampened with a small amount of water.

USER MANUAL |M700 |15

SISTEMASDECOMUNICACIÓN,S.A.

|M700 | USER MANUAL

Characteristics Values standard

Power consumption idle: 2W, fully ac..

Voltage 48VDC IEEE800.3AF

Screen 7 inch. full touch capacitive.

Temperature range

Humidity:

-20° to 70°

10% ~ 90% non-condensing.

Dimensions and weight 227 (W) 139 (H) 15 (D)mm | 700 gr. (packed)

Construction ASA plastics, capacitive glass and aluminium.

M700 User Manual – Rev FW1.31 M700 User Manual – Rev FW1.31

Disable the monitor microphone: this option mutes the monitor microphone in

order to get privacy in the apartment at any time during the communication.

Adjust the volume of the communication.

|M700 | USER MANUAL

NOTES

Other warnings:

The actual design and specif cation of the product might change with no prior notif cation.

The actual appearance of the product may differ from the images used in this manual.
