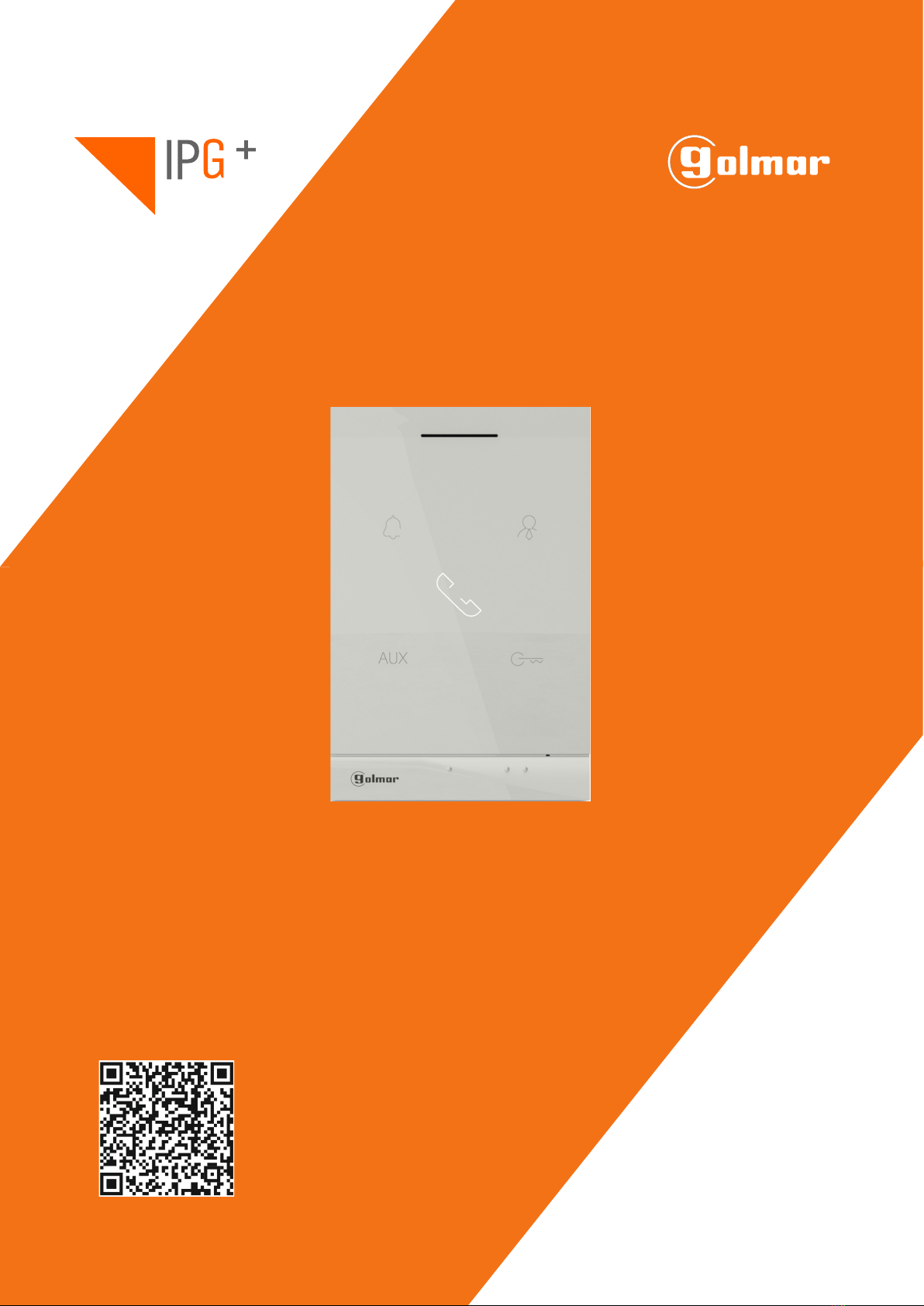

Golmar ART 1/G+ Manual de usuario

ART 1/G+

TART1/G+ IP ES REV.0121

USER MANUAL

CATEGORY 1_HEADERCATEGORY 2_HEADER

2Footer Infos

ART 1/G+IP G+

www.golmar.es

INDEX

1. Device description..............................................................................................................................................3

2. Operation ............................................................................................................................................................4

2.1. Incoming call ..............................................................................................................................................4

2.2. Make a call ..................................................................................................................................................4

2.3. On Idle.........................................................................................................................................................5

ART 1/G+ IP G+

www.golmar.es

1. DEVICE DESCRIPTION

Volume and sound settings Call the guard unit

Enable door opener 1Enable door opener 2

Start or end communication

ART 1/G+IP G+

www.golmar.es

2. OPERATION

2.1. Incoming call:

When receiving a call the handsfree audio unit starts to ring, blinking the central icon.

Pressing it we will answer the call.

In communication:

Start communication

Enable door opener 1

Enable door opener 2

End communication

Enable door opener 1

Enable door opener 2

2.2. Make a call:

With the ART 1/G+ handsfree audio unit we won’t be able to make calls to other devices in the system.

Only we will be able to open the audio channel with the entry panel keeping pressed the icon until the apartment unit emits a

sound. From this moment we will be able to set communication with the entry panel and pressing again the same icon, we will end the

communication with the entry panel.

By pressing twice in succession on the icon we will be able to communicate with any unit inside the same apartment where the

handsfree audio unit is located.

e last call option that the device oers is the call to the guard unit, which is done by keeping pressed the icon on the top corner of the device

“ “.

Volume settings

ART 1/G+ IP G+

www.golmar.es

2.3. On Idle:

- Operation of the push button:

· A short press change the ringtone volume. ere are 4 cyclics levels: low, medium, high and mute (do not disturb mode).

· Heeping pressed during 3 seconds, the unit enters the ringtone programming mode. Once in this mode, we must select which ring

tone want to set: with the icon we will change the ringtone of the apartment door bell, pressing the icon we will be able to

select the ringtone of the intercom, pressing we will access the selection of the entry panel ringtone and with the icon we

will modify the guard unit ringtone. Existen 6 tonos diferentes para elejir.

- Operation of the push button:

· Two short presses at an interval of 1,5 seconds start an intercom process with other apartment units of the same apartment. If there

were no other apartment units in the apartment, no eect would arise.

· Keeping it pressed for 3 seconds we will open the audio channel between the handsfree audio unit and the entry panel number 1.

- Operation of the push button:

· Pressing it during 3 seconds, we will make a call to the guard unit. If there were no any guard unit in the installation, no eect would

arise.

- Operation of the and push buttons:

· Only work in a call process.

Sist

emas de comunicación S.A.

C/ Silici 13. Poligon Industrial Famadas

08940 – Cornellà del llobregat – Spain

golmar@golmar.es

Telf: +34 934 800 696

www.golmar.es
