Golmar 295 Series Manual de usuario

T200EN

rev.0204

295 Series

Audio

door entry system

Kits

4+'n' wires installation

Instructions manual

Golmar se reserva el derecho a cualquier modificación sin previo aviso.

Golmar se réserve le droit de toute modification sans préavis.

Golmar reserves the right to make any modifications without prior notice.

golmar@golmar.es

www.golmar.es

First of all we would like to thank and congratulate you for the purchase of this product

manufacturedbyGolmar.

The commitment to reach the satisfaction of our customers is stated through the ISO-9001

certificationandforthemanufacturingofproductslikethisone.

Itsadvancedtechnologyandexactingqualitycontrolwilldothatcustomersand users enjoy withthe

legion of features this system offers. To obtain the maximum profit of these features and a properly wired

installation,wekindlyrecommendyoutoexpendafewminutesofyourtimetoreadthismanual.

To make a call the visitor should press the push button corresponding to the apartment he wishes

to contact. An acoustic tone will be heard confirming the call as the push button is pressed. At

this moment the call will be received at the telephone in the dwelling.

To establish communication pick up the telephone handset.

To open the door, press the door release push button at any moment.

Do not use excessive force when tightening the transformer connector screws.

Install the equipment without the power connected. Disconnect from power before any system

modification. Check that the input voltage is lower than 230Va.c.

Before to connect the system, check the connections between door panel and telephones, and

the transformer connection. Do always follow the enclosed information.

Audio system with 4 + N wires installation.

Just 1 TF-104 transformer (12Va.c., 1.5A).

Electronic call with acoustic acknowledgement signal.

a.c. lock releases activation.

OUp to three telephones in the same apartment.

INTRODUCTION

SYSTEM CHARACTERISTICS

SYSTEM OPERATION

STARTING RECOMMENDATIONS

2DOOR PANEL INSTALLATION

mbedding box positioning.

1650

1850

1450

The upper part of the door panel should be placed at 1,65m. height roughly. The hole dimensions

will depend on the number of door panel modules.

The door panel has been designed to be placed under most of the environmental conditions.

However it's recommended to take additional cautions like rainproof covers.

140

235

Modules

280

235

420 mm.

235 mm.

57 mm.

reparing the cables entry.

Break the bottom flange to pass the cables through. In case of door panels

with more than one embedding box, break the side flanges and

attach the embedding boxes using UC junctions.

DOOR PANEL INSTALLATION DOOR PANEL INSTALLATION

old the door panel on the embedding box.

Insert the hinge in the embedding box lockers.

Press the hinge ends to insert them in the door panel

lockers as shown.

oor panel wiring.

Open the terminal connector cover and connect

the wires as shown on the installation diagram.

In case of door panels with more than one module

link the main module with the push buttons modules

through the UC junctions and wire them as shown

on page 7.

lace the embedding box.

Pass the wiring through the hole made in the bottom part

of the embedding box. Level and flush the embedding

box. Once the embedding box is placed, remove the

protective labels from the attaching door panel holes.

Telephone Door panel

lace the nameplate labels.

inal adjustments.

If after starting the system it's considered that

the audio volume isn't correct, proceed

with the necessary adjustments as shown.

lose the door panel.

Fix the door panel to the embedding box

by using the supplied vandal resistant screws

and the special screwdriver.

POWER SUPPLY INSTALLATION

LOCK RELEASE INSTALLATION

nstalling the TF-104 transformer.

To install the transformer directly on the wall,

insert the fixing flanges.

Drill two holes of Ø6mm. and

insert the wallplugs.

Fix the transformer with the specified

screws.

The transformer can be installed on a DIN guide (3 units) simply pressing it.

To disassemble the transformer from the DIN guide, use a plain screwdriver to lever

the flange as shown on the picture.

The transformer must be installed in a dry and

protected place. It's recommended to protect

the transformer by using a thermo-magnetic

circuit breaker.

DIN 46277

ock release installation.

If the lock release will be installed in a metal door, use a

Ø3,5mm. drill and tap the hole. In case of wood door,

use a Ø3mm. drill.M 4 x 8

f3,5 x 25

DIN-7972

DIN-963

TELEPHONE INSTALLATION

Telephone handset.

Speaker grille.

Microphone hole.

Subjection hole.

Telephone cord connectors.

Door release push button.

Hook switch.

To open the telephone insert

a plain screwdriver into the slots and

rotate it as shown.

Avoid to place the telephone near to heating sources,

in dusty locations or smoky environments.

The telephone can be fixed using an electrical embedding

box or directly on the wall, as shown on the picture.

If the telephone will be installed directly over the wall,

drill two holes of Ø6mm. on the specified positions,

using 6mm. wallplugs and Ø3,5 x 25mm. screws.

Pass the installation wires through

the corresponding hole and

connect them as shown on the

installation diagrams.

Close the telephone as shown on the picture.

Once the telephone is closed, connect the handset

using the telephone cord and put it on the craddle.

escription of the T-900 telephone.

f3,5 x 25

DIN-7971

f3,5 x 25

DIN-7971

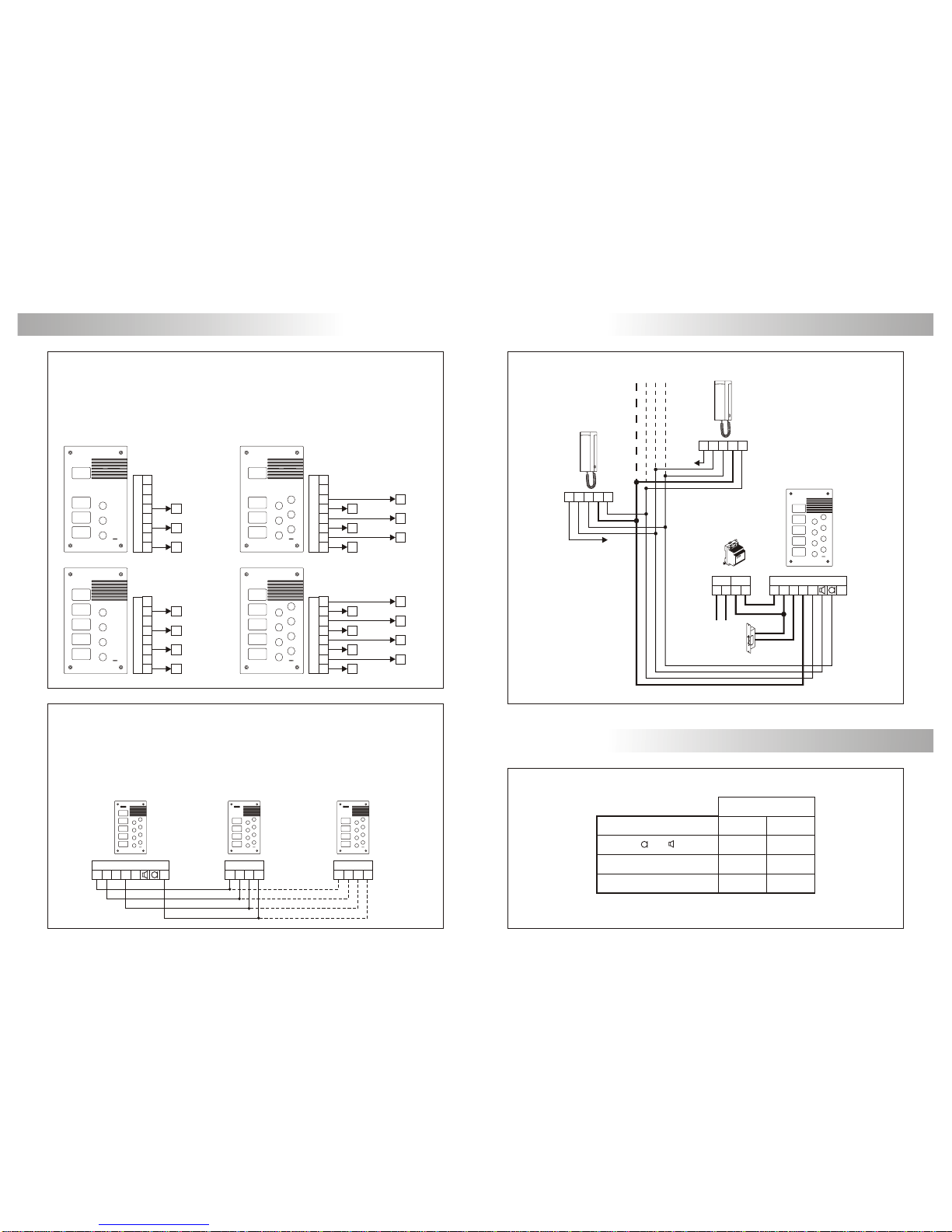

INSTALLATION DIAGRAM 7INSTALLATION DIAGRAM

Tel. 1 Tel. 1 Tel. 2

Tel. 2 Tel. 3 Tel. 4

Tel. 3 Tel. 5 Tel. 6

Tel. 4 Tel. 7 Tel. 8

CN1

N8 N8

N7 N7

N6 N6

N5 N5

0 0 0

N4 N4

N3 N3

0 0 0

N2 N2

N1 N1

0 0 0

CN2 CP

~1 ~2 CN2 CP

~1 ~2

CN2

CV CPP

~1 ~2

PE-295/3 PE-295/6 ~ CA-295/6

PE-295/4 PE-295/8 ~ CA-295/8

N1 N2

N1 N1 N2

N3 N3

N5 N5

N7 N7

inking the push buttons modules.

ush buttons wiring.

In case of door panels with more than one module, wire the push buttons modules

with the main module as shown below.

IMPORTANT NOTICE: the enclosed pictures draw the correspondence between each push

button and its corresponding terminal on the CN1 connector. Terminals without arrow

are not connected.

Main module 1st push buttons module 2nd push buttons module

SECTIONS CHART

ind. 1

ind. 2

TF-104

SEC

PRI ~~

Main

CN2

CV CPP

~1 ~2

PE-295/xx panel

ne access door.

ections chart.

0, ind, 5, , 10, , P, P1 0,25mm² 0,50mm²

0,50mm² 1,00mm²

1,00mm² 2,50mm²

Terminal 100m.

Maximum distance

300m.

–, 3

~1, ~2, CV

For longer distances than the specified contact with your distributor.

TROUBLESHOOTING HINTS

CV CPP

~1 ~2

ind.

0 010 105 53 3P1 P1

arallel telephones installation.

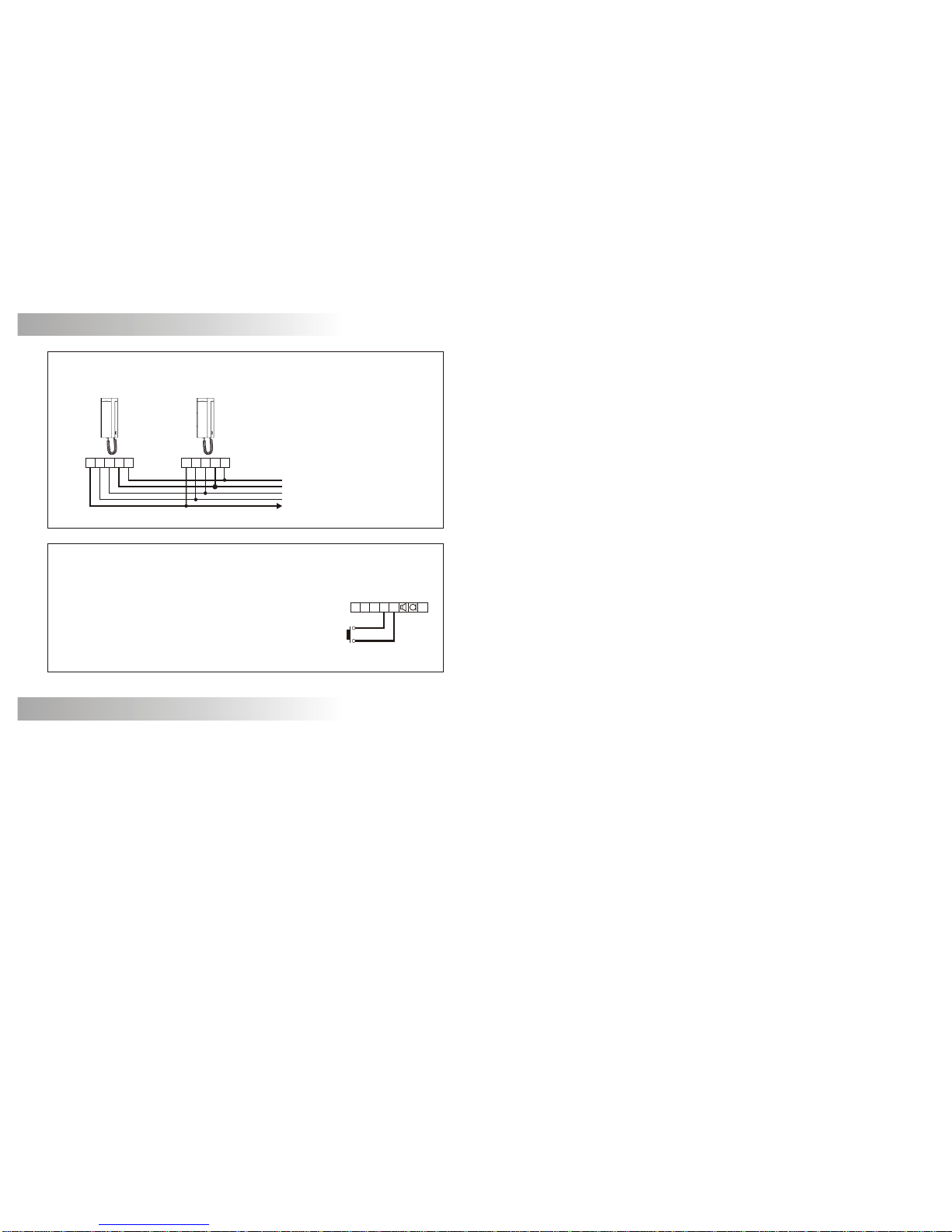

PThe maximum number of telephones placed

in the same apartment is three.

For each telephone placed in parallel

the section corresponding to the call wire

must be doubled.

OPTIONAL CONNECTIONS

xternal lock release activation.

The lock release can be activated at any moment by using

an external push button, that must be connected between

'–' y 'P' terminals of the main module.

This function will allows to exit from the building

being not necessary the use of a key.

ONothing operates.

wCheck the output transformer voltage between SEC terminals: it should have 12 to 17Va.c. If

not, disconnect the transformer from the installation and measure again. If it's correct now,

it means there is a short circuit in the installation: disconnect the transformer from mains

and check the installation.

OInappropriate audio level.

wAdjust the level volumes as shown on page 4. In case of feedback, reduce the audio levels

until feedback fade out.

ODoor open function no operates.

wDisconnect the lock release from the main module and short-circuit terminals ' ' and 'P': at

that moment the output voltage between terminals 'CV' and '~2' of the main module

should be 12Va.c. If it's so check the lock release, its wiring and the wiring of the terminal

'P' from the main module to the telephones. If these tests don't solve the problem, replace

the main module.

ONo telephones receive the call or acknowledgement call signal is not reproduced.

wCheck that the call wires are connected to a valid terminals. In case of door panels with push

buttons modules, check the 'CP' terminal connection to the main module. Both procedures

are described on page 7.

–

Golmar se reserva el derecho a cualquier modificación sin previo aviso.

Golmar se réserve le droit de toute modification sans préavis.

Golmar reserves the right to make any modifications without prior notice.

golmar@golmar.es

www.golmar.es
