Goldmedal 2174EL/ER Manual de usuario

Part No. 46147

Revised April 2005

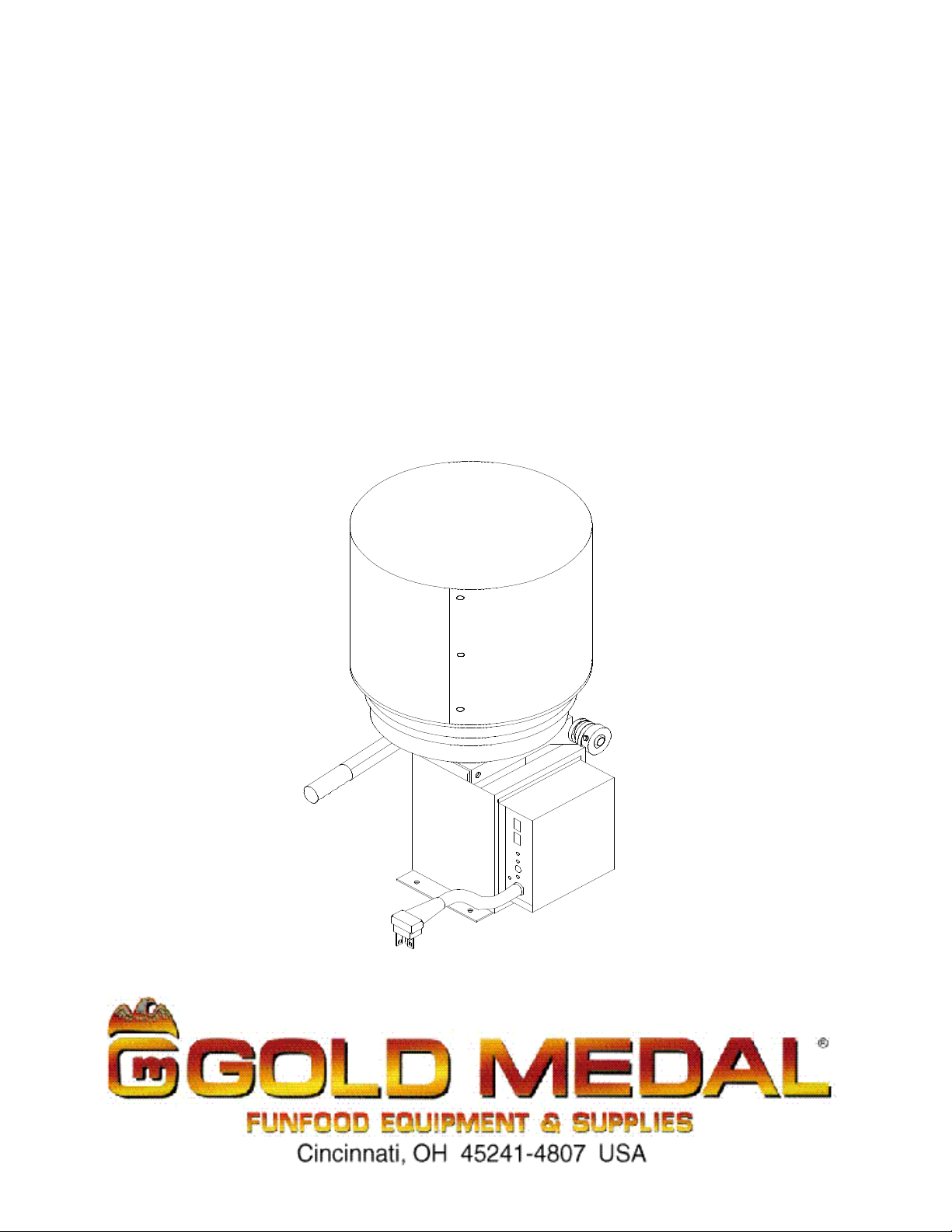

CORN TREAT , COMBO KANDY

KING, AND PRALINATOR

Instruction Manual

Model #2174EL/ER & 2175EL/ER

Model #2183EL/ER & 2182EL/ER

Model #2180EL/ER & 2181EL/ER

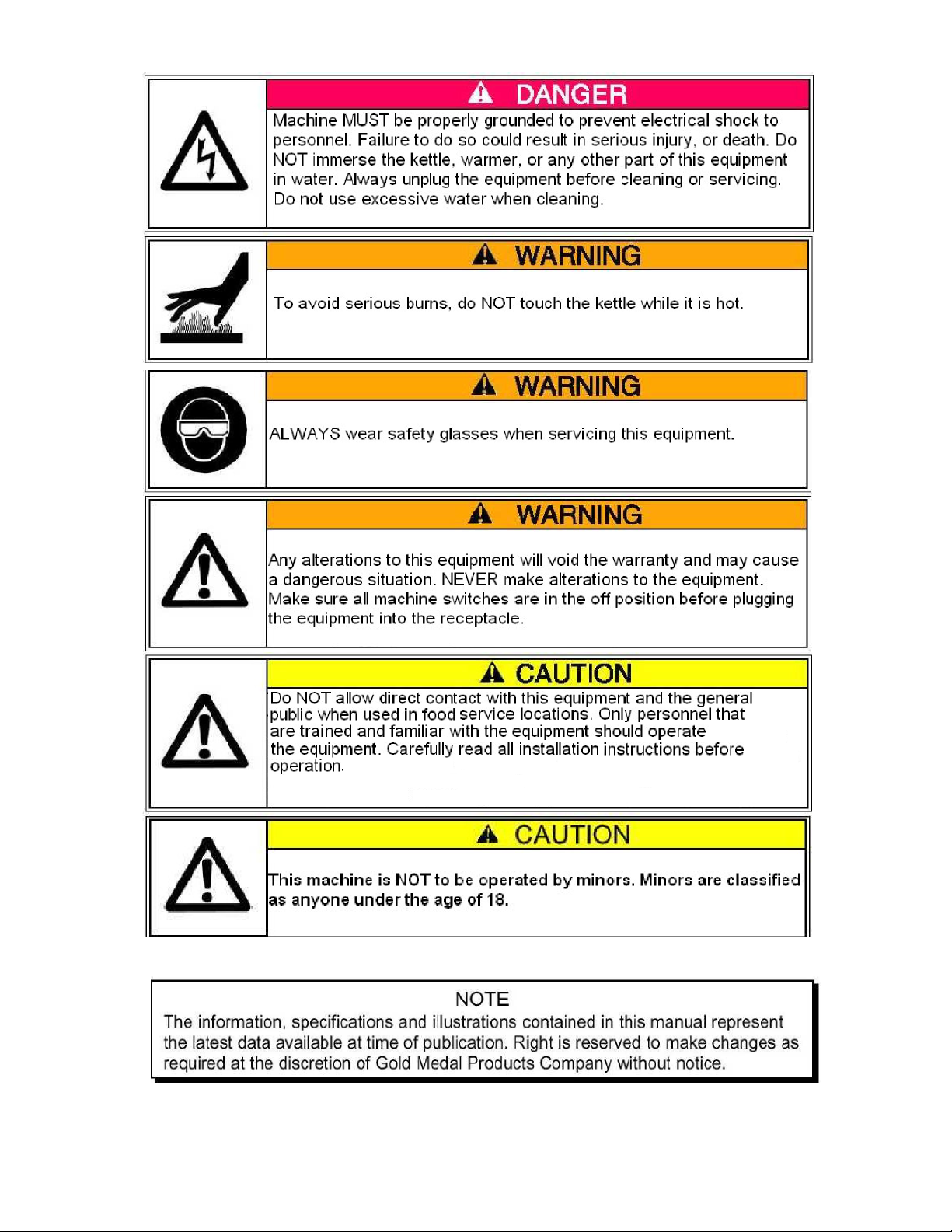

SAFETY PRECAUTIONS

CORNTREAT, PRALINATOR, AND COMBO KANDY KING

MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,

2181EL/ER, 2183EL/ER, 2182EL/ER

TABLE OF CONTENTS

Section…………………………………………………….……...PG

Corn Treat……………………………………………………………………..10

Pralinator………………………………………………………………………15

Combo Kandy King…………………………………………………………...19

CORNTREAT, PRALINATOR, AND COMBO KANDY KING

MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,

2181EL/ER, 2183EL/ER, 2182EL/ER

Digital Corn Treat, Pralinator, and Combo Kandy King

RH Corn Treat Model Shown – from Operator Side

Digital

Model

Description Power Requirements Plug

2174EL LH Corn Treat 120V-1908 watts 20 amp (NEMA 5-20P)

2174ER RH Corn Treat 120V-1908 watts 20 amp (NEMA 5-20P)

2175EL LH Corn Treat 120/208v or 120/240v – 3380watts

20 amp 4 wire (L14-20P)

2175ER RH Corn Treat 120/208v or 120/240v - 3380watts

20 amp 4 wire (L14-20P)

2180EL LH Pralinator 120V-1908 watts 20 amp (NEMA 5-20P)

2180ER RH Pralinator 120V-1908 watts 20 amp (NEMA 5-20P)

2181EL LH Pralinator 120/208v or 120/240v - 3380watts

20 amp 4 wire (L14-20P)

2181ER RH Pralinator 120/208v or 120/240v - 3380watts

20 amp 4 wire (L14-20P)

2183EL LH Combo Kandy King 120V-1908 watts 20 amp (NEMA 5-20P)

2183ER RH Combo Kandy King

120V-1908 watts 20 amp (NEMA 5-20P)

2182EL LH Combo Kandy King 120/208v or 120/240v - 3380watts

20 amp 4 wire (L14-20P)

2182ER RH Combo Kandy King

120/208v or 120/240v - 3380watts

20 amp 4 wire (L14-20P)

2175XEL

LH Corn Treat 230v - 3380watts 3 conductor Schuko

2175XER

RH Corn Treat 230v – 3380watts 3 conductor Schuko

2181XEL

LH Pralinator 230v - 3380watts 3 conductor Schuko

2181XER

RH Pralinator 230v - 3380watts 3 conductor Schuko

2182XL LH Combo Kandy King 230v - 3380watts 3 conductor Schuko

2182XR RH Combo Kandy King

230v - 3380watts 3 conductor Schuko

Features:

• Digital Display Temperature Control

• Combo Kandy King models include Drums and Paddles for Nuts and Caramel Corn

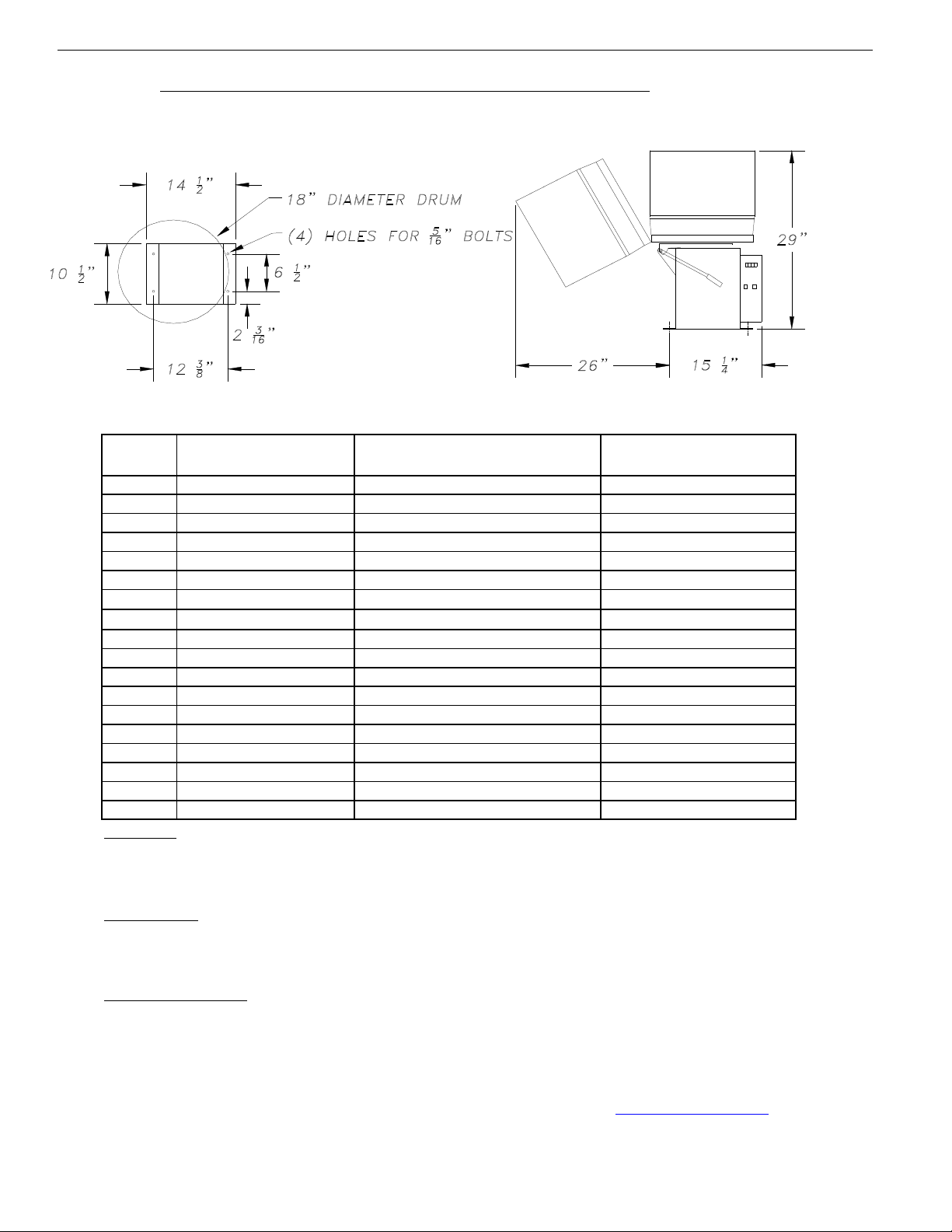

Dimensions:

Dimensions shown above are for the Corn Treat (caramel corn) Mode

For Pralinators, the height from the base is 8” shorter or 23”.

Agency Approvals: U.L., NSF

Gold Medal Products Co.

10700 Medallion Drive

Cincinnati, Ohio 45241-4807

Phone: 513-769-7676 fax: 513-769-8500 e-mail: www.gmpopcorn.com

11/02

CORNTREAT, PRALINATOR, AND COMBO KANDY KING

MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,

2181EL/ER, 2183EL/ER, 2182EL/ER

FORWARD

This manual covers the Digital Corn Treat, Pralinator, and Combo Kandy King (both floor models and units)

with the stationary 2174EL/ER, 2175EL,ER, 2180EL/ER, 2181EL/ER, 2183EL/ER, 2182EL/ER. You can be

very proud of your product. In addition to being an attractive "eye catcher", it contains various engineering

innovations which make it the leader in the industry. The exterior of the machine is designed and built-up to

present an attractive appearance for many years.

INSTALLATION

CHECKING SHIPMENT

Unpack the shipping crate and check thoroughly for any damage which may have occurred in

transit. Any claims should be filed immediately with the transportation company.

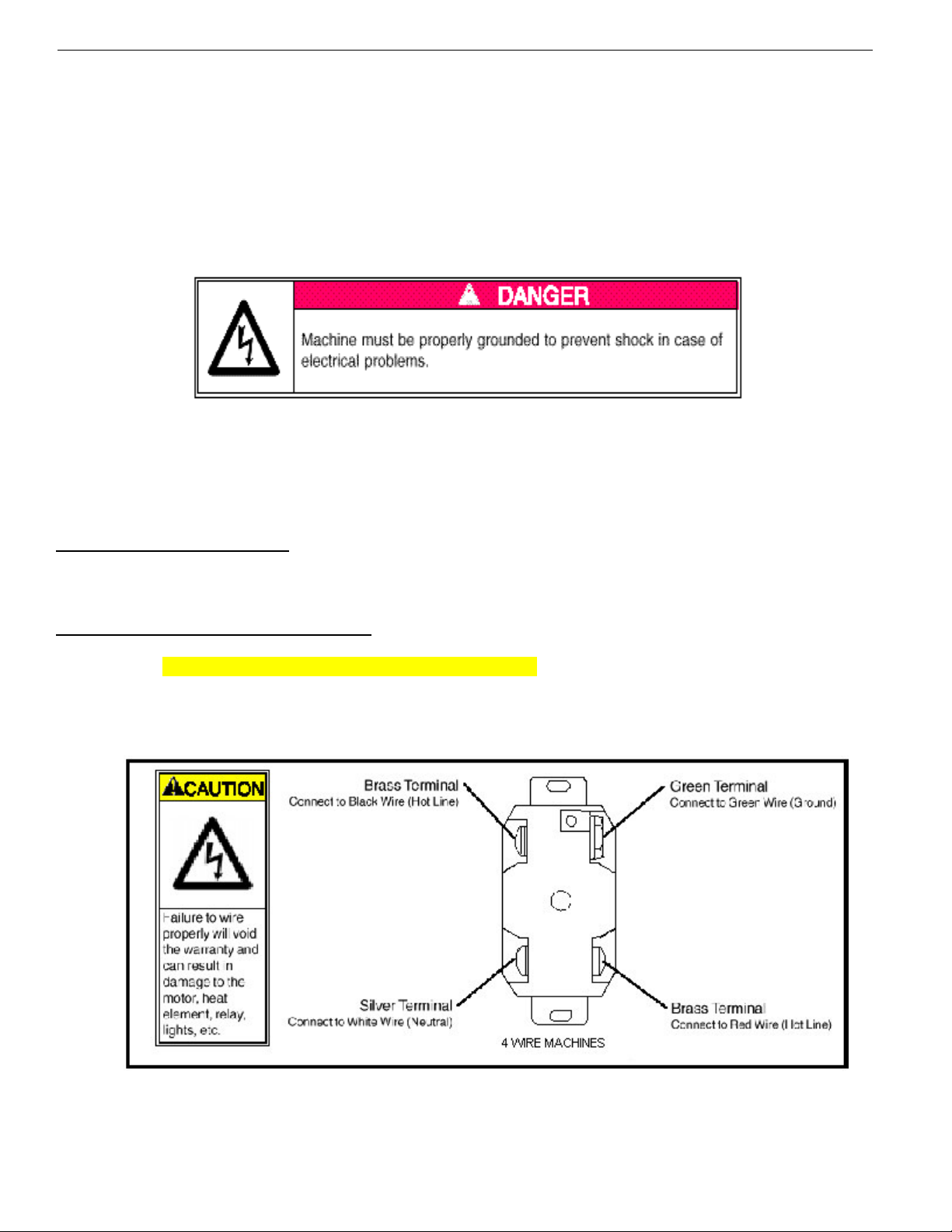

ELECTRICAL REQUIREMENTS

Voltage for the 2174EL/ER, 2180EL/ER, 2183EL/ER is 120 volt, 60 cycle single phase. A wall receptacle is

not supplied. Only for the 2175EL/ER, 2181EL/ER, 2182EL/ER This receptacle will accept the attachment

plug on your machine and must be used. The machine will draw a maximum of 20amps. Your electrician

must finish sufficient current for the proper operation of your machine. We recommend that this machine be

fused on a line by itself.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING

MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,

2181EL/ER, 2183EL/ER, 2182EL/ER

CONTROLS AND THEIR FUNCTION

HEAT SWITCH

This rocker switch in the “ON” position energizes the heating elements in the bottom of the kettle.

MOTOR SWITCH

With this rocker switch in the “ON” position, the agitator motor will run continuously.

PRALINATOR/CORN TREAT SWITCH

This rocker switch in the Pralinator position and the motor switch off will run the agitator motor 55 seconds

of every minute. In the Corn Treat position, the agitator motor will run 15 seconds of every minute.

HEAT CONTROL

The machine comes from the factory preset at either 280°F for Corn Treat Centers or 310°F for Pralinators.

If more or less heat is required, remove the silver hole plug or cover plate located on the front panel of the

control box. This will allow you to access the heat control adjustment potentiometer. Turn the

potentiometer clockwise to increase the temperature.

To calibrate the heat control for corn treat, Fill the mixing bowl with a one inch depth of corn oil. Use an

accurate thermometer to measure the temperature of the oil in the mixing bowl. Stir the oil while it heats.

When the oil reaches 280°F slowly turn the potentiometer counter clockwise until the buzzer sounds. If the

buzzer sounds before the temperature reaches 280°F turn the potentiometer clockwise until the buzzer

stops and continue to turn an additional 1/8 of turn.

To calibrate the digital control for Pralinator follow the above instructions except use a final oil temperature

of 310°F.

Note: The sound of the buzzer always signals temperature cut-off.

CARE AND CLEANING

STEAM CLEANING

The easiest way to clean the kettle is to pour 8 ounces of water into the kettle while it is still hot. Place the

lid back on the kettle. Let it steam for approximately ten minutes. Remove the lid and dump out the water.

You will probably have to steam the kettle twice to remove all traces of product. Releasing the draw latch

makes the mixing drum easy to remove for cleaning. The mixing drum can be taken to the sink to clean.

The cabinet of your machine should be wiped cleaned daily; or more, depending on your usage.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING

MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,

2181EL/ER, 2183EL/ER, 2182EL/ER

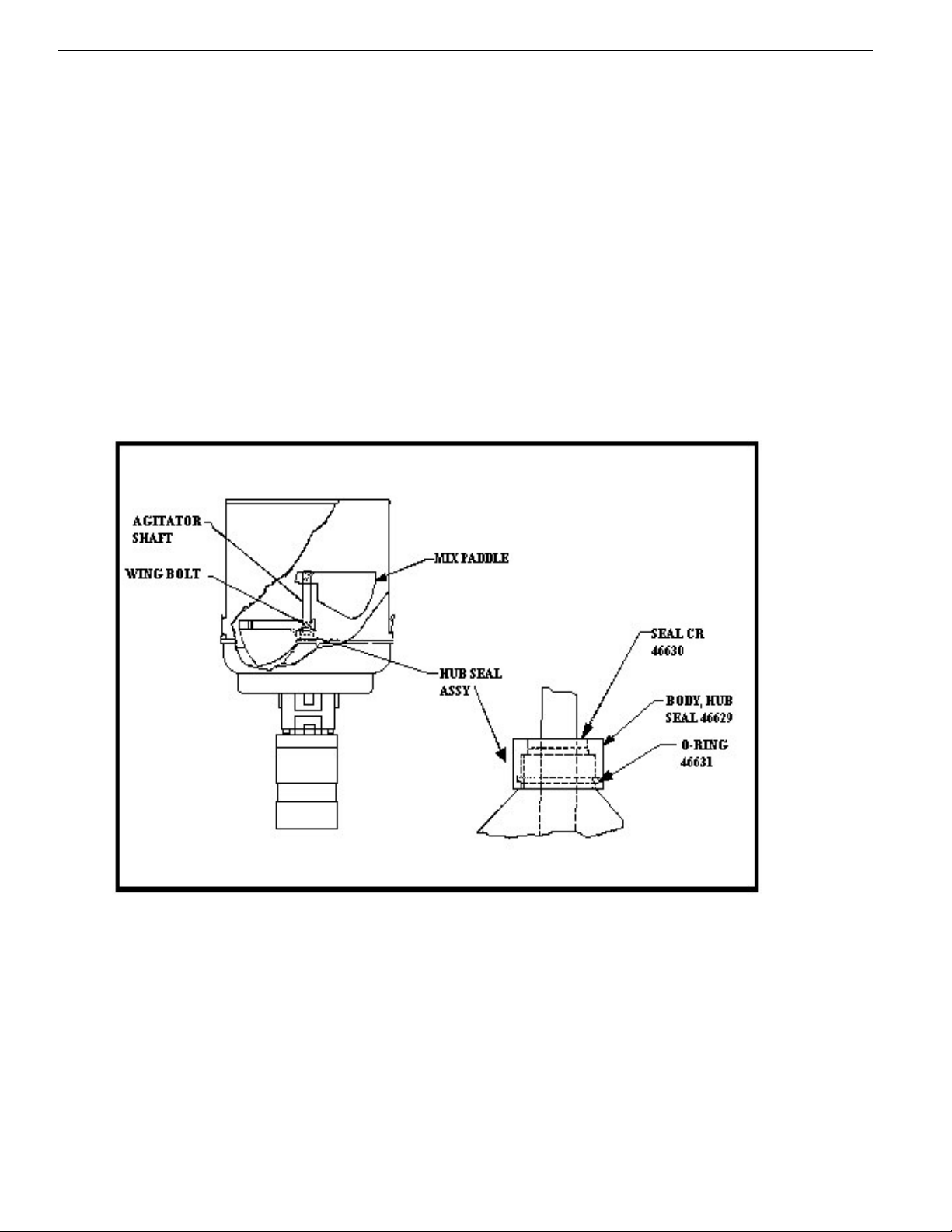

NEW PADDLE & HUB SEAL KIT INSTALLATION

1. Unscrew the wing bolts and remove both mix paddles.

2. Remove the old hub seal assembly.

3. Clean the area around the center hub. Clean up all food and carbon residue.

4. Remove any burrs on the top edge of the center hub. Use a fine grit emery paper to lightly sand the

surface. If the burrs are not removed, damage may occur to the hub assembly during installation.

5. Lightly lubricate the center hub of the kettle with a small amount of vegetable oil to allow for easy

installation of the hub seal assembly.

6. Slide the hub seal assembly down the agitator shaft. Apply pressure to ease the assembly over the

center hub of the kettle until it seats properly. (See diagram below.)

7. After the hub seal assembly has been properly installed, place the new mix paddle on the bottom and

one existing paddle on the top of the agitator shaft.

8. Replace the wing bolts and finger tighten.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING

MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,

2181EL/ER, 2183EL/ER, 2182EL/ER

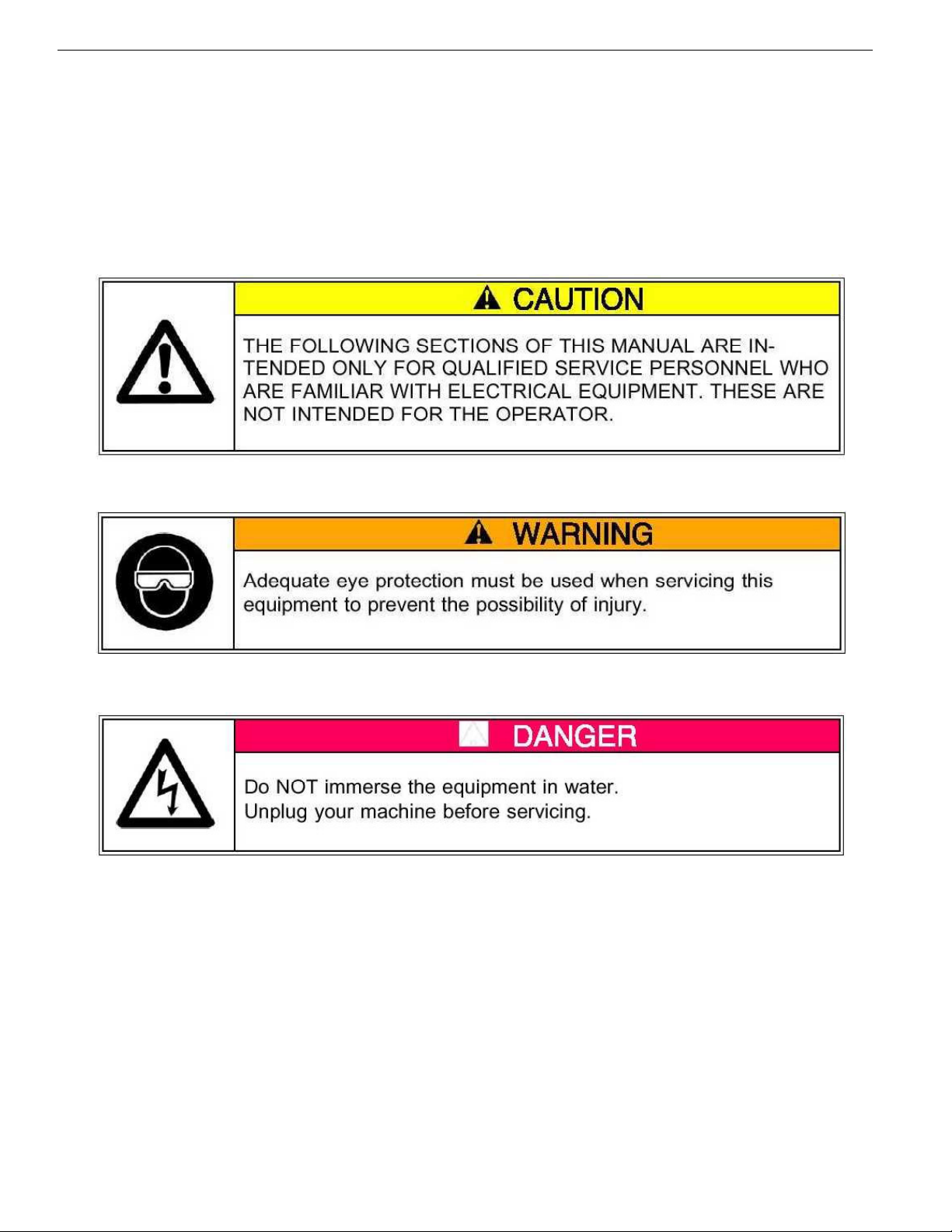

MAINTENANCE INSTRUCTIONS

CORNTREAT, PRALINATOR, AND COMBO KANDY KING

MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,

2181EL/ER, 2183EL/ER, 2182EL/ER

ORDERING SPARE PARTS

1. Identify the needed part by checking it against the photos, illustrations, and/or the parts list.

2. When ordering, please include part number, part name, and quantity needed.

3. Please include your model name, serial number, and date of manufacture (located on the machine

nameplate) with your order.

4. Address all parts orders to:

Parts Department

Gold Medal Products Co.

10700 Medallion Drive

Cincinnati, Ohio 45241-4807

or, place orders at:

(800) 543-0862

(513) 769-7676

Fax: (513) 769-8500

E-mail: [email protected]

Web Page: www.gmpopcorn.com

CORNTREAT, PRALINATOR, AND COMBO KANDY KING

MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,

2181EL/ER, 2183EL/ER, 2182EL/ER

CORN TREAT SECTION

INSTRUCTIONS FOR MAKING CARAMEL CORN

1. Set the heat controller to for the Corn Treat Temperature. (for Combo Kandy King only)

2. Set the Pralinator/Corn Treat switch to the Corn Treat position (for Combo Kandy King only).

3. Turn the heat switch "ON".

4. Add 10-12 ounces of water, one carton of Gold Medal Caramel Corn Mix and four (4) cups of granulated

sugar.

NOTE: When using the Gold Medal "One Step" Caramel Corn Mix, do NOT add granulated sugar.

5. Turn the motor switch "ON" and mix for approximately one minute. Turn the motor switch "OFF". (With

the heat switch "ON" the motor will run for 15 seconds every minute.)

6. Add four (4) ounces of stick coconut oil or vegetable oil.

7. Allow the mix to cook until the buzzer sounds at 280°F product temperature.

8. Turn the heat switch "OFF".

9. Turn the motor switch "ON".

10. Add five gallons of pre popped corn.

11. Allow the corn to mix for approximately thirty (30) seconds with the kettle in the upright position.

12. Move the kettle to the mix position and mix the popcorn until it is thoroughly coated.

13. Dump the caramel corn into the cooling pan.
