Goldmedal 2018 Manual de usuario

Part No. 79434

Instruction Manual

10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA

Excalibur Hot Wand

Model No. 2018, 2018EX

Excalibur Hot Wand Model No. 2018, 2018EX

Page 2

gmpopcorn.com

SAFETY PRECAUTIONS

Excalibur Hot Wand Model No. 2018, 2018EX

Page 3

gmpopcorn.com

INSTALLATION INSTRUCTIONS

Inspection of Shipment

After unpacking, check thoroughly for any damage which may have occurred in transit. Claims

should be filed immediately with the transportation company. The warranty does not cover

damage that occurs in transit, or damage caused by abuse, or consequential damage due to the

operation of this machine, since it is beyond our control.

Setup

Remove all packing material and tape before starting operation.

Electrical Requirements

The following power supply must be provided:

2018: 20Volts, 400 Watts

2018EX: 240Volts, 400 Watts

DANGER

Machine must be properly grounded to prevent electrical

shock to personnel. Failure to do so could result in serious

injury, or death.

Do NOT immerse any part of this equipment in water.

Do NOT use excessive water when cleaning.

Keep cord and plug off the ground and away from

moisture.

Always unplug the equipment before cleaning or servicing.

Your electrician must furnish sufficient power for proper machine operation. We recommend

this equipment be on a dedicated and protected circuit. Failure to wire properly will void the

warranty and may result in damage to the machine. It is Gold Medal Products Company’s

recommendation that this machine be plugged directly into a wall outlet. The use of extension

cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced

performance.

Before You Plug In Machine

. Make sure all machine switches are in the OFF position before plugging the equipment

into the receptacle.

2. Make sure the wall outlet can accept the grounded plugs (where applicable) on the

power supply cord.

3. The wall outlet must have the proper polarity. If in doubt, have a competent

electrician inspect the outlet and correct if necessary.

4. DO NOT use a grounded to un-grounded receptacle adapter.

5. Install the unit in a level position.

Excalibur Hot Wand Model No. 2018, 2018EX

Page 4

gmpopcorn.com

OPERATING INSTRUCTIONS

. The Excalibur Hot Wand has been designed to melt coconut popping oil in a 50lb pail.

To use, carefully remove lid from metal oil pail.

2. Plug hot wand into an appropriate outlet, as described above under electrical

requirements.

3. Gently push hot wand into the congealed oil by pushing down on the wooden handles.

4. When oil has melted unplug hot wand from outlet, and remove from the oil pail.

5. Carefully place the hot wand on a stainless steel surface and allow it to cool.

WARNING

To avoid serious burns, DO NOT touch the hot wand when

it is plugged in.

Excalibur Hot Wand Model No. 2018, 2018EX

Page 5

gmpopcorn.com

CARE AND CLEANING

. Unplug the machine and allow it to cool before cleaning

2. Wipe the stainless steel down with a warm, soapy cloth.

3. Make sure to clean the wooden handles in order to sanitize them before each use.

DANGER

Machine must be properly grounded to prevent electrical

shock to personnel.

DO NOT immerse in water.

Always unplug the equipment before cleaning or servicing.

Good sanitation practice demands that all food preparation equipment be cleaned regularly. A

clean looking, well-kept machine is one of the best ways of advertising your product.

Excalibur Hot Wand Model No. 2018, 2018EX

Page 6

gmpopcorn.com

MAINTENANCE INSTRUCTIONS

DANGER

Improper installation, adjustment, alteration, service, or

maintenance can cause property damage, injury or death.

Read the installation, Operating, and Maintenance

Instructions thoroughly before installing or servicing this

equipment.

DANGER

Do Not immerse the equipment in water. Unplug your

machine before servicing.

WARNING

Adequate eye protection must be used when servicing this

equipment to prevent eye injury.

CAUTION

THE FOLLOWING SECTIONS OF THIS MANUAL ARE

INTENDED ONLY FOR QUALIFIED SERVICE

PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL

EQUIPMENT. THESE ARE NOT INTENDED FOR THE

OPERATOR.

Excalibur Hot Wand Model No. 2018, 2018EX

Page 7

gmpopcorn.com

ORDERING SPARE PARTS

. Identify the needed part by checking it against the photos, illustrations, and/or

parts list.

2. When ordering, please include part number, part name, and quantity needed.

3. Please include your model number, serial number, and date of manufacture (located

on the machine nameplate) with your order.

4. Address all parts orders to:

Parts Department

Gold Medal Products Co.

0700 Medallion Drive

Cincinnati, Ohio 4524 -4807

Or, place orders by phone or online:

Phone: (800) 543-0862

(5 3) 769-7676

Fax: (800) 542- 496

(5 3) 769-8500

E-mail: [email protected]

Web Page: www.gmpopcorn.com

Excalibur Hot Wand Model No. 2018, 2018EX

Page 8

gmpopcorn.com

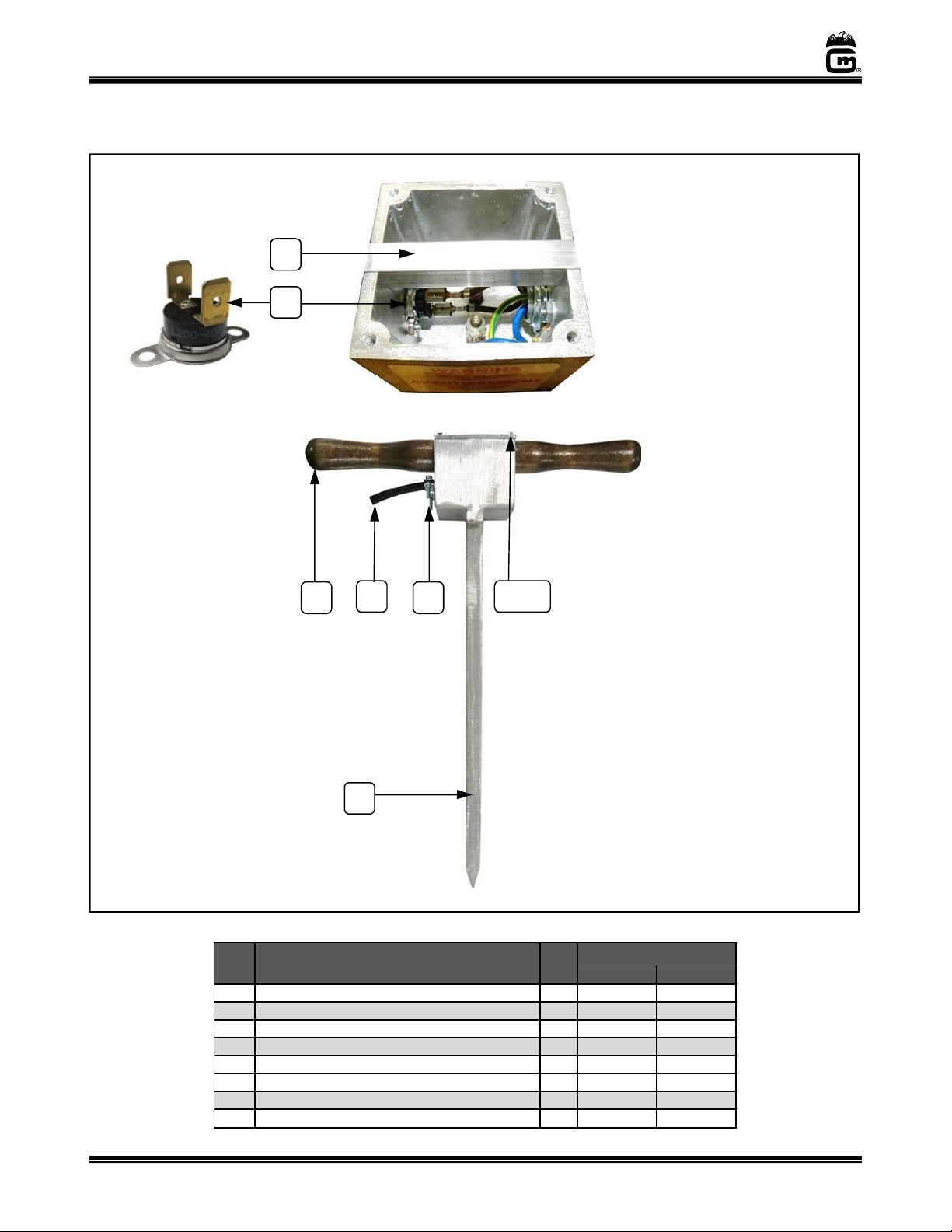

Wand Breakdown

2018

2018EX

HOT WAND 79056 79088

2 WOOD HANDLE 2 50 0 50 0

3 LEAD-IN CORD 87085 42369

4 STRAIN RELIEF T&B #3302 89045 89045

5 JUNCTION BOX COVER 79057 79057

6 8-32 X /2 SLOTTED H W H 4 49379 49379

7 HIGH LIMIT THERMOSTAT 79058 79058

8 HANDLE BAR 79059 79059

Qty.Part DescriptionItem Part Number

5, 6

Excalibur Hot Wand Model No. 2018, 2018EX

Page 9

gmpopcorn.com

WIRING DIAGRAMS

Model No. 2018

Excalibur Hot Wand Model No. 2018, 2018EX

Page 10

gmpopcorn.com

Model No. 2018EX
