Godex EZ-2P Manual de usuario

EZ-4TT/4TK/2P/4P

User’s Manual

FCC COMPLIANCE STATEMENT

FOR AMERICAN USERS

This equipment has been tested and found to comply with the limits for a CLASS A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at his

own expense.

EMS AND EMI COMPLIANCE STATEMENT

FOR EUROPEAN USERS

This equipment has been tested and passed with the requirements relating to electromagnetic

compatibility based on the standards EN50081-1 (EN55022 CLASS B) and EN50082-1 (IEC

Teil 2,3,4). The equipment also tested and passed in accordance with the European Standard

EN55022 for the both Radiated and Conducted emissions limits.

Specifications are subject to change without notice.

GODEX INTERNATIONAL CO.,LTD

User’s Manual

Bezeichnung

(Type Designation) : NW66-1355000UA , AD-1354000AV ,

NW66-1354000UA

Nennspannung

(Rated Voltage) : AC 230V, 50Hz

Nennausgangsspannung

(Rated Output Voltage) : AC 13.5V

Nennausgangsstrom

(Rated Output Current) : 4A

Nennausgangsleistung

(Rated Output Power) : 54VA

Schutzklasse

(Protection Class) : I I

Kennzeichnung

(Characteristics) : Fail-Safe

1. Bitte lesen Sie diese Hinweise sorgfaltig durch.

2. Dieses Gerät ist vor Feuchtigkeit zu schützen.

3. Die Belüftungsöffnungen dienen zur Luftzirkulation, die das Gerät vor Überheitzung

schützen.

Sorgen sie dafür, daß diese Öffnungen nicht adgedeckt werden.

4. Durch die Belüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das

Gerät

Gelangen.

5. Dieses Gerät kann bis zu einer Umgebungstemperatur von maximal 25°C betrieben

werden.

6. Die Ausgangswerte dürfen nicht die auf dem Typenschild angegebenen Werte

überschreiten.

7. Die Steckdose mußsich nahe dem Gerät befinden und leicht zugänglich sein.

8. Nur zur Verwendung in trockenen Räumen.

9. Eine beschädigte Anschlußleitung kann nicht erstzt werden.

Der Transformator darf nicht mehr betrieben werden.

10. Der Ausgangsstromkreis muß nach den gültigen lnstallationsvorschriften installiert und

geschützt sein.

PART I. EZ-4TT SERIES PRINTER 4

1. ABOUT THE PRINTER......................................................4

1-1. INTRODUCTION.......................................................................4

1-2. GENERAL SPECIFICATIONS......................................................4

1-3. CONTENTS.............................................................................5

1-4. EZ-4TT PRINTER PARTS.......................................................5

2. SETTING UP YOUR PRINTER.............................................7

2-1. RS-232 DIP-SWITCH SETTING-UP .........................................7

2-2. LOADING THE RIBBON.............................................................7

2-3. LOADING LABEL ROLL.............................................................8

2-4. TO CONNECT THE PRINTER TO AN INTERFACE.......................10

2-5. USING THE STRIPPER............................................................10

2-6. SELF TEST...........................................................................13

2-7. TO INSTALL MEMORY CARD..................................................14

2-8. TO INSTALL THE CUTTER......................................................14

3. MAINTENANCE AND ADJUSTMENTS.................................15

3-1. CLEANING THE PRINTER HEAD...............................................15

3-2. ADJUSTING GAP SENSOR SENSITIVE .....................................15

3-3. ADJUSTING THE START PRINT POSITION................................16

3-4. ADJUSTING THE PRINTER HEAD PRESSURE SCREWS............16

APPENDIX A. TROUBLESHOOTING......................................17

Part I. EZ-4TT Series Printer

1. About the Printer

1-1. Introduction

The EZ-4TT is designed in the concept of...

User friendly ----------------End user does not require training.

Features expandable ----Features are expandable by the user.

The EZ-4TT includes the following features.

?? Genuine 16-bit CPU with 16-bit circuit firmware design.

?? Maximum memory size up to 3.5M bytes, the user can install the memory module himself.

?? Two memory cartridges for maximum printing length up to 40 inches and for storage of label

formats, graphics, fonts etc.

?? Large label roll size for 10 inches O.D. up to 260 meters in length.

?? Turn-key solution. Free software bundled with every printer package, giving the complete

solution to End User, Sales Distributor, System Company and the System Programmer.

?? Small footprint.

?? Optional Time/Date clock.

?? Optional cutter.

1-2. General Specifications

Model (Print density) 203DPI 300DPI

Dimension 220 W x 255 H x 150 D mm –with internal label roll

220 W x 255 H x 405 D mm –with external label roll

Print method Thermal transfer printing and Direct thermal printing

Print Width 4.09” (104 mm) 4.268” (108.42mm)

Print speed 3” per second

Peel off function Standard (min. label height: 18mm) Option

Cutter (option) Optional, user-friendly installation no training needed.

Standard RAM 256K SRAM, 8” (203 mm) print

length 512K SRAM, 8” (203 mm) print

length

Flash card M1 (1MB) & M2 (2MB) for download label formats,

graphics and fonts etc.

SRAM card M3: 768K, 40” (1016

mm) print length

SRAM card M4: 512K, 17” (431

mm) print length

External Memory card

(option select by user)

Font card: Please check with your local dealer for available font

cards. The font card can be custom-made.

Smart graphics

management All graphics and logos are compatible with monochrome PCX or BMP

files, easy to download from PC by one simple COPY command.

Real time clock Time and Date print, resident time clock (option)

Width 4.64” (118 mm) maximum

Thickness

0.0025” (0.06 mm) minimum to 0.008” (0.2 mm) maximum

Type Roll-feed, die cut, continuous, fan-fold, tags or ticker for Thermal

transfer or Direct thermal use.

Core 1” core or option 3” core

Media

Handling

Length Internal roll 40 meters long (4” diameter)

External roll 260 meters long (10” diameter)

Model (Print density) 203DPI 300DPI

Width 4.33” (110 mm) maximumRibbon

Handling Type Wax, Wax-resin, Resin for full ribbons range application.

Core 0.5” (12.7 mm)

Diameter Maximum 1.7” (43 mm)

Length 150 meters in length

Fonts / Resident

features International character sets

Font are expandable, rotate, and down loadable

Optional for foreign character sets

Communication

interface Centronics parallel port and serial port are built in as standard serial

RS-232 (DB9 connector) at 4,800 to 38,400 baud rates XON/XOFF,

RTS/CTS handshaking.

Programmable 7 or 8 data length, 1 or 2 stop bits, selectable parity.

Bar codes Code 39, Code 93, Code 128 (subset A,B,C), UCC 128, UPC A / E

(add on 2 & 5), I 2 of 5, EAN 8 / 13 (add on 2 & 5), Codabar, Postnet,

EAN 128, RPS 128, DUN 14

2-D Bar codes Maxicode and PDF 417

Paper sensor types 1. Plain paper detector.

2. Label gap size detector.

3. Black-line reflect sensor detector.

4. Stripper sensor detector.

Working Environment Operating Temperature: 40?F to 104?F (5?C to 40?C)

Storage Temperature: -40?F to 140?F (-40?C to 60?C)

Humidity: 10% to 90% non condensing, free air

Power requirement AC 13.5V ~ 16.0V; 4A ~ 5A. DC 18.0V ~ 24.0V; 4A ~ 5A

1-3. Contents

Fig 1.3.1

1-4. EZ-4TT Printer Parts

Use the following diagram to familiarize yourself with the features and components of the

EZ-4TT printer. Parts List Table

Part

Description Part

Description

Front Cover 15

Stripper Arm (Adjustable Up/down)

Back Cover 16

Strip Sensor

Dust Cover for Interface Panel 17

Label Roll Core

Locking Tenon (2 EA, left/right) 18

Flash Memory Card (Optional)

Locking Tenon (2 EA, left/right) 19

Stripper Bar

LED Indicator 20

Stripper Roller

Paper Feed Button 21

Ribbon Supply Spindle

Parallel Port 22

Core Guide

Serial Port 23

Label Roll Stand (2 EA)

Parts List Table

Part

Description Part

Description

Power Jack 24

DIP Switch

Power Switch 25

Fan-Fold Media Entry

Ribbon Rewind Spindle 26

Label Guide (Adjustable Horizontally)

Printer Head Pressure Adjusting Screws 27

Gap Sensor Assembly

Printer Lock (2 EA, left/right) 28

Printer Head Assembly

Fig 1.4.1

Fig 1.4.2

Fig. 1.4.3

2. Setting up Your Printer

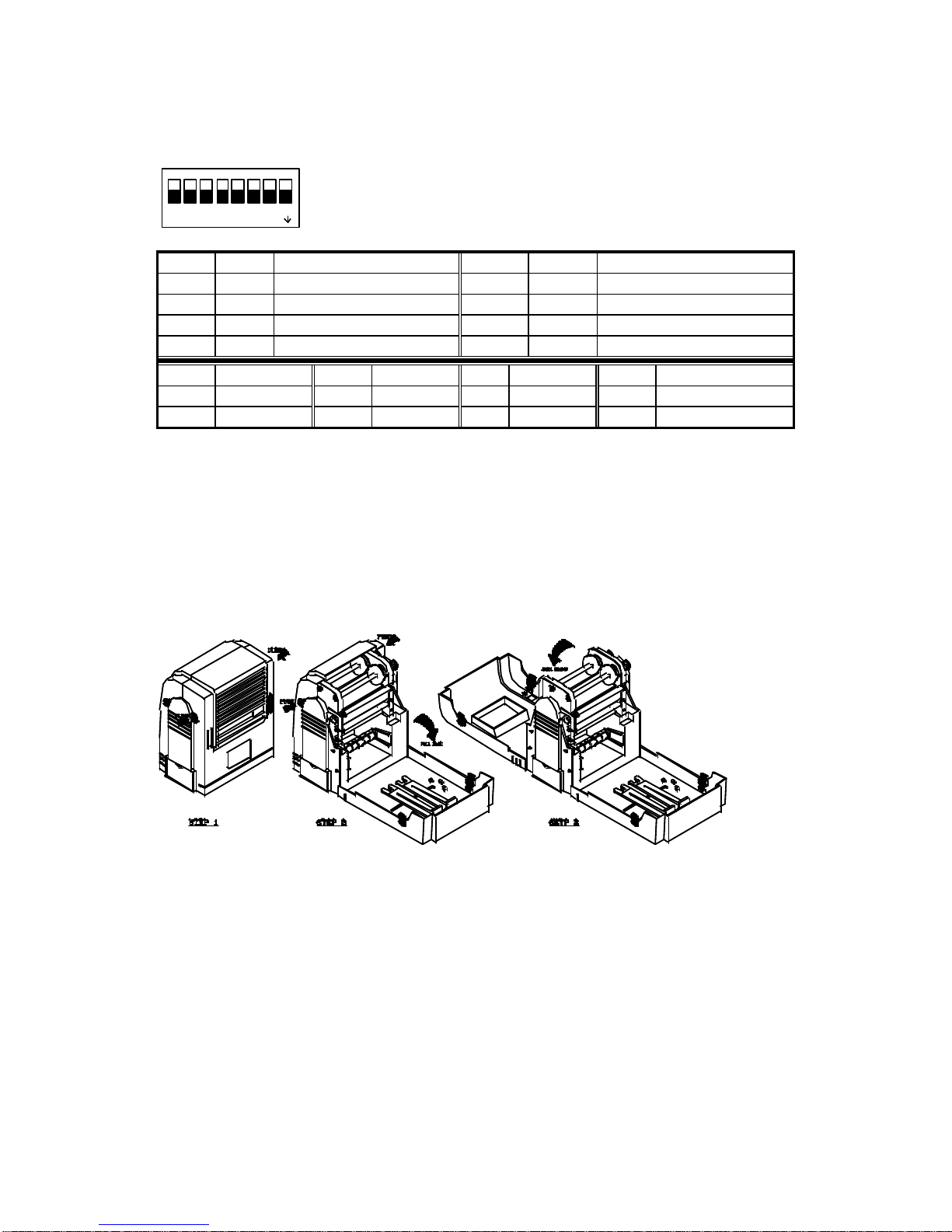

2-1. RS-232 DIP-switch Setting-up

DIP

1 2 3 4 5 6 7 8

Fig. 2.1 DIP-Switch (part 24)

Warning:

Power off before setting DIP-Switch.

SW1 SW2 baud rate SW3 SW4 parity

off off 4800 off off non parity

on off 9600 on off odd parity

off on 19200 off on even parity

on on 38400 on on no used

SW5 data length

SW6 stop bit SW7

cutter SW8 mode

off 7 bit off 1off disable off Thermal Transfer

on 8 bit on 2on enable on Direct Thermal

2-2. Loading the Ribbon

Only the Thermal Transfer Mode needs ribbon. If you choose the Direct Thermal Mode, just

install the direct thermal paper into your printer (see Chapter 2 Section 3). When choosing

Thermal Transfer Mode, follow these steps to load the ribbon.

1. Power off and choose Thermal Transfer Mode (SW8 off).

2. Open the back cover by pressing the two locking tenons on the left and right sides (part 5).

Lay down the back cover (see figure 2.2.1 step 2).

3. Open the front cover by pressing the two locking tenons on the left and right sides (part 4).

Lay down the front cover (see figure 2.2.1 step 3).

Fig. 2.2.1

4. By pressing toward the cap-side, take out the ribbon supply spindle (part 21) and the rewind

spindle (part 12). (see figure 2.2.2)

5. Install a new ribbon onto the supply spindle, and install a empty paper core onto the rewind

spindle (see figure 2.2.3)

6. Put back the supply spindle and the rewind spindle.

7. Press the two printer locks (part 14) to loosen the printer head assembly.

8. Turn over the head assembly. Pass the front edge of the new ribbon through between the

assembly and the strip sensor (part 16), then stick the front edge to the paper core of the

rewind spindle (see figure 2.2.4).

9. To load the label roll (see Chapter 2, Section 3).

10. Put back the printer head assembly and fasten it by pressing down from the top of it (see

figure 2.2.5).

11. Close the front cover and back cover.

12. Power on. Press the feed button (part 7) to feed out labels.

Fig. 2.2.2

Ribbon Rewind

Spindle Ribbon Supply

Spindle

Ribbon

empty paper core

Fig. 2.2.3

Fig. 2.2.4

Fig. 2.2.5

2-3. Loading Label Roll

A. Load a small label roll

1. Open the front cover and back cover.

2. Install a label roll onto the roll core (part 17).

3. Put back label roll into the core guide (see figure 2.3.1).

4. Press the printer locks (part 14) to loosen the printer head assembly.

5. Turn over the printer head assembly. Pass the front edge of the label roll through beneath

the gap sensor.

6. Adjust the label guide to close to the roll's edge (see figure 2.3.2).

7. Put back the printer head assembly and fasten it by pressing down from the top of it.

8. Close the front cover and back cover.

9. Press the feed button (part 7) to feed out labels.

Fig. 2.3.1 Fig. 2.3.2

We suggest that the minimum label height be more than 20 mm.

B. Load large label roll

1. Open the Front cover and back cover.

2. To load a label roll onto the roll core (part 17).

3. Remove the label roll stands (part 23). Vertically

place the two stands along the left side and right

side of the back cover (see Fig. 2.3.3).

4. Place the large-

size label roll on the stands (see Fig.

2.3.3).

5. Press the printer locks (part 14) to loosen the printer

head assembly.

6. Turn over the assembly. Pass the front edge of the

label roll through beneath the gap sensor (see figure

2.3.2).

7. Put back the printer head assembly and fasten it by

pressing down from the top of it.

8. Close the front cover.

9. Press the feed button (part 7) to feed out labels.

Fig. 2.3.3

Note: DT (Direct Thermal) mode: using direct thermal paper

TT (Thermal Transfer) mode: using thermal transfer paper

C. Fan-fold type media setting

1. Open the back cover.

2. Take out the two Big Label Roll Stands (part 23)

3. Insert the paper into the Fan-fold Media Entry (part

25) of the back cover.

Push and release the printer locks (part 14) to open

the printer head.

5. Turn over the opened printer head assembly. Pass

front edge of the labels under the gap sensor.

6. Adjust the label guide (part 26) to fit in the label's

edge (see figure 2.3.2).

7. Put back the printer head assembly and fasten it.

8. Close the front cover and back cover (see figure

2.3.4).

9. Push feed button (part 7) to feed out label. Fig. 2.3.4

D. The media setting for the Laying down printing

1. Open the front cover and back cover.

2. Hold the open end (the apron) of the Core Guide, lift it up

about 5 mm then turn it round 180 degree and snap in the

little hole.

3. Follow the above steps to adjust another Core Guide.

4. Press the printer locks (part 14) to open the printer head.

5. Turn over the opened printer head assembly. Pass front

edge of the labels under the gap sensor.

6. Adjust the label guide (part 26) to fit in the label's edge (see

figure 2.3.2).

7. Put back the printer head and fasten it.

8. Close the front cover and back cover.

LIFT UP AND TURN

ROUND 180 DEG.

Fig. 2.3.5

Otros manuales para EZ-2P

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de Godex

Godex

Godex RT200i Manual de usuario

Godex

Godex CI-4040 Manual de usuario

Godex

Godex EZ-DT-2 Manual de usuario

Godex

Godex EZ-2P Manual de usuario

Godex

Godex EZ-1000 Plus Manual de usuario

Godex

Godex EZ-1200 Manual de operación y mantenimiento

Godex

Godex EZ-2200 Manual de operación y mantenimiento

Godex

Godex MX20 Manual de usuario

Godex

Godex EZPi-1200 Manual de usuario

Godex

Godex EZ225i Manual de usuario

Godex

Godex EZ-2000 PLUS Manual de usuario

Godex

Godex EZ-4TKP Manual de usuario

Godex

Godex EZ-2000 PLUS Manual de operación y mantenimiento

Godex

Godex HD830i Manual de usuario

Godex

Godex RT200 Manual de usuario

Godex

Godex BP2250i Manual de usuario

Godex

Godex EZ-1105P series Manual de usuario

Godex

Godex RT700i Manual de usuario

Godex

Godex GE300 Manual de usuario

Godex

Godex EZ-1200 Manual de usuario

Godex

Godex EZ-4206 Manual de operación y mantenimiento

Godex

Godex EZ-2000 PLUS Manual de usuario

Godex

Godex AG4000T Manual de usuario

Godex

Godex C-680 FlatJet Manual

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
