Global Sat LT-20P Series Manual de usuario

GlobalSat LT-20/LT-20P Series

User Manual

Version: 1.3

GlobalSat WorldCom Corporation

16F., No. 186, Jian 1st Rd., Zhonghe Dist.,

New Taipei City 23553, Taiwan

Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899

[email protected]

www.globalsat.com.tw

USGlobalSat Incorporated

14740 Yorba Court, Chino, CA 91710

Tel: 888.323.8720 / Fax: 909.597.8532

[email protected]

TABLE OF CONTENTS

1. Warning .................................................................................................................................................3

2. Welcome................................................................................................................................................4

3. Introduction...........................................................................................................................................5

3.1 Introduction.....................................................................................................................5

3.2 LED Indicators................................................................................................................6

4. Device Operation..................................................................................................................................7

4.1 Device Charging .............................................................................................................7

4.2 Function Button ..............................................................................................................8

4.3 Parameter Settings via iOSApp......................................................................................9

4.4 Firmware Upgrade via iOS App ...................................................................................16

5. Safety Information..............................................................................................................................22

6. Limited Warranty ................................................................................................................................22

7. FCC Warning.......................................................................................................................................27

1. Warning

USE RESPONSIBLY. READ ALL INSTRUCTIONS AND

SAFETY INFORMATION BEFORE USE.

GlobalSat WorldCom Corporation / USGlobalSat, Inc., will not accept any responsibility

whatsoever for accidents or violations of local Laws resulting from failure to observe

common sense precautions and local laws. Your personal judgment, traffic regulations,

and common sense must always take precedence over any directions produced by GPS

receiver or the mapping software.

Indemnification:

User agrees to defend, indemnify and hold harmless GlobalSat WorldCom Corp. and USGlobalSat,

Inc., its officers, directors, employees and agents against and from any third party claims, actions,

damages or demands, including but not limited to, reasonable legal and accounting fees, resulting

from user's use or misuse of this product, violation of these Terms, or any activities related to this

product, or from user's violations of the rights of any other user of this product. Use of this Product is

at user's own risk.

2. Welcome

Thank you for purchasing the GlobalSat LT-20/LT-20P. The LT-20/LT-20P is a sleek,

compact and feature rich tracking device. We appreciate your purchase of a GlobalSat

WorldCom Product!

3. Introduction

3.1 Introduction

The LT-20/LT-20P is a LoRa®compliant solar tracker. The LT-20 is a cattle tracker. The

LT-20P is a compact asset tracker. Both of them have solar panel for charging by sunlight.

They could be charged by DC power via charging cradle as well.

Accessories (Optional)

1 Ear Tag Hole

2 GPS, BLE, Charging LED

3 Solar Panel

4 Function Button

5 Charging Pin

6 Micro USB Connection for Charging only

3. Introduction (Continued)

3.2 LED Indicators

Charging LED (by cradle)

LED

Red Constantly Lit

Red Off

State

LT-20/LT-20P is being

charged

LT-20/LT-20P is fully

charged or it is not charged

BLE LED

LED

Blue Blinking Quickly

Blue Blinking Slowly

Blue Off

State

LT-20/LT-20P is searching

for pairing with App

LT-20/LT-20P is paired

with App

BLE is disable

GPS LED

LED

Green Blinking

Quickly

Green Blinking

Slowly

Green Off

State

LT-20/LT-20P is

searching for GPS fix

LT-20/LT-20P receives

GPS fix

GPS is disable

4. Device Operation

4.1 Device Charging

Using the device for the first time, rechargeable battery will require the proper charge

before LT-20/LT-20P is operable. To maximize your device’s battery life, proceed by

performing the steps listed below.

1. Connect cradle to AC power adapter via micro USB cable.

2. Put LT-20/LT-20P to the charging cradle and red LED would be on while charging.

3. It should be charged at least 1.5 hours of battery charging time.

If you don’t purchase charging cradle, you could put our device which solar panel face to

proper sunshine to charge. It will take several days to be charged to at least 50% for the

proper operation.

Notice:

1. Please note the device will be charging by solar panel only when it’s on.

2. When it is in standby mode, it could not join to network server and send any

report.

4.2 Function Button

1. To turn the device “ON”, press and hold the function button for 1 second and release

the function button. Then the BLE LED would blink quickly.

There are two kinds of behavior as following table when the device is on.

Operation mode

Standby mode

Short press the function button, the BLE

LED would have a quick blink.

Short press the function button, the BLE

LED would have a slow blink.

2. To turn the device “OFF”, press and hold the function button for around 5 to 6

seconds, you would see BLE LED would blink three times and then release the

function button.

3. To do hardware reset, press and hold the function button for 11 seconds and release

it.

4.3 Parameter Settings via iOS App

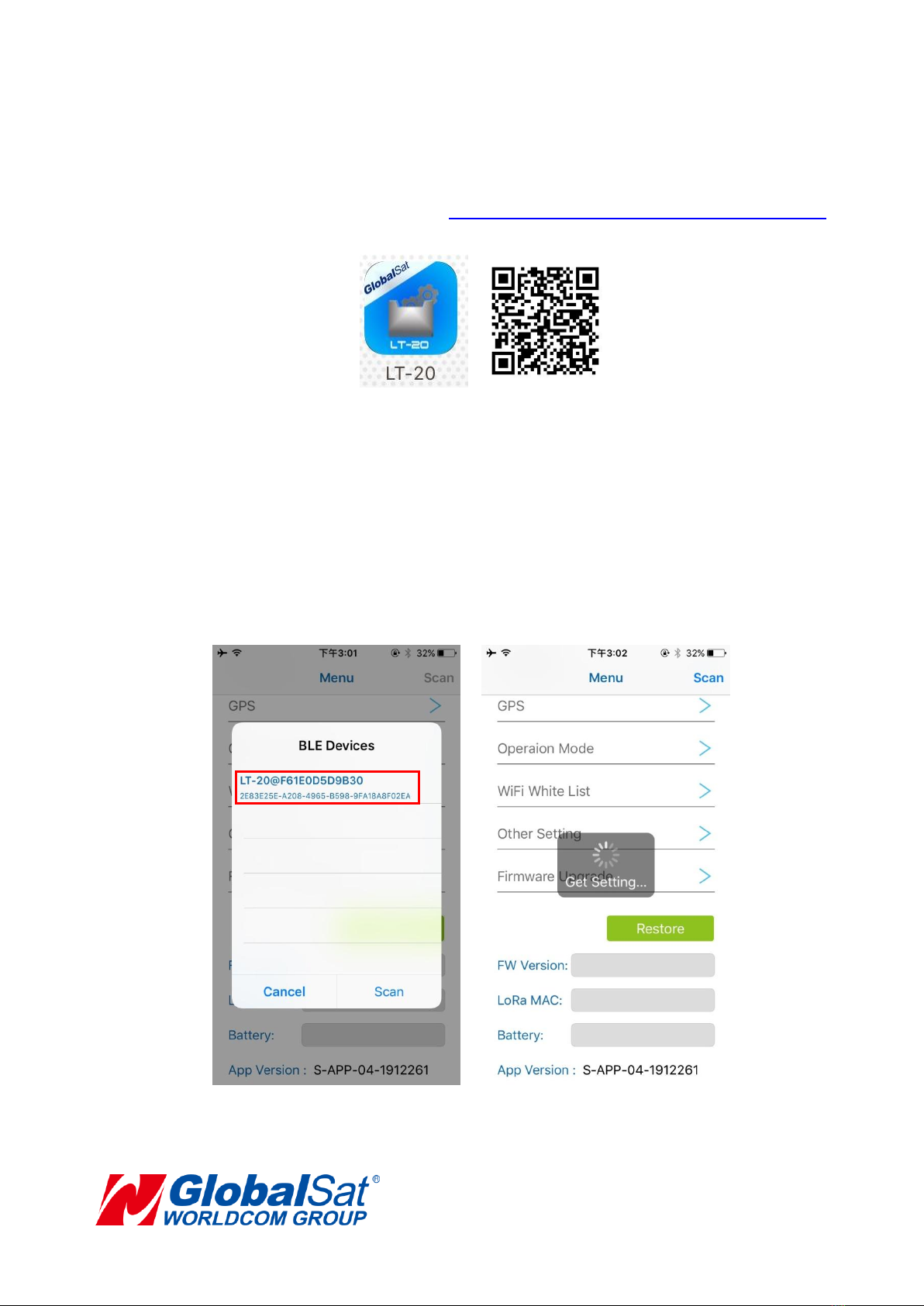

1. Install LT-20 App as the following link https://apps.apple.com/tw/app/lt-20/id1492856834

from App store or QR code below. It would have icon as following.

2. Make sure you turn on BLE for mobile device and open LT-20App.

3. After device turned on [short press function button for 1 second, the BLE LED will

blink quickly for 5 seconds], press function button for 2 seconds, then BLE LED will

blink twice and release function button in order to pair with the device in 30 seconds.

4. Then click Scan button, it will search for LT-20 device and click it which you would

like to do settings as the following left picture. After pairing with the device, it would

get settings.

5. Then FW version, LoRa MAC, device battery level, App Version would be shown at

the bottom of menu. You could modify parameters by entering into each item of

menu, for example, LoRaWAN, GPS, Operation Mode etc.
