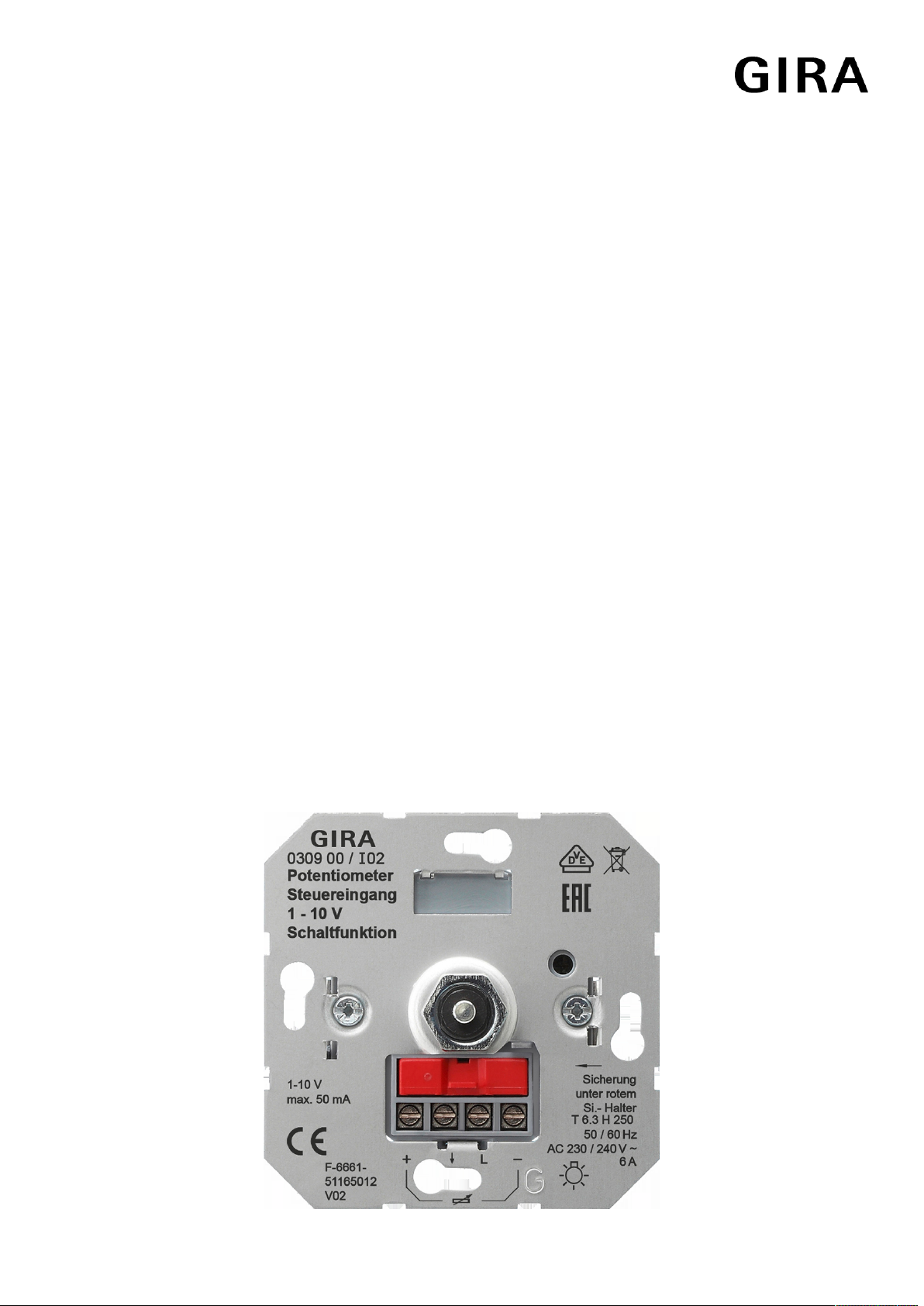

Gira 0309 00 Manual de usuario

Operating instructions

32406702 / 10869716 / 30.06.2023

Electronic potentiometer insert for 1-10 V control input, switching function

Order no. 0309 00

Electronic potentiometer insert for 1-10 V control input, switching function

Table of Contents

1 Safety instructions ............................................................................................................ 3

2 Device components .......................................................................................................... 3

3 Intended use..................................................................................................................... 3

4 Product characteristics ..................................................................................................... 4

5 Operation.......................................................................................................................... 4

6 Information for electrically skilled persons........................................................................ 4

7 Commissioning ................................................................................................................. 6

8 Technical data .................................................................................................................. 6

9 Warranty ........................................................................................................................... 7

2 / 7

32406702 10869716 30.06.2023

1 Safety instructions

Electrical devices may be mounted and connected only by electrically skilled

persons.

Serious injuries, fire or property damage are possible. Please read and follow the

manual fully.

Danger of electric shock. Device is not suitable for disconnection from supply

voltage.

Danger of electric shock. Always disconnect before carrying out work on the device

or load. In so doing, take all the circuit breakers into account, which support danger-

ous voltages to the device and or load.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

Image1: Device components

(1) Electronic potentiometer

(2) Frame

(3) Central plate

(4) Control button

(5) Fuse holder

(6) Screw terminals

(7) Adjuster

3 Intended use

– Switching and brightness setting for lamps with operating devices with 1-10-V

interface

– Operation with suitable cover

3 / 7

32406702 10869716 30.06.2023

Electronic potentiometer insert for 1-10 V control input, switching function

– Mounting in appliance box with dimensions according to DIN 49073

4 Product characteristics

– Basic brightness adjustable

– Short-circuit protection of switching contact with integrated fine-wire fuse

5 Operation

Switching electronic operating devices on or off

￭ Press the control button.

Adjusting the brightness

Light is switched on.

￭ Turn the control button in the clockwise direction.

The light gets brighter up to maximum brightness.

￭ Turn the control button in the anti-clockwise direction.

Light gets darker to minimum brightness.

6 Information for electrically skilled persons

DANGER!

Electric shock when live parts are touched.

Electric shocks can be fatal.

Always disconnect before carrying out work on the device or load. For this, switch off

all corresponding circuit breakers, secure against being switched on again and check

that there is no voltage. Cover up adjacent live parts.

4 / 7

32406702 10869716 30.06.2023

Electronic potentiometer insert for 1-10 V control input, switching function

Connecting and fitting the device

Image2: Connection diagram - Potentiometer switches the lamp operating devices

directly

Image3: Connection diagram - Potentiometer and contactor for switching the lamp

operating devices

(1) Electronic potentiometer

(8) Lamp operating device with 1-10 V interface, electronic ballast

Control cable: appropriate type, cross-section and routing for the VDE specific-

ations for 250 V cables, control voltage has basic insulation. Control cable and

load cable may be routed in a common cable, e.g. NYM J 5 x 1.5.

Connect lamp operating devices and electronic ballasts with protective earth

conductor according to manufacturer specifications. The sum of the control

voltages must not exceed 50 mA; see manufacturer specifications for the lamp

operating devices.

Only use lamp operating devices and lamps that are of the same type, the

same power level, and from the same manufacturer. Otherwise there may be

differences in brightness between the individual lamps.

5 / 7

32406702 10869716 30.06.2023

Electronic potentiometer insert for 1-10 V control input, switching function

CAUTION!

Device defect when the 1-10 V interface is connected to mains voltage

Do not connect 1-10 V interface to mains voltage.

￭ Connect electronic potentiometer with switching function according to connec-

tion diagram (see figure 2) or (see figure 3).

￭ If multiple circuit breakers supply dangerous voltages to the device or load,

couple the circuit breakers or label them with a warning, to ensure disconnec-

tion is guaranteed.

￭ Fit device in appliance box; terminals must be at the bottom.

￭ Adjusting basic brightness

￭ Mount the frame and the central plate.

￭ Attach the control button.

7 Commissioning

Adjusting basic brightness

DANGER!

Electric shock when live parts are touched.

Electric shocks can be fatal.

Use only insulated tools to set the basic brightness! Cover up live parts in the work-

ing environment.

The basic brightness can be set by an electrically skilled person as required.

The device is connected as described above and fitted in an appliance box. The

frame, central plate and control button are not fitted.

￭ Switch on mains voltage.

￭ Press the rotary axle to switch on the lighting and turn it left to the minimum

brightness.

￭ Adjust basic brightness by turning the adjuster (7) (see figure 1). The basic

brightness must be set in such a way that the connected lamps are still visibly

lit when the control button is turned all the way to the left.

8 Technical data

Rated voltage AC 230 / 240 V ~

Mains frequency 50 / 60 Hz

Ambient temperature +5 ...+25 °C

Switching current for AC 230/240 V~

Ohmic 6 A

6 / 7

32406702 10869716 30.06.2023

Electronic potentiometer insert for 1-10 V control input, switching function

Control voltage 0.7 ... 12 V

Control current max. 50 mA

Connection Single stranded max. 4 mm²

Fine-wire fuse T 6.3 H 250

9 Warranty

The warranty is provided in accordance with statutory requirements via the specialist

trade. Please submit or send faulty devices postage paid together with a fault de-

scription to your responsible salesperson (specialist trade / installation company /

electrical specialist trade). They will forward the devices to the Gira Service Center.

Gira

Giersiepen GmbH & Co. KG

Elektro-Installations-

Systeme

Industriegebiet Mermbach

Dahlienstraße

42477 Radevormwald

Postfach 12 20

42461 Radevormwald

Deutschland

Tel +49(0)21 95 - 602-0

Fax +49(0)21 95 - 602-191

www.gira.de

[email protected]

7 / 7

32406702 10869716 30.06.2023

Electronic potentiometer insert for 1-10 V control input, switching function
