GILMAN Gemini GVC45F Manual de usuario
1
MODEL NO.: GVC45F
MULTI-FUNCTIONAL
CYCLONIC VACUUM
CLEANER WITH DUST
MITES POWER REMOVER
A GILMAN GROUP BRAND
多功能吸塵機
配強力除塵蟎刷
2
IMPORTANT SAFE GUARDS
When using an electrical appliance, basic safety precautions should always be
observed.
READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANER
WARNING :
To reduce the risk of re, electrical shock or injury, please pay attention
to the followings:
1. The appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or metal capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning used
of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be
made by children unless they are older than 8 and supervised.
2. Do not leave appliance unattended when plugged in. Unplug from power
socket when not in use.
3. Do not use the appliance outdoors or on wet surfaces.
4. Children should be supervised to ensure that they do not play with this appliance.
5. Use the vacuum cleaner according to this instruction manual. Do not use
other parts which are not provided by manufacturer.
6. Do not use the appliance with damaged cord or plug. Do not use it if it h
as
been dropped, damaged, left outdoor or dropped in water. Please contact
our
after sales service center for repair.
7. Do not pull or carry the cord, use cord as a handle, or pull the cord around
sharp edges or corners.
8. Do not damage the power cord of appliance. Keep the cord away from all heat
sources.
9. Do not unplug the machine by pulling the cord. To unplug, please grasp the
plug instead of the cord.
10. Do not touch the plug or appliance with wet hands.
11. Do not put any object into the unit’s inlet. Avoid to block the unit’s inlet; keep
free of dust, lint, hair and anything that may reduce air ow.
12. Keep hair, loose clothing, ngers and all parts of body away from unit’s inlet
and moving parts.
13. Do not use the vacuum cleaner for vacuuming objects that is burning or smok-
ing, such as cigarettes and ashes.
14. Switch off all function buttons before unplugging the machine.
15. Pay attention when cleaning on stairs.
16. Do not use the vacuum cleaner for vacuuming the ammable or combustible
liquids such as gasoline or use in areas where they may be present.
17. Follow all marking instructions on the labels of the appliance.
18. Do not use the vacuum cleaner without Dust Tank and lter in place.
19. Always unplug this appliance before connecting or disconnecting vacuum
tube or accessories.
3
20. Store the vacuum cleaner indoor.
21. Using improper voltage may result in damage to the motor and possible injury to
the user. Correct voltage is listed on the rating label, please follow accordingly.
22. Use the appliance only on dry and indoor surfaces.
23. Do not use the appliance for any purpose other than those described in this
user guide.
24. I
f the supply cord is damaged, stop operating in order to avoid hazard. Contact
our After-Sales Service Center for assistance.
WARNING : THIS MACHINE IS FOR HOUSEHOLD USE ONLY
4
1. On/Off Switch
2. Foldable Handle
3. Power Cord
4. Air Outlet Grill
5. Exhaust Filter
6. Handle Release Button
7. Suction Hole
8. Dust Tank Release Button
9. Dust Tank
10. Nylon Filter (wrapped on HEPA lter)
MAIN PARTS AND ACCESSORIES:
11. HEPA Filter
12. Carpet Brush
13. Crevice Tool
14. Air Outlet Connector
15. Air Inlet Connector
16. Dust mites power remover
17. Extension Tube (2 pcs)
18. Floor Brush
19. Flexible Hose
1
2
46
39
8
10
12
13 14 15
17 18
19
11
7
5
16
5

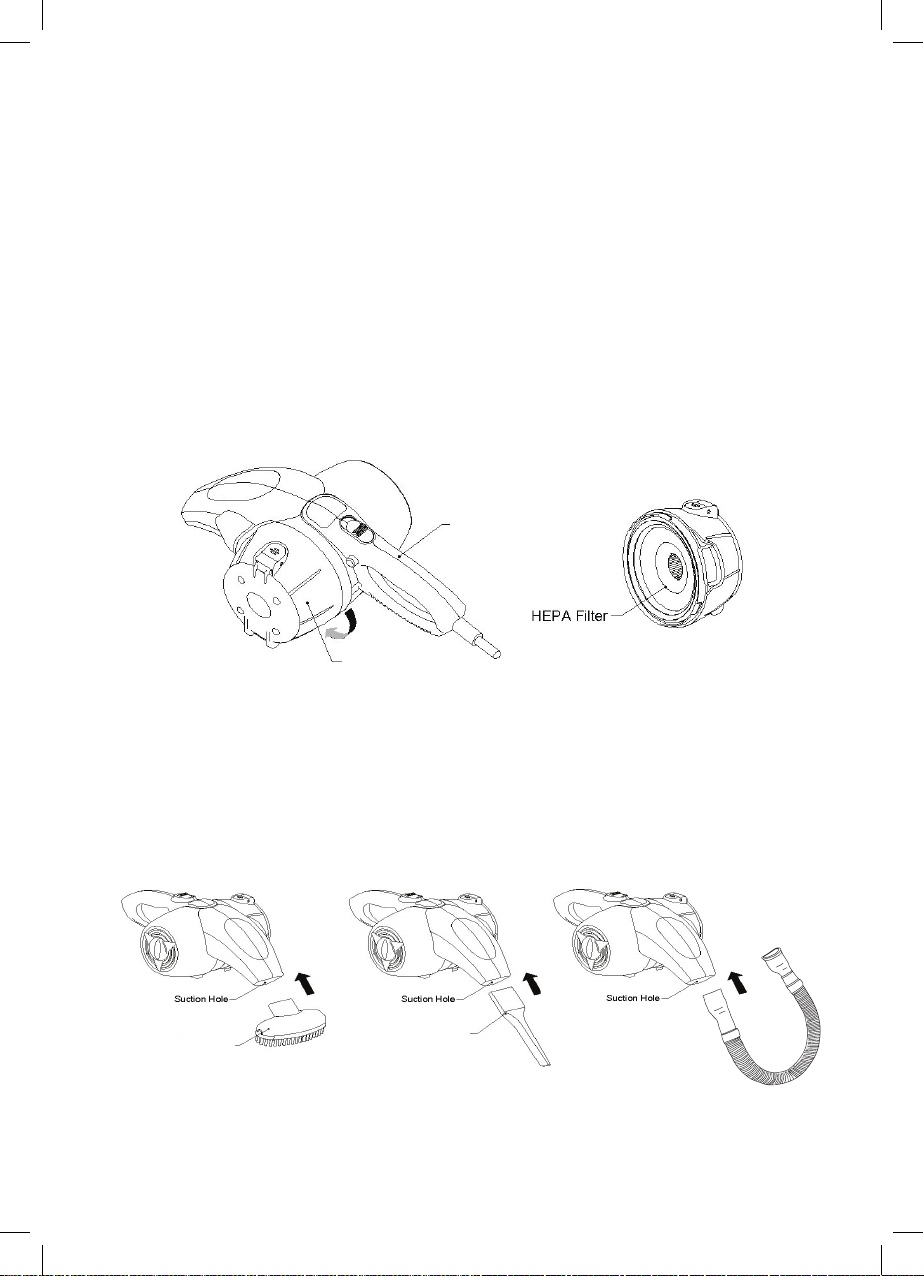

1. Assembly with accessories :
Warning: Always unplug from electrical outlet before opening the dust tank.
Note: HEPA Filter must be used when operating the appliance.
• T
o open the dust tank, hold the machine handle, rotate the dust tank in clockwise
direction and take it out.
• Make sure that the HEPA Filter is installed inside and attach into the dust tank.
• To attach the accessories of Carpet Brush, Crevice Tool and Flexible Hose of
the handheld vacuum unit, insert it into the Suction Hole as below.
BEFORE USING THE VACUUM CLEANER
Dust Tank
Foldable Handle
Carpet Brush
Crevice Tool
Flexible Hose
6
Floor Brush
Extension Tube
Extension Tube
Air Inlet
Connector
Rubber Brush
Soft Brush
Air Inlet
Connector

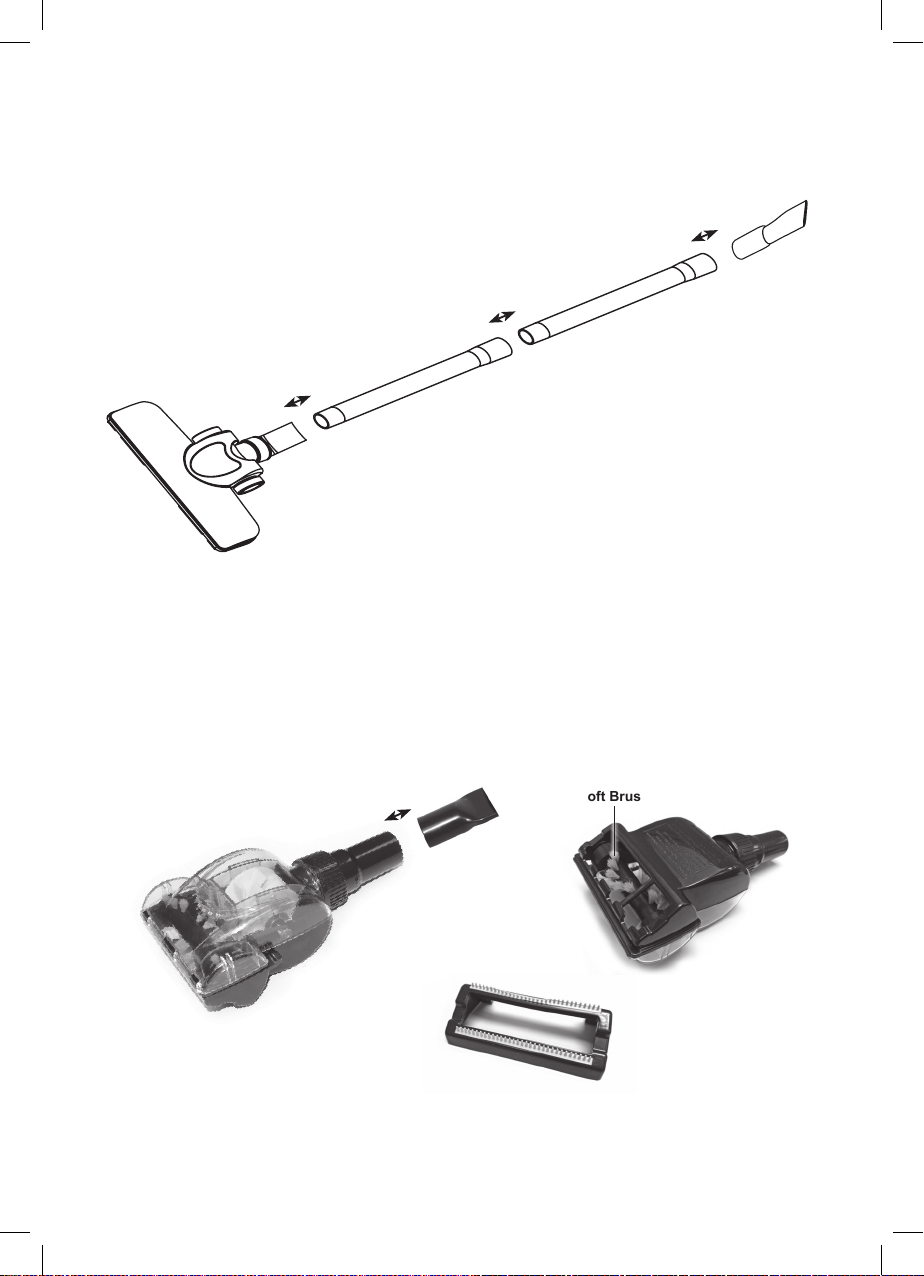

• E
xtension Tubes and Floor Brush: You can use the Air Inlet Connector to
connect the floor brush and extension tubes to the vacuum cleaner for
floor cleaning.
• Dust mites power remover: You can connect the Dust mites power remover
to Air Inlet Connector and insert into the main body of vacuum cleaner. The
Dust mites power remover has a green color rubber brush for vacuuming the
pet hair on the oor and carpet. After taking out the green color rubber brush,
it can be used to clean the dust hidden on sofa, bed and mattress.
CAUTION: Do not use this Dust mites power remover on pet.
Dust mites
power remover
7

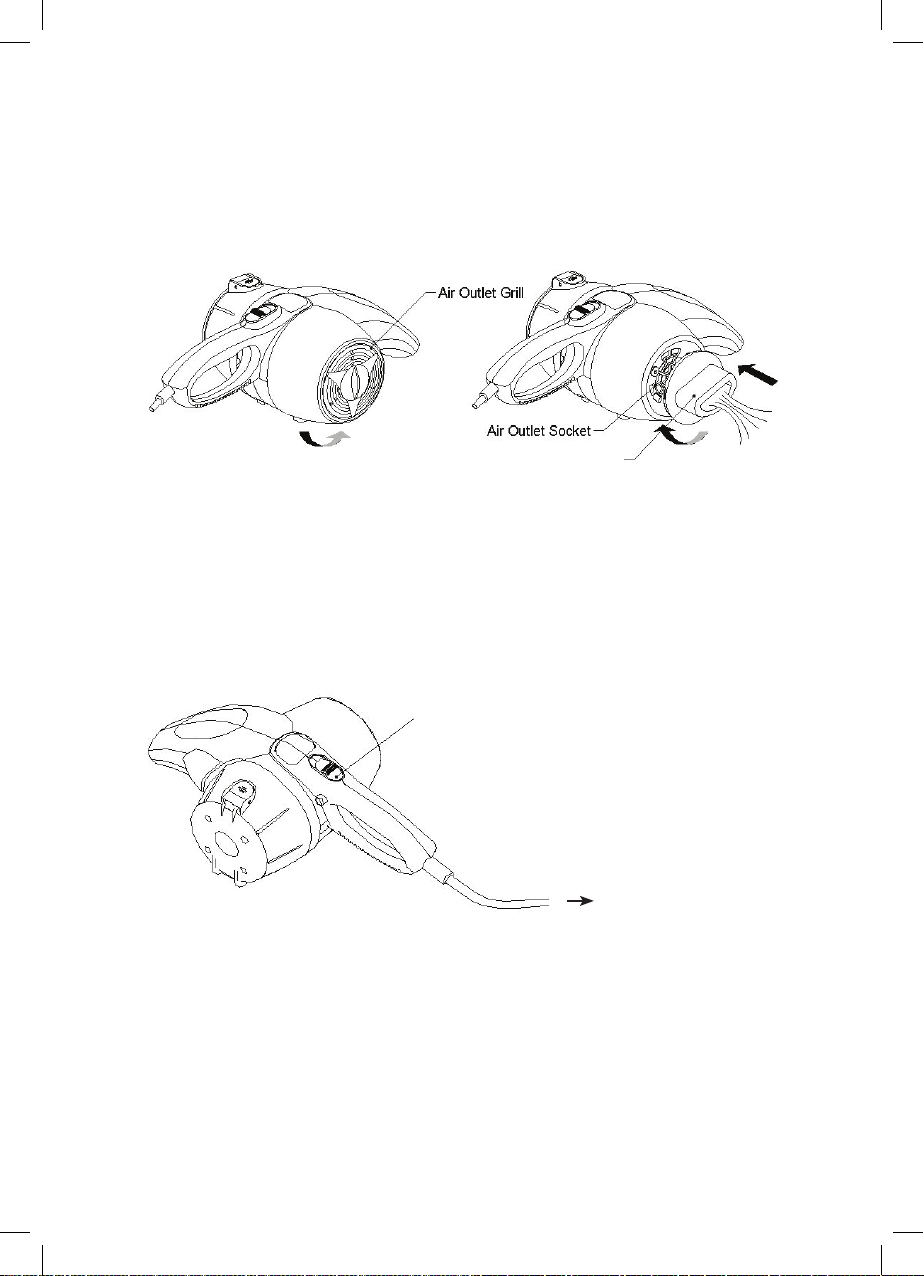

• Air Outlet Connector: You may convert your machine to a blower which blows
air out by using the Air Outlet Connector. Please rotate the Air Outlet Grill and
take it out, and then attaching the Air Outlet Connector to the machine’s Air
Outlet Socket. You can choose an appropriate accessory to use with the Air
Outlet Connector together.
• Make sure that the On/Off Switch is at the ‘OFF’ position, then plug in the
Power Plug to the electric socket rmly.
• Hold the machine’s handle rmly, then push the On/Off Switch to ‘ON’ position
to operate the machine.
CAUTION: The Vacuum cleaner is with high suction power. Make sure that you
hold the handle rmly during operation, otherwise it could slip out easily and
cause injury.
2. Operate the vacuum cleaner:
Power Cord
On/Off Switch
Air Outlet Connector
8
MAINTENANCE
Note: Always switch off the machine and unplug from the wall socket before you
clean the machine or change the accessories.

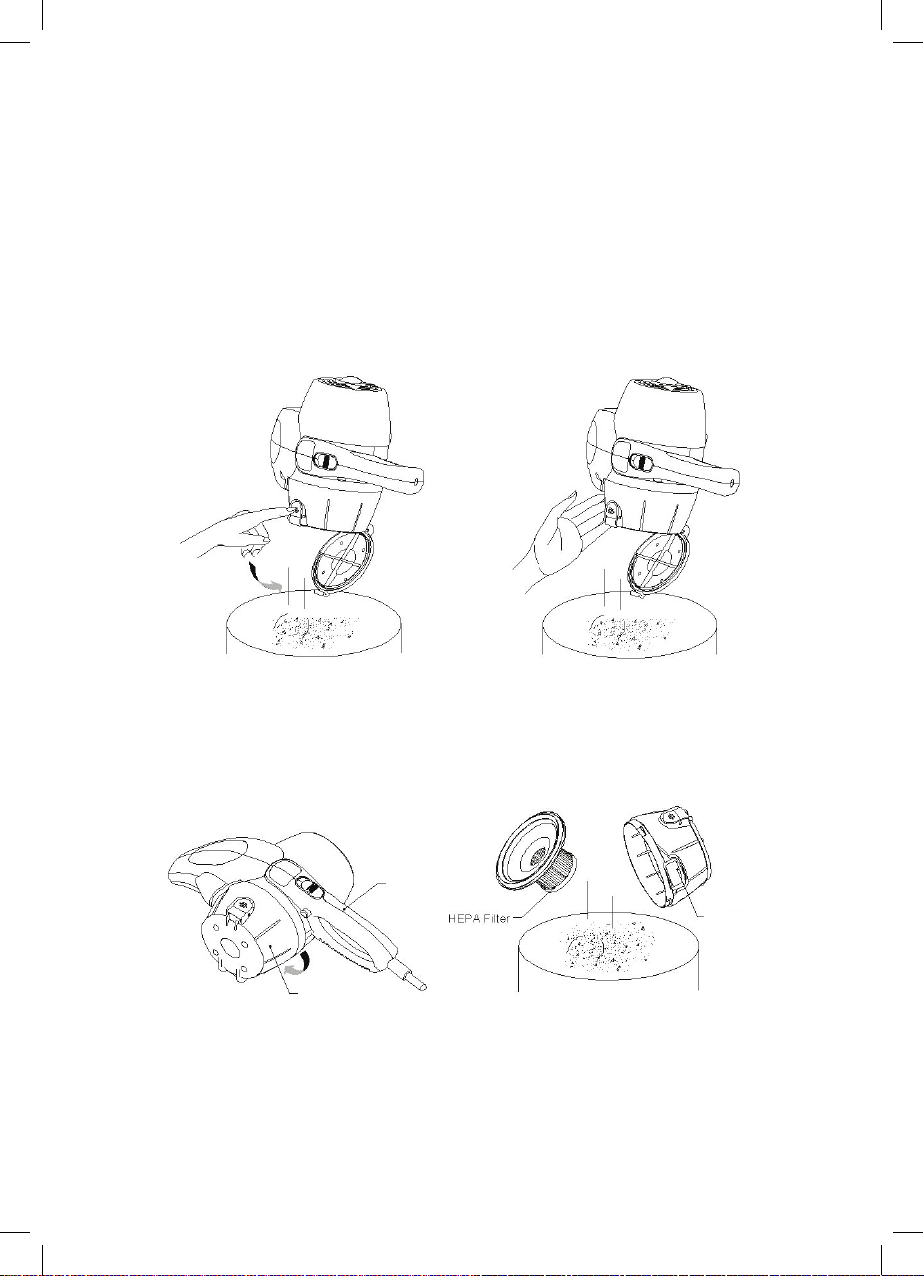

1. Empty the Dust Tank:
2. Clean the Dust Tank

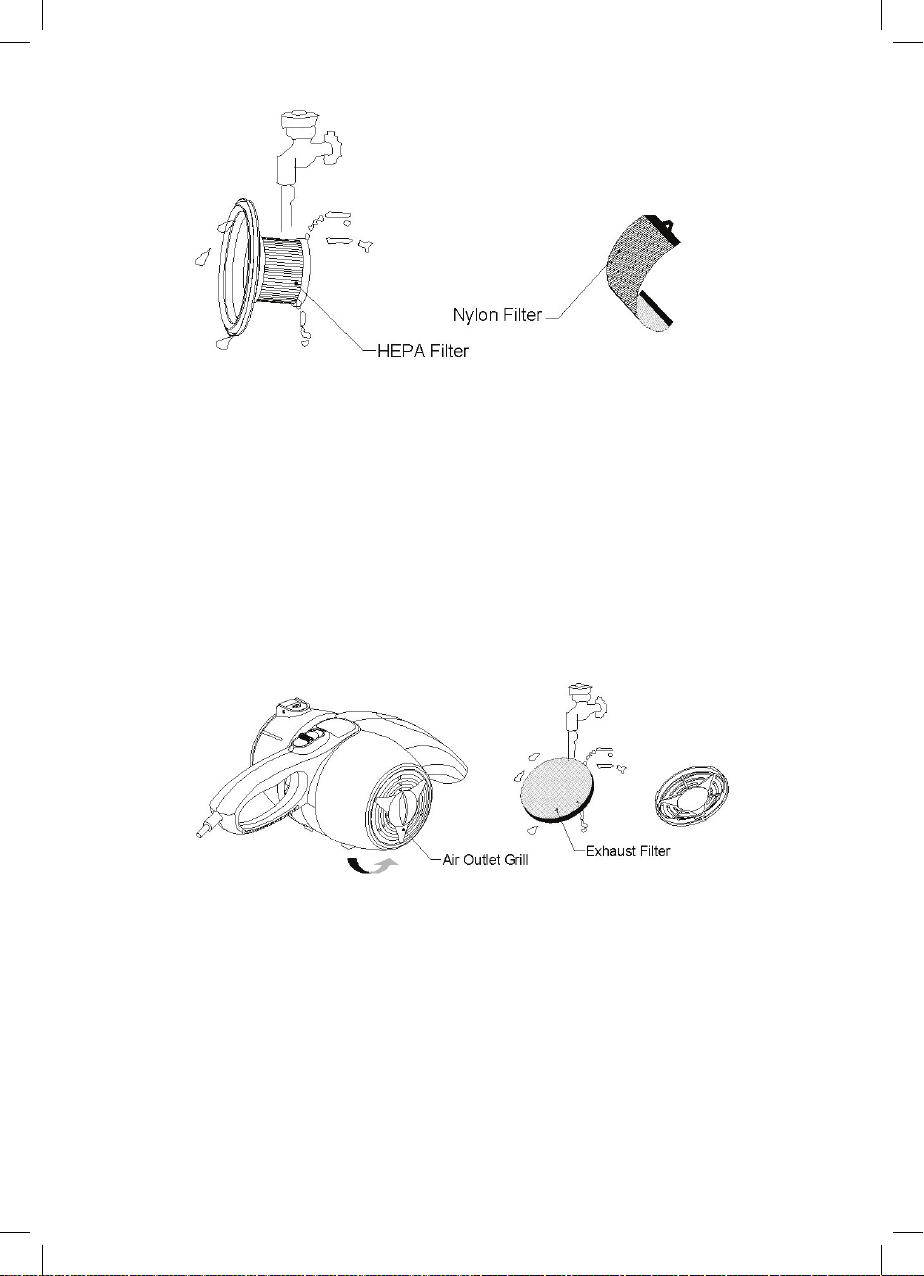

3. Clean the HEPA Filter and Nylon Filter:
This machine is with one-touch clear dust function. You just need to push the
Dust Tank Release
Button to open the dust tank, then you can clear the dust
into the dust bin.
Hold the handle of the vacuum unit, rotate the dust tank clockwise and take it out.
Then take out the HEPA Filter from the dust tank. Rinse the dust tank under water.
If the lters become dirty, please take out the HEPA Filter and Nylon Filter from the
dust tank.
Rinse the Nylon Filter and HEPA Filter
under running water but have
to dry them completely
before use again.
Dust Tank
Foldable Handle
Dust Tank
9
Note:
It is recommended to clean the Nylon and HEPA Filters timely if they are
dirty or the suction power of vacuum cleaner becomes weak. Otherwise, the
motor will become over-work and easily get damaged.
Note: The Exhaust Filter is used to purge the air that run out from the motor and
avert from secondary polluting. Therefore it is recommended to clean regularly
and replace with a new Exhaust Filter in every half a year.
4. Clean the Exhaust Filter:
5. Storage:
To clean the Exhaust Filter, rotate the Air Outlet Grill counterclockwise and take
it out. Then the Exhaust Filter can be released from the Air Outlet Grill. You can
rinse the Exhaust Filter under the water tap but have to dry it completely before
use again.
P
ush the Handle Release Button and rotate the handheld unit to the position that
shown in the following diagram. Release the Handle Release Button when the
lock is clicked
.
Water Tap
Water Tap
10
Store your machine with care and in a cool dry place.
PROBLEM POSSIBLE REASONS POSSIBLE SOLUTIONS
HANDHELD VACUUM
DOES NOT OPERATE
1. Power plug is not rmly
plugged into the outlet.
2. No power from wall
outlet.
1. Connect the power plug in
position rmly.
2. Check the mains power
source.
HANDHELD VACUUM
DOES NOT VACUUM
EFFICIENCY
1. Dust tank is full.
2. Suction hole is
clogged.
3. Filters are dirty and
need cleaning.
1. Clean the dust tank and
lters regularly.
2. Turn unit off and unplug
from the wall outlet. Remove
dust tank lter and check for
object(s) in air duct and remove.
3. Clean or replace the lter as
per instructions.
DUST ESCAPING
FROM HANDHELD
VACUUM
1. Dust tank is full.
2. Dust tank is not installed
correctly.
3. Puncture/hole are
found in the dust tank
and lters.
1. Clean the dust tank and
lters regularly.
2. Review the instruction
manual for correct installation
procedures for
dust tank
.
3. Replace the new dust tank
and lters.
HANDHELD VACUUM
HOSE OR BRUSHES
DO NOT OPERATE
NORMALLY
1. Hoses are clogged.
2. Filters are full of dust.
1. Remove and check the
hoses and/or brushes.
2. Remove the dust or dirt
objects from hoses.
3. Clean the lters.
SPECIFICATION
TROUBLE-SHOOTING
Model no.: GVC45F
Voltage: 220-240V~
Frequency: 50/60Hz
Power : 450 W
Product dimension : 180 (W) x 330 (H) x 115 (D) mm
