GigaDevice Semiconductor GD32330G-START Manual de usuario

GigaDevice Semiconductor Inc.

GD32330G-START

User Guide

V2.0

User Guide

GD32330G-START

1 /11

Table of Contents

Table of Contents ........................................................................................................... 1

List of Figures ................................................................................................................ 2

List of Tables .................................................................................................................. 3

1. Summary .................................................................................................................. 4

2. Function Pin Assign ................................................................................................ 4

3. Getting started ......................................................................................................... 4

4. Hardware layout overview....................................................................................... 5

4.1. Power supply ............................................................................................................... 5

4.2. Boot option .................................................................................................................. 5

4.3. LED ............................................................................................................................... 5

4.4. KEY............................................................................................................................... 6

4.5. GD-Link ........................................................................................................................ 6

4.6. Extension ..................................................................................................................... 7

4.7. MCU .............................................................................................................................. 7

5. Routine use guide.................................................................................................... 7

5.1. GPIO_Runing_Led....................................................................................................... 7

5.1.1. DEMO purpose ....................................................................................................................... 7

5.1.2. DEMO running Result ............................................................................................................. 8

5.2. GPIO_Key_Polling_mode............................................................................................ 8

5.2.1. DEMO purpose ....................................................................................................................... 8

5.2.2. DEMO running Result............................................................................................................. 8

5.3. GPIO_Key_Interrupt_mode ......................................................................................... 8

5.3.1. DEMO purpose ....................................................................................................................... 8

5.3.2. DEMO running Result ............................................................................................................. 8

6. Revision history..................................................................................................... 10

User Guide

GD32330G-START

2 /11

List of Figures

Figure 4-1 Schematic diagram of power supply................................................................................................5

Figure 4-2 Schematic diagram of boot option....................................................................................................5

Figure 4-3 Schematic diagram of LED function.................................................................................................5

Figure 4-4 Schematic diagram of Key function .................................................................................................6

Figure 4-5 Schematic diagram of GD-Link function .........................................................................................6

Figure 4-6 Schematic diagram of Extension Pin ...............................................................................................7

Figure 4-7 Schematic diagram of MCU Pin .........................................................................................................7

User Guide

GD32330G-START

3 /11

List of Tables

Table 2-1 Pin assignment ........................................................................................................................................4

Table 4-1 Boot configuration ..................................................................................................................................5

Table 6-1 Revision history .....................................................................................................................................10

User Guide

GD32330G-START

4 /11

1. Summary

GD32330G-START board uses GD32F330G8 as the main controller. As a complete

development platform of GD32F3x0 powered by ARM® Cortex™-M4 core, the board

supports full range of peripherals. It uses mini-USB interface to supply 5V power. SWD,

Reset, Boot, User button key, LED and Extension Pin are also included. This document

details its hardware schematic and the relevant applications.

2. Function Pin Assign

Table 2-1 Pin assignment

Function

Description

LED

PA1

LED1

KEY

PA0

K1-User Key

RESET

K2-Reset

USB

PA11

USBDM

PA12

USBDP

PA8

USBCTR

3. Getting started

The START Board uses mini-USB connecter to get power, the hardware system power is

+3.3V. A mini-USB cable are necessary to down programs. Select the correct boot mode and

then power on, the LED3 will turn on, which indicates the power supply is ready.

There are Keil version and IAR version of all projects. Keil version of the projects are created

based on Keil MDK-ARM 4.74 uVision4. IAR version of the projects are created based on

IAR Embedded Workbench for ARM 7.40.2. During use, the following points should be

noted:

1. If you use Keil uVision4 to open the project, install the GD32F3x0_AddOn.2.0.0.exe to

load the associated files.

2. If you use Keil uVision5 to open the project, there are two ways to solve the "Device

Missing (s)" problem. One is to install GigaDevice.GD32F3x0_DFP.2.0.0.pack. In Project

menu, select the Manage sub menu, click on the “Version Migrate 5 Format...” menu, the Keil

uVision4 project will be converted to Keil uVision5 project. Then add “C:\Keil_v5\ARM\Pack

\ARM\CMSIS\4.2.0\CMSIS\Include” to C/C++ in Option for Target. The other is to install

Addon directly. Select the installation directory of Keil uVision5 software, such as C:\Keil_v5,

in Destination Folder of Folder Selection. Select the corresponding device in Device of

Option for Target and add “C:\Keil_v5\ARM\Pack\ARM\CMSIS\4.2.0 \CMSIS\Include” to

C/C++ in Option for Target.

3. If you use IAR to open the project, install IAR_GD32F3x0_ADDON.2.0.0.exe to load the

User Guide

GD32330G-START

5 /11

associated files.

4. Hardware layout overview

4.1. Power supply

Figure 4-1 Schematic diagram of power supply

Vout 2

Vin

U2 LM1117-3.3

16V/10uF,AVX

GND

C11

50V/0.1uF

+3V3

LED3

LED0603

470Ω

TP1

TP +3V3

+U5V P1

SMD1210P005TF

4.2. Boot option

Figure 4-2 Schematic diagram of boot option

10KΩ

JP4

BOOT0

GND BOOT0

+3V3

Table 4-1 Boot configuration

BOOT1

BOOT0

Boot Mode

Default

2-3

User memory

1-2

System memory

Changed by ISP

1-2

SRAM memory

4.3. LED

Figure 4-3 Schematic diagram of LED function

PA1

LED1

LED0603

LED

470Ω

GND

User Guide

GD32330G-START

6 /11

4.4. KEY

Figure 4-4 Schematic diagram of Key function

PA0

10KΩ

+3V3

GND

50V/0.1uF

KEY

K-1102B

4.5. GD-Link

Figure 4-5 Schematic diagram of GD-Link function

L_USB_Ctr

C100

50V/20pF

C102

50V/20pF

Y101

HC-49S-8MHz

GND

L_NRST

+3V3

GND

R102

10KΩ

C103

50V/0.1uF

R104

10KΩ

GND

C105

50V/0.1uF

C106

50V/0.1uF

C107

50V/0.1uF

C108

50V/0.1uF

R101

1MΩ

L_OSC_IN

L_OSC_OUT

L_OSC_IN

L_OSC_OUT

L_NRST

GND

+3V3

GND

JP100

4×1P2.54

+3V3

GND

MCU SWD

HSE

Reset

L_TMS/IO

L_TDI

L_TDO/SWO

L_TCK/CLK

L_USB_DP

L_SWDIO

L_SWDCK

L_SWDIO

L_SWDCK

+3V3

L_USB_DM

BOOT0

NRST

OSC_IN/PD0

OSC_OUT/PD1

PA0-WKUP

PA1

PA2

PA3

PA4

PA5

PA6

PA7

PA8

PA9

PA10

PA11

PA12

PA13/JTMS/SWDIO

PA14/JTCK/SWCLK

PA15/JTDI

PB018

PB119

PB2/BOOT1 20

PB3/JTDO 39

PB4/JNTRST 40

PB541

PB642

PB743

PB845

PB946

PB10 21

PB11 22

PB12 25

PB13 26

PB14 27

PB15 28

PC13-TAMPER-RTC 2

PC14-OSC32_IN 3

PC15-OSC32_OUT 4

VBAT

VDD_1

VDD_2

VDD_3

VDDA

VSS_1 23

VSS_2 35

VSS_3 47

VSSA 8

GD32F103C8T6

L_TReset

L_LED1

L_LED2

L_LED1 LED0603

L_LED2 LED0603

R109 1KΩ

R110 1KΩGND

GND

R105 22R

R106 22R

R108

1MΩC104

50V/4700pF

L_USB_DM

L_USB_DP

GND

R107 1.5KΩL_USB_Ctr

VCC 1

D- 2

D+ 3

ID 4

GND 5

SHELL 6

CN100

Mini_USB

+U5V

C10 50V/0.1uF

User Guide

GD32330G-START

7 /11

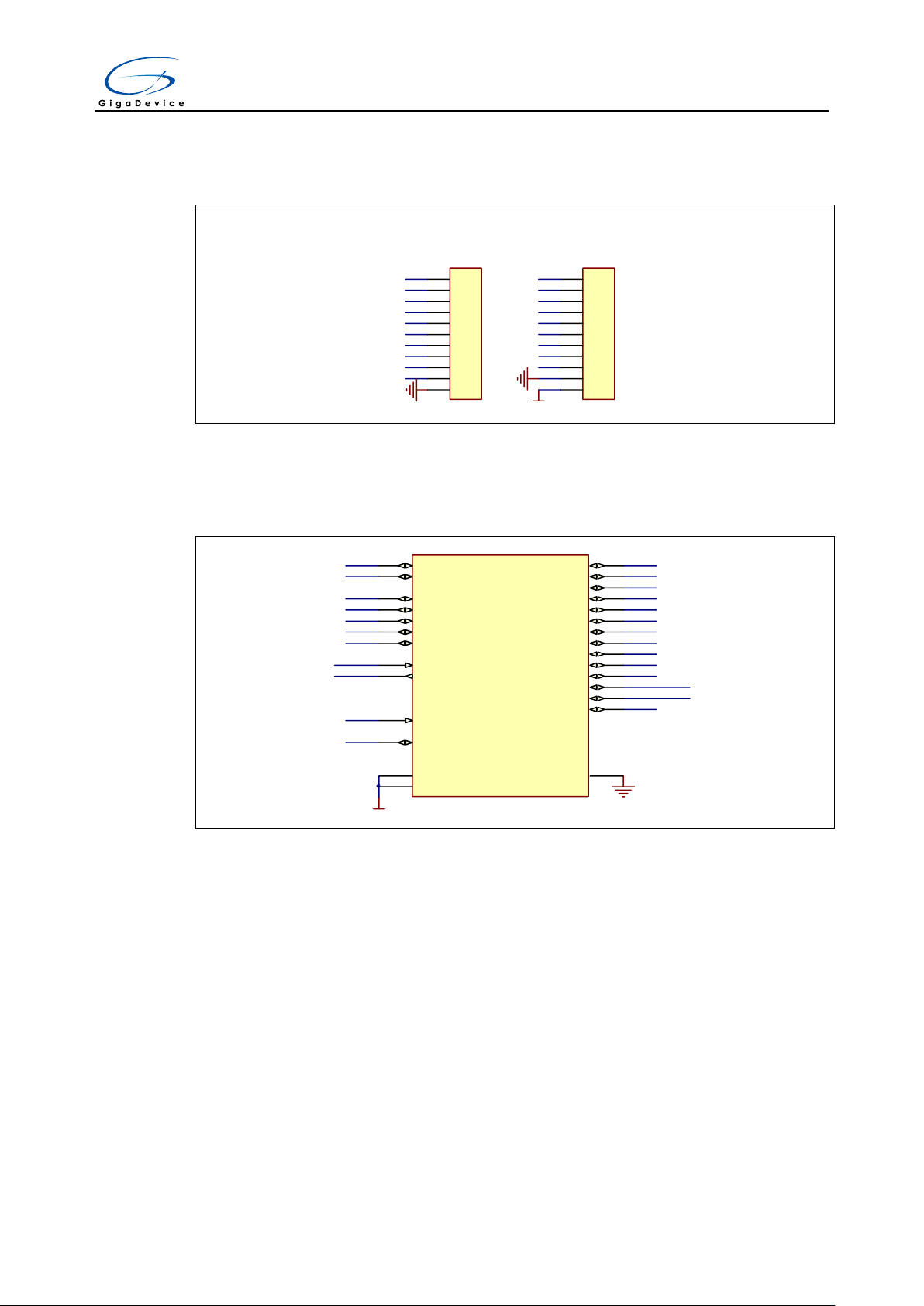

4.6. Extension

Figure 4-6 Schematic diagram of Extension Pin

Extension Pin

PA4

PA5

PA6

PA7

PA1

PB1

PB0

PA3

PA2

PB5

PB6

PB7

PA9

PA10

PA15

PB3

PB4

PA01

JP1

HEADER 11

JP2

HEADER 11

+3V3

GND

PA8

4.7. MCU

Figure 4-7 Schematic diagram of MCU Pin

PA4

PA5

PA6

PA7

PA0

PA1

PA3

PA2

PA8

PA9

PA10

PB5

PB6

PB7

PB1

PB0

BOOT0

GND

NRST

PA13

PA14

PA15

PB3

PB4

SWCLK

SWDAT

OSC_IN

OSC_OUT

+3V3

BOOT0

NRST

OSC_IN/PF0

OSC_OUT/PF1

PA06

PA17

PA10 20

PA919

PA13/SWDIO 21

PA14/SWCLK 22

PA15 23

PA28

PA39

PA410

PA511

PA612

PA713

VDD

PB0

PB1

PB3

PB4

PB5

PB6

PB7

VSS 16

VDDA

PA818

GD32F330G8U6

5. Routine use guide

5.1. GPIO_Runing_Led

5.1.1. DEMO purpose

This Demo includes the following functions of GD32 MCU:

Learn to use GPIO for controlling the LED

Learn to use SysTick to generate 1ms delay

GD32330G-START board has one LED. The LED1 is controlled by GPIO. This demo will

show how to light the LED.

User Guide

GD32330G-START

8 /11

5.1.2. DEMO running Result

Download the program <01_GPIO_Runing_Led> to the board, the state of LED1 is toggled

every 1s.

5.2. GPIO_Key_Polling_mode

5.2.1. DEMO purpose

This Demo includes the following functions of GD32 MCU:

Learn to use GPIO control the LED and the KEY

Learn to use SysTick to generate 1ms delay

GD32330G-START board has two keys and one LED. The two keys are Reset key and User

key. The LED1 is controlled by GPIO.

This demo will show how to use the User key to control the LED1. When press down the

User Key, it will check the input value of the IO port. If the value is 1, wait for 50ms. Then

check the input value of the IO port again. If the value is still 1, indicates that the button is

pressed down successfully, and light the four LED1.

5.2.2. DEMO running Result

Download the program <02_GPIO_Key_Polling_mode> to the board, first of all, all the LEDs

will be flashed once for test. Then press down the User Key, LED1 will be turned on. Press

down the User Key again, LED1 will be turned off.

5.3. GPIO_Key_Interrupt_mode

5.3.1. DEMO purpose

This Demo includes the following functions of GD32 MCU:

Learn to use GPIO to control the LED and the KEY

Learn to use EXTI to generate external interrupt

GD32330G-START board has two keys and one LED. The two keys are Reset key and User

key. The LED1 is controlled by GPIO.

This demo will show how to use EXTI interrupt line to control the LED1. When press down

the User Key, it will produce an interrupt. In the interrupt service function, the demo will

toggle LED1.

5.3.2. DEMO running Result

Download the program <03_GPIO_Key_Interrupt_mode> to the board, first of all, all the

LEDs will be flashed once for test. Then press down the User Key, LED1 will be turned on.

User Guide

GD32330G-START

9 /11

Press down the User Key again, LED1 will be turned off.

Tabla de contenidos

Otros manuales de Hardware de computadora de GigaDevice Semiconductor

GigaDevice Semiconductor

GigaDevice Semiconductor GD32103B-EVAL Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32F310G-START Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32E230K-START Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32E503Z-EVAL Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32350G-START Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32103C-EVAL Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32W515 Series Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32E502 Series Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32VW553 Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32150R-EVAL Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32F310C-EVAL Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD-Link Adapter Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32EPRTV-START Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32E503V-EVAL Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32A50 Series Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32130F-START Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32 Series Instrucciones de instalación y funcionamiento

GigaDevice Semiconductor

GigaDevice Semiconductor GD32L233C-START Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32 Series Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32VW553 Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32450Z-EVAL Manual de usuario

GigaDevice Semiconductor

GigaDevice Semiconductor GD32E507Z-EVAL Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
