Gigabyte MSH61DI Manual de usuario
MSH61DI
LGA1155 socket motherboard for Intel®Core™i3 / Core™i5
Core™i7 processors/ Intel®Pentium®series processors
User's Manual
Rev. 1001
Copyright
©2011 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com
- 3 -
Table of Contents
Box Contents...................................................................................................................4
MSH61DI Motherboard Layout........................................................................................5
Chapter 1 Hardware Installation .....................................................................................7
1-1 Installation Precautions.................................................................................... 7
1-2 ProductSpecications...................................................................................... 8
1-3 Installing the CPU and CPU Cooler ............................................................... 10
1-3-1 Installing the CPU...................................................................................................10
1-3-2 Installing the CPU Cooler .......................................................................................12
1-4 Installing the Memory..................................................................................... 13
1-4-1 DualChannelMemoryConguration .....................................................................13
1-4-2 Installing a Memory ...............................................................................................14
1-5 Back Panel Connectors.................................................................................. 15
1-6 Internal Connectors........................................................................................ 17
Chapter 2 BIOS Setup ..................................................................................................27
2-1 The Main Menu .............................................................................................. 29
2-2 Advanced Menu ............................................................................................. 31
2-2-1 ACPI Settings .........................................................................................................32
2-2-2 CPUConguration..................................................................................................33
2-2-3 SATAConguration.................................................................................................35
2-2-4 IntelTXT(LT)Conguration ....................................................................................37
2-2-5 USBConguration..................................................................................................38
2-2-6 H/W Monitor............................................................................................................40
2-3 Chipset Menu................................................................................................. 41
2-4 Boot Menu...................................................................................................... 43
2-5 Security Menu ................................................................................................ 44
2-6 Exit Menu ....................................................................................................... 45
- 4 -
Box Contents
MSH61DI motherboard
Driver CD
Two SATA cables
I/O Shield
•The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.
- 5 -
MSH61DI Motherboard Layout
3421 65 7910
12
11
14
13
15
17
16
18
192021
2223
26 29
30
28
27
24
25
8
- 6 -
Item Code Description
1 SPEK Speaker cable connector
2 LINE_IN Audio Line In port
3 SPDIF Optical S/PDIF Out connector
4 R_USB2 USB 3.0 ports
5 R_USB1 USB 2.0 ports
6BAT Battery connector
7 HDMI HDMI port
8 CLR_CMOSHW Clear CMOS jumper
9 LAN1 RJ45 LAN port
10 DC_IN DC In power connector
11 ATX_19V 2 pin power connector
12 MIN_PCIE1 Mini PCi Express connector
13 M_SATA MSATA connector
14 TP_USB Touch panel USB connector
15 TV_USB TV tuner USB connector
16 BL_SW Back Light switch
17 F_PANEL Front panelconnector
18 SATA1/SATA2 SATA cable connectors
19 HDD_PWR Hard disk power connector
20 F_USB1 USB connector
21 F_AUDIO1 Audio cable connector
22 CPU_FAN CPU fan connector
23 CPU1 Intel LGA1155 socket
24 SYS_FAN System fan connector
25 FPD Flat Panel Display connector
26 LVDS LVDS connector
27 DMIC_CON Digital Mic connector
28 WEB_CON WEBCAM connector
29 SODIMMB1 DDR3 SO-DIMM slot (channel B-1 )
30 SODIMMA1 DDR3 SO-DIMM slot (channel A-1 )
- 7 -
Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and rst touch a metal object to eliminate static electricity.
•
Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power sup-
ply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hard-
ware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to sys-
tem components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
Chapter 1 Hardware Installation
Hardware Installation
- 8 -
1-2 ProductSpecications
CPU Support for Intel®Core™i7, Core™i5, Core™i3 processors/Intel®Pentium®
processors in the LGA1155 package
Support Up to 95W
L3 cache varies with CPU
Chipset Intel®H61 Sandy Bridge chipset
Memory 2 x 1.5V DDR3 SO-DIMM slot
Max. to 8GB (4GB x 2)
Dual channel architecture
Support for DDR3 1333/1066 MHz
Display 1 x HDMI 1.3 out
1 x LVDS slot for All-In-One PC
Audio Realtek ALC887 codec
High Denition Audio
2 Channel / SPDIF out
LAN 1 x Realtek RTL8111E supports 10/100/1000 Mbps
Expansion Slots 1 x Mini PCI Express slot (Half size)
1 x Mini PCI Express slot (Full size/MSATA function/optional)
Onboard
Graphics
Build in Intel®processor
Storage Interface 2 x SATA 3Gb/s connectors
USB 2 x USB 3.0 ports (back panel)
2 x USB 2.0 ports (back panel)
5 x USB 2.0/1.1 header (Card reader/Touch panel/webcam and other devices)
Internal
Connectors
2 x SATA 3Gb/s connectors
1 x HDD power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Audio header
3 x USB 2.0 headers
1 x Speaker header
1 x LVDS connector
1 x FPD connector
1 x Web CAM connector
1 x DMIC connector
- 9 -
Hardware Installation
Back Panel
Connectors
1 x DC-IN
1 x RJ-45 port
1 x HDMI port
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x SPDIF port
1 x Audio Line In
I/O Controller iTE IT8773 chip
Hardware
Monitor
CPU/System temperature detection
CPU fan speed detection
BIOS 1 x 64 Mbit ash
AMI BIOS
Form Factor Mini ITX Form Factor; 170cm x 170cm
* GIGABYTE reserves the right to make any changes to the product specications and product-related information
without prior notice.
- 10 -
Hardware Installation

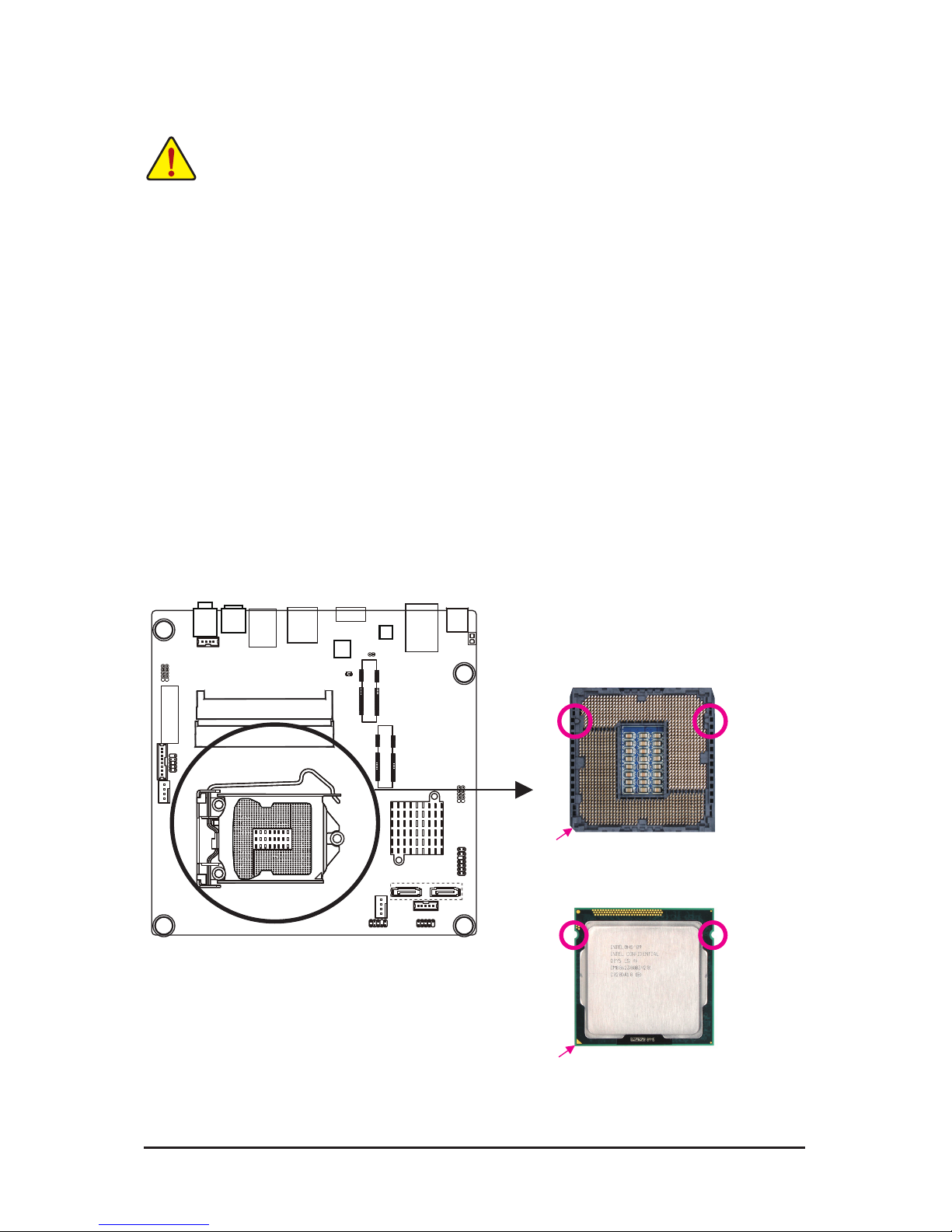

1-3 Installing the CPU and CPU Cooler
1-3-1 Installing the CPU
A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Read the following guidelines before you begin to install the CPU:
• Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
• Always turn off the computer and unplug the power cord from the power outlet before installing
the CPU to prevent hardware damage.
• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
• Apply an even and thin layer of thermal grease on the surface of the CPU.
• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
• Set the CPU host frequency in accordance with the CPU specications. It is not recommended
that the system bus frequency be set beyond hardware specications since it does not meet the
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specifications, please do so according to your hardware specifications including the CPU,
graphics card, memory, hard drive, etc.
Notch
Alignment KeyAlignment Key
Notch
LGA1155 CPU
LGA1155 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU
