Gigabyte GA-8ILMT4 Manual de usuario

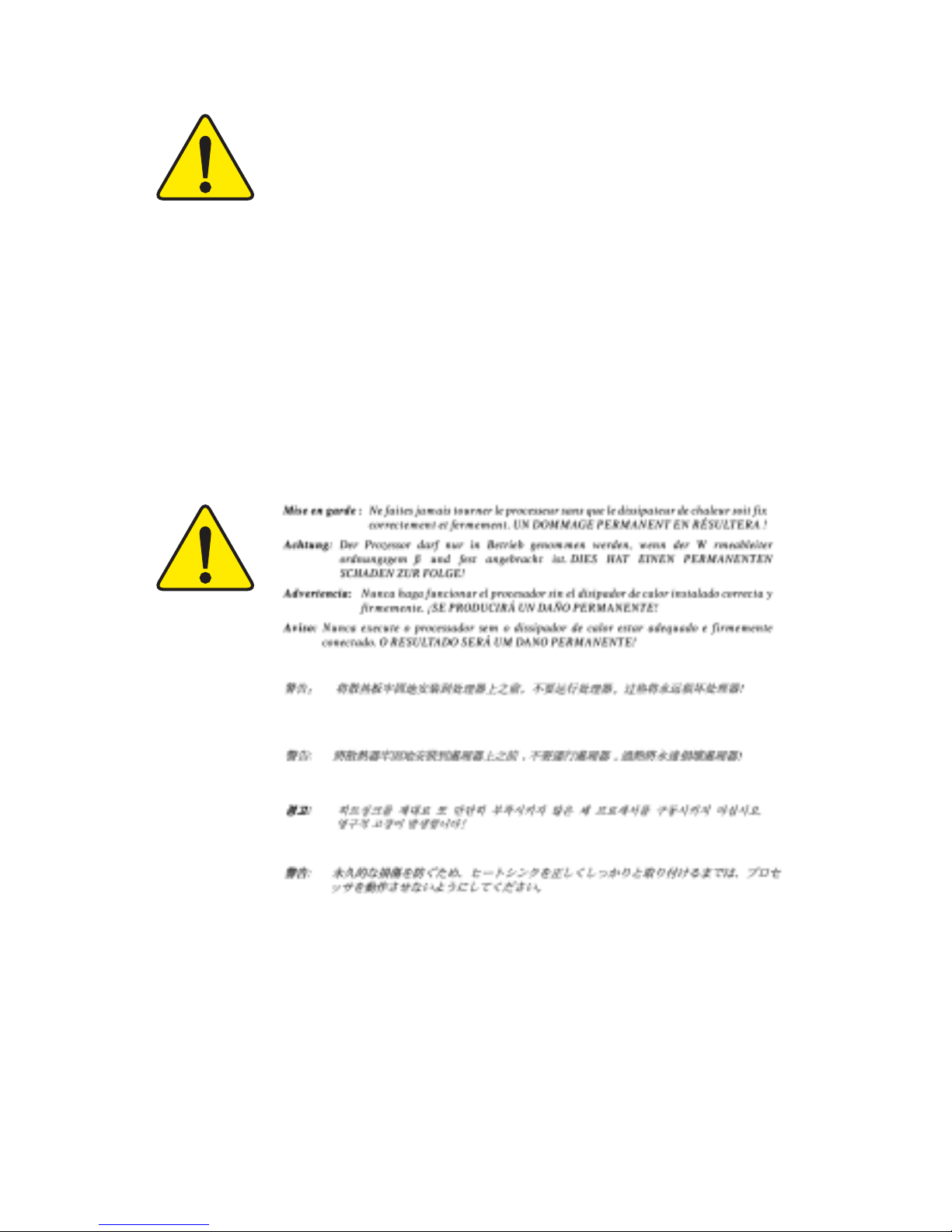

!The author assumes no responsibility for any errors

or omissions that may appear in this document nor

does the author make a commitment to up

date the information contained herein.

!Third-party brands and names are the property of

their respective owners.

!Please do not remove any labels on motherboard, this

may void the warranty of this motherboard.

!Due to rapid change in technology, some of the

specifications might be out of date before publication

of this booklet.

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-8ILMT4

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive

"EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment

"EN 61000-3-2*

!EN 60555-2

Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Harmonics”

"EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment

"EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Voltage fluctuations”

"EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

!EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

!EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry

"EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment

"EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment

"EN 55082-2

!EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus

"ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)

"EN50091-2

"EN 55020

"DIN VDE 0855

"part 10

"part 12

(EC conformity marking)

!CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use

"EN 60950

"EN 60065

Safety of household and similar

electrical appliances

"EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : May. 26, 2002

!EN 60555-3

Timmy Huang

"EN 50091-1

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109

(a),Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:

Address:

Phone/Fax No:

hereby declares that the product

Product Name:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

Supplementary Information:

Model Number:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Motherboard

GA-8ILMT4

Date:

ERIC LU

May. 26,2002

USER’S MANUAL

GA-8ILMT4

P4 Titan-DDR Motherboard

Pentium®4 Processor Motherboard

Rev. 1001

12ME-8ILMT4-1001

- 2 -GA-8ILMT4 Motherboard

English

Table of Content

Item Checklist ......................................................................................... 4

WARNING! ............................................................................................... 4

Chapter 1 Introduction ............................................................................. 5

Features Summary ...................................................................................... 5

GA-8ILMT4 Motherboard Layout ................................................................ 7

Chapter 2 Hardware Installation Process ................................................ 8

Step 1: Install the Central Processing Unit (CPU)....................................... 9

Step1-1 CPU Installation ................................................................................................... 9

Step1-2 CPU Heat Sink Installation ................................................................................ 10

Step 2: Install memory modules ................................................................ 11

Step 3: Connect ribbon cables, cabinet wires, and power supply ........... 13

Step3-1 I/O Back Panel Introduction .............................................................................. 13

Step3-2 Connectors Introduction .................................................................................... 15

Chapter 3 BIOS Setup .......................................................................... 22

The Main Menu (For example: BIOS Ver. :F1) ......................................... 23

Standard CMOS Features......................................................................... 25

Advanced BIOS Features .......................................................................... 28

Integrated Peripherals .............................................................................. 31

Table of Content

English

- 3 -

Power Management Setup ....................................................................... 35

PnP/PCI Configurations ............................................................................. 38

PC Health Status........................................................................................ 39

Frequency/Voltage Control ........................................................................ 41

Top Performance ...................................................................................... 43

Load Fail-Safe Defaults ............................................................................. 44

Load Optimized Defaults ........................................................................... 45

Set Supervisor/User Password .................................................................. 46

Save & Exit Setup ....................................................................................... 47

Exit Without Saving ................................................................................... 48

Chapter 4 Technical Reference ............................................................ 49

Block Diagram ........................................................................................... 49

Q-Flash Introduction.................................................................................. 50

@ BIOS Introduction .................................................................................. 52

Easy Tune 4TM Introduction ....................................................................... 53

Chapter 5 Appendix.............................................................................. 54

- 4 -GA-8ILMT4 Motherboard

English

!The GA-8ILMT4 motherboard !I/O Shield

!IDE cable x 1/ Floppy cable x 1

!CD for motherboard driver & utility (IUCD)

!GA-8ILMT4 user’s manual

Item Checklist

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

othercomponents.

4. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

power connector on the motherboard.

If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are

no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting

holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful

of your hands). In this way you can still attach the motherboard to the base without worrying about short

circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard

PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact

any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the

board or cause board malfunctioning.

Installing the motherboard to the chassis…

WARNING!

Introduction

English

- 5 -

Form Factor !21.0cm x 24.3cm Micro ATX size form factor, 4 layers PCB.

CPU !Socket 478 for Intel®Micro FC-PGA2 Pentium®4 processor

! Support Intel®Pentium®4 (Northwood, 0.13 m) processor

!Intel Pentium®4 400MHz FSB

!2nd cache depends on CPU

Chipset !Chipset 82845GL HOST/AGP/Controller

!ICH4 I/O Controller Hub

Memory !2 184-pin DDR DIMM sockets

!Supports PC1600 DDR or PC2100 DDR SDRAM

!Supports up to 2GB DRAM (Max)

!Supports only 2.5V DDR SDRAM

I/O Control !ITE8712

Slots !3 PCI slot supports 33MHz & PCI 2.2 compliant

On-Board IDE !2 IDE controller on the Intel ICH4 PCI chipset

provides IDE HDD/CD-ROM with PIO, Bus Master (Ultra

DMA33/ATA66/ATA100) operation modes.

!Can connect up to four IDE devices

On-Board Peripherals !1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes.

!1 Parallel port supports Normal/EPP/ECP mode

!1 Serial ports (COMA), 1 VGA port

!6 x USB 2.0/1.1 (2x Rear, 4 Front by cable)

!1 Front Audio connector

On-Board VGA !Built in Intel 845GL Chipset

On-Board Sound !Sigmatel 9721 CODEC

!1 Buzzer

!Line In/Line Out/Mic In/CD In/AUX In/Game Port

On-Board LAN !Builit in RTL8100BL Chipset

!1 RJ 45 port

Chapter 1 Introduction

to be continued......

Features Summary

- 6 -GA-8ILMT4 Motherboard

English

Please set the CPU host frequency in accordance with your processor’s specifications.

We don’t recommend you to set the system bus frequency over the CPU’s specification

because these specific bus frequencies are not the standard specifications for CPU,

chipset and most of the peripherals. Whether your system can run under these specific

bus frequencies properly will depend on your hardware configurations, including CPU,

Chipsets,SDRAM,Cards….etc.

Hardware Monitor !CPU/System Fan Revolution detect

!CPU/System Fan Control

!CPU Overheat Warning

!System Voltage Detect

PS/2 Connector !PS/2 Keyboard interface and PS/2 Mouse interace

BIOS !Licensed AWARD BIOS, 2M bit FWH

AdditionalFeatures !External Modem wake up

!PS/2 Keyboard password power on

!PS/2 Mouse power on

!AC Recovery

!USB KB/Mouse wake up from S3

!Poly fuse for keyboard,USB,game port over-current protection

!Supports @BIOS

!Supports EasyTune4

Introduction

English

- 7 -

RTL8100BL

AUX_IN

BIOS_WP

F_USB1

DIMM_LED

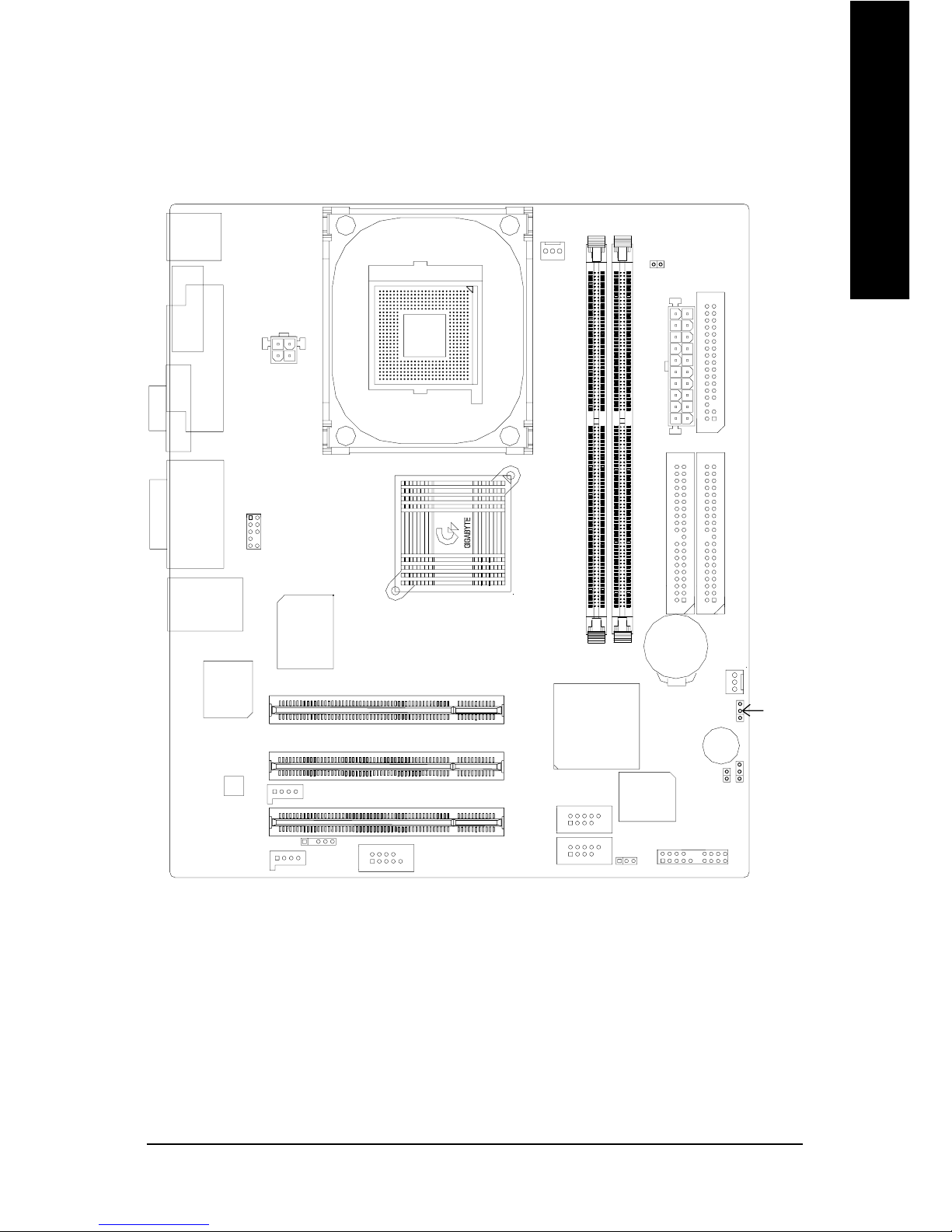

GA-8ILMT4 Motherboard Layout

GA-8ILMT4

KB_MS

COMA

LPT

GAME

LINE_IN

LINE_OUTMIC_IN

USB/

LAN

ATX_12V

CD_IN

F_AUDIO

F_PANEL

BAT1

SYS _FAN

ICH4

Intel 845GL

SOCKET478

CPU_FAN

ATX_POWER

FDD

IDE2

PCI1

PCI2

PCI3

DDR2

DDR1

AC97

ITE8712

BIOS

Buzzer

F_USB2

CLR_COMS

VGA

IDE1

COM B

PWR_LED

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-Z77P-D3 Manual de usuario

Gigabyte

Gigabyte GA-H110M-H DDR3 Manual de usuario

Gigabyte

Gigabyte GA-8GE800 Pro Manual de usuario

Gigabyte

Gigabyte GA-AB350M-Gaming 3 Manual de usuario

Gigabyte

Gigabyte Z690 UD AC Manual de usuario

Gigabyte

Gigabyte MSH61DK Manual de usuario

Gigabyte

Gigabyte GA-EP45T-UD3 Manual de usuario

Gigabyte

Gigabyte GA-Z77N-WIFI Manual de usuario

Gigabyte

Gigabyte G1.Sniper 3 Manual de usuario

Gigabyte

Gigabyte GA-8IP900MK Manual de usuario

Gigabyte

Gigabyte GA-F2A78M-DS2 Manual de usuario

Gigabyte

Gigabyte GA-K8NF-9 Manual de usuario

Gigabyte

Gigabyte GA-AB350M-DS3H Manual de usuario

Gigabyte

Gigabyte GA-MA790X-DS4 Manual de usuario

Gigabyte

Gigabyte GA-8IDMR Manual de usuario

Gigabyte

Gigabyte GA-H77TN Manual de usuario

Gigabyte

Gigabyte B450M DS3H Manual de usuario

Gigabyte

Gigabyte GA-A320M-HD2 Manual de usuario

Gigabyte

Gigabyte GA-MA69G-S3H Manual de usuario

Gigabyte

Gigabyte B550M DS3H Manual de usuario

Gigabyte

Gigabyte GA-8S661FXMP-RZ Manual de usuario

Gigabyte

Gigabyte GA-8I845G Manual de usuario

Gigabyte

Gigabyte GA-7VKMLS Manual de usuario

Gigabyte

Gigabyte B760M GAMING X AX Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
