GA-X150M-PLUS WS

User's Manual

Rev. 1002

12ME-X15MPLW-1002R

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or

by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Nov. 13, 2015

Motherboard

GA-X150M-PLUS WS

Motherboard

GA-X150M-PLUS WS

Nov. 13, 2015

- 3 -

Table of Contents

GA-X150M-PLUS WS Motherboard Layout ....................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 8

1-4 Installing the Memory....................................................................................... 8

1-5 Installing an Expansion Card ........................................................................... 9

1-6 Back Panel Connectors.................................................................................... 9

1-7 Internal Connectors........................................................................................ 10

Chapter 2 BIOS Setup ..................................................................................................16

2-1 Startup Screen ............................................................................................... 16

2-2 M.I.T. .............................................................................................................. 17

2-3 System Information ........................................................................................ 22

2-4 BIOS Features ............................................................................................... 23

2-5 Peripherals..................................................................................................... 26

2-6 Chipset........................................................................................................... 28

2-7 Power Management....................................................................................... 29

2-8 Save & Exit..................................................................................................... 31

Chapter 3 Appendix ......................................................................................................32

3-1 ConguringaRAIDSet.................................................................................. 32

3-2 DriversInstallation.......................................................................................... 34

RegulatoryStatements.............................................................................................. 35

Contact Us ................................................................................................................ 40

- 4 -

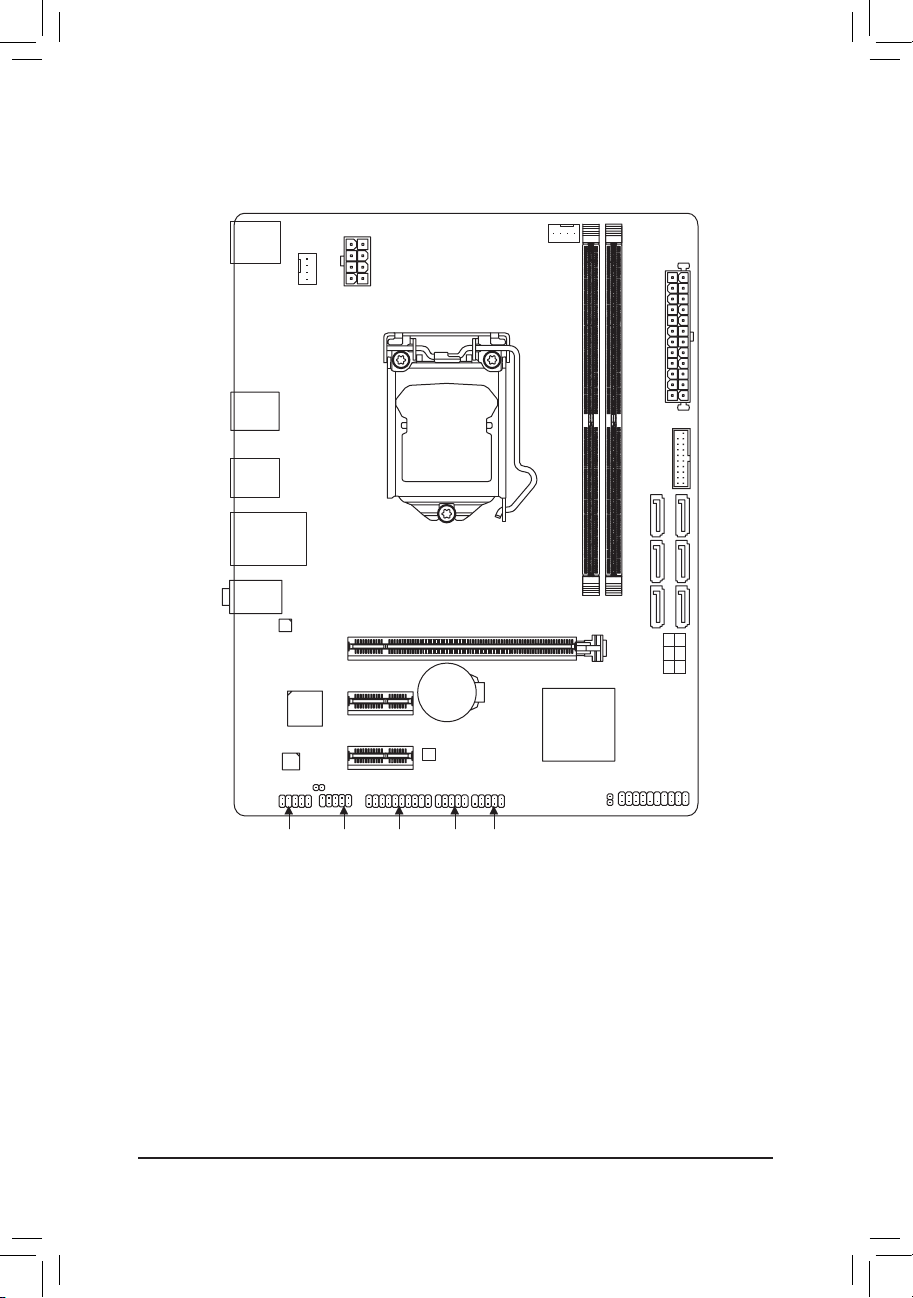

GA-X150M-PLUS WS Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-X150M-PLUS WS motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS

CPU_FAN

SYS_FAN

LGA1151

ATX

GA-X150M-PLUS WS

F_AUDIO

AUDIO

DDR4_1

DDR4_2

BAT

ATX_12V_2X4

Intel®C232

R_USB30_2

CODEC

CLR_CMOS

M_BIOS

USB_LAN

PCIEX16

PCIEX1_1

PCIEX1_2

iTE®

Super I/O

Realtek®

GbE LAN

F_USB1TPM F_USB2

F_PANEL

SPDIF_O

F_USB30

SATA3

5 4

3 2

1 0

R_USB30_1

COM

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damagedasaresultofelectrostaticdischarge(ESD).Priortoinstallation,carefullyreadtheuser's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Priortoinstallation,donotremoveorbreakmotherboardS/N(SerialNumber)stickeror

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

componentssuchasamotherboard,CPUormemory.IfyoudonothaveanESDwriststrap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Donotplacethecomputersystemonanunevensurface.

•Donotplacethecomputersysteminahigh-temperatureorwetenvironment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU Support for Intel®Xeon®E3-1200 v5 processors/Intel®Core™i3 processors/

Intel®Pentium®processors/Intel®Celeron®processors in the LGA1151 package

(GotoGIGABYTE'swebsiteforthelatestCPUsupportlist.)

L3 cache varies with CPU

Chipset Intel®C232 Chipset

Memory 2xDDR4DIMMsocketssupportingupto32GBofsystemmemory

 * DuetoaWindows32-bitoperatingsystemlimitation,whenmorethan4GBofphysical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Dualchannelmemoryarchitecture

SupportforDDR42133MHzmemorymodules

Supportfornon-ECCUDIMM1Rx8/2Rx8/1Rx16memorymodules

(Go to GIGABYTE's website for the latest supported memory speeds and

memorymodules.)

Audio Realtek®ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule

and enable the multi-channel audio feature through the audio driver.

SupportforS/PDIFOut

LAN Realtek®GbELANchip(10/100/1000Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

 (AllofthePCIExpressslotsconformtoPCIExpress3.0standard.)

Storage Interface Chipset:

- 6 x SATA 6Gb/s connectors

- SupportforRAID0,RAID1,RAID5,andRAID10

USB Chipset:

- 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through

theinternalUSBheader)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

theinternalUSBheaders)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1xS/PDIFOutheader

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1xTrustedPlatformModule(TPM)header

1 x serial port header

1 x Clear CMOS jumper

- 6 -

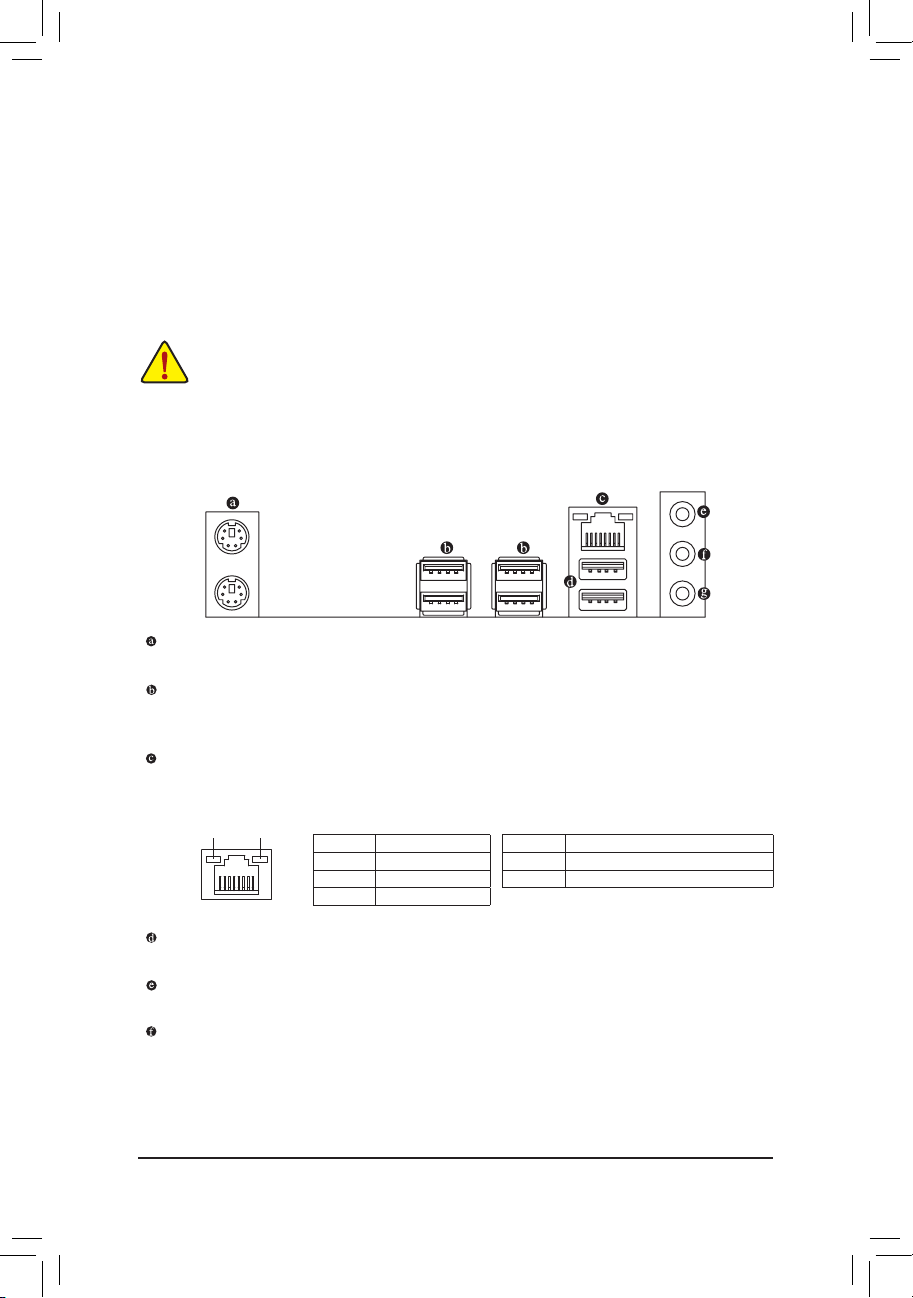

Back Panel

Connectors

1 x PS/2 mouse port

1 x PS/2 Keyboard port

4 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1xRJ-45port

3xaudiojacks(LineIn,LineOut,MicIn)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1x64Mbitash

Use of licensed AMI UEFI BIOS

PnP1.0a,DMI2.7,WfM2.0,SMBIOS2.7,ACPI5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- @BIOS

Support for Q-Flash

Support for Smart Switch

Support for Xpress Install

Bundled

Software

Norton®InternetSecurity(OEMversion)

cFosSpeed

Operating

System

Support for Windows 10/8.1 64-bit

Support for Windows 7 32-bit/64-bit

* Please download the "Windows USB Installation Tool" from GIGABYTE's website and

install it before installing Windows 7.

Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit the Support\Utility List page

on GIGABYTE's website to download the

latest version of apps.

Please visit GIGABYTE's website for

support lists of CPU, memory modules,

andSSDs.

- 7 -

1-3 Installing the CPU

ReadthefollowingguidelinesbeforeyoubegintoinstalltheCPU:

•Make sure that the motherboard supports the CPU.

(GotoGIGABYTE'swebsiteforthelatestCPUsupportlist.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may locate

thenotchesonbothsidesoftheCPUandalignmentkeysontheCPUsocket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•DonotturnonthecomputeriftheCPUcoolerisnotinstalled,otherwiseoverheatinganddamage

of the CPU may occur.

•Setthe CPUhost frequencyinaccordancewiththe CPUspecications. Itis notrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

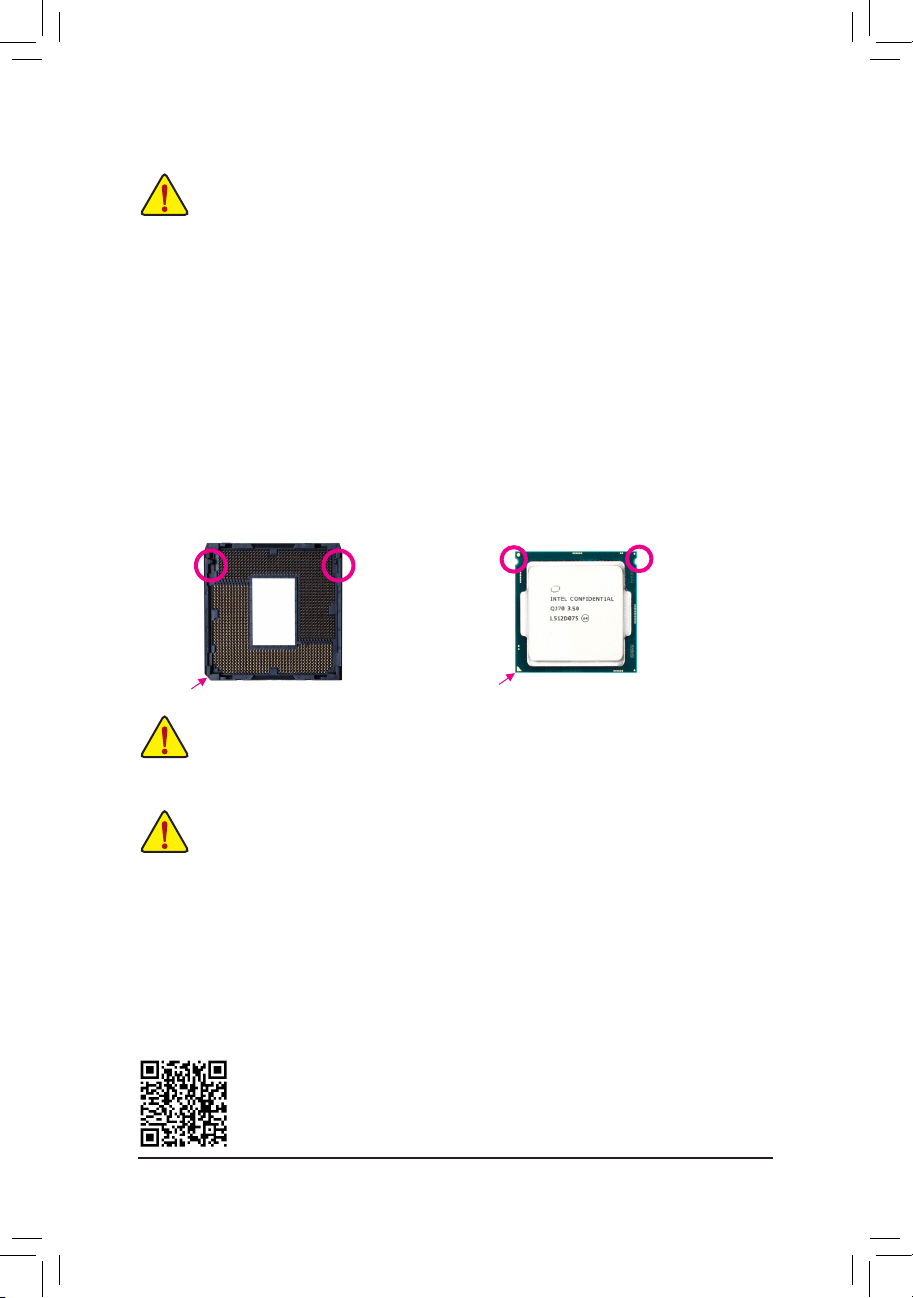

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

Alignment

Key

Alignment

Key

LGA1151 CPU Socket

Pin One Corner of the CPU Socket

1-4 Installing the Memory

Readthefollowingguidelinesbeforeyoubegintoinstallthememory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(GotoGIGABYTE'swebsiteforthelatestsupportedmemoryspeedsandmemorymodules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

ThismotherboardprovidestwomemorysocketsandsupportsDualChannelTechnology.Afterthememory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

LGA1151 CPU

Notch

Please visit GIGABYTE's website for details on hardware installation.

Triangle Pin One Marking on the CPU

- 8 -

1-5 Installing an Expansion Card

Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

DuetoCPUlimitations,readthefollowingguidelinesbeforeinstallingthememoryinDualChannelmode.

1. DualChannelmodecannotbeenabledifonlyonememorymoduleisinstalled.

2. WhenenablingDualChannelmodewithtwomemorymodules,itisrecommendedthatmemoryof

the same capacity, brand, speed, and chips be used for optimum performance.

The two memory sockets are divided into two channels and each channel has one memory socket as following:

ChannelA:DDR4_1

ChannelB:DDR4_2

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Usetheupperport(green)toconnectaPS/2mouseandthelowerport(purple)toconnectaPS/2keyboard.

USB 3.0/2.0 Port

TheUSB3.0portsupportstheUSB3.0specicationandiscompatibletotheUSB2.0/1.1specication.

Use this port for USB devices.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describesthestatesoftheLANportLEDs.

ActivityLED

Connection/

SpeedLED

LAN Port

ActivityLED:Connection/SpeedLED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Datatransmissionorreceivingisoccurring

Off No data transmission or receiving is occurring

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

Line In (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out (Green)

The line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to

connectfrontspeakersina4/5.1/7.1-channelaudioconguration.

- 9 -

•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

•Whenremovingthecable,pullitstraightoutfromtheconnector.Donotrockitsidetosidetoprevent

an electrical short inside the cable connector.

Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomoduleandenablethe

multi-channel audio feature through the audio driver. Please visit GIGABYTE's website for more

software information.

Mic In (Pink)

The Mic in jack.

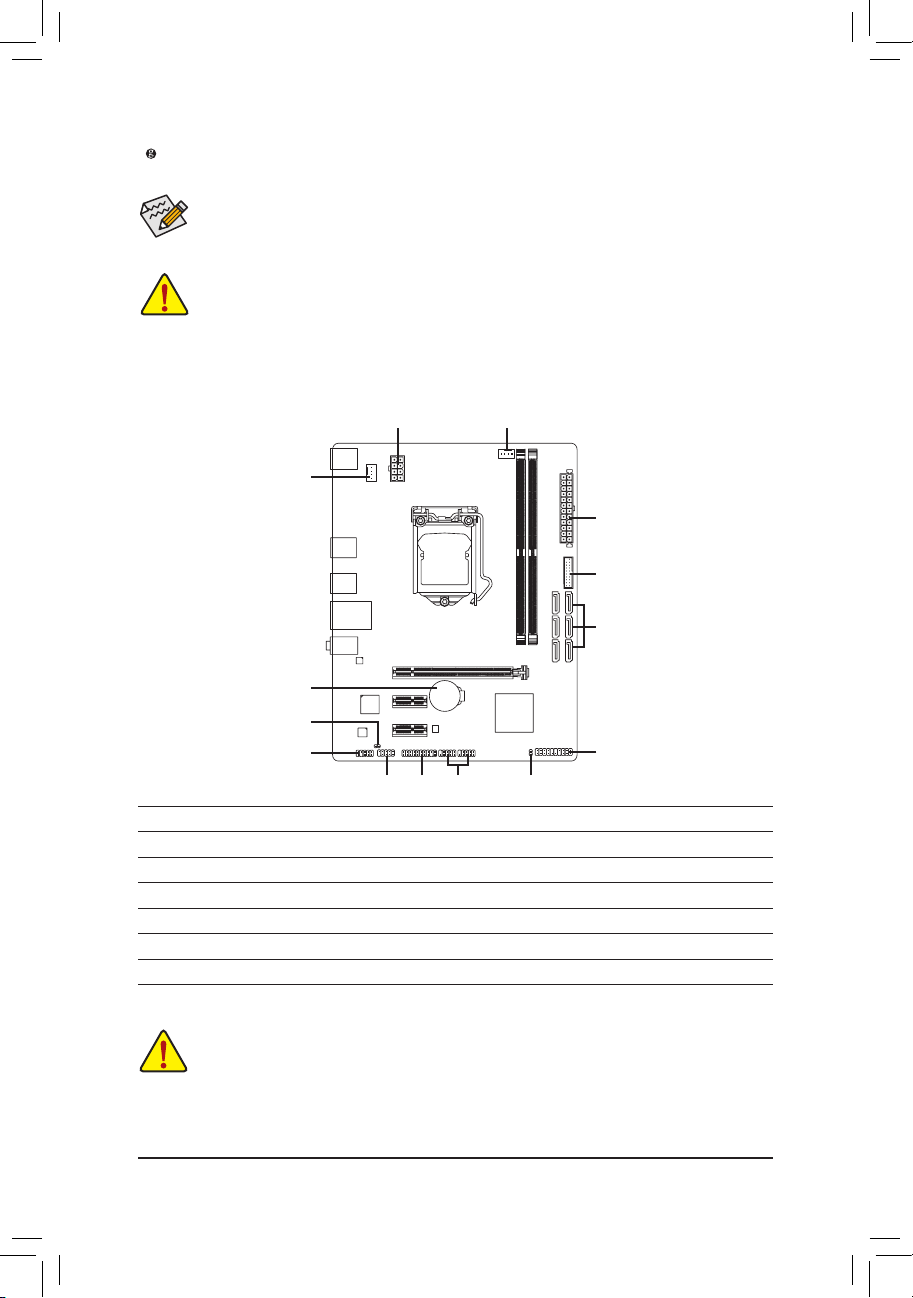

1-7 Internal Connectors

1213

1 3

1) ATX_12V_2X4

2) ATX

3) CPU_FAN

4) SYS_FAN

5) SATA3 0/1/2/3/4/5

6) F_PANEL

7) F_AUDIO

8) SPDIF_O

9) CLR_CMOS

10) F_USB30

11) F_USB1/F_USB2

12) TPM

13) COM

14) BAT

Readthefollowingguidelinesbeforeconnectingexternaldevices:

•First make sure your devices are compliant with the connectors you wish to connect.

•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

•After installing the device and before turning on the computer, make sure the device cable has been

securely attached to the connector on the motherboard.

- 10 -

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-Z170X-Gaming 3 Manual de usuario

Gigabyte

Gigabyte GA-PH67A-UD3 Manual de usuario

Gigabyte

Gigabyte B460M D3H Manual de usuario

Gigabyte

Gigabyte GA-F2A58-DS3 Manual de usuario

Gigabyte

Gigabyte MZ32-AR0 Cómo utilizar

Gigabyte

Gigabyte 6VMM Manual de usuario

Gigabyte

Gigabyte GA-K8N51PVMT-9-RH Manual de usuario

Gigabyte

Gigabyte GA-F2A85X-HD3 Manual de usuario

Gigabyte

Gigabyte GA-8I845GE775-G Manual de usuario

Gigabyte

Gigabyte GA-8N-SLI Royal Manual de usuario

Gigabyte

Gigabyte GA-X58A-UD7 Manual de usuario

Gigabyte

Gigabyte MATMH81 Manual de usuario

Gigabyte

Gigabyte GA-8SMML Manual de usuario

Gigabyte

Gigabyte GA-7N400E Manual de usuario

Gigabyte

Gigabyte GA-B250M-Gaming 3 Manual de usuario

Gigabyte

Gigabyte GA-M55plus-S3G Manual

Gigabyte

Gigabyte GA-AB350M-DS3H V2 Manual de usuario

Gigabyte

Gigabyte GA-H67M-D2-B3 Manual de usuario

Gigabyte

Gigabyte GA-7ZMMC Manual de usuario

Gigabyte

Gigabyte Z370 AORUS ULTRA GAMING 2.0 Manual de usuario

Gigabyte

Gigabyte B650M AORUS ELITE AX ICE Manual de usuario

Gigabyte

Gigabyte GA-C1037UN Manual de usuario

Gigabyte

Gigabyte GA-B75-DS3V Manual de usuario

Gigabyte

Gigabyte GA-946-DS3 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
