Gigabyte B550 AORUS ELITE Manual de usuario

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

B550 AORUS ELITE

User's Manual

Rev. 1001

12ME-B55AELT-1001R

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

B550 AORUS ELITE Motherboard Layout ......................................................................4

B550 AORUS ELITE Motherboard Block Diagram..........................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the CPU .......................................................................................... 10

1-4 Installing the Memory..................................................................................... 10

1-5 Installing an Expansion Card ......................................................................... 11

1-6 Back Panel Connectors.................................................................................. 11

1-7 Internal Connectors........................................................................................ 13

Chapter 2 BIOS Setup ..................................................................................................21

2-1 Startup Screen ............................................................................................... 21

2-2 The Main Menu .............................................................................................. 22

2-3 Favorites (F11) ............................................................................................... 23

2-4 Tweaker.......................................................................................................... 24

2-5 Settings .......................................................................................................... 27

2-6 System Info. ................................................................................................... 32

2-7 Boot................................................................................................................ 33

2-8 Save & Exit..................................................................................................... 36

Chapter 3 Appendix ......................................................................................................37

3-1 Conguring a RAID Set.................................................................................. 37

3-2 Drivers Installation.......................................................................................... 39

Regulatory Notices.................................................................................................... 40

Contact Us ................................................................................................................ 44

- 4 -

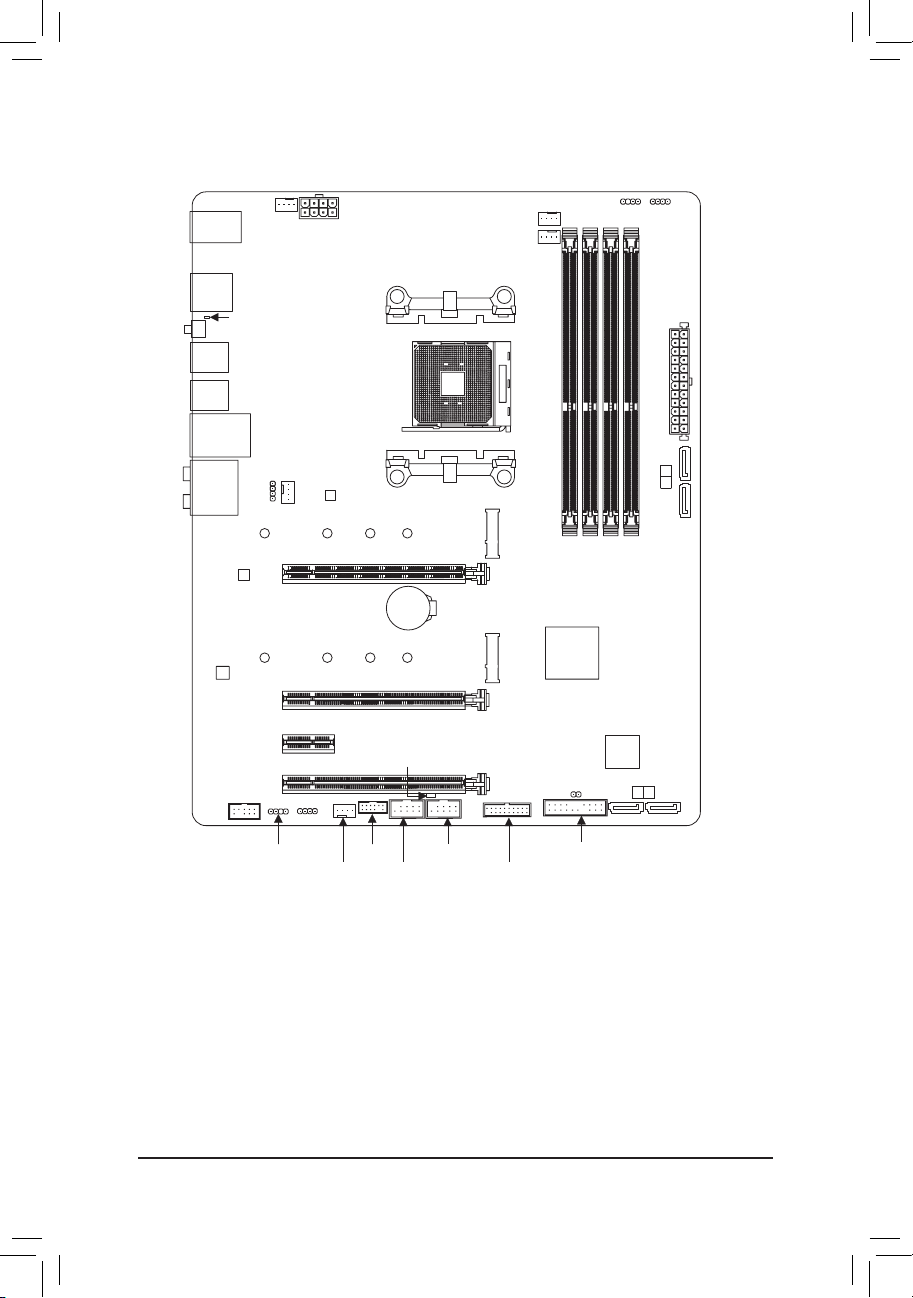

B550 AORUS ELITE Motherboard Layout

Box Contents

5B550 AORUS ELITE motherboard 5Two SATA cables

5Motherboard driver disc 5One G Connector

5User's Manual

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Socket AM4

AMD B550

USB20 CPU_FAN

ATX_12V

ATX

F_AUDIO

AUDIO

BAT

F_PANEL

PCIEX1_2

CLR_CMOS

CODEC

M_BIOS

PCIEX16

B550 AORUS ELITE

iTE®

Super I/O

F_USB1

LED_C1

TPM

F_U32

M2B_SB

6080

110

CPU_OPT

SYS_FAN1

F_USB2SYS_FAN3

D_LED1

D_LED2 LED_C2

SYS_FAN2

DDR4_A1

DDR4_A2

DDR4_B1

DDR4_B2

SATA3

3 2

PCIEX1_1

PCIEX2

M2A_CPU

6080

110

LED_CPU

Realtek®

2.5GbE LAN

U32_LAN

U32G2

QFLASH_PLUS

QFLED

DP_HDMI

U32

USB 2.0 Hub

1 0

SATA3

- 5 -

B550 AORUS ELITE Motherboard Block Diagram

CPU CLK+/- (100~500 MHz)

PCI Express 4.0/3.0 Bus

PCIe 3.0 x4

LAN

RJ45

Realtek®

2.5GbE LAN

4 SATA 6Gb/s

PCI Express 3.0 Bus

4 USB 2.0/1.1

4 USB 3.2 Gen 1

2 USB 3.2 Gen 1

AMD B550

x2 x1

HDMI

1 PCI Express x2

USB 2.0

Hub

1 M.2 Socket 3

(M2A_CPU)

LPC

Bus

TPM

iTE®

Super I/O

SPI

Bus BIOS

x16

1 PCI Express x16

DDR4 3200/2933/2667/2400/2133 MHz

2 PCI Express x1

1 M.2 Socket 3

(M2B_SB)

2 USB 2.0/1.1

DisplayPort

Center/Subwoofer

Speaker Out

Line Out

MIC

Line In

S/PDIF Out

Rear Speaker Out

CODEC

AMD Socket

AM4 CPU

2 USB 3.2 Gen 2

Type A

PCI Express 3.0 Bus

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 6 -

1-2 ProductSpecications

CPU AMD Socket AM4, support for:

3rd Generation AMD Ryzen™processors/

New Generation AMD Ryzen™with Radeon™Graphics processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD B550

Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated in the New GenerationAMD Ryzen™with Radeon™Graphics processors:

- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Audio Realtek®ALC1200 codec

High Denition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN Realtek®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- 3rd Generation AMD Ryzen™processors support PCIe 4.0 x16 mode

- New Generation AMD Ryzen™with Radeon™Graphics processors support

PCIe 3.0 x16 mode

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

- Supporting PCIe 3.0 x2 mode

1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode

1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode

Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,

M key, type 2242/2260/2280/22110 SSDs:

- 3rd Generation AMD Ryzen™processors support SATA and PCIe 4.0 x4/x2

SSDs

- New Generation AMD Ryzen™with Radeon™Graphics processors support

SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3,

M key, type 2242/2260/2280/22110 SSDs:

- Supporting SATA and PCIe 3.0 x4/x2 SSDs

- 7 -

Storage Interface 4 x SATA 6Gb/s connectors, integrated in the Chipset:

- Support for RAID 0, RAID 1, and RAID 10

USB CPU:

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 2 x USB 3.2 Gen 1 ports on the back panel

Chipset:

- 2 x USB 3.2 Gen 1 ports on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x CPU cooler LED strip/RGB LED strip header

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S

module only)

1 x Clear CMOS jumper

Back Panel

Connectors

1 x DisplayPort

1 x HDMI port

2 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling ow rate detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

- 8 -

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- RGB Fusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

Realtek®8125 Gaming LAN Bandwidth Control Utility

Operating

System Support for Windows 10 64-bit

Form Factor ATX Form Factor; 30.5cm x 24.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 9 -

Please visit GIGABYTE's website for details on hardware installation.

DualChannelMemoryConguration

This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory

is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

Channel A: DDR4_A1, DDR4_A2

Channel B: DDR4_B1, DDR4_B2

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

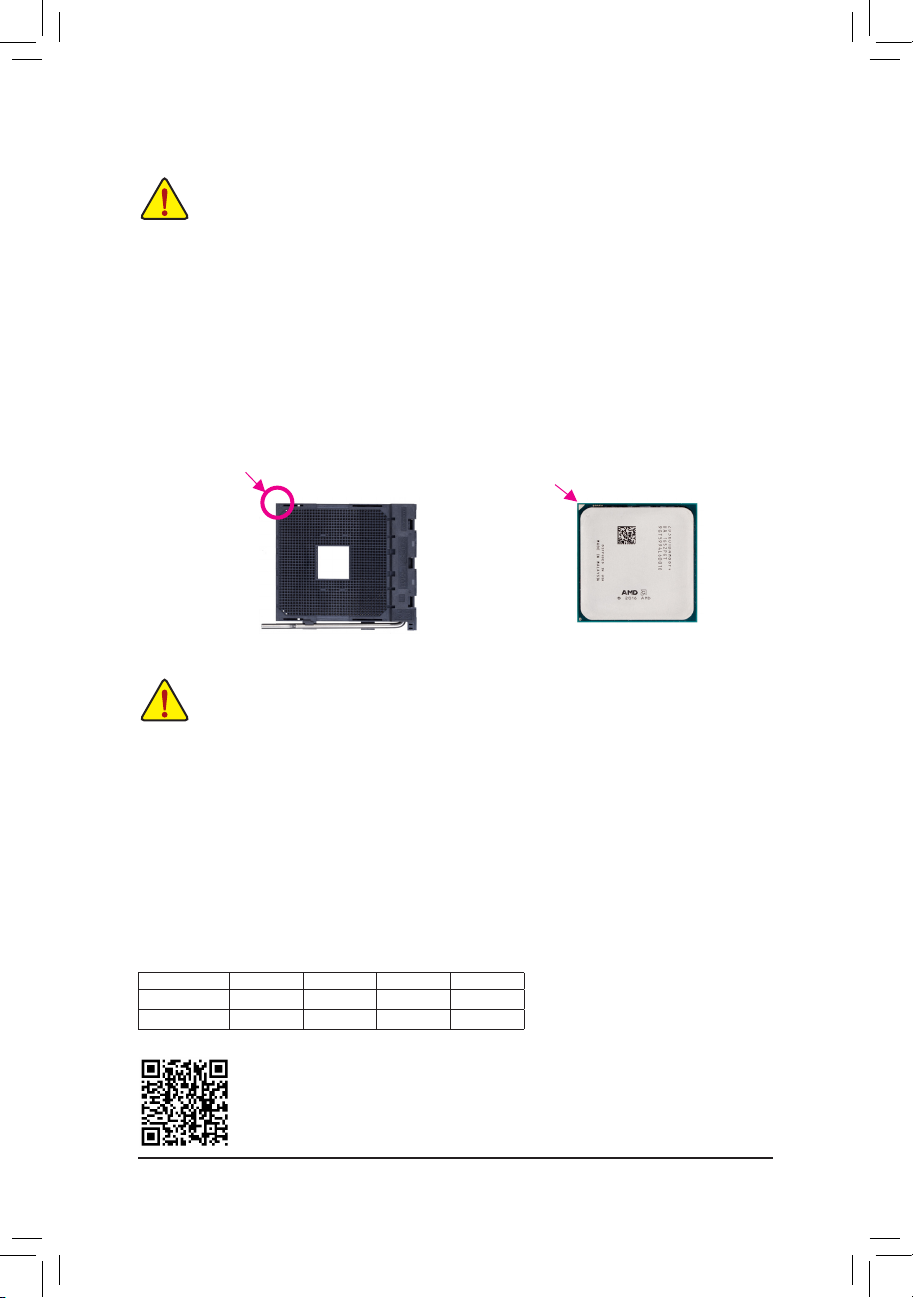

Installing the CPU

Locate the pin one (denoted by a small triangle) of the CPU socket and the CPU.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Recommanded Dual Channel Memory Conguration:

DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2

2 Modules - - DS/SS - - DS/SS

4 Modules DS/SS DS/SS DS/SS DS/SS

(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

AM4 Socket

A Small Triangle

Marking Denotes Pin

One of the Socket AM4 CPU

A Small Triangle

Marking Denotes CPU

Pin One

- 10 -

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte 6BXDS Manual de usuario

Gigabyte

Gigabyte GA-Z87P-D3 Manual de usuario

Gigabyte

Gigabyte B460M D2V Manual de usuario

Gigabyte

Gigabyte GA-8VM800M Manual de usuario

Gigabyte

Gigabyte AMD Socket AM2 Motherboard GA-3PXSL-RH Manual de usuario

Gigabyte

Gigabyte GA-X99-Gaming G1 WIFI Manual de usuario

Gigabyte

Gigabyte GA-8S661FXM Manual de usuario

Gigabyte

Gigabyte GA-P55-UD5 Manual de usuario

Gigabyte

Gigabyte GA-AB350M-HD3 Manual de usuario

Gigabyte

Gigabyte GA - 586S2 Manual de usuario

Gigabyte

Gigabyte GA-945G-S3 Manual de usuario

Gigabyte

Gigabyte GA-P55-USB3 Manual de usuario

Gigabyte

Gigabyte X570 UD Manual de usuario

Gigabyte

Gigabyte GA-Z77-HD3 Manual de usuario

Gigabyte

Gigabyte B450M GAMING Manual de usuario

Gigabyte

Gigabyte GA-B75M-D3P Manual de usuario

Gigabyte

Gigabyte B760 AORUS ELITE AX Manual de usuario

Gigabyte

Gigabyte GA-8IPE1000 Pro-G Manual de usuario

Gigabyte

Gigabyte H310M HD3 2.0 Manual de usuario

Gigabyte

Gigabyte GA-8I915ME Series Manual de usuario

Gigabyte

Gigabyte GS-R12P4G Manual de usuario

Gigabyte

Gigabyte GA-945PL-S3 Manual de usuario

Gigabyte

Gigabyte GA-Z97X-SOC Force Manual de usuario

Gigabyte

Gigabyte Z370 AORUS Gaming 7 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
