Gigabyte GA-M68M-S2P Manual de usuario
GA-M68M-S2P
AM2+/AM2 socket motherboard for
AMD Phenom™II processor/ AMD Phenom™processor/
AMD Athlon™II processor/ AMD Athlon™processor/
AMD Sempron™processor
User's Manual
Rev. 1001
12ME-M68MS2P-1001R
Nov. 9, 2009
Motherboard
GA-M68M-S2P
Motherboard
GA-M68M-S2P
Nov. 9, 2009
Copyright
©2009 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted,
or published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the information
on/from the Support&Downloads\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com.tw
Identifying Your Motherboard Revision

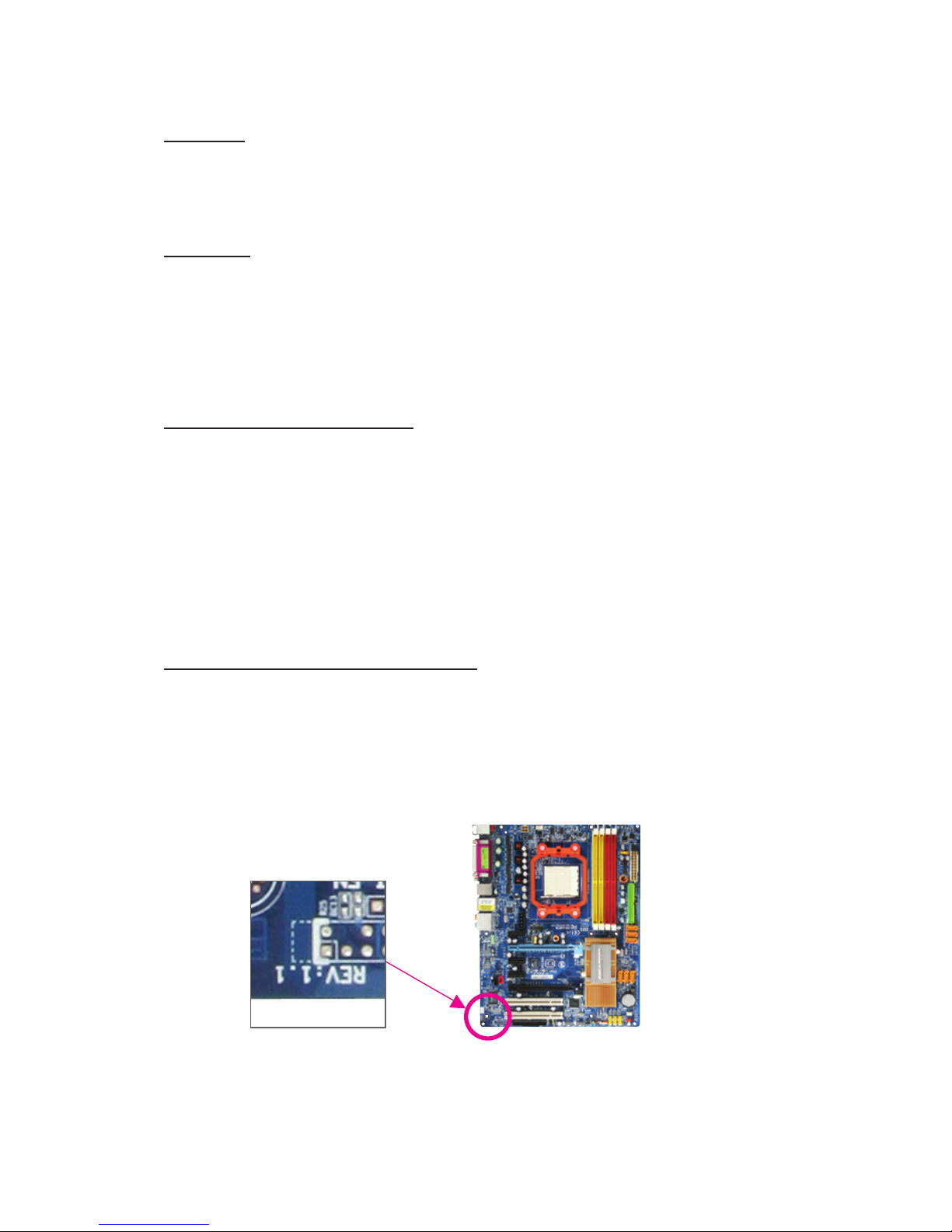

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-M68M-S2P Motherboard Layout ...............................................................................7
Block Diagram .................................................................................................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 ProductSpecications.................................................................................... 10
1-3 Installing the CPU and CPU Cooler ............................................................... 13
1-3-1 Installing the CPU...................................................................................................13
1-3-2 Installing the CPU Cooler .......................................................................................15
1-4 Installing the Memory..................................................................................... 16
1-4-1 DualChannelMemoryConguration .....................................................................16
1-4-2 Installing a Memory ...............................................................................................17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Back Panel Connectors.................................................................................. 19
1-7 Internal Connectors........................................................................................ 21
Chapter 2 BIOS Setup ..................................................................................................29
2-1 Startup Screen ............................................................................................... 30
2-2 The Main Menu .............................................................................................. 31
2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 33
2-4 Standard CMOS Features.............................................................................. 36
2-5 Advanced BIOS Features .............................................................................. 38
2-6 Integrated Peripherals.................................................................................... 40
2-7 Power Management Setup............................................................................. 42
2-8 PnP/PCICongurations ................................................................................. 44
2-9 PC Health Status............................................................................................ 45
2-10 Load Fail-Safe Defaults.................................................................................. 47
2-11 Load Optimized Defaults................................................................................ 47
2-12 Set Supervisor/User Password ...................................................................... 48
2-13 Save & Exit Setup .......................................................................................... 49
2-14 Exit Without Saving........................................................................................ 49
- 5 -
Chapter 3 Drivers Installation........................................................................................51
3-1 Installing Chipset Drivers ............................................................................... 51
3-2 Application Software ...................................................................................... 52
3-3 Technical Manuals.......................................................................................... 52
3-4 Contact........................................................................................................... 53
3-5 System ........................................................................................................... 53
3-6 Download Center ........................................................................................... 54
Chapter 4 Unique Features...........................................................................................55
4-1 Xpress Recovery2.......................................................................................... 55
4-2 BIOS Update Utilities ..................................................................................... 58
4-2-1 Updating the BIOS with the Q-Flash Utility.............................................................58
4-2-2 Updating the BIOS with the @BIOS Utility .............................................................61
4-3 EasyTune 6 .................................................................................................... 62
Chapter 5 Appendix ......................................................................................................63
5-1 ConguringSATAHardDrive(s)..................................................................... 63
5-1-1 ConguringtheOnboardSATAController..............................................................63
5-1-2 Making a SATA RAID Driver Diskette .....................................................................68
5-1-3 Installing the SATA RAID Driver and Operating System.........................................69
5-2 ConguringAudioInputandOutput............................................................... 73
5-2-1 Conguring2/4/5.1/7.1-ChannelAudio...................................................................73
5-2-2 ConguringS/PDIFIn/Out......................................................................................76
5-2-3 ConguringMicrophoneRecording........................................................................78
5-2-4 Using the Sound Recorder .....................................................................................80
5-3 Troubleshooting.............................................................................................. 81
5-3-1 Frequently Asked Questions ..................................................................................81
5-3-2 Troubleshooting Procedure ....................................................................................82
5-4 Regulatory Statements................................................................................... 84
- 6 -
Box Contents
GA-M68M-S2P
Motherboard driver disk
User's Manual
One IDE cable
One SATA 3Gb/s cable
I/O Shield
Optional Items
Floppy disk drive cable (Part No. 12CF1-1FD001-7*R)
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
S/PDIF In and Out cable (Part No. 12CR1-1SPINO-1*R)
•The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.
- 7 -
GA-M68M-S2P Motherboard Layout
KB_MS
CPU_FAN
Socket AM2 ATX
GA-M68M-S2P
CD_IN
F_AUDIO
AUDIO
PCIEX16
IDE
DDR2_1
DDR2_2
ATX_12V
NVIDIA® GeForce
7025/nForce 630a
SATA2_2
SATA2_3
SATA2_1
SATA2_0
PCI1
COMA
CODEC
BAT
VGA
USB
LAN
PCI2
F_USB1
M_BIOS
FDD F_PANEL
RTL8211CL
B_BIOS
IT8718
F_USB2
PCIEX1
R_USB
CLR_CMOS
SPDIF_IO
LPT
SYS_FAN
- 8 -
Block Diagram
AM3/AM2+/AM2
CPU
Hyper Transport Bus
NVIDIA® GeForce
7025/nForce 630a
2 PCI
PCI Bus
PCI CLK
(33 MHz)
PCIe CLK
(100 MHz)
PCI Express Bus
IT8718
Floppy
CPU CLK+/- (200 MHz)
ATA-133/100/66/33 IDE Channel
Dual BIOS
COM Port
LPC
Bus
1 PCI Express x1
DDR2 1066/800/667/533 MHz
Dual Channel Memory
PCIe CLK
(100 MHz)
1 PCI Express x16
4 SATA 3Gb/s
LAN
RJ45
x1
PCI Express x16
PS/2 KB/Mouse
8 USB Ports
Line Out
MIC
Line In
S/PDIF In
S/PDIF Out
CODEC
1 D-Sub
RTL8211CL
LPT Port
- 9 - Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
•
Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power sup-
ply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hard-
ware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to sys-
tem components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.
Chapter 1 Hardware Installation
Hardware Installation - 10 -
1-2 Product Specications
CPU Support for AM3/AM2+/AM2 processors:
AMD Phenom™II processor/ AMD Phenom™processor/
AMD Athlon™II processor/ AMD Athlon™processor/
AMD Sempron™processor
(Go to GIGABYTE's website for the latest CPU support list.)
Hyper Transport Bus
2000 MT/s
Chipset
NVIDIA® GeForce 7025/nForce 630a
Memory 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR2 1066/800/667/533 MHz memory modules
Support for non-ECC memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Onboard Graphics Integrated in the Chipset:
- 1 x D-Sub port
Audio Realtek ALC888B codec
HighDenitionAudio
2/4/5.1/7.1-channel (Note 2)
Support for S/PDIF Out
Support for S/PDIF In
Support for CD In
LAN Realtek RTL8211CL chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface Chipset:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, RAID 10, RAID 5, and JBOD
iTE IT8718 chip:
- 1xoppydiskdriveconnectorsupportingupto1oppydiskdrive
USB Chipset
- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets
connected to the internal USB headers)
Tabla de contenidos
Otros manuales de Placa madre de Gigabyte
Gigabyte
Gigabyte GA-6KIEH-RH Manual de usuario
Gigabyte
Gigabyte GA-IMB410TN Manual de usuario
Gigabyte
Gigabyte GA-B150-HD3P Manual de usuario
Gigabyte
Gigabyte GA-7VKMLE Manual de usuario
Gigabyte
Gigabyte GA-5EASV-RH Manual de usuario
Gigabyte
Gigabyte GA-6VX7-4X Manual de usuario
Gigabyte
Gigabyte GA-C621-WD12 Manual de usuario
Gigabyte
Gigabyte GA-990FX-Gaming Manual de usuario
Gigabyte
Gigabyte X570S UD Manual de usuario
Gigabyte
Gigabyte GA-B75M-HD3 Manual de usuario
Gigabyte
Gigabyte GA-K8NF-9-TA Manual de usuario
Gigabyte
Gigabyte GA-7VAX Manual de usuario
Gigabyte
Gigabyte GA-P67A-UD5 Manual de usuario
Gigabyte
Gigabyte G1.Sniper Z5 Manual de usuario
Gigabyte
Gigabyte GA-B560M-D3P Manual de usuario
Gigabyte
Gigabyte GA-B85M-HD3 Manual de usuario
Gigabyte
Gigabyte GA-H110M-S2 Manual de usuario
Gigabyte
Gigabyte GA-H77N-WIFI Manual de usuario
Gigabyte
Gigabyte GA-X38T-DQ6 Manual de usuario
Gigabyte
Gigabyte B450M S2H Manual de usuario
Manuales populares de Placa madre de otras marcas
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manual de usuario
Texas Instruments
Texas Instruments ADS8372EVM Manual de usuario
Commell
Commell MS-C73 Manual de usuario
IBT Technologies
IBT Technologies MB860 Manual de usuario
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manual de usuario
Biostar
Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación
