To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

GA-H110M-S2 DDR3GA-H110M-S2

GA-H110M-S2

GA-H110M-S2 DDR3

User's Manual

Rev. 1003

Motherboard

GA-H110M-S2

Nov. 5, 2015

Motherboard

GA-H110M-S2

Motherboard

GA-H110M-S2 DDR3

Sept. 15, 2015

Motherboard

GA-H110M-S2 DDR3

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or

by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

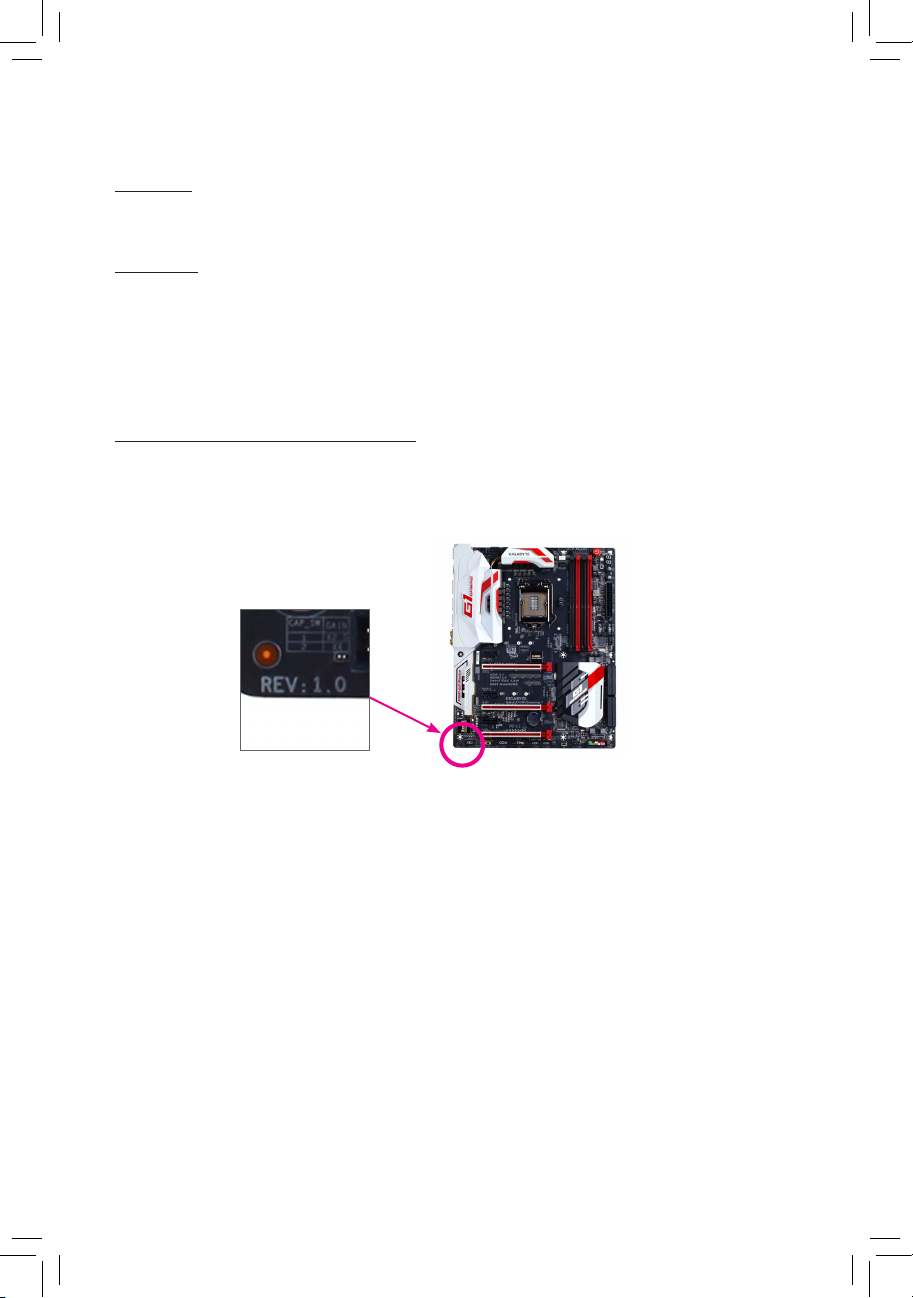

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

GA-H110M-S2/GA-H110M-S2 DDR3 Motherboard Layout.............................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 ProductSpecications...................................................................................... 7

1-3 Installing the CPU .......................................................................................... 10

1-4 Installing the Memory..................................................................................... 10

1-5 Installing an Expansion Card ......................................................................... 11

1-6 Back Panel Connectors.................................................................................. 11

1-7 Internal Connectors........................................................................................ 13

Chapter 2 BIOS Setup ..................................................................................................18

2-1 Startup Screen ............................................................................................... 19

2-2 M.I.T. .............................................................................................................. 19

2-3 System Information ........................................................................................ 25

2-4 BIOS Features ............................................................................................... 26

2-5 Peripherals..................................................................................................... 29

2-6 Chipset........................................................................................................... 31

2-7 Power Management....................................................................................... 32

2-8 Save & Exit..................................................................................................... 34

Chapter 3 Appendix ......................................................................................................35

Drivers Installation..................................................................................................... 35

Regulatory Statements.............................................................................................. 36

Contact Us ................................................................................................................ 38

- 5 -

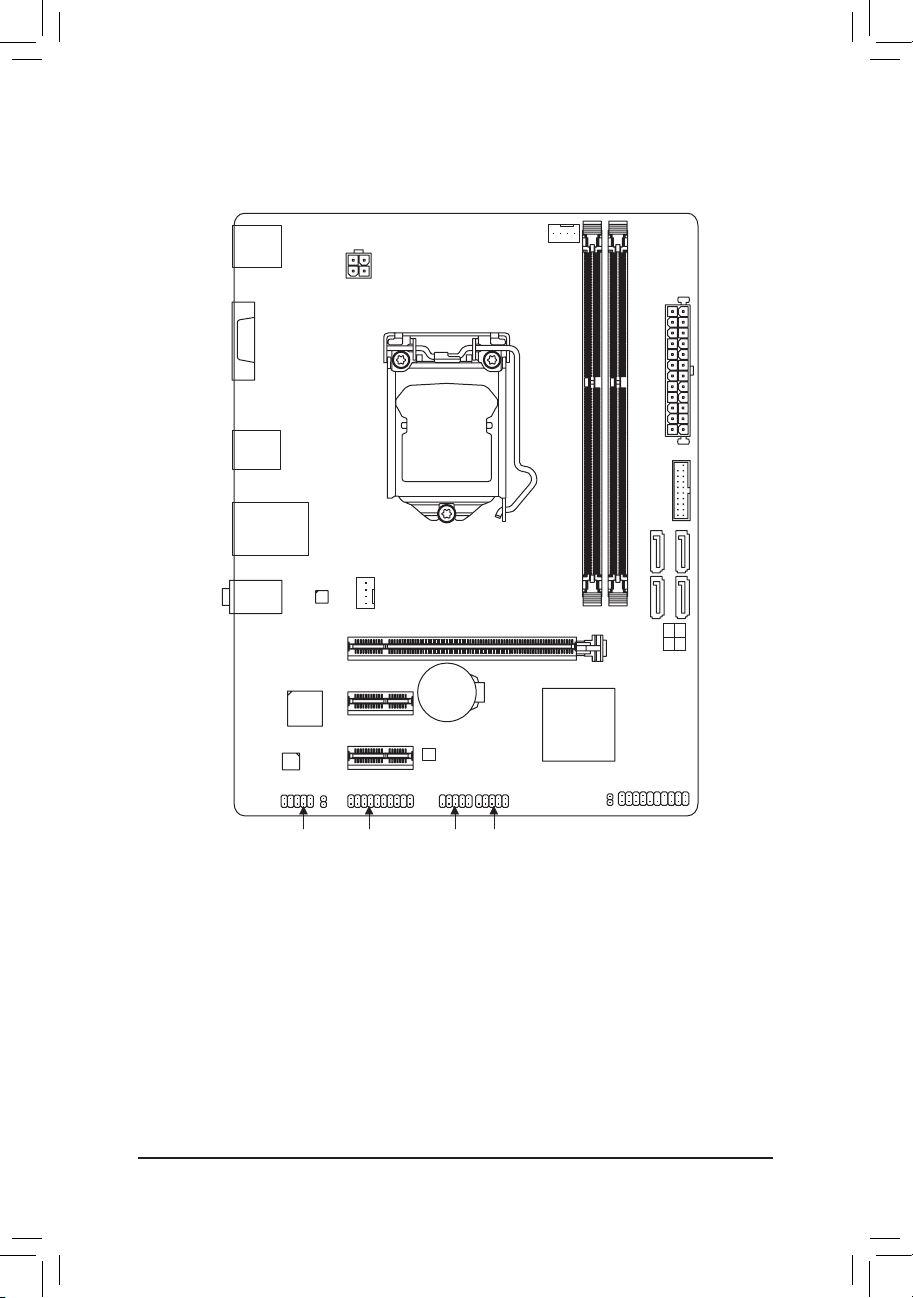

GA-H110M-S2/GA-H110M-S2 DDR3 Motherboard Layout

Box Contents

5GA-H110M-S2 or GA-H110M-S2 DDR3 motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS

CPU_FAN

SYS_FAN

LGA1151

ATX

GA-H110M-S2

GA-H110M-S2 DDR3

F_AUDIO

AUDIO

BAT

ATX_12V

Intel®H110

R_USB30

CODEC

CLR_CMOS

M_BIOS

USB_LAN

PCIEX16

PCIEX1_1

PCIEX1_2

iTE®

Super I/O

Realtek®

GbE LAN

F_USB1TPM F_USB2

F_PANEL

SPDIF_O

F_USB30

VGA

SATA3 3 2

1 0

DDR4_2j/DDR3_2k

DDR4_1j/DDR3_1k

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

jOnly for GA-H110M-S2.

kOnly for GA-H110M-S2 DDR3.

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 6 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/

Intel®Celeron®processors in the LGA1151 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®H110 Express Chipset

Memoryj2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Dual channel memory architecture

Support for DDR4 2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and

memory modules.)

Memoryk2 x DDR3 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Dual channel memory architecture

Support for DDR3/DDR3L 1600/1333 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and

memory modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

Maximum shared memory of 512 MB

Audio Realtek®ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule

and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface Chipset:

- 4 x SATA 6Gb/s connectors

- 7 -

jOnly for GA-H110M-S2.

kOnly for GA-H110M-S2 DDR3.

USB Chipset:

- 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x D-Sub port

2 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1x64Mbitash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

- 8 -

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- 3D OSD

- @BIOS

- AutoGreen

- Cloud Station

- EasyTune

- Fast Boot

- Smart TimeLock

- Smart Keyboard

- Smart Backup

- System Information Viewer

- USB Blocker

Support for Q-Flash

Support for Smart Switch

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

cFosSpeed

Operating

System

Support for Windows 10/8.1 64-bit

Support for Windows 7 32-bit/64-bit

* Please download the "Windows USB Installation Tool" from GIGABYTE's website and

install it before installing Windows 7.

Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit the Support\Utility List page on GIGABYTE's website to download the latest version

of apps.

Please visit GIGABYTE's website for support lists of CPU, memory modules, and

SSDs.

GA-H110M-S2 GA-H110M-S2 DDR3

- 9 -

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may locate

the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

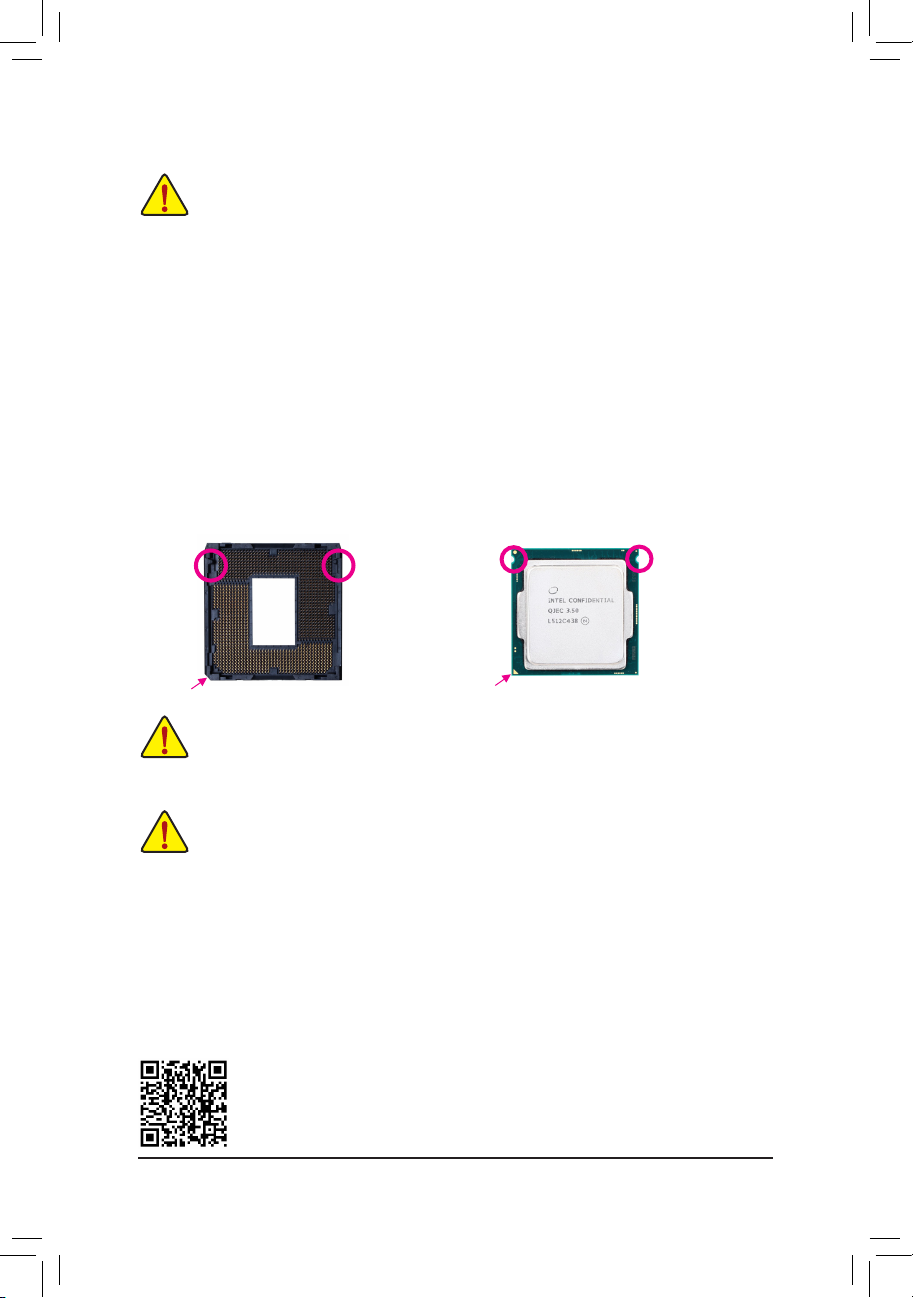

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

Alignment

Key

Alignment

Key

LGA1151 CPU Socket

Pin One Corner of the CPU Socket

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

LGA1151 CPU

Triangle Pin One Marking on the CPU

Notch

Please visit GIGABYTE's website for details on hardware installation.

- 10 -

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte M5NM1I Manual de usuario

Gigabyte

Gigabyte GA-8IPXDR Manual de usuario

Gigabyte

Gigabyte W480 VISION W Manual de usuario

Gigabyte

Gigabyte GA-G33M-S2H Manual de usuario

Gigabyte

Gigabyte B760M AORUS PRO AX Manual de usuario

Gigabyte

Gigabyte GA-K8N51PVM9-RH Manual de usuario

Gigabyte

Gigabyte R282-Z96 Manual de usuario

Gigabyte

Gigabyte GA-8SIMLFS Manual de usuario

Gigabyte

Gigabyte GA-EQ45M-S2 Manual de usuario

Gigabyte

Gigabyte GA-6VMM Manual de usuario

Gigabyte

Gigabyte GA-880G-USB3 Manual de usuario

Gigabyte

Gigabyte GA-Z270-HD3P Manual de usuario

Gigabyte

Gigabyte GA-8IDXR-A Manual de usuario

Gigabyte

Gigabyte GA-6VTXE-A Manual de usuario

Gigabyte

Gigabyte GA-M52LT-D3P Manual de usuario

Gigabyte

Gigabyte B650M AORUS ELITE AX ICE Manual de usuario

Gigabyte

Gigabyte GA-Z170-HD3 Manual de usuario

Gigabyte

Gigabyte 686LX3 Manual de usuario

Gigabyte

Gigabyte GA-7A8DRL Manual de usuario

Gigabyte

Gigabyte GA-K8N Ultra-9 Manual de usuario

Gigabyte

Gigabyte GA-H55-UD3H Manual de usuario

Gigabyte

Gigabyte GA-8S661FXM Manual de usuario

Gigabyte

Gigabyte A520M AORUS ELITE Manual de usuario

Gigabyte

Gigabyte GA-F2A88X-D3H Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
