Gigabyte GA-K8VT890 Manual de usuario

GA-K8VT890

AMD Socket 754 Processor Motherboard

User's Manual

Rev. 1001

12ME-K8VT890-1001

June 3, 2005

Motherboard

GA-K8VT890

Motherboard

GA-K8VT890

June 3, 2005

The trademarks mentioned in the manual are legally registered to their respective companies.

Notice

The written content provided with this product is the property of Gigabyte.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without Gigabyte's prior written permission. Specifications and features are subject to

change without prior notice.

Product Manual Classification

In order to assist in the use of this product, Gigabyte has categorized the user manual in the

following:

For quick installation, please refer to the "Hardware Installation Guide" included with the

product.

For detailed product information and specifications, please carefully read the

"Product User Manual".

For detailed information related to Gigabyte's unique features, please go to the

"Technology Guide" section on Gigabyte's website to read or download the information

you need.

For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

- 4 -

Table of Contents

GA-K8VT890 Motherboard Layout ................................................................................ 6

Block Diagram ................................................................................................................ 7

Chapter 1 Hardware Installation .................................................................................... 9

1-1 Considerations Prior to Installation .................................................................... 9

1-2 Feature Summary .......................................................................................... 10

1-3 Installation of the CPU and Heatsink .............................................................. 12

1-3-1 Installation of the CPU ......................................................................................... 12

1-3-2 Installation of the Heatsink .................................................................................. 13

1-4 Installation of Memory .................................................................................... 14

1-5 Installation of Expansion Cards ...................................................................... 15

1-6 I/O Back Panel Introduction ........................................................................... 16

1-7 Connectors Introduction .................................................................................. 17

Chapter 2 BIOS Setup................................................................................................ 27

The Main Menu (For example: BIOS Ver. : E11) ...................................................... 28

2-1 Standard CMOS Features ............................................................................. 30

2-2 Advanced BIOS Features .............................................................................. 32

2-3 IntegratedPeripherals ..................................................................................... 33

2-4 Power Management Setup ............................................................................. 35

2-5 PnP/PCI Configurations ................................................................................. 37

2-6 PC Health Status ........................................................................................... 38

2-7 Frequency/Voltage Control ............................................................................. 39

2-8 TopPerformance ............................................................................................. 40

2-9 Load Fail-Safe Defaults ................................................................................... 40

2-10 Load Optimized Defaults ................................................................................. 41

2-11 Set Supervisor/User Password ..................................................................... 41

2-12 Save & Exit Setup ......................................................................................... 42

2-13 Exit Without Saving ....................................................................................... 42

- 5 -

Chapter 3 Drivers Installation ...................................................................................... 43

3-1 Install Chipset Drivers .................................................................................... 43

3-2 SoftwareApplication ....................................................................................... 44

3-3 Software Information ....................................................................................... 44

3-4 Hardware Information ..................................................................................... 45

3-5 Contact Us ..................................................................................................... 45

Chapter 4 Appendix ................................................................................................... 47

4-1 Unique Software Utilities ................................................................................ 47

4-1-1 EasyTune 5 Introduction ..................................................................................... 47

4-1-2 Xpress Recovery Introduction ........................................................................... 48

4-1-3 Flash BIOS Method Introduction ........................................................................ 51

4-1-4 Serial ATA BIOS Setting Utility Introduction ...................................................... 60

4-1-5 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 67

4-2 Troubleshooting ............................................................................................... 75

- 6 -

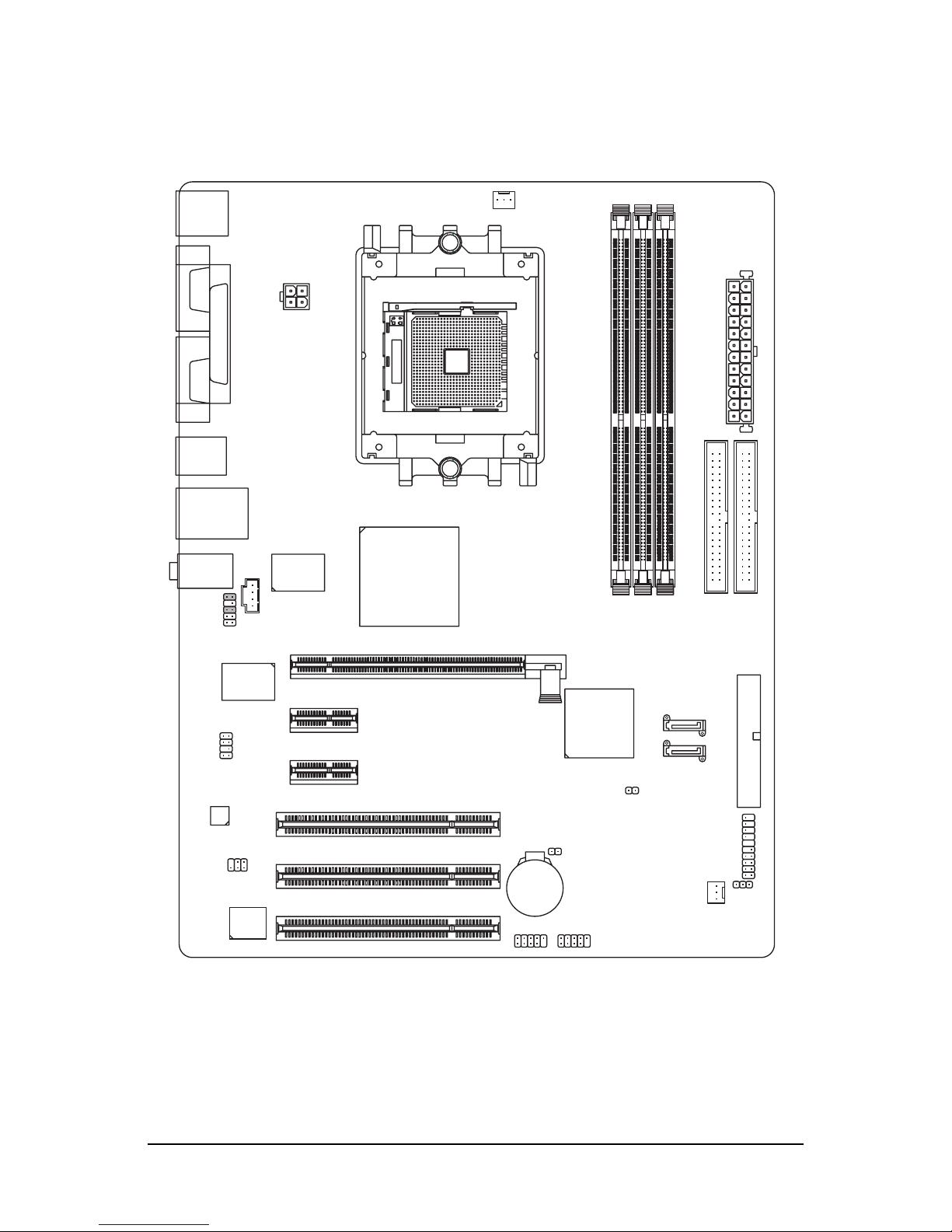

GA-K8VT890 Motherboard Layout

ATX_12V

CPU_FAN

CODEC

IT8705

VIA VT8237R

BIOS

PCIE_1

PCIE_2

F_USB2F_USB1

DDR1

SATA0

SATA1

BATTERY

ATX

IDE2

FDD

CLR_CMOS

SYS_FAN

GA-K8VT890

MS/KB

Socket 754

AUDIO

COMB

LPT

R_USB

USB

LAN

F_AUDIO

CD_IN

F_PANEL

PWR_LED

COMA

IDE1

PCI1

PCI2

Marvell

88E8001

SUR_CEN

SPDIF_IO

PCI3

PCIE_16

VIA K8T890

DDR2

DDR3

- 7 -

Block Diagram

Line-Out

MIC

AMD K8

Socket 754

CPU

CPUCLK+/-(200MHz)

Hyper Transport Bus

VIA K8T890

DDR 400/333/266/200MHz DIMM

48MHz

33MHz

IT8705

2 Serial ATA

ATA33/66/100/133

IDE Channels

CODEC

Line-In

8 USB

Ports

Floppy

PS/2 KB /

Mouse

LPT Port

COM Port

BIOS

PCI Express x16

PCI-ECLK

(100MHz)

PCICLK

(33MHz)

3 PCI

1 PCI Express x 16 Port

VIA VT8237R

33MHz

14.318MHz

48MHz

66MHz

33MHz

66MHz

DDR RAM

2 PCI Express x 1

PCI Express Bus

RJ45

x1 x1

PCI-ECLK

(100MHz)

HCLK+/- (200MHz)

100MHz

Marvell

88E8001

PCI Bus

- 8 -

Hardware Installation- 9 -

English

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please

follow the instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components

(CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic

pad or within a electrostatic shielding container.

5. Please verify that the power supply is switched off before unplugging the power supply connector

from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers

are required for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the

information in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with

the motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard

or within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Chapter 1Hardware Installation

GA-K8VT890 Motherboard - 10 -

English

CPU Socket 754 for AMD AthlonTM 64 processor (K8)

1600MT/s system bus

Chipset Northbridge: VIA K8T890 chipset

Southbridge: VIA VT8237R

Memory 3 DDR DIMM memory slots (supports up to 3GB)

Supports DDR 400/333/266/200 DIMMs

Slots 1 PCI Express x 16 slot

2 PCI Express x 1 slots

3 PCI slots

IDE Connections 2 IDE connection (UDMA 133/100/66/33), allows connection

of 4 IDE devices

FDD Connections 1 FDD connection, allows connection of 2 FDD devices

Onboard SATA 2 Serial ATA ports from VIA VT8237R (SATA0, SATA1)(Note 1)

Peripherals 1 parallel port supporting Normal/EPP/ECP mode

2 serial ports (COMA, COMB)

8 USB 2.0/1.1 ports (rear x 4, front x 4 via cable)

1 front audio connector

1 PS/2 keyboard port

1 PS/2 mouse port

Onboard LAN Marvell 88E8001 chip (10/100/1000 Mbit)

1 RJ45 port

Onboard Audio ALC850 CODEC (UAJ)

Supports Jack Sensing function

Supports 2 / 4 / 6 / 8 channel audio(Note 2)

Supports Line In ; Line Out ;MIC

Surround Back Speaker (by optional Audio Combo Kit)

SPDIF In/Out connection

CD In connection

I/O Control IT8705

Hardware Monitor System voltage detection

CPU temperature detection

CPU / System fan speed detection

CPU / System fan failure warning

1-2 Feature Summary

(Note 1) It is recommended to use SATA (1.5Gb/s) hard disks.

(Note 2) To set up an 8 channel audio configuration, you must use Audio Combo Kit (optional device).
