Gigabyte GA-6BXC Manual de usuario
6BXC
1
TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE ......................................................................................................1-1
1.2. KEY FEATHERS............................................................................................1-1
1.3. PERFORMANCE LIST..................................................................................1-2
1.4. BLOCK DIAGRAM.........................................................................................1-3
1.5. INTRODUCE THE PENTIUMII PROCESSOR & AGP.............................1-4
1.6. WHAT IS AGP?..............................................................................................1-6
2. SPECIFICATION
2.1. HARDWARE..................................................................................................2-1
2.2. SOFTWARE...................................................................................................2-2
2.3. ENVIRONMENT ............................................................................................2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING..................................................................................................3-1
3.2. MAINBOARD LAYOUT .................................................................................3-2
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS..........................3-3
3.4. DRAM INSTALLATION .................................................................................3-6
3.5. CPU SPEED SETUP.....................................................................................3-7
3.6. CMOS RTC & ISA CFG CMOS SRAM.........................................................3-8
3.7. SPEAKER CONNECTOR INSTALLATION..................................................3-8
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION.................3-8
3.9. POWER LED CONNECTOR INSTALLATION.............................................3-8
3.10. IDE & ATAPI DEVICE INSTALLATION......................................................3-8
Table of Contents
2
3.11. PERIPHERAL DEVICE INSTALLATION....................................................3-9
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION...........................................3-9
4. BIOS CONFIGURATION
4.1. ENTERING SETUP.......................................................................................4-1
4.2. CONTROL KEYS...........................................................................................4-1
4.3. GETTING HELP.............................................................................................4-2
4.3.1. Main Menu .....................................................................................4-2
4.3.2. Status Page Setup Menu / Option Page Setup Menu.......................4-2
4.4. THE MAIN MENU..........................................................................................4-2
4.5. STANDARD CMOS SETUP MENU..............................................................4-4
4.6. BIOS FEATURES SETUP.............................................................................4-8
4.7. CHIPSET FEATURES SETUP......................................................................4-12
4.8. POWER MANAGEMENT SETUP.................................................................4-15
4.9. PNP/PCI CONFIGURATION........................................................................4-19
4.10. LOAD BIOS DEFAULTS .............................................................................4-21
4.11. LOAD PERFORMANCE DEFAULTS .........................................................4-22
4.12. INTEGRATED PERIPHERALS...................................................................4-23
4.13. SUPERVISOR/USER PASSWORD ...........................................................4-28
4.14. IDE HDD AUTO DETECTION.....................................................................4-29
4.15. SAVE & EXIT SETUP..................................................................................4-30
4.16. EXIT WITHOUT SAVING............................................................................4-31
6BXC
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6BXC motherboard. It is a PentiumII / Celeron Processor
based PC / AT compatible system with AGP / PCI / ISA Bus, and has been
designed to be the fastest PC / AT system. There are some new features allow
you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and how
to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII / Celeron Processor based PC / AT compatible main board.
qSlot 1 supports PentiumII / Celeron processor running at 233-633 MHz.
qIntel 440BX chipset, Supports AGP / SDRAM / Ultra DMA/33 IDE / Keyboard
and PS/2 Mouse Power On / ACPI features.
qSupports 3xDIMMs using 3.3V SDRAM DIMM module.
qSupports 8 MB –768 MB SDRAM memory on board.
qSupports ECC or Non-ECC type DRAM module.
q1xAGP slot, 4xPCI Bus slots, 3xISA Bus slots.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x1.44MB Floppy port.
qSupports 2xUSB ports, 1xPS/2 Mouse & 1xPS/2 Keyboard.
qLicensed AWARD BIOS, 2M bits FLASH ROM.
q30.5 cm x 18 cm ATX SIZE form factor, 4 layers PCB.
Introduction
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for different
testing data values gotten by users. (Different Hardware & Software
configuration will result in different benchmark testing results.)
•CPU PentiumII processor
•DRAM 128 MB SDRAM (SEC KM48S8030BT-GH)
•CACHE SIZE 512 KB included in CPU
•DISPLAY GA-601 AGP Display Card (4MB SGRAM)
•STORAGE Onboard IDE (IBM DHEA-38451)
•O.S. Windows NT™4.0
•DRIVER Display Driver at 1024 x 768 x 256 colors x 75Hz.
TRIONES Bus Master IDE Driver 3.70
Intel PentiumII
Processor 333MHz(66x5) 350MHz(100x3.5)
Winbench98
CPU mark32 864 947
FPU Winmark 1720 1810
Business Disk 1850 1900
Hi-End Disk 4590 4690
Business Graphics 185 204
Hi-End Graphics 207 232
Winstone98Business 33.3 34.6
Hi-End 36.9 39.2
6BXC
1-3
1.4. BLOCK DIAGRAM
24MHz
3.3V SDRAM
DIMM Sockets
14.318MHz
33 MHz
33MHz
Ultra DMA/33
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
Keyboard
Floppy Port
COM Ports
PS/2 Mouse
USB Bus
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
ITE 8671
AGP
Host Bus
INTEL
82443BX
CHIPSET
PIIX4
82371EB
CHIPSET
ICS 9148-26
SLOT 1
66MHz
66 /
100 MHz
66 /
100 MHz
33 MHz
66 /
100 MHz
Introduction
1-4
1.5. INTRODUCE THE Pentium
II Processor & AGP
Figure 1:Retention Mechanism & attach Mount
Figure 2:OEM PentiumII Processor
6BXC
1-5

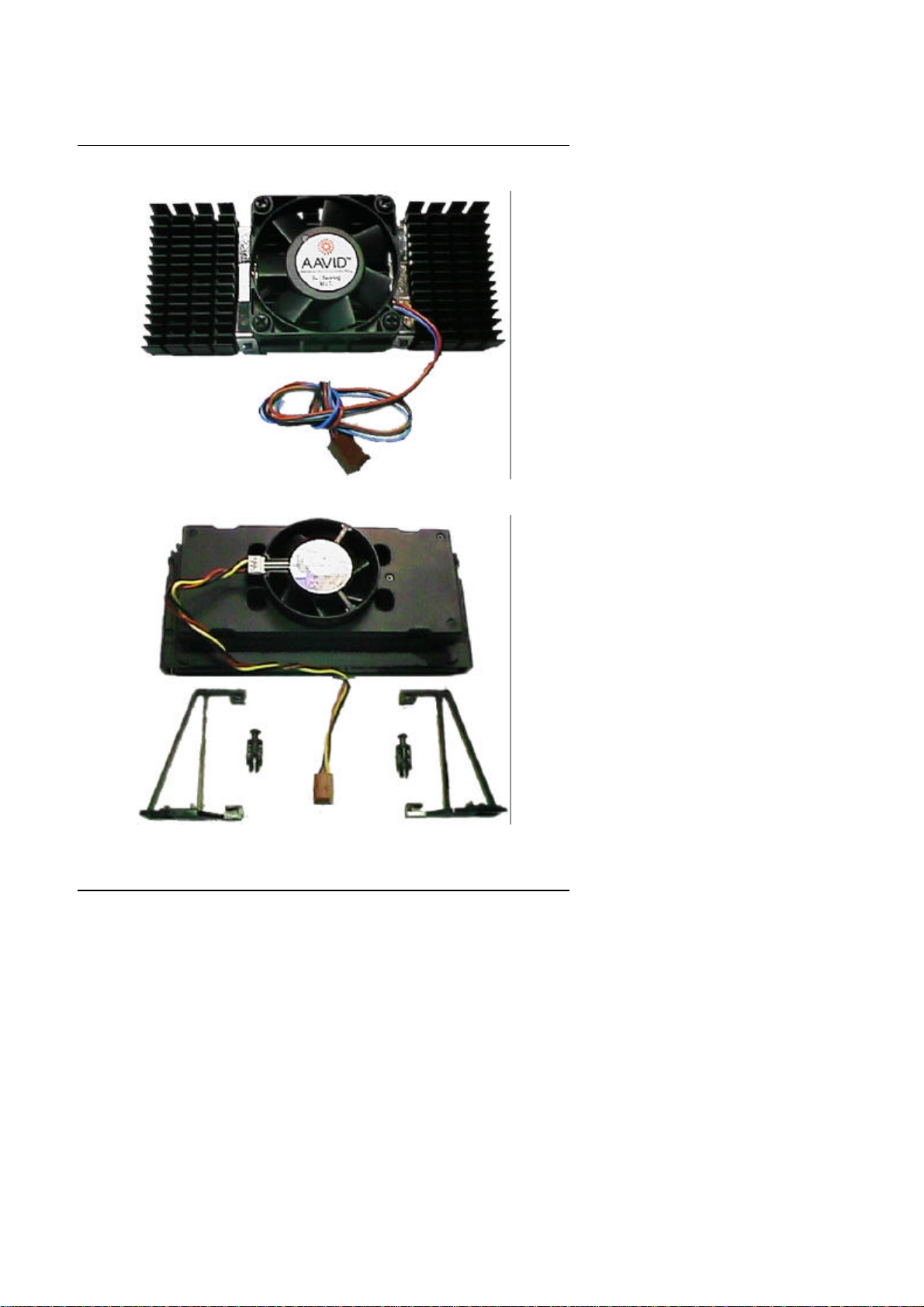

Figure 3:Heatsink / FAN & Heat sink support for OEM PentiumII Processor
Figure 4:Boxed PentiumII Processor & Heat sink support
Introduction
1-6
1.6 What is AGP
?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge
device that supports an AGP port. The main purpose of the AGP port is to
provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs.32-Bits at
33MHz) or as an AGP port which supports 2x data-rate, a read queue, and side
band addressing. When the 2x-data rate is used the port can transmit data at
533MB/sec (66.6*2*4). The read-queue can be used to pipeline reads –
removing the effects of the reads-latency. Side band addressing can be used to
transmit the data address on a separate line in order to speed up the
transaction.
6BXC
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −PentiumII/ Celeron processor 233 –633 MHz.
−242 pins 66 / 100MHz slot1 on board.
•SPEED −66/100 MHz system speed.
−66 MHz AGP bus speed. (2X mode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −3 banks 168 pins DIMM module sockets on board.
−Use 8 / 16 / 32 / 64 / 128 / 256 MB DIMM module
DRAM.
−8 ~ 768MB SDRAM.
−Supports 3.3V SDRAM.
−Supports ECC or Non-ECC type DRAM.
•CACHE MEMORY −32 KB L1 cache memory included in CPU.
−256KB / 512 KB L2 cache memory included in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −4 33MHz Master / Slave PCI-BUS.
−3 8MHz 16 bits ISA BUS.
−1 66MHz / 133MHz AGP bus.
•IDE PORTS −2 Ultra DMA/33 Bus Master IDE channels onboard.
(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 EPP/ECP LPT port.
−Supports 1 1.44 / 2.88 MB Floppy port.
−Supports 2 USB ports.
−Supports PS/2 Mouse & PS/2 Keyboard.
Specification
2-2
•GREEN FUNCTION −Suspend mode support.
−Green switch & ACPI LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH ROM.
−Supports Plug & Play, DMI Function.
•DIMENSION −ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −INTEL Bus Master IDE Driver.
−Suspend to HD utility.
−INTEL Patch 95
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98,WINDOWS NT™, OS/2, NOVELL and
SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)
