Gigabyte GA-H81M-D2W Manual de usuario

GA-H81M-D2W

User's Manual

Rev. 1001

12ME-H81MD2W-1001R

Motherboard

GA-H81M-D2W

Sept. 16, 2013

Motherboard

GA-H81M-D2W

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the

revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS,

drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

GA-H81M-D2W Motherboard Layout ..............................................................................4

GA-H81M-D2W Motherboard Block Diagram..................................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory..................................................................................... 10

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................18

2-1 Startup Screen ............................................................................................... 18

2-2 M.I.T. .............................................................................................................. 19

2-3 System Information ........................................................................................ 23

2-4 BIOS Features ............................................................................................... 24

2-5 Peripherals..................................................................................................... 27

2-6 Power Management....................................................................................... 29

2-7 Save & Exit..................................................................................................... 31

Chapter 3 Appendix ......................................................................................................32

Drivers Installation..................................................................................................... 32

Regulatory Statements.............................................................................................. 33

Contact Us ................................................................................................................ 36

- 4 -

GA-H81M-D2W Motherboard Layout

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-H81M-D2W motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS_USB CPU_FAN

LGA1150

ATX

GA-H81M-D2W

F_AUDIO

AUDIO

DDR3_1

BAT

F_PANEL

ATX_12V_2X4

Intel®H81

R_USB30

DVI_I

CODEC

CLR_CMOS

M_BIOS

DVI

USB30_LAN

VIA®

VL805

PCIEX16

F_USB1

F_USB2

Realtek®

GbE LAN

iTE®

Super I/O

DDR3_2

SATA3

1 0

LPT

PCIEX1_1

PCIEX1_2

F_USB30

SYS_FAN

SATA2

3 2

COM

SPEAKER

- 5 -

GA-H81M-D2W Motherboard Block Diagram

LGA1150 CPU

DMI 2.0 FDI

CPU CLK+/- (100 MHz)

BIOS

DDR3 1600/1333 MHz

Dual Channel Memory

Intel®H81

PCIe CLK

(100 MHz)

PCI Express Bus

1 PCI Express x16

LAN

RJ45

Realtek®

GbE LAN

VIA®

VL805

PCI Express Bus

x16

PS/2 KB/Mouse

COM

LPT

LPC Bus

iTE®

Super

I/O

DVI-I

2 SATA 6Gb/s

6 USB 2.0/1.1

4 USB 3.0/2.0

2 USB 3.0/2.0

For detailed product information/limitation(s), refer to "1-2 Product Specications."

2 SATA 3Gb/s

Line Out (Front Speaker Out)

MIC (Center/Subwoofer

Speaker Out)

Line In (Rear Speaker Out)

CODEC

PCIe CLK

(100 MHz)

2 PCI Express x1

x1x1

DVI-D

- 6 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

- 7 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/

Intel®Celeron®processors in the LGA1150 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®H81 Express Chipset

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of

physical memory is installed, the actual memory size displayed will be less than the

size of the physical memory installed.

Dual channel memory architecture

Support for DDR3 1600/1333 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

- 1 x DVI-I port, supporting a maximum resolution of 1920x1200

- Maximum shared memory of 1 GB

Audio Realtek®ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

(The PCI Express slots conform to PCI Express 2.0 standard.)

Storage Interface Chipset:

- 2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1)

- 2 x SATA 3Gb/s connectors (SATA2 2~SATA2 3)

USB Chipset:

- 2 x USB 3.0/2.0 ports (available through the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

the internal USB headers)

VIA®VL805 chip:

-4 x USB 3.0/2.0 ports on the back panel

- 8 -

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

2 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x parallel port header

1 x serial port header

1 x chassis intrusion header

1 x Clear CMOS jumper

1 x speaker header

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x DVI-I port

1 x DVI-D port

4 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 64 Mbit ash

Use of licensed AMI EFI BIOS

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features

Support for Q-Flash

Support for Xpress Install

Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported

functions of each application may also differ depending on motherboard

specications.

- @BIOS

- EasyTune

- EZ Setup

- USB Blocker

- Smart Recovery 2

- Smart TimeLock

Support for ON/OFF Charge

- 9 -

Bundled

Software Norton®Internet Security (OEM version)

Operating

System

Support for Windows 8.1/8/7

* If you plan to install Windows 8.1, please download the latest drivers from

GIGABYTE's website.

Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)

for the software listed in the "Unique Features" and "Bundled Software" columns.

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load plate

automatically during the process of re-engaging the lever after you insert the CPU.

Notch

Alignment

Key

Alignment

Key

Notch

LGA1150 CPULGA1150 CPU Socket

Pin One Corner of the CPU Socket Triangle Pin One Marking on the CPU

- 10 -

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

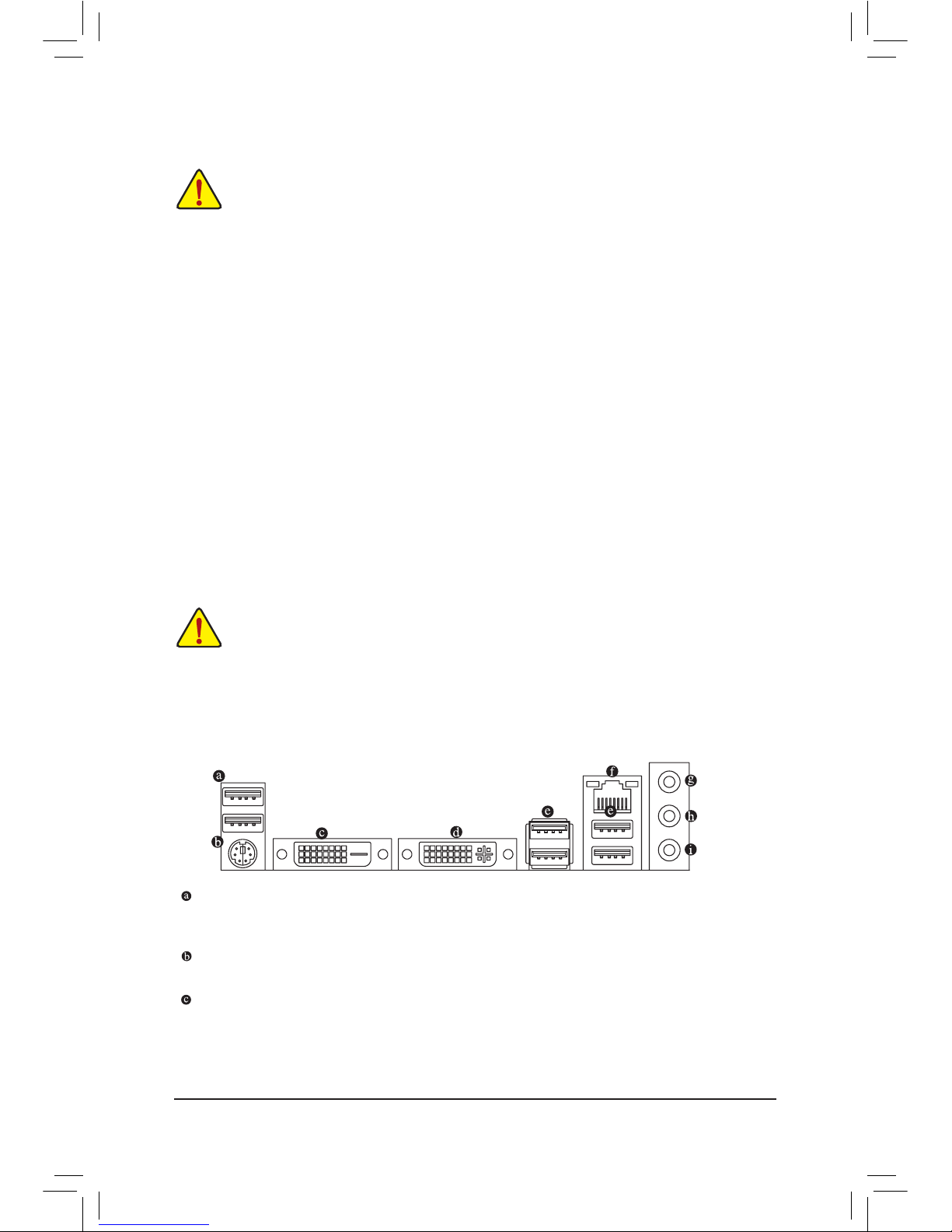

1-6 Back Panel Connectors

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB

keyboard/mouse, USB printer, USB ash drive and etc.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

DVI-D Port (Note)

The DVI-D port conforms to the DVI-D specication and supports a maximum resolution of 1920x1200

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

DVI-D connection to this port.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology. After the memory

is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel A: DDR3_1

Channel B: DDR3_2

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used for optimum performance.

(Note) The DVI-D port does not support D-Sub connection by adapter.

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte MNJ190I-FH Manual de usuario

Gigabyte

Gigabyte GA-H110N Manual de usuario

Gigabyte

Gigabyte GA-880G-UD3H Manual de usuario

Gigabyte

Gigabyte GA-8I845GE775-G Manual de usuario

Gigabyte

Gigabyte GA-MA74GM-S2 Manual de usuario

Gigabyte

Gigabyte 6VXDC7 Manual de usuario

Gigabyte

Gigabyte GA-965G-DS3 Manual de usuario

Gigabyte

Gigabyte GA-8I915G-ZFD Manual de usuario

Gigabyte

Gigabyte GA-H61M-D2H Manual de usuario

Gigabyte

Gigabyte GA-7VT600 1394 Manual de usuario

Gigabyte

Gigabyte Z590I VISION D Manual de usuario

Gigabyte

Gigabyte H370N WIFI Manual de usuario

Gigabyte

Gigabyte GA-6VXE Manual de usuario

Gigabyte

Gigabyte GA-8S661FXM-775 Manual de usuario

Gigabyte

Gigabyte GA-6VX7B-4X Manual de usuario

Gigabyte

Gigabyte GA-MA790X-UD4 Manual de usuario

Gigabyte

Gigabyte GS-SR101 Manual de usuario

Gigabyte

Gigabyte GA-X79-UD3 Manual de usuario

Gigabyte

Gigabyte GA-7BESH Manual de usuario

Gigabyte

Gigabyte B650 AORUS ELITE AX Manual de usuario

Gigabyte

Gigabyte GA-Z77-D3H Manual de usuario

Gigabyte

Gigabyte GA-8EGXDR Manual de usuario

Gigabyte

Gigabyte C7V7-CSI Manual de usuario

Gigabyte

Gigabyte GA-Z87MX-D3H Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
