GA-E350N WIN8

User's Manual

Rev. 1001

12ME-E350NW8-1001R

Motherboard

GA-E350N WIN8

Nov. 30, 2012

Motherboard

GA-E350N WIN8

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

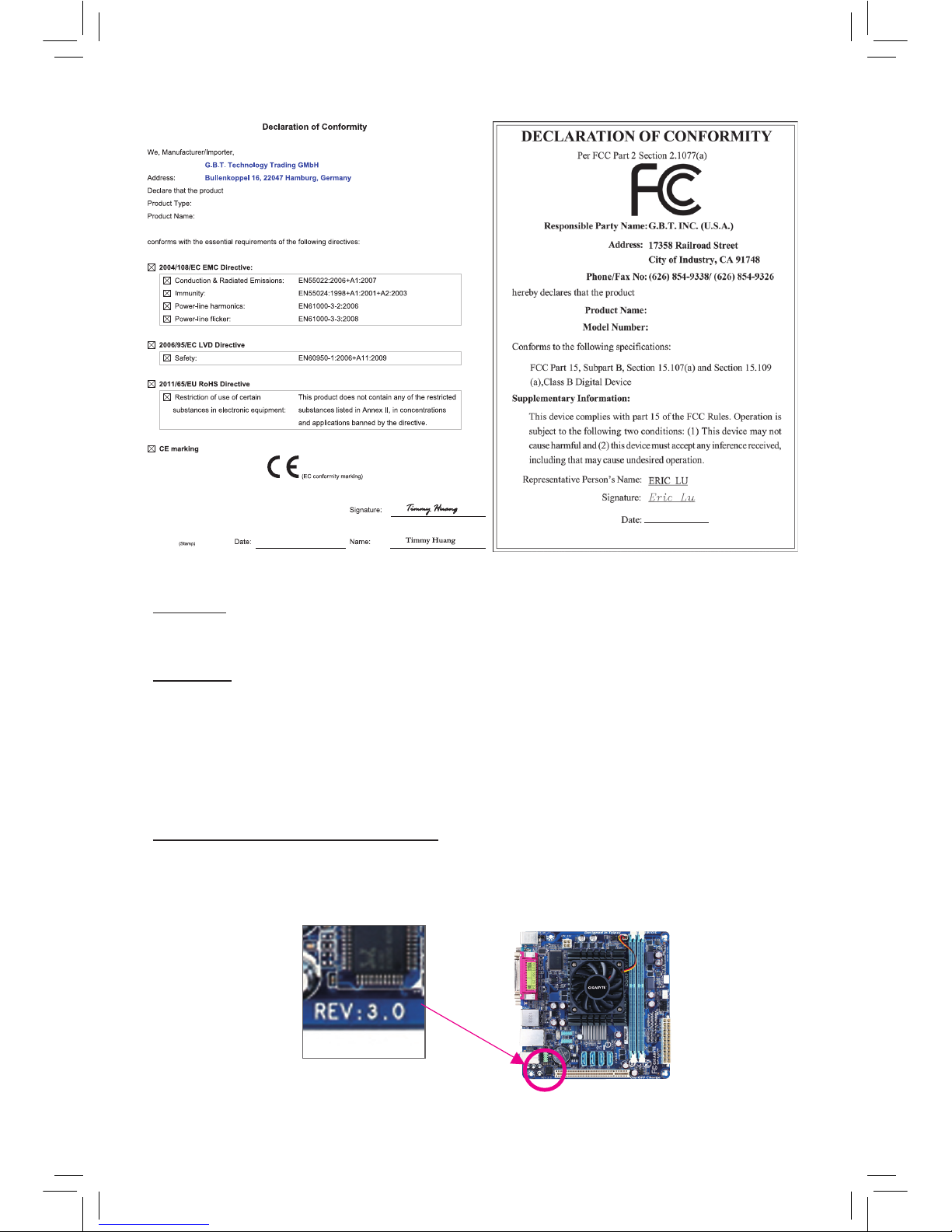

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the

revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS,

drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

GA-E350N WIN8 Motherboard Layout............................................................................4

GA-E350N WIN8 Motherboard Block Diagram ...............................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the Memory....................................................................................... 9

1-4 Installing an Expansion Card ........................................................................... 9

1-5 Back Panel Connectors.................................................................................... 9

1-6 Internal Connectors........................................................................................ 11

Chapter 2 BIOS Setup ..................................................................................................16

2-1 Startup Screen ............................................................................................... 16

2-2 M.I.T. .............................................................................................................. 17

2-3 System ........................................................................................................... 20

2-4 BIOS Features ............................................................................................... 21

2-5 Peripherals..................................................................................................... 23

2-6 Power Management....................................................................................... 24

2-7 Save & Exit..................................................................................................... 26

Chapter 3 Drivers Installation........................................................................................27

Regulatory Statements.............................................................................................. 28

- 4 -

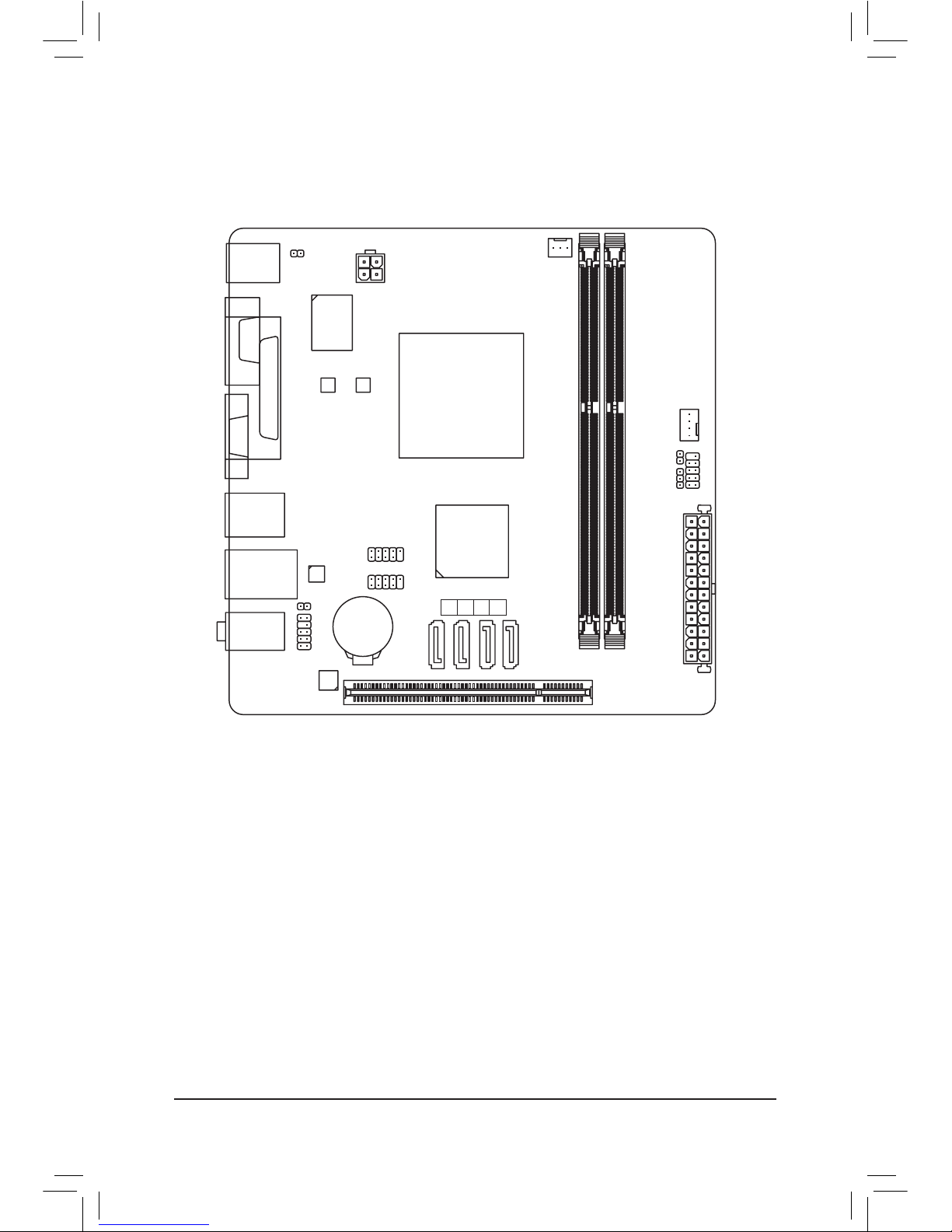

GA-E350N WIN8 Motherboard Layout

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-E350N WIN8 motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS

CPU_FAN

AMD E-350D APU

AMD A45 FCH

ATX

GA-E350N WIN8

F_AUDIO

AUDIO

B_BIOS

DDR3_0

DDR3_1

BAT

F_PANEL

ATX_12V

CODEC

CLR_CMOS

M_BIOS

VGA

USB_LAN

PCI

SPDIF_O

F_USB1

F_USB2

PWR_LED

COM

Realtek

GbE LAN

SATA2

USB_HDMI

iTE

Super I/O

SYS_FAN

LPT

- 5 -

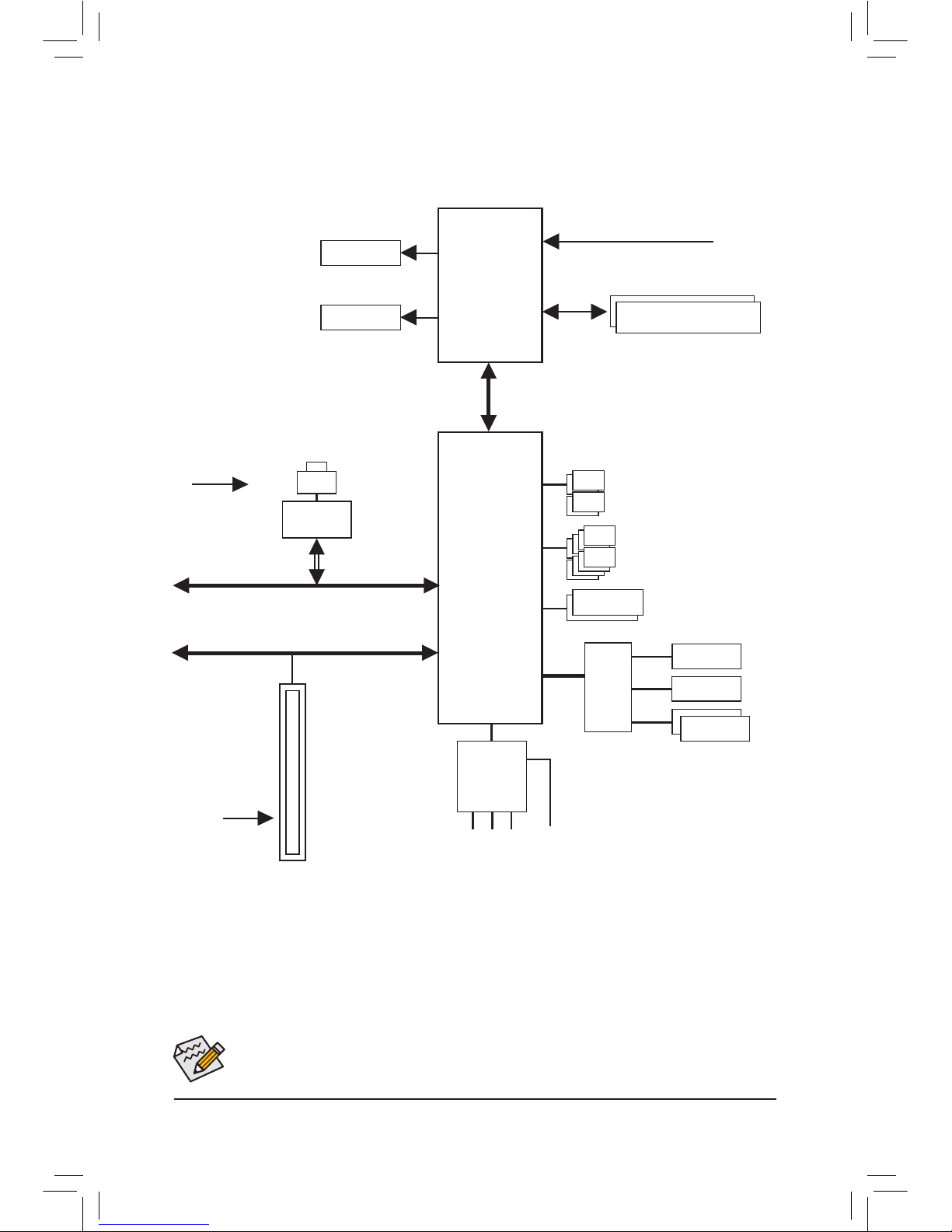

GA-E350N WIN8 Motherboard Block Diagram

For detailed product information/limitation(s), refer to "1-2 Product Specications."

UMI

AMD A45 FCH

APU CLK+/- (100 MHz)

S/PDIF Out

AMD

E-350D APU DDR3 1333 (O.C.)/1066 MHz

Dual BIOS

LPC

Bus COM

8 USB 2.0/1.1

4 SATA 3Gb/s

PCI Express Bus

PCIe CLK

(100 MHz)

LAN

RJ45

Realtek

GbE LAN

D-Sub

HDMI

PCI Bus

1 PCI

PCI CLK

(33 MHz)

iTE

Super

I/O

PS/2 KB/Mouse

LPT

Line Out (Front Speaker Out)

MIC (Center/Subwoofer Speaker Out)

Line In (Rear Speaker Out)

CODEC

Single Channel

- 6 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

- 7 -

1-2 ProductSpecications

APU Built in with an AMD E-350D Dual-Core processor

Built in with an AMD Radeon™HD 6310 (DirectX 11) graphics core

Chipset AMD A45 FCH

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Single channel memory architecture

Support for DDR3 1333 (O.C.)/1066 MHz memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port

- 1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio Realtek ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI slot

Storage Interface Chipset:

- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB Chipset:

- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 3Gb/s connectors

1 x APU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x chassis intrusion header

1 x power LED header

1 x Clear CMOS jumper

- 8 -

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x HDMI port

1 x parallel port

1 x serial port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller iTE I/O Controller Chip

Hardware

Monitor

System voltage detection

APU/System temperature detection

APU/System fan speed detection

APU overheating warning

System fan speed control

* Whether the system fan speed control function is supported will depend on the

system cooler you install.

BIOS 2 x 32 Mbit ash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress Install

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for Smart Recovery 2

Support for Auto Green

Support for ON/OFF Charge

Support for Q-Share

Bundled

Software Norton Internet Security (OEM version)

Operating

System Support for Microsoft®Windows 8/7/Vista/XP

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)

for the software listed in the "Unique Features" and "Bundled Software" columns.

- 9 -

1-3 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

1-4 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

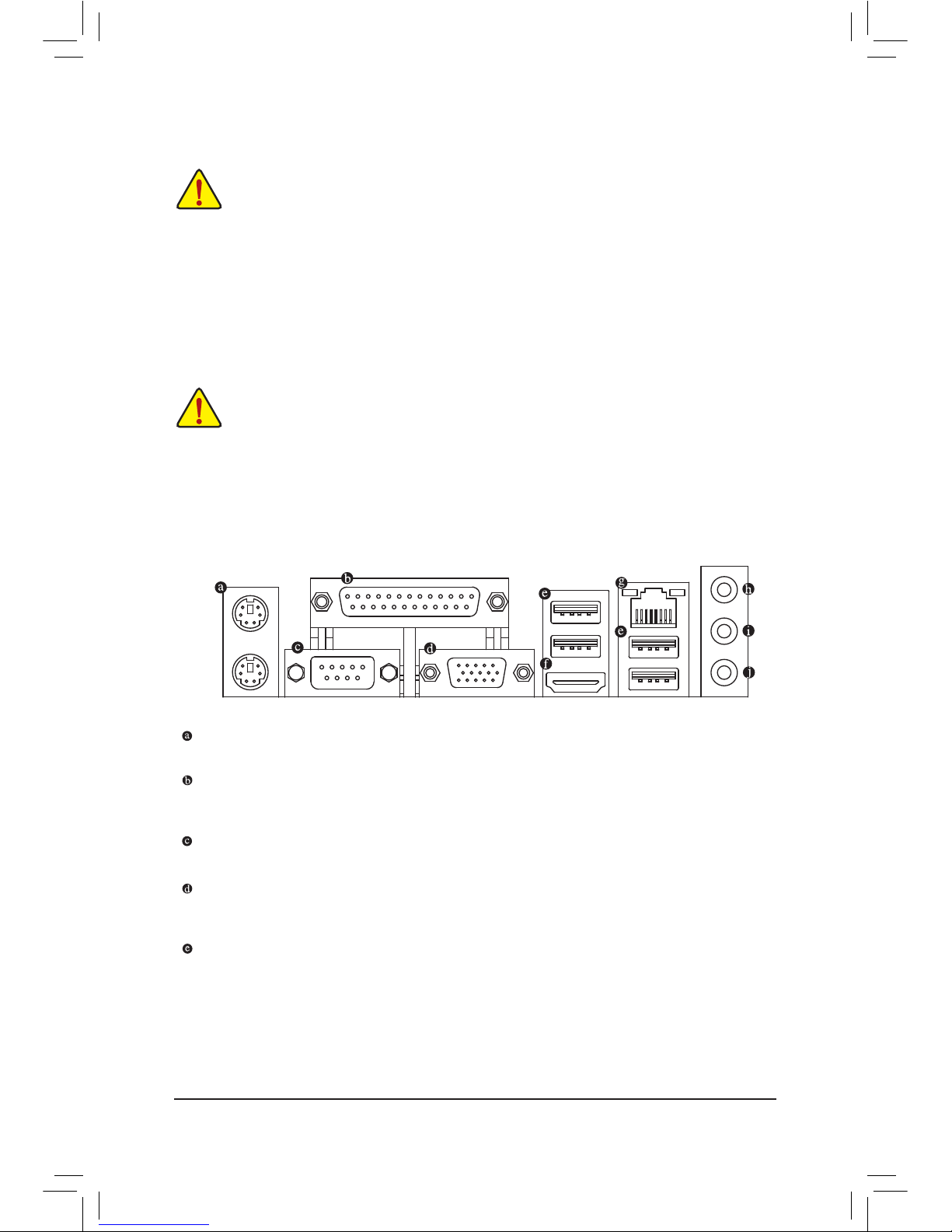

1-5 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also called

a printer port.

Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection

to this port.

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB

keyboard/mouse, USB printer, USB ash drive and etc.

- 10 -

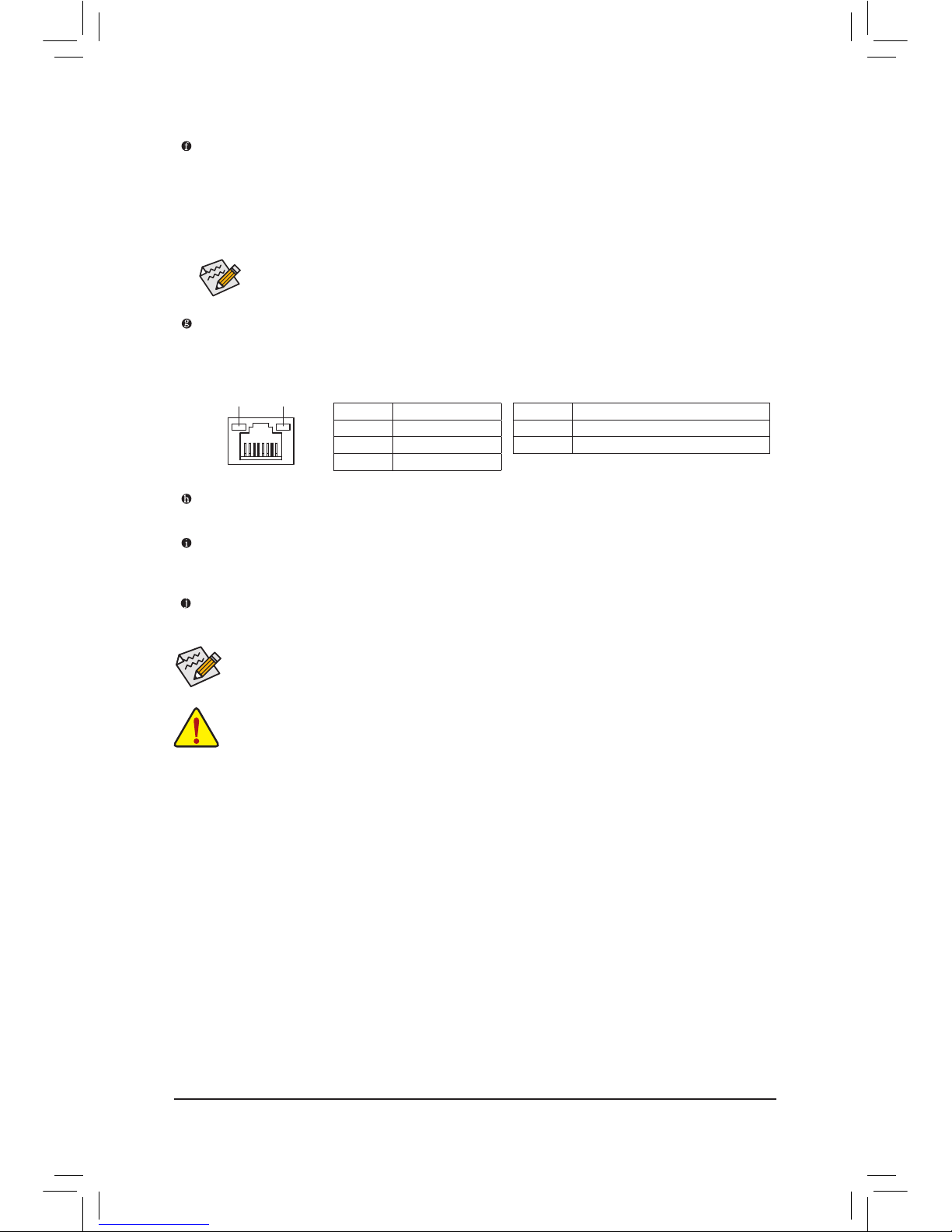

Activity LED

Connection/

Speed LED

LAN Port

Activity LED:Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

•When removing the cable connected to a back panel connector, rst remove the cable from your

device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent

an electrical short inside the cable connector.

HDMI Port

HDMI (High-Denition Multimedia Interface) is an all-digital audio/video interface capable of transmitting

uncompressed audio/video signals. The HDMI port is HDCP compliant and supports Dolby True HD and

DTS HD Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio output. You can

use this port to connect your HDMI-supported monitor. The maximum supported resolution is 1920x1200,

but the actual resolutions supported are dependent on the monitor being used.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The

item name may differ depending on your operating system.)

Line In Jack (Blue)

The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out Jack (Green)

The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used

to connect front speakers in a 4/5.1/7.1-channel audio conguration.

Mic In Jack (Pink)

The default Mic in jack. Microphones must be connected to this jack.

To congure 7.1-channel audio, you have to use an HD front panel audio module and enable the

multi-channel audio feature through the audio driver.

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-A55M-DS2 Manual de usuario

Gigabyte

Gigabyte B450M DS3H Manual de usuario

Gigabyte

Gigabyte Z690 AORUS MASTER Manual de usuario

Gigabyte

Gigabyte GA-8IG1000 Pro-G Manual de usuario

Gigabyte

Gigabyte GA-C847N Manual de usuario

Gigabyte

Gigabyte B560M D3H Manual de usuario

Gigabyte

Gigabyte GA-6PXSV3 Manual de usuario

Gigabyte

Gigabyte MZ62-HD4 Cómo utilizar

Gigabyte

Gigabyte G1.ASSASSIN 2 Manual de usuario

Gigabyte

Gigabyte GA-F2A58-DS3 Manual de usuario

Gigabyte

Gigabyte MD71-HB1 Manual de usuario

Gigabyte

Gigabyte GA-B75M-D2V Manual de usuario

Gigabyte

Gigabyte GA-M61SME-S2 Manual de usuario

Gigabyte

Gigabyte GA-8IRXP Manual de usuario

Gigabyte

Gigabyte B650E AORUS MASTER Manual de usuario

Gigabyte

Gigabyte GA-X99-Gaming 5P Manual de usuario

Gigabyte

Gigabyte GA-8GPNXP Duo Manual de usuario

Gigabyte

Gigabyte B550 AORUS ELITE V2 Manual de usuario

Gigabyte

Gigabyte GA-7N400V Manual de usuario

Gigabyte

Gigabyte 686LX4 Manual de usuario

Gigabyte

Gigabyte GA-73VM-S2 Manual de usuario

Gigabyte

Gigabyte MP72-HB0 Manual de usuario

Gigabyte

Gigabyte GA-X48-DQ6 Manual de usuario

Gigabyte

Gigabyte GA-EP31-DS3L Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
