Gigabyte GA-D525TUD Manual de usuario

GA-D525TUD

GA-D425TUD

User's Manual

Rev. 1502

12ME-525TUD-1502R

Motherboard

GA-D525TUD/

GA-D425TUD

Feb. 17, 2012

Motherboard

GA-D525TUD/GA-D425TUD

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

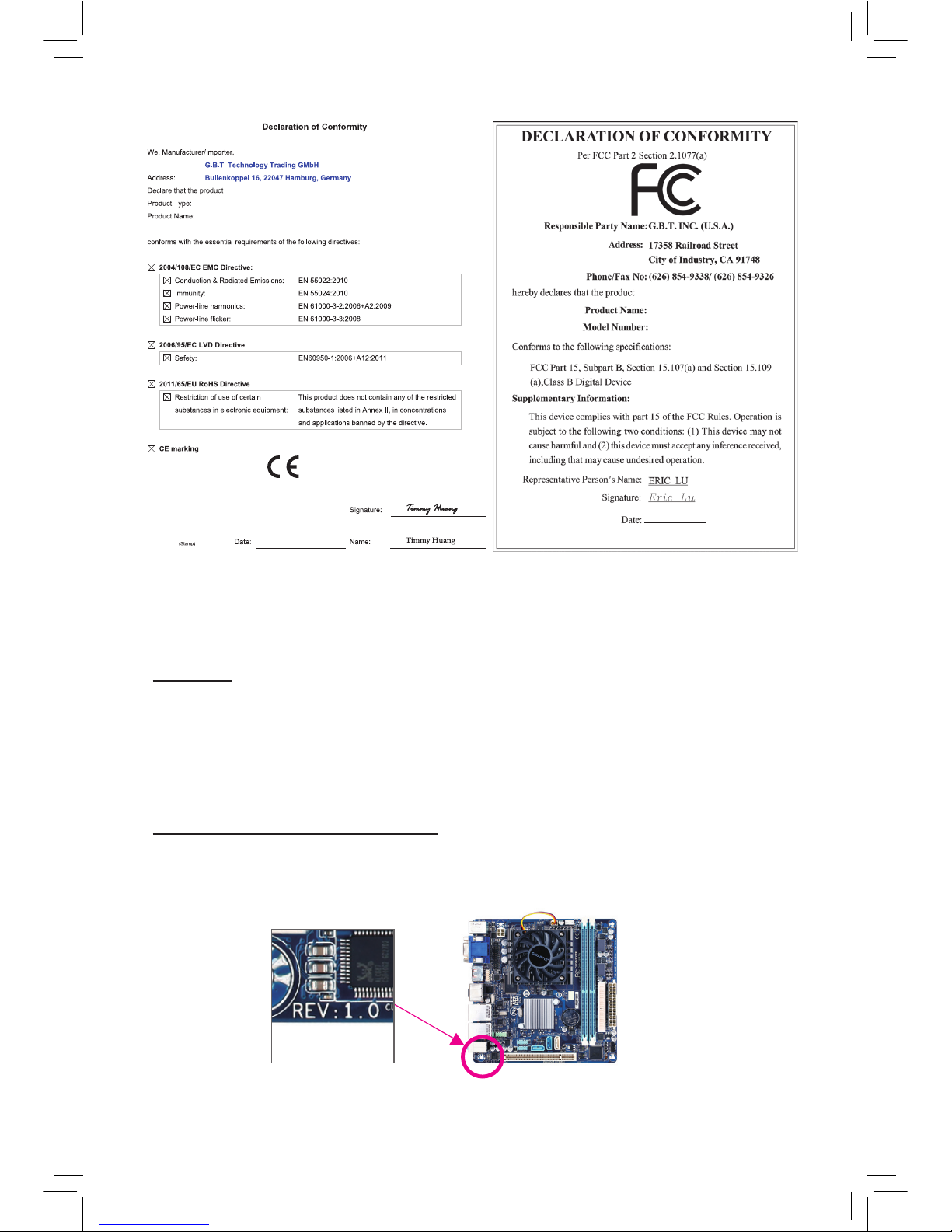

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the

revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS,

drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

GA-D525TUD/GA-D425TUD Motherboard Layout.........................................................4

GA-D525TUD/GA-D425TUD Motherboard Block Diagram............................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions ................................................................................... 6

1-2 Product Specications..................................................................................... 7

1-3 Installing the Memory ...................................................................................... 9

1-4 Back Panel Connectors ................................................................................... 9

1-5 Internal Connectors ....................................................................................... 10

Chapter 2 BIOS Setup..................................................................................................15

2-1 Startup Screen............................................................................................... 15

2-2 MB Intelligent Tweaker(M.I.T.) ....................................................................... 16

2-3 Standard CMOS Features............................................................................. 16

2-4 Advanced BIOS Features.............................................................................. 17

2-5 Integrated Peripherals ................................................................................... 19

2-6 Power Management Setup ............................................................................ 21

2-7 PnP/PCI Congurations................................................................................. 22

2-8 PC Health Status ........................................................................................... 23

2-9 Load Fail-Safe Defaults ................................................................................. 24

2-10 Load Optimized Defaults ............................................................................... 24

2-11 Set Supervisor/User Password ..................................................................... 24

2-12 Save & Exit Setup.......................................................................................... 25

2-13 Exit Without Saving........................................................................................ 25

Chapter 3 Appendix......................................................................................................26

Drivers Installation.................................................................................................... 26

Regulatory Statements............................................................................................. 27

Contact Us ................................................................................................................ 32

- 4 -

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-D525TUD or GA-D425TUD motherboard

5Motherboard driver disk 5One SATA cable

5User's Manual 5I/O Shield

GA-D525TUD/GA-D425TUD Motherboard Layout

KB_MS ATX_12V

ATX

F_AUDIO

AUDIO B_BIOS

DDR3_1

DDR3_2

BAT

F_PANEL

F_USB1

Intel®

NM10

CODEC

SYS_FAN

M_BIOS

SATA2_0

CPU_FAN

VGA

R_USB

COM

PWR_LED

USB_LAN

Realtek®

GbE LAN

PCI

LPT

GA-D525TUD/

GA-D425TUD

Intel®Atom™ D525j

Intel®Atom™ D425k

COMB iTE®

Super I/O

F_USB2

SATA2_1

jOnly for GA-D525TUD.

kOnly for GA-D425TUD.

- 5 -

For detailed product information/limitation(s), refer to "1-2 Product Specications."

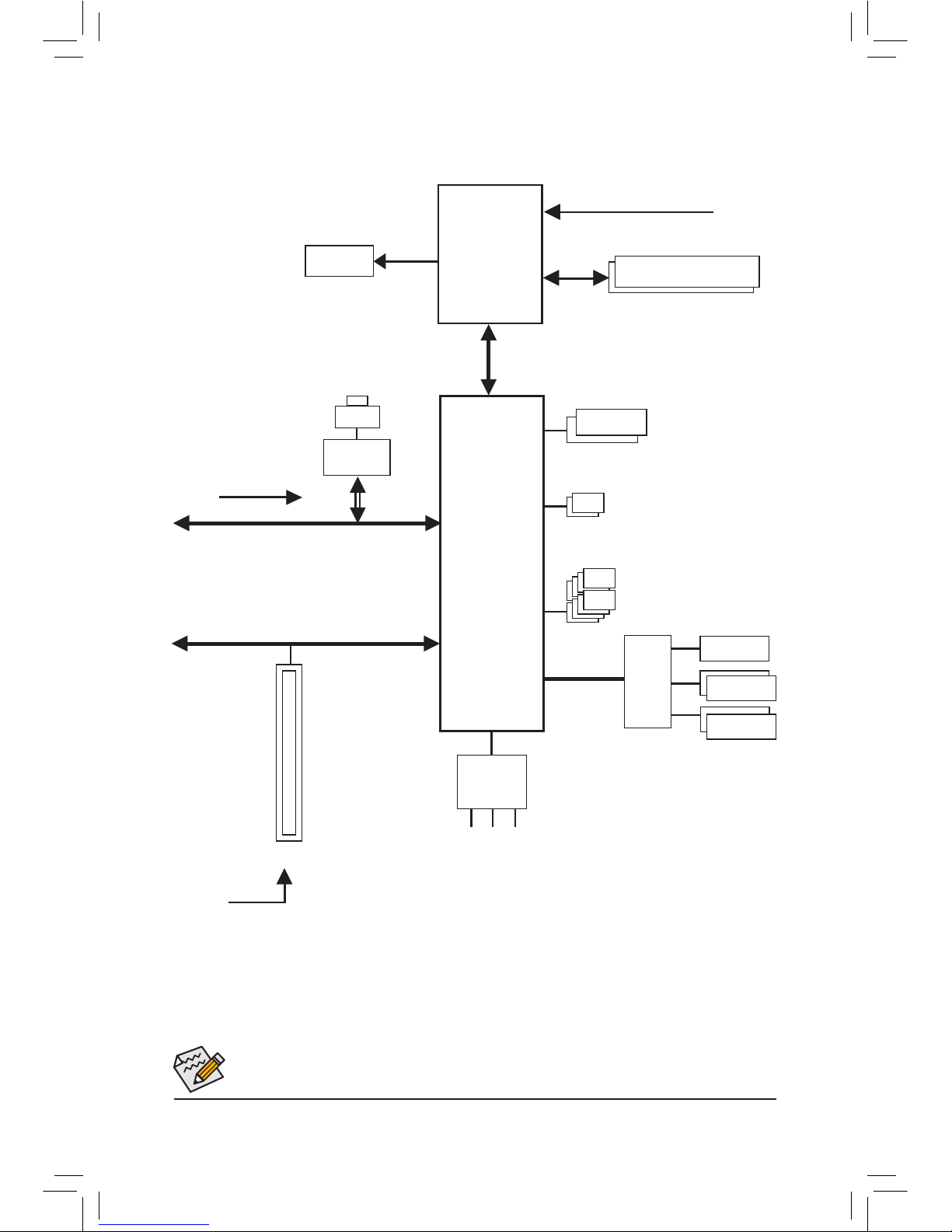

GA-D525TUD/GA-D425TUD Motherboard Block Diagram

Line-Out (Front Speaker Out)

MIC (Center/Subwoofer Speaker Out)

Line-In (Rear Speaker Out)

CODEC

PS/2 KB/Mouse

Intel®

Atom™

CPU

DMI

1 PCI

PCI Bus

PCI CLK

(33 MHz)

CPU CLK+/- (200 MHz)

2 SATA 3Gb/s

Dual BIOS

DDR3 800 MHz

Memory

LPC Bus

LPT

Intel®NM10

8 USB 2.0/1.1

PCI Express Bus

LAN

RJ45

Realtek®

GbE LAN

PCIe CLK

(100 MHz)

D-Sub

COM

iTE®

Super

I/O

- 6 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep

your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

- 7 -

1-2 ProductSpecications

CPU Built in with an Intel®Dual-core Atom™D525j/ Intel®Single-core Atom™D425k

processor (1.8 GHz)

* Do not disassemble the onboard CPU/chipset and the heatsinks/fan by yourself to

avoid damage to these components.

1M L2 cachej/512K L2 cachek

Chipset Intel®NM10

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Support for DDR3 800 MHz memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port

Audio Realtek®ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI slot

Storage Interface Chipset:

- 2 x SATA 3Gb/s connectors

USB Chipset:

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 20-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x chassis intrusion header

1 x power LED header

jOnly for GA-D525TUD.

kOnly for GA-D425TUD.

- 8 -

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x parallel port

1 x serial port

1 x D-Sub port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU temperature detection

CPU/System fan speed detection

CPU fan speed control

BIOS 2 x 4 Mbit ash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress BIOS Rescue

Support for Download Center

Support for Xpress Install

Support for Xpress Recovery2

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for Smart Recovery

Support for Auto Green

Support for ON/OFF Charge

Support for Q-Share

Bundled

Software Norton®Internet Security (OEM version)

Operating

System Support for Windows 7/Vista/XP

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)

for the software listed in the "Unique Features" and "Bundled Software" columns.

- 9 -

1-3 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

•DDR3 and DDR2 DIMMs are not compatible to each other or DDR DIMMs. Be sure to install DDR3

DIMMs on this motherboard.

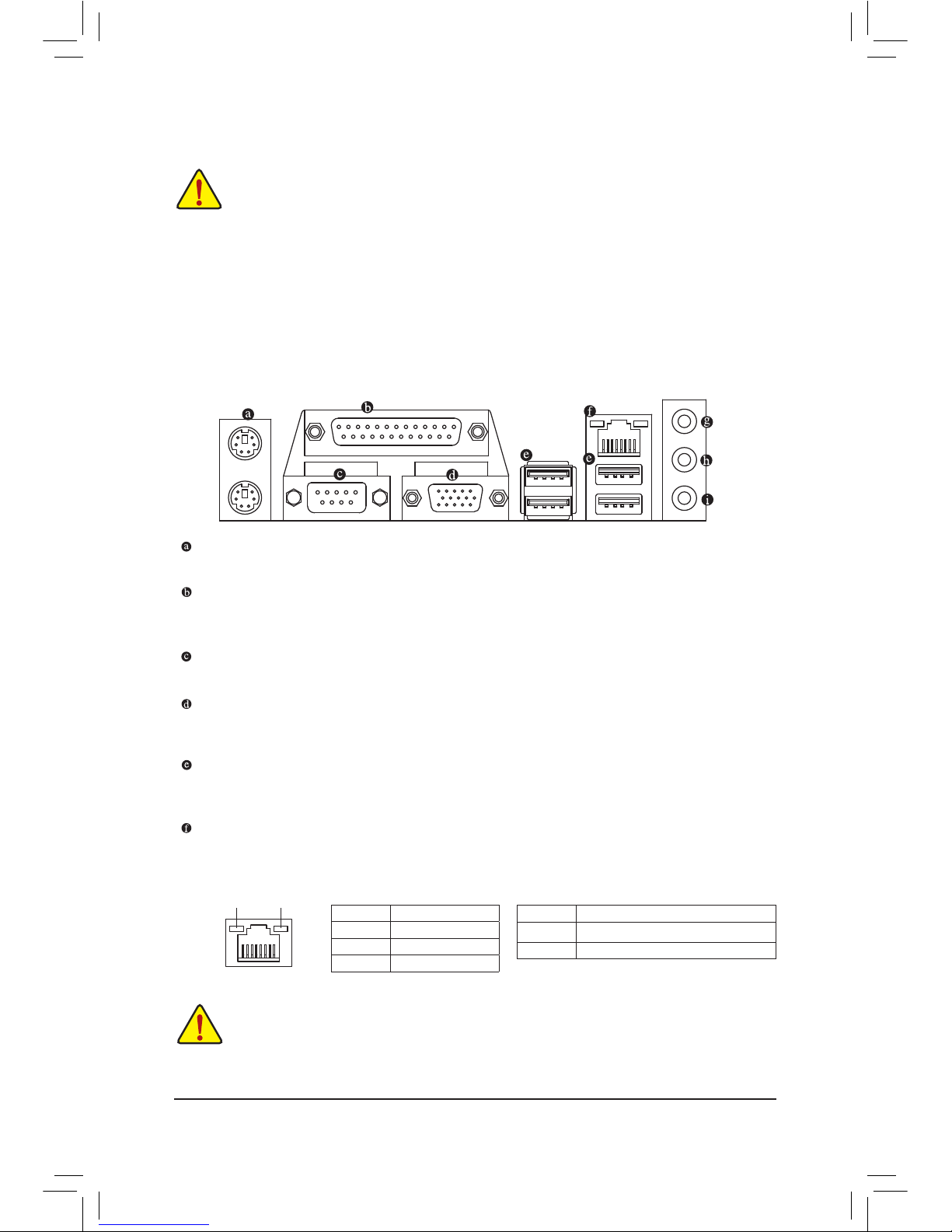

1-4 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also called

a printer port.

Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection

to this port.

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB

keyboard/mouse, USB printer, USB ash drive and etc.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

Activity LED

Connection/

Speed LED

LAN Port

Activity LED:

Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

•When removing the cable connected to a back panel connector, rst remove the cable from your

device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent

an electrical short inside the cable connector.

- 10 -

Line In Jack (Blue)

The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out Jack (Green)

The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used

to connect front speakers in a 4/5.1/7.1-channel audio conguration.

Mic In Jack (Pink)

The default Mic in jack. Microphones must be connected to this jack.

To congure 7.1-channel audio, you have to use an HD front panel audio module and enable the

multi-channel audio feature through the audio driver.

1-5 Internal Connectors

Read the following guidelines before connecting external devices:

•First make sure your devices are compliant with the connectors you wish to connect.

•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

•After installing the device and before turning on the computer, make sure the device cable has

been securely attached to the connector on the motherboard.

12 46

1) ATX_12V

2) ATX

3) CPU_FAN

4) SYS_FAN

5) SATA2_0/1

6) PWR_LED

7) BAT

8) F_PANEL

9) F_AUDIO

10) F_USB1/F_USB2

11) COMB

12) CI

Otros manuales para GA-D525TUD

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-K8NF-9 Manual de usuario

Gigabyte

Gigabyte GA-945GZM-S2 Manual de usuario

Gigabyte

Gigabyte B450M GAMING Manual de usuario

Gigabyte

Gigabyte GA-880GA-UD3H Manual de usuario

Gigabyte

Gigabyte GA-MA785GM-UD2H Manual de usuario

Gigabyte

Gigabyte G481-HA0 Manual de usuario

Gigabyte

Gigabyte GA-AX370M-Gaming 3 Manual de usuario

Gigabyte

Gigabyte GA-990FXA-D3 Manual de usuario

Gigabyte

Gigabyte G1.Sniper Z97 Manual de usuario

Gigabyte

Gigabyte GA-X150M-PRO ECC Manual de usuario

Gigabyte

Gigabyte Z690 AORUS MASTER Manual de usuario

Gigabyte

Gigabyte GA-H110M-S2V Manual de usuario

Gigabyte

Gigabyte GA-MA78GM-DS2HP Manual de usuario

Gigabyte

Gigabyte GS-R12P4G Manual de usuario

Gigabyte

Gigabyte X470 AORUS GAMING 7 WIFI Manual de usuario

Gigabyte

Gigabyte GA-946GM-DS2 Manual de usuario

Gigabyte

Gigabyte 889523024416 Manual de usuario

Gigabyte

Gigabyte H510M S2 Manual de usuario

Gigabyte

Gigabyte GA-MA69GM-S2H Manual de usuario

Gigabyte

Gigabyte GA-970A-DS3 Manual de usuario

Gigabyte

Gigabyte GA-Z77N-WIFI Manual de usuario

Gigabyte

Gigabyte GA-H61M-DS2 DVI Manual de usuario

Gigabyte

Gigabyte GA-C7V7-RH Manual de usuario

Gigabyte

Gigabyte X299 AORUS Ultra Gaming Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
