Gigabyte GA-C847N-D Manual de usuario

GA-C847N-D

User's Manual

Rev. 1002

12ME-C847ND-1002R

Motherboard

GA-C847N-D

Dec. 5, 2012

Motherboard

GA-C847N-D

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in

any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

GA-C847N-D Motherboard Layout .................................................................................5

GA-C847N-D Motherboard Block Diagram ....................................................................6

Chapter 1 Hardware Installation .....................................................................................7

1-1 Installation Precautions ................................................................................... 7

1-2 ProductSpecications..................................................................................... 8

1-3 Installing the Memory .................................................................................... 10

1-4 Back Panel Connectors..................................................................................11

1-5 Internal Connectors ....................................................................................... 13

Chapter 2 BIOS Setup..................................................................................................21

2-1 Startup Screen............................................................................................... 21

2-2 The Main Menu.............................................................................................. 22

2-3 M.I.T. .............................................................................................................. 23

2-4 System ........................................................................................................... 29

2-5 BIOS Features ............................................................................................... 30

2-6 Peripherals..................................................................................................... 33

2-7 Power Management....................................................................................... 35

2-8 Save & Exit .................................................................................................... 37

Chapter 3 Drivers Installation .......................................................................................38

Chapter 4 Appendix......................................................................................................39

Regulatory Statements............................................................................................. 39

- 5 -

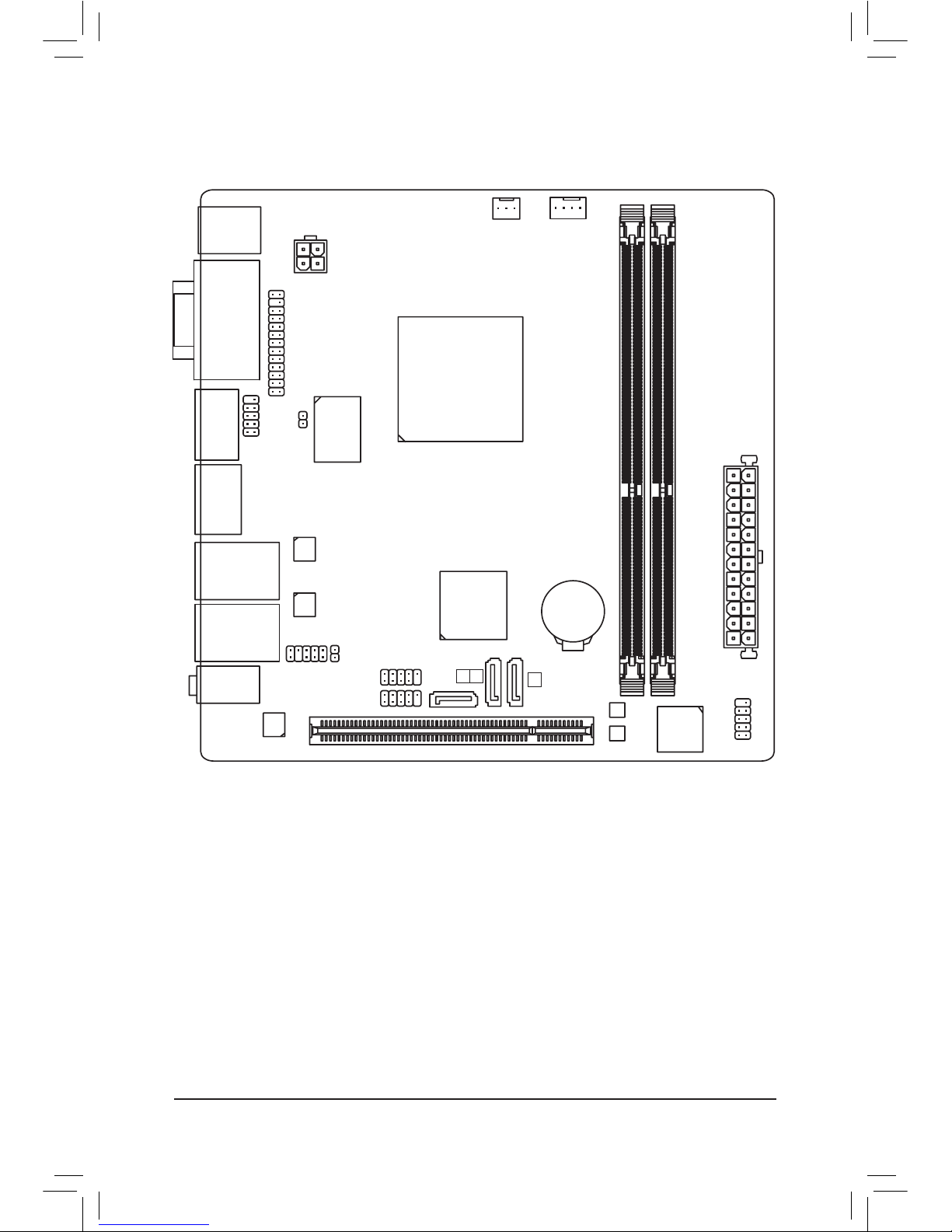

GA-C847N-D Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

Box Contents

5GA-C847N-D motherboard

5Motherboard driver disk

5Two SATA 6Gb/s cables

5User's Manual

5I/O Shield

KB_MS SYS_FAN

Intel®Celeron®847

AUDIO

DDR3_2

DDR3_1

BAT

ATX_12V

Intel®NM70

CODEC PCIe to PCI

Bridge

B_BIOS

M_BIOS

VGA

COMA

HDMI

iTE Super

I/O

Realtek GbE LAN

USB_LAN1

GA-C847N-D

ESATA0

F_PANEL

F_USB1

F_USB2

SATA2

2 1

USB_LAN2

ATXCOMB

LPT

F_AUDIO CLR_CMOS

SATA3

Realtek GbE LAN

CPU_FAN

- 6 -

GA-C847N-D Motherboard Block Diagram

For detailed product information/

limitation(s), refer to "1-2 Product Speci-

cations."

Line-Out (Front Speaker Out)

MIC (Center/Subwoofer Speaker Out)

Line-In (Rear Speaker Out)

CODEC

PS/2 KB/Mouse

Intel®

Celeron®

847 CPU

DMI

CPU CLK+/- (100 MHz)

3 SATA 3Gb/s

Dual BIOS

DDR3 1333/1066 MHz

Dual Channel Memory

LPC Bus

LPT

Intel®NM70

8 USB 2.0/1.1

PCI Express Bus x1

LAN

RJ45

Realtek

GbE LAN

PCIe CLK

(100 MHz)

COM

iTE

Super

I/O

1 SATA 6Gb/s

LAN

RJ45

Realtek

GbE LAN

D-Sub

HDMI

1 PCI

PCI CLK

(33 MHz)

PCIe to PCI

Bridge

- 7 -

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep

yourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

Chapter 1 Hardware Installation

- 8 -

1-2 ProductSpecications

CPU

Built in with an Intel®Dual-core Celeron®847 processor (1.1 GHz)

* Do not disassemble the onboard CPU/Chipset and the heatsinks/fan by yourself to

avoid damage to these components.

2 MB L3 cache

Chipset

Intel®NM70 Chipset

Memory

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of

physical memory is installed, the actual memory size displayed will be less than the

size of the physical memory installed.

Dual channel memory architecture

Support for DDR3 1333/1066 MHz memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and

memory modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port

- 1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio Realtek ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

  * Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomoduleand

enable the multi-channel audio feature through the audio driver.

LAN

2 x Realtek GbE LAN chips (10/100/1000 Mbit)

Expansion Slots

1 x PCI slot

Storage Interface

Chipset:

- 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s

device

- 2 x SATA 3Gb/s connectors (SATA2 1/2) supporting up to 2 SATA 3Gb/s

devices

- 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA

3Gb/s device

USB

Chipset:

- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available

through the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x SATA 6Gb/s connector

2 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x parallel port

- 9 -

Internal

Connectors

1 x serial port header

1xClearCMOSjumper

1 x chassis intrusion header

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x serial port

1 x HDMI port

4 x USB 2.0/1.1 ports

1 x eSATA 3Gb/s connector

2 x RJ-45 ports

3xaudiojacks(LineIn/LineOut/Microphone)

I/O Controller

iTE I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

System fan speed control

* Whether the system fan speed control function is supported will depend on the

system cooler you install.

BIOS

2x32Mbitash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features

Support for @BIOS

Support for Q-Flash

Support for Xpress Install

Support for Xpress Recovery 2

Support for EasyTune 6

* Available functions in EasyTune 6 may differ by motherboard model.

Support for Smart Recovery 2

Support for Auto Green

Support for ON/OFF Charge

Bundled

Software

Norton Internet Security (OEM version)

Intel®Smart Connect Technology

Operating

System

Support for Microsoft®Windows 8/7/XP

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)

for the software listed in the "Unique Features" and "Bundled Software" columns.

- 10 -

1-3 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

•DDR3 and DDR2 DIMMs are not compatible to each other or DDR DIMMs. Be sure to install DDR3

DIMMs on this motherboard.

Notch

DDR3 DIMM

ADDR3memorymodulehasanotch,soitcanonlytinonedirection.Followthestepsbelowtocorrectlyinstall

your memory modules in the memory sockets.

Step 1:

Note the orientation of the memory module. Spread the retaining clips

at both ends of the memory socket. Place the memory module on the

socket.Asindicatedinthepictureontheleft,placeyourngerson

the top edge of the memory, push down on the memory and insert it

vertically into the memory socket.

Step 2:

The clips at both ends of the socket will snap into place when the

memory module is securely inserted.

Otros manuales para GA-C847N-D

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte B550 AORUS PRO AX Manual de usuario

Gigabyte

Gigabyte G1.Sniper Z97 Manual de usuario

Gigabyte

Gigabyte MZ01-CE0 Manual de usuario

Gigabyte

Gigabyte GA-H81M-S2PH Manual de usuario

Gigabyte

Gigabyte B450M DS3H Manual de usuario

Gigabyte

Gigabyte Q670M D3H DDR4 Manual de usuario

Gigabyte

Gigabyte GA-K8N51GMF Manual de usuario

Gigabyte

Gigabyte GA-8SG667 Manual de usuario

Gigabyte

Gigabyte GA-P55A-UD4 Manual de usuario

Gigabyte

Gigabyte GA-H110M-HD3 DDR3 Manual de usuario

Gigabyte

Gigabyte GA-F2A85X-UP4 Manual de usuario

Gigabyte

Gigabyte 12ME-97AD3PX-2102R Manual de usuario

Gigabyte

Gigabyte GS-R12P4E Manual de usuario

Gigabyte

Gigabyte GA-EP45-DS3 Manual de usuario

Gigabyte

Gigabyte X570 AORUS MASTER Manual de usuario

Gigabyte

Gigabyte Z590 AORUS XTREME Manual de usuario

Gigabyte

Gigabyte GA-686DX Manual de usuario

Gigabyte

Gigabyte GA-6CXB7 Manual de usuario

Gigabyte

Gigabyte 8S661FXME-RZ Manual de usuario

Gigabyte

Gigabyte GA-C1037UN-EU Manual de usuario

Gigabyte

Gigabyte GA-7PCSL Manual de usuario

Gigabyte

Gigabyte GA-965P-S3 Manual de usuario

Gigabyte

Gigabyte GA-F2A68HM-HD2 Manual de usuario

Gigabyte

Gigabyte GA-A320M-HD2 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
