Gigabyte GA-B85M-D2V Plus Manual de usuario

GA-B85M-D2V Plus

User's Manual

Rev. 1001

12ME-B85M2VP-1001R

Motherboard

GA-B85M-D2V Plus

Oct. 24, 2014

Motherboard

GA-B85M-D2V Plus

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by

any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the revision

of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS, drivers, or when

looking for technical information.

Example:

- 3 -

Table of Contents

GA-B85M-D2V Plus Motherboard Layout .......................................................................4

GA-B85M-D2V Plus Motherboard Block Diagram...........................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................18

2-1 Startup Screen ............................................................................................... 18

2-2 M.I.T. .............................................................................................................. 19

2-3 System Information ........................................................................................ 23

2-4 BIOS Features ............................................................................................... 24

2-5 Peripherals..................................................................................................... 27

2-6 Power Management....................................................................................... 30

2-7 Save & Exit..................................................................................................... 31

Chapter 3 Appendix ......................................................................................................32

Drivers Installation..................................................................................................... 32

Regulatory Statements.............................................................................................. 33

Contact Us ................................................................................................................ 36

- 4 -

GA-B85M-D2V Plus Motherboard Layout

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-B85M-D2V Plus motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS

CPU_FAN

SYS_FAN

LGA1150

ATX

GA-B85M-D2V Plus

F_AUDIO

AUDIO

M_BIOS

DDR3_1

DDR3_2

BAT

ATX_12V_2X4

Intel®B85

R_USB

CODEC

CLR_CMOS

VGA

DVI

USB_LAN

PCIEX16

PCIEX1_1

PCIEX1_2

iTE®

Super I/O

Realtek®

GbE LAN

F_USB2 F_USB1

F_USB30

COM

SATA3 SATA2

1 3

0 2

F_PANEL

R_USB30

- 5 -

GA-B85M-D2V Plus Motherboard Block Diagram

For detailed product information/limitation(s), refer to "1-2 Product Specications."

iTE®

Super I/O

PS/2 KB/Mouse

LGA1150

CPU

Intel®B85

PCIe CLK

(100 MHz)

PCI Express Bus

CPU CLK+/- (100 MHz)

1 PCI Express x16

COM

8 USB 2.0/1.1

4 USB 3.0/2.0

DDR3 1600/1333 MHz

PCI Express Bus

PCIe CLK

(100 MHz)

2 PCI Express x1

4 SATA 6Gb/s

D-Sub

DVI-D

2 SATA 3Gb/s

DMI 2.0

FDI

x16

Dual Channel Memory

x1 x1

LPC

Bus

Line Out (Front Speaker Out)

MIC (Center/Subwoofer

Speaker Out)

Line In (Rear Speaker Out)

CODEC

LAN

RJ45

Realtek®

GbE LAN

BIOS

- 6 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

- 7 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/

Intel®Celeron®processors in the LGA1150 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B85 Express Chipset

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of

physical memory is installed, the actual memory size displayed will be less than the

size of the physical memory installed.

Dual channel memory architecture

Support for DDR3 1600/1333 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor- Intel®HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

- Maximum shared memory of 1 GB

Audio Realtek®ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface Chipset:

- 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)

- 2 x SATA 3Gb/s connectors (SATA2 4/3)

USB Chipset:

- 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

2 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

- 8 -

Internal

Connectors

1 x front panel audio header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port

2 x USB 3.0/2.0 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS

1 x 32 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for Q-Flash

Support for Xpress Install

Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported

functions of each application may also differ depending on motherboard specications.

- @BIOS

- EasyTune

- EZ Setup

- USB Blocker

- Smart TimeLock

- Smart Recovery 2

Support for ON/OFF Charge

Bundled

Software

Norton®Internet Security (OEM version)

Intel®Rapid Start Technology

Intel®Smart Connect Technology

Operating

System Support for Windows 8.1/8/7

Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)

for the software listed in the "Unique Features" and "Bundled Software" columns.

- 9 -

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

Installing the CPU

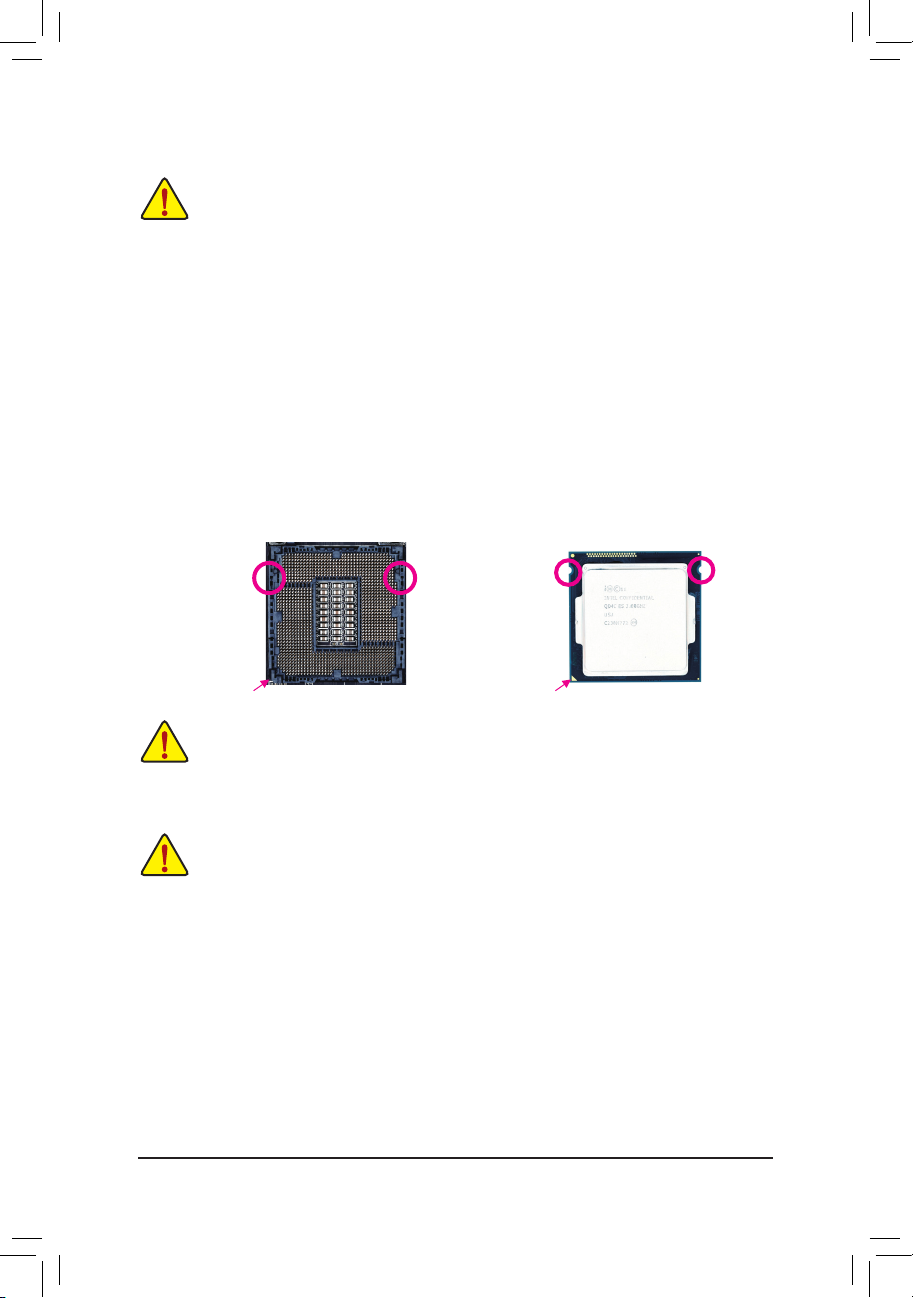

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load plate

automatically during the process of re-engaging the lever after you insert the CPU.

Notch

Alignment KeyAlignment Key Notch

LGA1150 CPU

LGA1150 CPU Socket

Pin One Corner of the CPU Socket Triangle Pin One Marking on the CPU

DualChannelMemoryConguration

This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology.After the memory

is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel A: DDR3_1

Channel B: DDR3_2

- 10 -

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used for optimum performance.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2

keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Sub connection to this port.

DVI-D Port (Note)

The DVI-D port conforms to the DVI-D specicationand supports a maximum resolution of 1920x1200 (the

actual resolutions supported depend on the monitor being used). Connect a monitor that supports DVI-D

connection to this port.

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB

keyboard/mouse, USB printer, USB ash drive and etc.

USB 3.0/2.0 Port

The USB 3.0 port supports the USB 3.0 specication and is compatible to the USB 2.0/1.1 specication.

Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB ash drive and etc.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

(Note) The DVI-D port does not support D-Sub connection by adapter.

Activity LED

Connection/

Speed LED

LAN Port

Activity LED:Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-H81M-S2VP Manual de usuario

Gigabyte

Gigabyte B650M GAMING X AX Manual de usuario

Gigabyte

Gigabyte H110-D3A Manual de usuario

Gigabyte

Gigabyte MP30-AR0 Manual de usuario

Gigabyte

Gigabyte GA-H110M-H Manual de usuario

Gigabyte

Gigabyte GA-F2A68H-DS3 Manual de usuario

Gigabyte

Gigabyte A520M DS3H V2 Manual de usuario

Gigabyte

Gigabyte GA-9ILDTH Manual de usuario

Gigabyte

Gigabyte H310M M.2 2.0 Manual de usuario

Gigabyte

Gigabyte A320M HD3 Manual de usuario

Gigabyte

Gigabyte 7VM400M-RZ Manual de usuario

Gigabyte

Gigabyte GA-F2A75M-DS2 Manual de usuario

Gigabyte

Gigabyte GA-P55-UD3R Manual de usuario

Gigabyte

Gigabyte GA-8IDML Series Manual de usuario

Gigabyte

Gigabyte GA-Z77X-UP5 TH rev. 1.0 Manual de usuario

Gigabyte

Gigabyte GA-946GZ-DS3 Manual de usuario

Gigabyte

Gigabyte GA-8GEM667 Series Manual de usuario

Gigabyte

Gigabyte Z370M AORUS Gaming Manual de usuario

Gigabyte

Gigabyte GA-78LMT-S2 Manual de usuario

Gigabyte

Gigabyte GA-H61M-S2PT Manual de usuario

Gigabyte

Gigabyte GA-586TX Manual de usuario

Gigabyte

Gigabyte Z790 AORUS ELITE X WIFI7 Manual de usuario

Gigabyte

Gigabyte GA-8ST667 Manual de usuario

Gigabyte

Gigabyte B550M S2H Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
