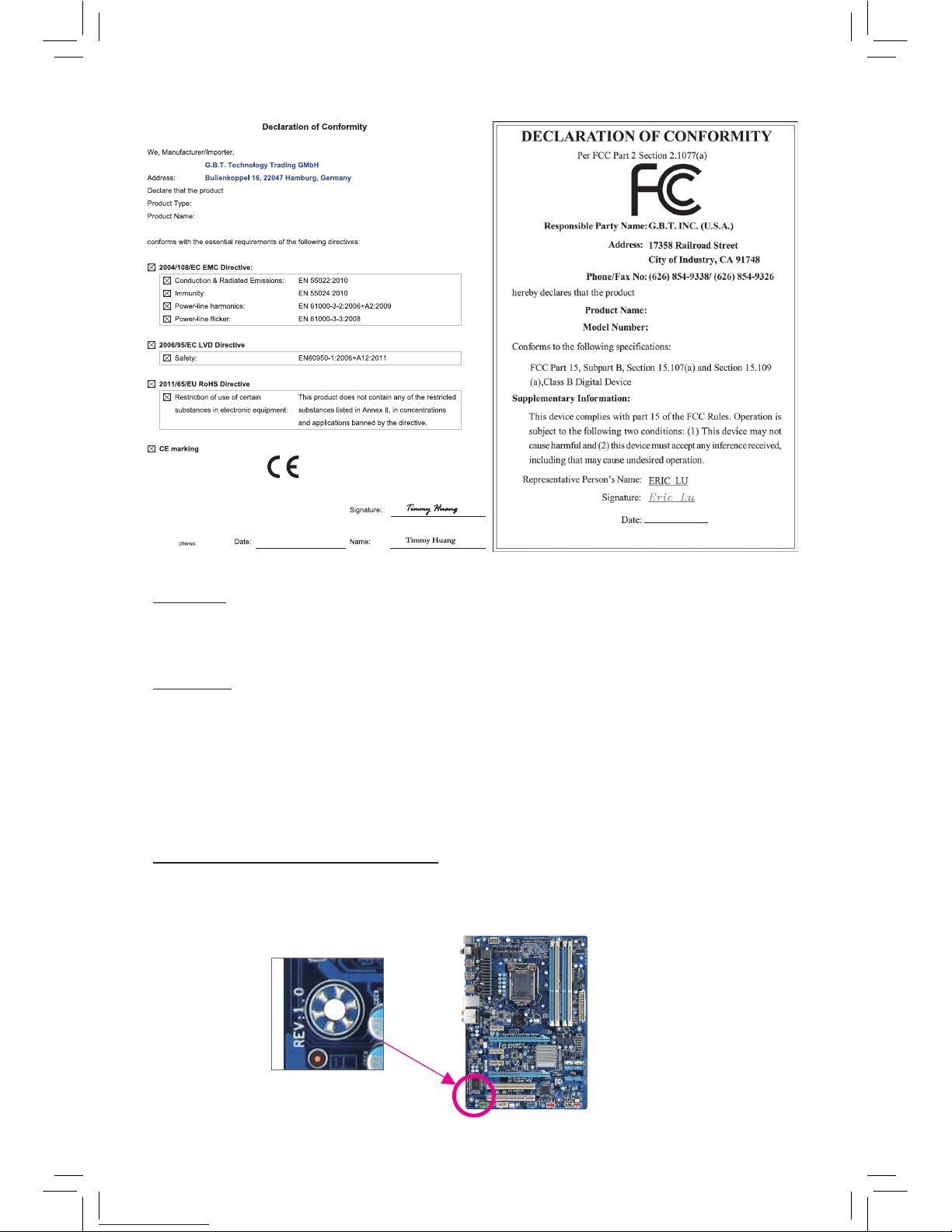

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the

revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS,

drivers, or when looking for technical information.

Example:

Motherboard

GA-H61M-S2PT

Dec. 30, 2013

Motherboard

GA-H61M-S2PT

- 3 -

Table of Contents

GA-H61M-S2PT Motherboard Layout .............................................................................4

GA-H61M-S2PT Motherboard Block Diagram.................................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 ProductSpecications...................................................................................... 7

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 11

Chapter 2 BIOS Setup ..................................................................................................15

2-1 Startup Screen ............................................................................................... 16

2-2 M.I.T. .............................................................................................................. 16

2-3 System Information ........................................................................................ 20

2-4 BIOS Features ............................................................................................... 21

2-5 Peripherals..................................................................................................... 24

2-6 Power Management....................................................................................... 26

2-7 Save & Exit..................................................................................................... 27

Chapter 3 Appendix ......................................................................................................28

Drivers Installation..................................................................................................... 28

Regulatory Statements.............................................................................................. 29

Contact Us ................................................................................................................ 32

- 4 -

GA-H61M-S2PT Motherboard Layout

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-H61M-S2PT motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS

CPU_FAN

LGA1155

ATX

GA-H61M-S2PT

F_AUDIO

AUDIO

B_BIOS

DDR3_1

DDR3_2

BAT

F_PANEL

ATX_12V

Intel®H61

SATA2

R_USB

CODEC

CLR_CMOS

M_BIOS

VGA COM

LPT

USB_LAN

PCIEX16

PCI1

PCI2

PCIEX1

F_USB1

F_USB2

PCIe to

PCI Bridge

Realtek®

GbE LAN

SYS_FAN

iTE®

Super I/O

- 5 -

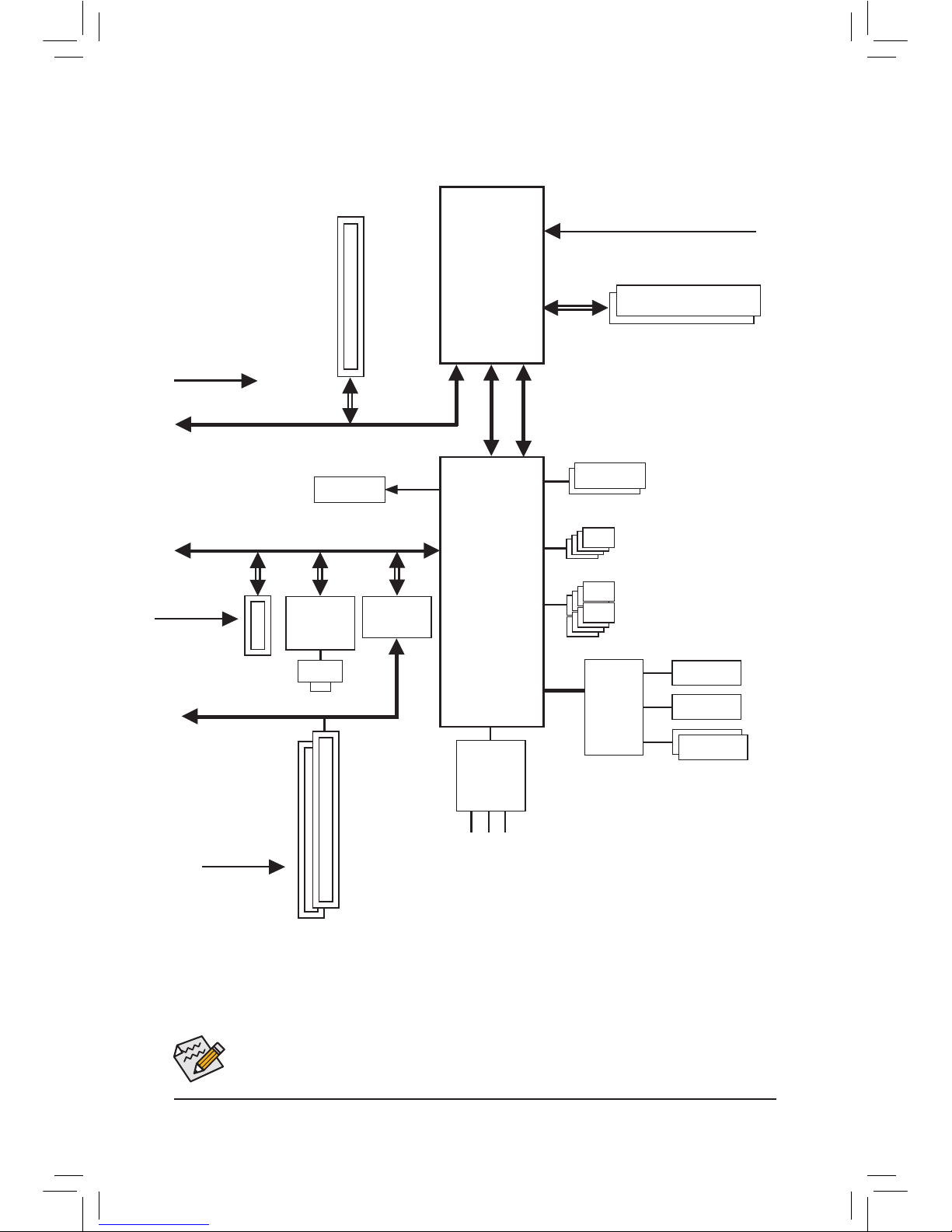

GA-H61M-S2PT Motherboard Block Diagram

PS/2 KB/Mouse

LGA1155

CPU

Intel®H61

PCIe CLK

(100 MHz)

PCI Express Bus

CPU CLK+/- (100 MHz)

1 PCI Express x16

Dual BIOS

COM

LPT

8 USB 2.0/1.1

LPC

Bus

DDR3 1333/1066/800 MHz

PCI Express Bus 4 SATA 3Gb/s

D-Sub

DMI 2.0

FDI

x16

Dual Channel Memory

iTE®

Super

I/O

Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."

Line Out (Front Speaker Out)

MIC (Center/Subwoofer

Speaker Out)

Line In (Rear Speaker Out)

CODEC

PCIe CLK

(100 MHz)

1 PCI Express x1

x1 x1

PCI CLK

(33 MHz)

PCIe to

PCI Bridge

2 PCI

PCI Bus

LAN

RJ45

Realtek®

GbE LAN

- 6 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

- 7 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors

in the LGA1155 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®H61 Express Chipset

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Dual channel memory architecture

Support for DDR3 1333/1066/800 MHz memory modules

Support for non-ECC memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

* To support XMP memory, you must install an Intel®22nm (Ivy Bridge) CPU.

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x D-Sub port

Audio Realtek®ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule

and enable the multi-channel audio feature through the audio driver.

LAN Realtek®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

* Whether PCI Express 3.0 is supported depends on CPU and graphics card

compatibility.

1 x PCI Express x1 slot

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

2 x PCI slots

Storage Interface Chipset:

- 4 x SATA 3Gb/s connectors

USB Chipset:

- 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the

internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

- 8 -

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x parallel port

1 x serial port

4 x USB 2.0/1.1 headers

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 2x32Mbitash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress Recovery2

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for ON/OFF Charge

Bundled

Software Norton®Internet Security (OEM version)

Operating

System Support for Windows 8.1/8/7/XP

Form Factor Micro ATX Form Factor; 24.4cm x 20cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)

for the software listed in the "Unique Features" and "Bundled Software" columns.

- 9 -

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Notch

Alignment KeyAlignment Key Notch

LGA1155 CPU

LGA1155 CPU Socket

Pin One Corner of the CPU Socket Triangle Pin One Marking on the CPU

1-4 Installing the Memory

DualChannelMemoryConguration

This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology.After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel A: DDR3_1

Channel B: DDR3_2

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used for optimum performance.

- 10 -

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also called

a printer port.

Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection

to this port.

USB 2.0/1.1 Port

TheUSB port supportstheUSB 2.0/1.1 specication.Usethis portforUSBdevices suchasaUSB

keyboard/mouse,USBprinter,USBashdriveandetc.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

Activity LED

Connection/

Speed LED

LAN Port

Activity LED:

Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

Line In Jack (Blue)

The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out Jack (Green)

The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used

toconnectfrontspeakersina4/5.1/7.1-channelaudioconguration.

Mic In Jack (Pink)

The default Mic in jack. Microphones must be connected to this jack.

•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent

an electrical short inside the cable connector.

Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomoduleandenablethe

multi-channel audio feature through the audio driver.

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-P55-UD3R Manual de usuario

Gigabyte

Gigabyte GA-B250N Phoenix-WIFI Manual de usuario

Gigabyte

Gigabyte GA-H81N-D2H Manual de usuario

Gigabyte

Gigabyte GA-990XA-UD3 Manual de usuario

Gigabyte

Gigabyte GA-K8VNXP Manual de usuario

Gigabyte

Gigabyte B660M AORUS ELITE AX DDR4 Manual de usuario

Gigabyte

Gigabyte IM-H410G Manual de usuario

Gigabyte

Gigabyte GA-965P-DS3 Manual de usuario

Gigabyte

Gigabyte GA-B75M-D3H Manual de usuario

Gigabyte

Gigabyte GA-N3150N-D2H Manual de usuario

Gigabyte

Gigabyte GA-B250M-D3V Manual de usuario

Gigabyte

Gigabyte GA-J1800N-D2P Manual de usuario

Gigabyte

Gigabyte GA-P67A-UD5 Manual de usuario

Gigabyte

Gigabyte GA-VT890P Manual de usuario

Gigabyte

Gigabyte GA-K8N Pro Manual de usuario

Gigabyte

Gigabyte GA-8S655TX Ultra Manual de usuario

Gigabyte

Gigabyte GA-B75-DS3V Manual de usuario

Gigabyte

Gigabyte GA-8GE667 Pro Manual de usuario

Gigabyte

Gigabyte GA-6VTXE Manual de usuario

Gigabyte

Gigabyte G1.ASSASSIN 2 Manual de usuario

Gigabyte

Gigabyte GA-MA770T-ES3 Manual de usuario

Gigabyte

Gigabyte H410M DS2V V2 Manual de usuario

Gigabyte

Gigabyte GA-Z97X-Gaming GT Manual de usuario

Gigabyte

Gigabyte MZ01-CE0 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
