GA-B250M-Gaming 3

User's Manual

Rev. 1001

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or

by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

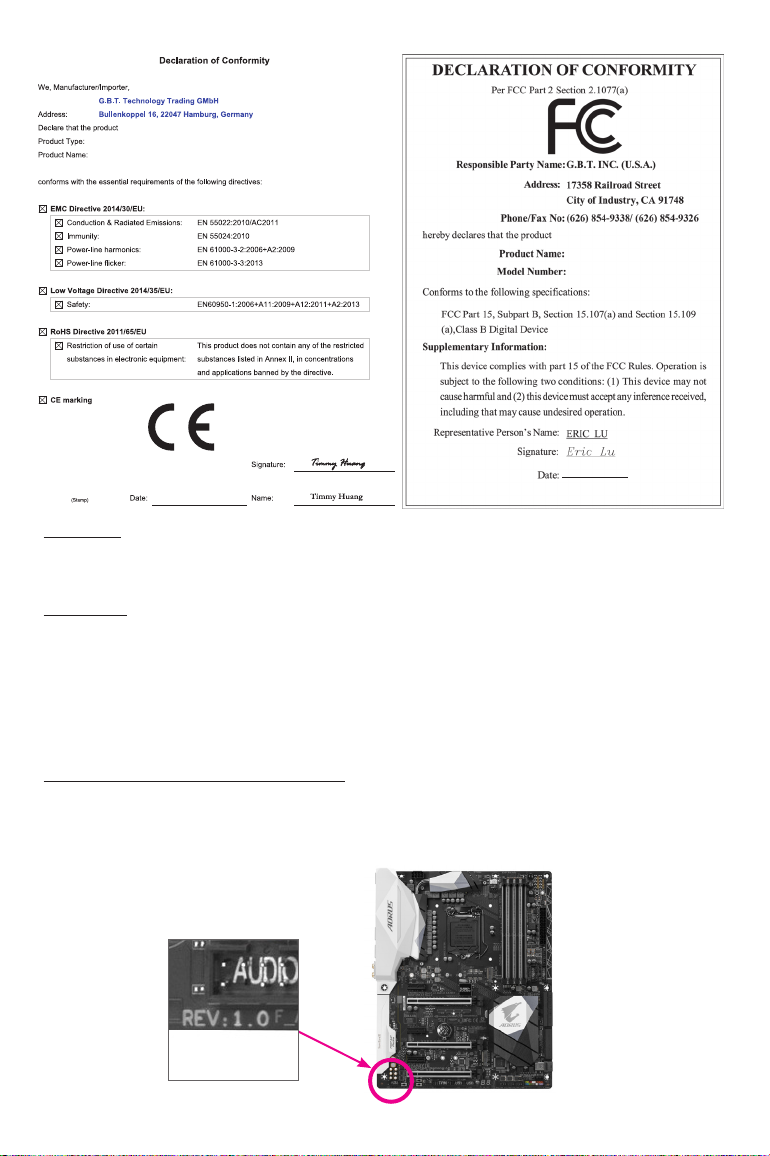

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Motherboard

GA-B250M-Gaming 3

Feb. 28, 2017

Motherboard

GA-B250M-Gaming 3

- 3 -

Table of Contents

GA-B250M-Gaming 3 Motherboard Layout.....................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................19

2-1 Startup Screen ............................................................................................... 19

2-2 M.I.T. .............................................................................................................. 20

2-3 System ........................................................................................................... 26

2-4 BIOS............................................................................................................... 27

2-5 Peripherals..................................................................................................... 30

2-6 Chipset........................................................................................................... 32

2-7 Power............................................................................................................. 33

2-8 Save & Exit..................................................................................................... 35

Chapter 3 Appendix ......................................................................................................36

3-1 Enabling Intel®Optane™Technology.............................................................. 36

3-2 Drivers Installation.......................................................................................... 37

Regulatory Statements.............................................................................................. 38

Contact Us ................................................................................................................ 40

- 4 -

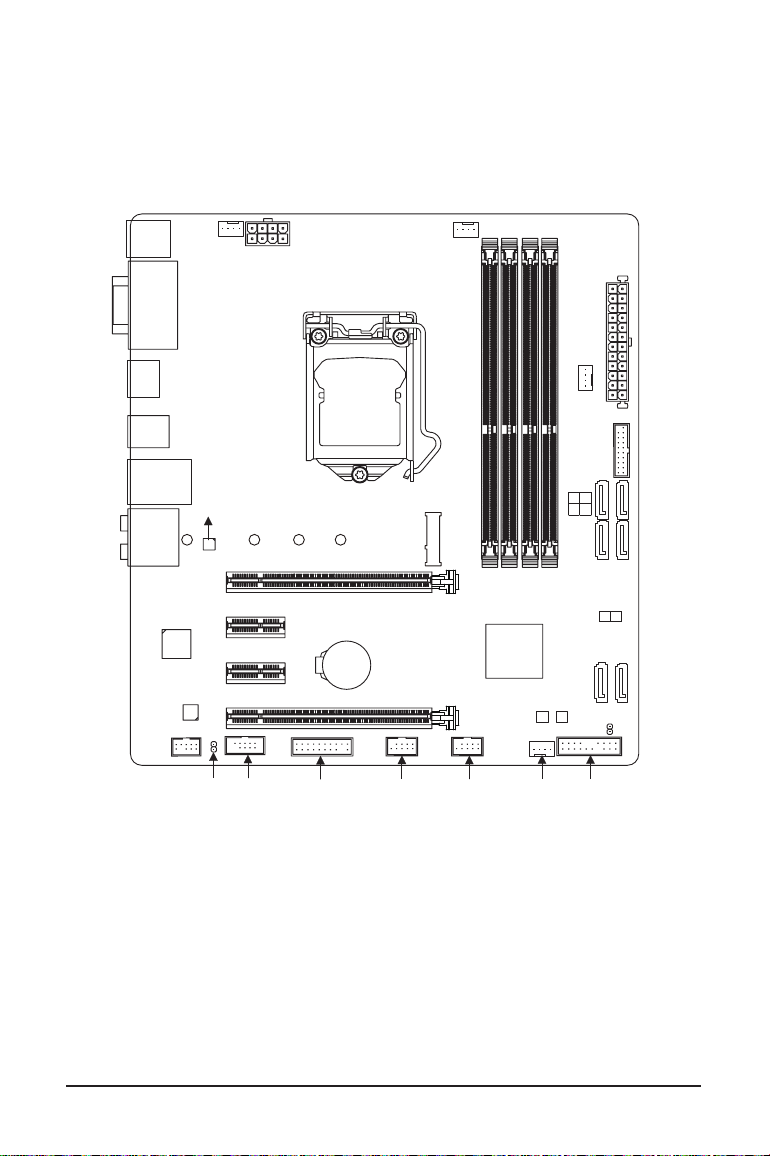

GA-B250M-Gaming 3 Motherboard Layout

Box Contents

5GA-B250M-Gaming 3 motherboard 5Two SATA cables

5Motherboard driver disk 5I/O Shield

5User's Manual

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

KB_MS_USB CPU_FAN

SYS_FAN1

SYS_FAN2

SYS_FAN3

LGA1151

ATX

GA-B250M-Gaming 3

F_AUDIO

AUDIO

BAT

ATX_12V_2X4

Intel®B250

CODEC

CLR_CMOS

B_BIOS

DVI

R_USB30

PCIEX16

PCIEX1_1

PCIEX4

iTE®

Super I/O

Intel®

GbE LAN

F_USB1F_USB2 F_PANEL

SATA3 3 1

2 0

VGA

M_BIOS

SPDIF_O COM TPM

F_USB30

DDR4_2

DDR4_4

DDR4_3

DDR4_1

HDMI

M2Q_32G

80 60 42110

PCIEX1_2

USB30_LAN

SATA3 5

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU Support for 7th and 6th Generation Intel®Core™i7 processors/

Intel®Core™i5 processors/Intel®Core™i3 processors/

Intel®Pentium®processors/Intel®Celeron®processors in the LGA1151 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B250 Express Chipset

Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Dual channel memory architecture

Support for DDR4 2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

* To support 2400 MHz or XMP memory, you must install a 7th generation processor.

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz

* Support for HDMI 1.4 version.

Support for up to 3 displays at the same time

Maximum shared memory of 1 GB

Audio Realtek®ALC892 codec

HighDenitionAudio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN Intel®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slots, running at x4 (PCIEX4)

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Multi-Graphics

Technology 

Support for AMD Quad-GPU CrossFireX™and 2-Way AMD CrossFire™technologies

- 6 -

Storage Interface Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and

PCIe x4/x2 SSD support)

- 6 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA

connectors.

USB Chipset:

- 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through

the internal USB headers)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

6 x SATA 6Gb/s connectors

1 x CPU fan header

3 x system fan headers

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header

1 x serial port header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

4 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker

Out, Line In, Line Out, Mic In)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

- 7 -

BIOS 2x64Mbitash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- 3D OSD

- @BIOS

- Ambient LED

- AutoGreen

- BIOS Setup

- Color Temperature

- Cloud Station

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- Platform Power Management

- Smart Backup

- Smart Keyboard

- Smart TimeLock

- System Information Viewer

- USB Blocker

- V-Tuner

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

Intel®Optane™Memory Ready

cFosSpeed

Operating

System

Support for Windows 10 64-bit (for 7th Generation Intel®processors)

Support for Windows 10 64-bit/Windows 8.1 64-bit/Windows 7 32-bit/64-bit (for

6th Generation Intel®processors)

* Please download the "Windows USB Installation Tool" from GIGABYTE's website

and install it before installing Windows 7.

Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 8 -

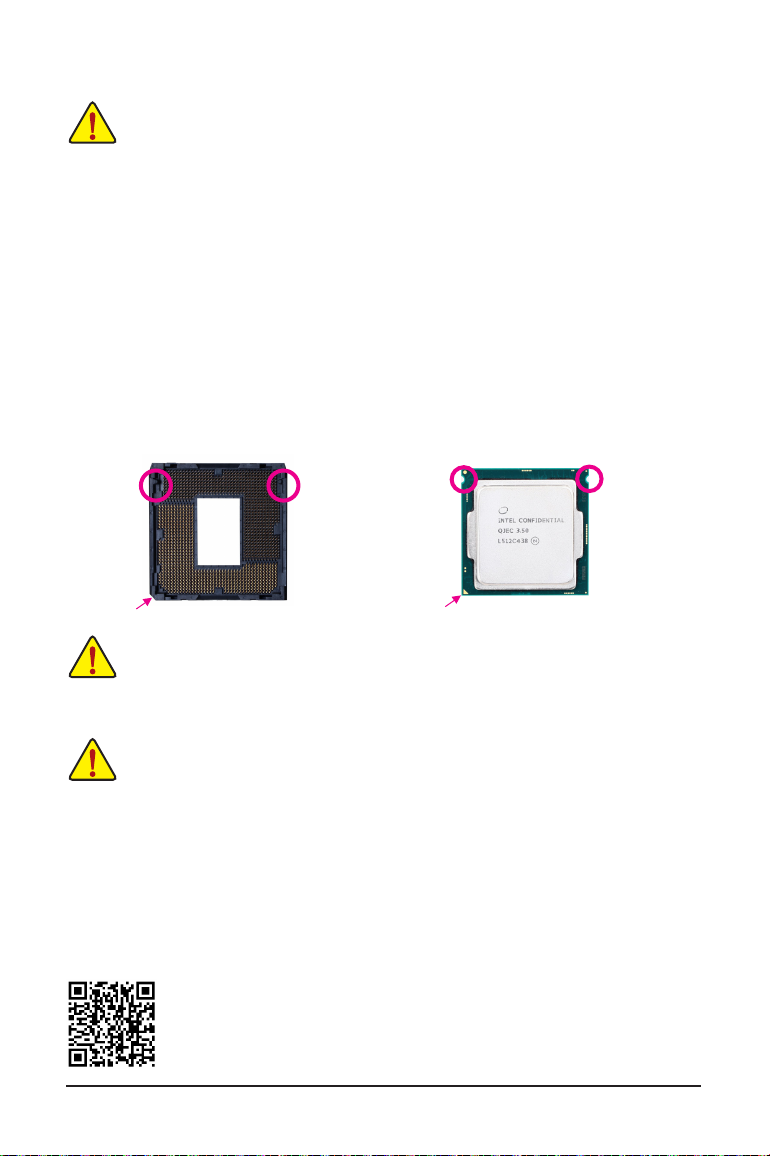

1-3 Installing the CPU

Please visit GIGABYTE's website for details on hardware installation.

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Alignment KeyAlignment Key

LGA1151 CPU Socket

Pin One Corner of the CPU Socket

DualChannelMemoryConguration

This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

LGA1151 CPU

Triangle Pin One Marking on the CPU

Notch

- 9 -

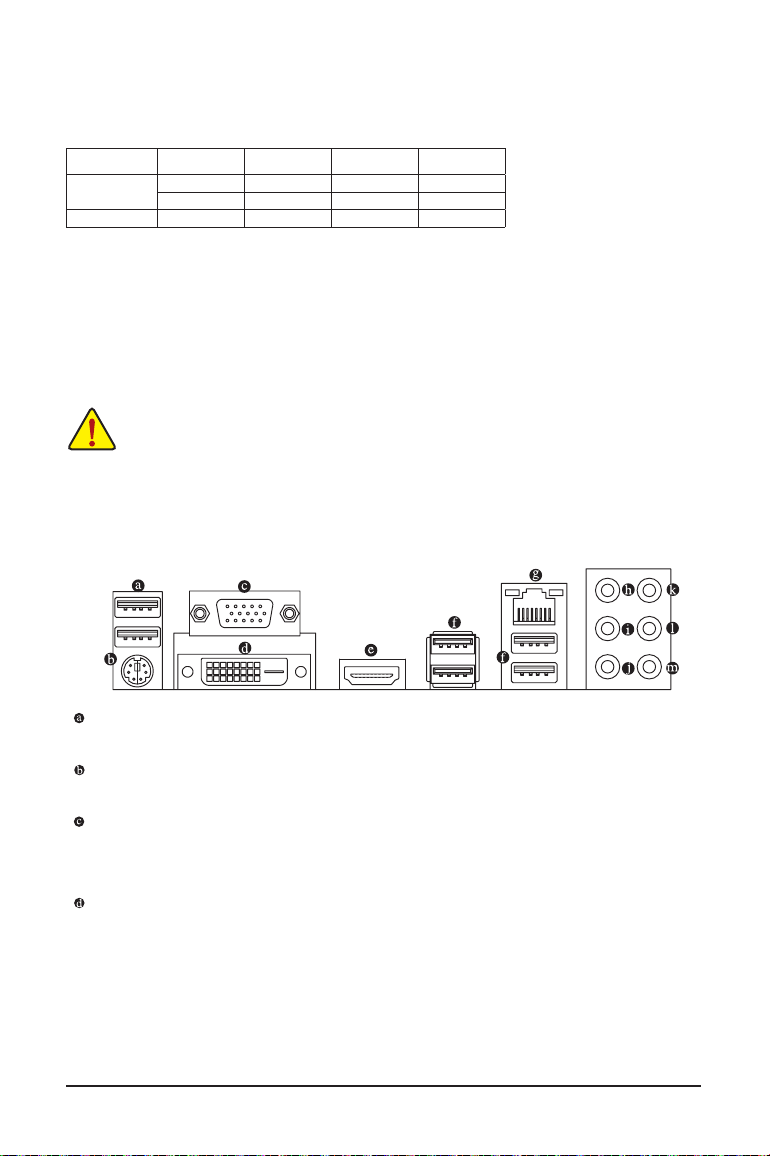

1-6 Back Panel Connectors

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports D-Sub

connection to this port.

DVI-D Port (Note)

TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports DVI-D

connection to this port.

(Note) The DVI-D port does not support D-Sub connection by adapter.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory

of the same capacity, brand, speed, and chips be used.

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

Channel A: DDR4_2, DDR4_4

Channel B: DDR4_1, DDR4_3

DualChannelMemoryCongurationsTable:

DDR4_4 DDR4_2 DDR4_3 DDR4_1

2 Modules - - DS/SS - - DS/SS

DS/SS - - DS/SS - -

4 Modules DS/SS DS/SS DS/SS DS/SS

(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

- 10 -

Otros manuales para GA-B250M-Gaming 3

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte MATMH81 Manual de usuario

Gigabyte

Gigabyte GA-A75M-DS2 Manual de usuario

Gigabyte

Gigabyte GA-C7V7-RH Manual de usuario

Gigabyte

Gigabyte 6BXE Manual de operación y mantenimiento

Gigabyte

Gigabyte Z370 AORUS Gaming 7 Manual de usuario

Gigabyte

Gigabyte GA-G31M-S2L Manual de usuario

Gigabyte

Gigabyte GA-X150-PRO ECC Manual de usuario

Gigabyte

Gigabyte Z390 AORUS ULTRA Manual de usuario

Gigabyte

Gigabyte H470M S2 Manual de usuario

Gigabyte

Gigabyte GA-MA770-DS3 Manual

Gigabyte

Gigabyte GA-H67M-D2-B3 Manual de usuario

Gigabyte

Gigabyte B650 AORUS ELITE AX Manual de usuario

Gigabyte

Gigabyte GA-EG45M-DS2H Manual de usuario

Gigabyte

Gigabyte GA-MA790X-UD3P Manual de usuario

Gigabyte

Gigabyte GA-8I865PEM-775 Manual de usuario

Gigabyte

Gigabyte P4 Titan GA-8S650GXM-P-C Manual de usuario

Gigabyte

Gigabyte GA-P67A-UD7 Manual de usuario

Gigabyte

Gigabyte GA-P61A-D3 Manual de usuario

Gigabyte

Gigabyte GA-945GME-DS2 Manual de usuario

Gigabyte

Gigabyte GA-SBC7100 Manual de usuario

Gigabyte

Gigabyte GA-8S655FX-L Manual de usuario

Gigabyte

Gigabyte GA-H81M-WW Manual de usuario

Gigabyte

Gigabyte GA-X99-SOC Force Manual de usuario

Gigabyte

Gigabyte GA-F2A88XM-D3HP Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
