Gigabyte GA-965GM-DS2 Manual de usuario

GA-965GM-DS2 /

GA-965GM-S2

Intel®CoreTM 2 Extreme quad-core / CoreTM 2 Quad /

Intel®CoreTM 2 Extreme dual-core / CoreTM 2 Duo /

Intel®Pentium®Processor Extreme Edition /

Intel®Pentium®D / Pentium®4 LGA775 Processor Motherboard

User's Manual

Rev. 2031

12ME-965GMDR-2031R

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste

and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

Motherboard

GA-965GM-DS2 /

GA-965GM-S2

Motherboard

GA-965GM-DS2 / GA-965GM-S2

Oct. 1, 2006

The trademarks mentioned in the manual are legally registered to their respective companies.

Notice

The written content provided with this product is the property of Gigabyte.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without Gigabyte's prior written permission. Specifications and features are subject to

change without prior notice.

Product Manual Classification

In order to assist in the use of this product, Gigabyte has categorized the user manual in the

following:

For detailed product information and specifications, please carefully read the

"Product User Manual".

For detailed information related to Gigabyte's unique features, please go to the

"Technology Guide" section on Gigabyte's website to read or download the information

you need.

For more product details, please visit Gigabyte's website at www.gigabyte.com.tw

- 4 -

Table of Contents

ItemChecklist ................................................................................................................. 6

OptionalAccessories ...................................................................................................... 6

GA-965GM-DS2 / GA-965GM-S2 Motherboard Layout ................................................. 7

Block Diagram ................................................................................................................ 8

Chapter 1 Hardware Installation .................................................................................... 9

1-1 Considerations Prior to Installation .................................................................... 9

1-2 Feature Summary .......................................................................................... 10

1-3 Installation of the CPU and CPU Cooler ....................................................... 12

1-3-1 Installation of the CPU ......................................................................................... 12

1-3-2 Installation of the CPU Cooler ............................................................................ 13

1-4 Installation of Memory .................................................................................... 14

1-5 Installation of Expansion Cards ...................................................................... 16

1-6 I/O Back Panel Introduction ........................................................................... 17

1-7 Connectors Introduction .................................................................................. 18

Chapter 2 BIOS Setup................................................................................................ 29

The Main Menu (For example: GA-965GM-DS2 BIOS Ver.: F1) ............................. 30

2-1 Standard CMOS Features ............................................................................. 32

2-2 Advanced BIOS Features .............................................................................. 34

2-3 IntegratedPeripherals ..................................................................................... 36

2-4 Power Management Setup ............................................................................. 39

2-5 PnP/PCI Configurations ................................................................................. 40

2-6 PC Health Status ........................................................................................... 41

2-7 Frequency/Voltage Control ............................................................................. 43

2-8 Load Fail-Safe Defaults ................................................................................... 44

2-9 Load Optimized Defaults ................................................................................. 44

2-10 Set Supervisor/User Password ..................................................................... 45

2-11 Save & Exit Setup ......................................................................................... 46

2-12 Exit Without Saving ....................................................................................... 46

- 5 -

Chapter 3 Install Drivers ............................................................................................. 47

3-1 Install Chipset Drivers .................................................................................... 47

3-2 SoftwareApplications ..................................................................................... 48

3-3 Driver CD Information .................................................................................... 48

3-4 Hardware Information ..................................................................................... 49

3-5 Contact Us ..................................................................................................... 49

Chapter 4 Appendix ................................................................................................... 51

4-1 Unique Software Utilities ................................................................................ 51

4-1-1 EasyTune 5 Introduction ..................................................................................... 51

4-1-2 Xpress Recovery2 Introduction ......................................................................... 52

4-1-3 Flash BIOS Method Introduction ........................................................................ 54

4-1-4 Configuring SATA Hard Drive(s) (Controller: GIGABYTE SATA2) ................ 63

4-1-5 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 76

4-2 Troubleshooting ............................................................................................... 81

- 6 -

Item Checklist

IDE Cable x 1, FDD Cable x 1

SATA 3Gb/s Cable x 2

I/O Shield

* The items listed above are for reference only, and are subject to change without notice.

Optional Accessories

2 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-51/R)

4 Ports USB 2.0 Cable (Part Number: 12CR1-1UB030-21/R)

COM Port Cable (Part Number: 12CF1-1CM001-31/12CF1-1CM001-12R)

SPDIF In and Out Cable (Part Number: 12CR1-1SPINO-11/R)

e-SATA Cable (Part Number: 12CF1-3SATPW-01R/11R)

- 7 -

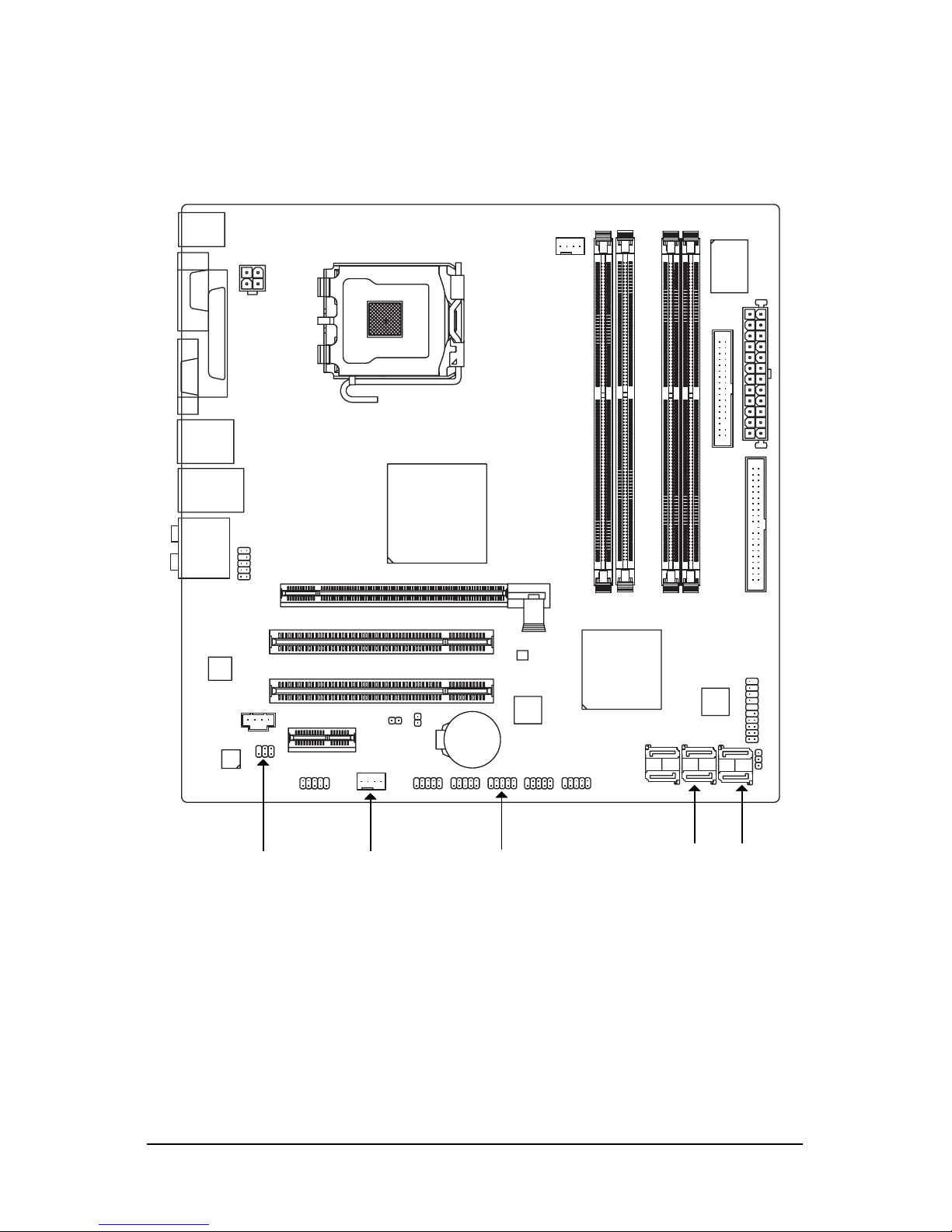

GA-965GM-DS2 / GA-965GM-S2 Motherboard Layout

KB_MS

COMA

LPT

CPU_FAN

ATX_12V LGA775

GA-965GM-DS2 / GA-965GM-S2

ATX

USB_1394

IT8718

SPDIF_IO

FDD

PWR_LED

F_USB2

F_PANEL

F_USB1

CODEC

CD_IN

SATAII0

SATAII1

IDE

BIOS

SYS _FAN

PCI2

BATTERY

SATAII3

SATAII2

PCIE_1 CI

PCI1

Intel®G965

USB_LAN

Intel®ICH8

PCIE_16

F_AUDIO

DDRII1

CLR_CMOS

AUDIO

DDRII2

Marvell

88E8056

DDRII3

DDRII4

VGA

GIGABYTE

SATA2

GSATAII0

GSATAII1

F_USB3

F2_1394

F1_1394

COMB

- 8 -

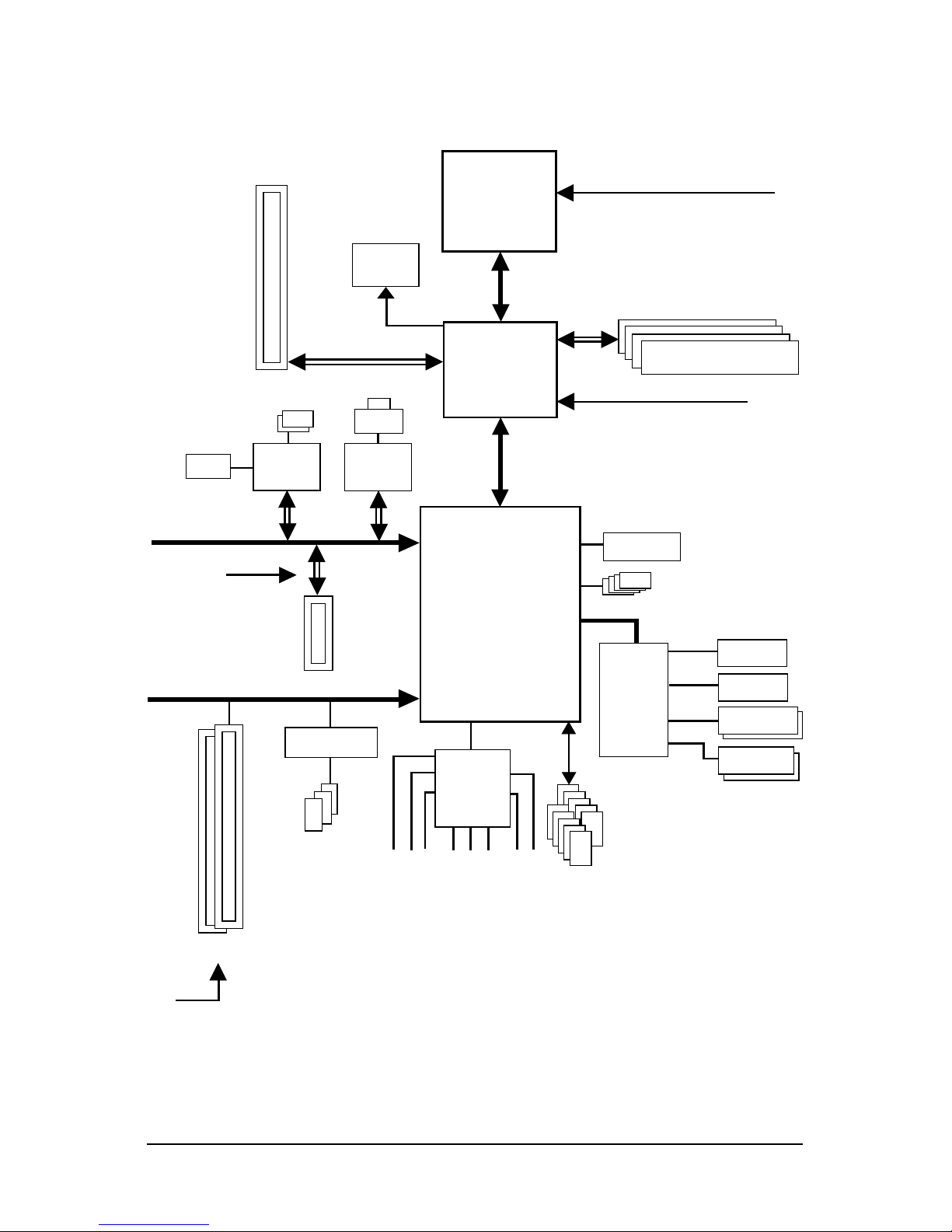

Block Diagram

(Note) To use a DDR II 800/667 memory module on the motherboard, you must install an 1066/

800 MHz FSB processor.

Center/Subwoofer Speaker Out

Line-Out

MIC

CPU CLK+/-(266/200/133 MHz)

PCI Express x16

Host Interface

GMCH CLK (266/200/133 MHz)

DDRII 800/667/533 MHz DIMM(Note)

IT8718

BIOS

Line-In

2 PCI

PCI Bus

SPDIF In

SPDIF Out

1 PCI Express x1

PCI Express Bus

10 USB

Ports

Dual Channel Memory

Floppy

PS/2 KB/Mouse

Side Speaker Out

Surround Speaker Out

PCIe CLK

(100 MHz)

4 SATA 3Gb/s

Marvell

88E8056

LAN

RJ45

PCI CLK(33 MHz)

CODEC

PCIe CLK

(100 MHz)

Intel®

G965

Intel®

ICH8

LGA775

Processor

GIGABYTE

SATA2

ATA-33/66/100/133

IDE Channel

2 SATA 3Gb/s

COM Ports

LPT

VGA

3 IEEE 1394a

TSB43AB23

Hardware Installation- 9 -

English

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please

follow the instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components

(CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic

pad or within a electrostatic shielding container.

5. Please verify that the power supply is switched off before unplugging the power supply connector

from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers

are required for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the

information in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with

the motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard

or within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Chapter 1Hardware Installation

GA-965GM-(D)S2 Motherboard - 10 -

English

1-2 Feature Summary

CPU LGA775 for Intel®CoreTM 2 Extreme quad-core / CoreTM 2 Extreme dual-core /

CoreTM 2 Quad / CoreTM 2 Duo / Pentium®processor Extreme Edition /

Pentium®D / Pentium®4 / Celeron®D

L2 cache varies with CPU

Front Side Bus Supports 1066/800/533 MHz FSB

Chipset Northbridge: Intel®G965 Express Chipset

Southbridge: Intel®ICH8

LAN Onboard Marvell 88E8056 phy (10/100/1000 Mbit)

Audio Onboard Realtek ALC888 CODEC chip

Supports High Definition Audio

Supports 2 / 4 / 6 / 8 channel audio

Supports SPDIF In/Out connection

Supports CD In connection

Storage ICH8 Southbrigde

- 1 FDD connector, allowing connection of 1 FDD device

- 4 SATA 3Gb/s connectors (SATAII0,1, 2, 3), allowing connection of 4

SATA 3Gb/s devices

Onboard GIGABYTE SATA2 chip

- 1 IDE connector (ATA-33/66/100/133), allowing connection of 2 IDE

devices

- 2 SATA 3Gb/s connectors (GSATAII0,1), allowing connection of 2 SATA

3Gb/s devices

- Supports data striping (RAID 0), mirroring (RAID 1), and JBOD for Serial

ATA

O.S Support Microsoft Windows 2000/XP

Memory 4 DDRII DIMM memory slots (supports up to 8 GB memory)

Supports dual channel DDRII 800/667/533 unbuffered DIMMs(Note 1)

Supports 1.8V DDRII DIMMs

Expanstion Slots 1 PCI Express x16 slot

1 PCI Express x1 slot

2 PCI slots

Internal Connectors 1 24-pin ATX power connector

1 4-pin ATX 12V power connector

1 floppy connector

1 IDE connector

6 SATA 3Gb/s connectors

1 CPU fan connector

1 system fan connector

1 front panel connector

1 front audio connector

1 CD In connector

1 power LED connector

"*" Only the GA-965GM-DS2 adopts All-Solid Capacitor design.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-X99-UD4P Manual de usuario

Gigabyte

Gigabyte GA-B75-D3V Manual de usuario

Gigabyte

Gigabyte B760M GAMING AC DDR4 Manual de usuario

Gigabyte

Gigabyte MZ71-CE0 Manual de usuario

Gigabyte

Gigabyte GA-6VX7 Manual de usuario

Gigabyte

Gigabyte B365M D3V Manual de usuario

Gigabyte

Gigabyte H310M HD2 2.0 Manual de usuario

Gigabyte

Gigabyte 6BMM Manual de usuario

Gigabyte

Gigabyte GA-P55-UD3 Manual de usuario

Gigabyte

Gigabyte Z490 VISION G Manual de usuario

Gigabyte

Gigabyte GA-6WMMC7 Manual de usuario

Gigabyte

Gigabyte GA-F2A85XN-WIFI Manual de usuario

Gigabyte

Gigabyte GA-586UX Manual de usuario

Gigabyte

Gigabyte GA-8PENXP Manual de usuario

Gigabyte

Gigabyte B550M AORUS PRO AX Manual de usuario

Gigabyte

Gigabyte GA-Q87M-D2H Manual de usuario

Gigabyte

Gigabyte GA-Z87X-UD7 TH Manual de usuario

Gigabyte

Gigabyte Z790 AORUS Elite AX Manual de usuario

Gigabyte

Gigabyte GA-Q77M-D2H Manual de usuario

Gigabyte

Gigabyte GA-EP43T-S3L Manual de usuario

Gigabyte

Gigabyte GA-IMB370TN Manual de usuario

Gigabyte

Gigabyte GA-7VKML Manual de usuario

Gigabyte

Gigabyte GA-8I915P-MF Manual de usuario

Gigabyte

Gigabyte A520M DS3H AC Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
