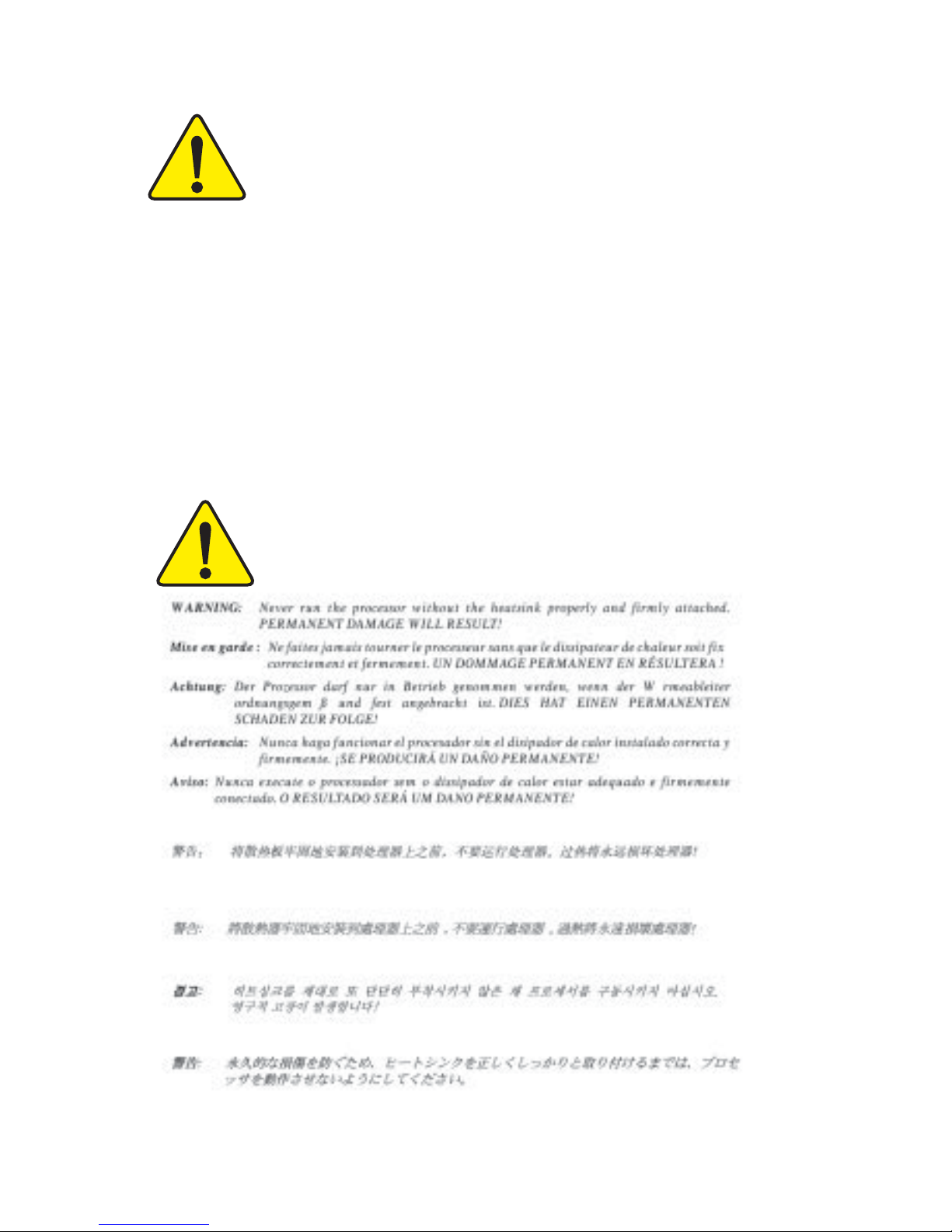

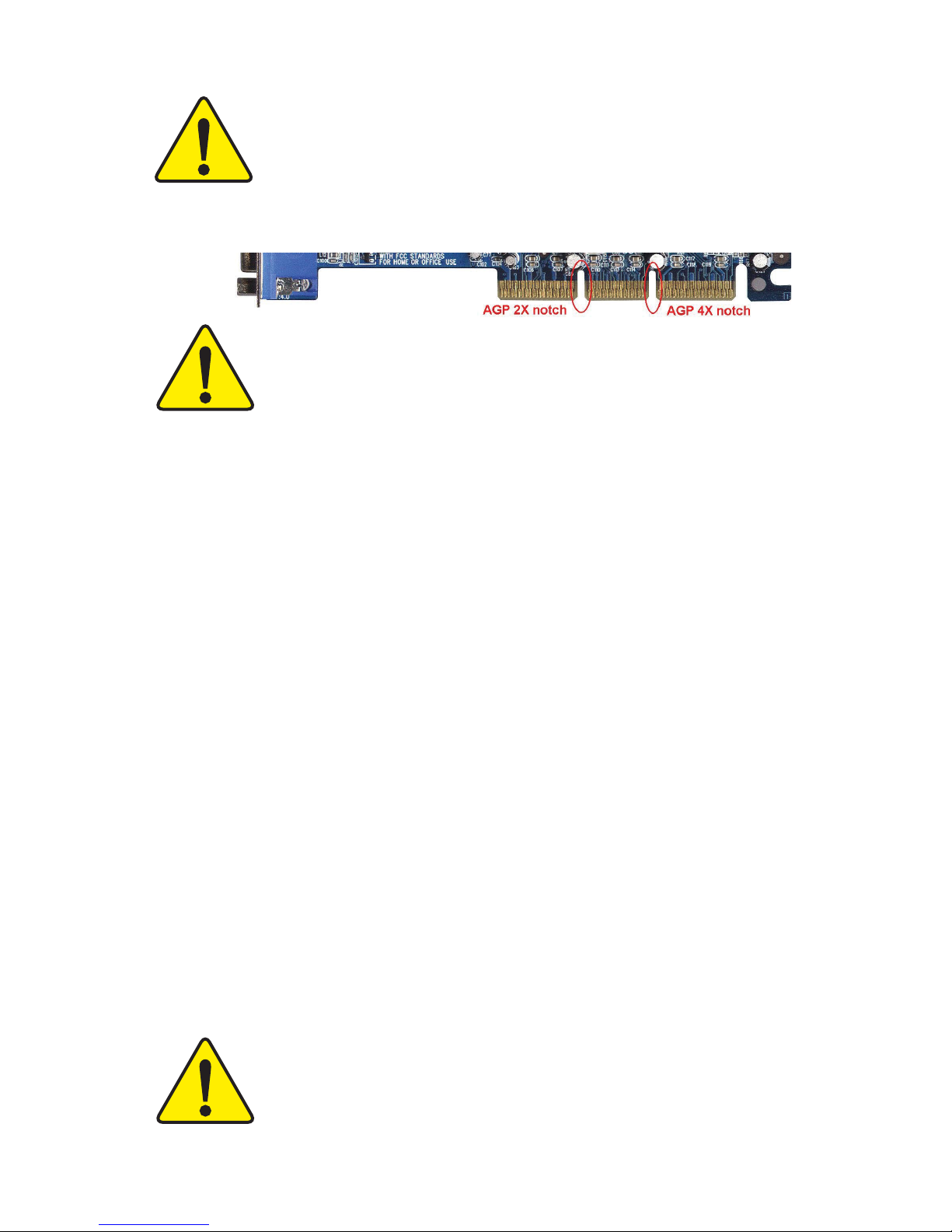

When you installing A G P card, please make sure the following

notice is fully understood and practiced. If your A G P card has

"AGP 4X(1.5V) notch"(show below), please make sure your AG P

cardis AGP 4X(1.5V).

Caution: A G P 2X(3.3V) card is not supported by Intel ®845(GE/PE) /

845(E/G) / 850(E). You might experience system unable to boot up

normally. Please insert an AGP 4X(1.5V) card

Example 1: Diamond Vipper V770 golden finger is compatible with

2X/4X mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X

(1.5V) mode by adjusting the jumper. The factory default for this card is

2X(3.3V).

The GA-8PE667 Ultra2 / GA-8PE667 Pro(or any AGP 4X only)

motherboards might not function properly, if you install this card without

switching the jumper to 4X(1.5) mode in it.

Example 2: Some ATi Rage 128 Pro graphics cards made by

"Power Color", the graphics card manufacturer & some SiS 305 cards,

their golden finger is compatible with 2X(3.3V)/4X(1.5V) mode AGP slot,

but they support 2X(3.3V) only. The GA-8PE667 Ultra2 / GA-8PE667 Pro

(or any AGP 4X only) motherboards might not function properly, If you

install this card in it.

Note : Although Gigabyte's AG32S(G) graphics card is based on

ATi Rage 128 Pro chip, the design of AG32S(G) is compliance

with AGP 4X(1.5V) specification. Therefore, AG32S (G)will work

fine with Intel®845(GE/PE) /845(E/G) / 850(E) based motherboards.

Before you install PCI cards, please remove the Dual BIOS

label from PCI slots if there is one.

0The author assumes no responsibility for any errors or omissions

that may appear in this document nor does the author make a

commitment to update the information contained herein.

0Third-party brands and names are the property of theirrespective

owners.

0Please do not remove any labels on motherboard, thismay void the

warranty of this motherboard.

0Due to rapid change in technology, some of the specifications might

be out of date before publication of this booklet.

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-8PE667 Ultra2 / GA-8PE667 Pro

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive



EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment



EN 61000-3-2*

7EN 60555-2

Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Harmonics”



EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment



EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Voltage fluctuations”



EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

7EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

7EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry



EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment



EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment



EN 55082-2

7EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus



ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)



EN50091-2



EN 55020



DIN VDE 0855



part 10



part 12

(EC conformity marking)

7CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use



EN 60950



EN 60065

Safety of household and similar

electrical appliances



EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : Nov. 12, 2002

7EN 60555-3

Timmy Huang



EN 50091-1

Timmy Huang

Safety for information technology equipment

including electrical bussiness equipment

General and Safety requirments for

uninterruptible power systems (UPS)

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109

(a),Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible PartName:

Address:

Phone/Fax No:

hereby declares that the product

Product Name:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

Supplementary Information:

Model Number:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Motherboard

GA-8PE667 Ultra2 / GA-8PE667 Pro

Date:

ERIC LU

Nov. 12,2002

USER'S MANUAL

GA-8PE667 Ultra2 / Pro

P4 Titan 667 Motherboard

Pentium®4 Processor Motherboard

Rev. 1201

12ME-8PE667U2-1201

- 2 -GA-8PE667 Ultra2 / Pro Motherboard

English

Table of Content

Item Checklist ..........................................................................................4

WARNING! ..............................................................................................4

Chapter 1 Introduction .............................................................................5

Features Summary ....................................................................................... 5

GA-PE667 Ultra 2 / Pro Motherboard Layout ............................................... 8

Block Diagramt ................................................................................... 9

Chapter 2 Hardware Installation Process .............................................. 11

Step 1: Install the Central Processing Unit (CPU) ...................................... 12

Step 1-1 : CPU Installation .............................................................................. 12

Step 1-2 : CPU Heat Sink Installation .............................................................. 13

Step 2: Install memory modules ................................................................. 14

Step 3: Install expansion cards .................................................................. 16

Step 4: Connect ribbon cables, cabinet wires, and power supply .............. 17

Step 4-1 : I/O Back Panel Introduction ............................................................ 17

Step 4-2 : Connectors & Jumper Setting Introduction ...................................... 19

Chapter 3 BIOS Setup ..........................................................................35

The Main Menu (For example: BIOS Ver. :F1) ........................................... 36

Standard CMOS Features .......................................................................... 38

Advanced BIOS Features ........................................................................... 41

Integrated Peripherals ................................................................................ 43

Table of Content

English

- 3 -

Power Management Setup ......................................................................... 49

PnP/PCI Configurations ............................................................................. 52

PC Health Status ........................................................................................ 53

Frequency/Voltage Control ......................................................................... 55

Top Performance ........................................................................................ 57

Select Language ........................................................................................ 58

Load Fail-Safe Defaults .............................................................................. 59

Load Optimized Defaults ............................................................................ 60

Set Supervisor/User Password .................................................................. 61

Save & Exit Setup ...................................................................................... 62

Exit Without Saving ................................................................................... 63

Chapter 4 Technical Reference .............................................................65

@ BIOS Introduction .................................................................................. 65

Easy Tune 4TM Introduction......................................................................... 66

Face-Wizard Utilities Installation ................................................................ 67

BIOS Flash PRocedure .............................................................................. 68

2-/4-/6-Channel Audio Function Introduction .............................................. 88

Chapter 5 Appendix ...............................................................................95

- 4 -GA-8PE667 Ultra2 / Pro Motherboard

English

The GA-8PE667 Ultra2 /Pro motherboard IDE cable x1 / Floppy cable x 1 *

CD for motherboard driver & utility IDE cable x3 / Floppy cable x 1 **

GA-8PE667 Ultra2 /Pro user's manual 4 Port USB Cable x 1

Quick PC Installation Guide SATA cable x2 **

RAID Manual ** Audio combo kit x1 **

SATA RAID Manual ** SPDIF Kit x1(SPD-KIT) *

Motherboard Settings Label I/O Shield

GC-SATA Card (Optional) **

(Manual ; SATA cable x1 ; Power cable x 1)

Item Checklist

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect

them against damage from static electricity, you should follow some precautions whenever you work on

your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

other components.

4. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

ower connector on the motherboard.

If the motherboard has mounting holes, but they don’t line up with the holes on the base and there

are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the

mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so

be careful of your hands). In this way you can still attach the motherboard to the base without worrying

about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the

motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the

screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may

damage the board or cause board malfunctioning.

Installing the motherboard to the chassis…

* For GA-8PE667 Pro Only ** For GA-8PE667 Ultra2 Only

Introduction- 5 -

English

Form Factor 30.5cm x 24.4cm ATX size form factor, 4 layers PCB.

Motherboard GA-8PE667 Series Motherboard:

GA-8PE667 Ultra2 and GA-8PE667 Pro

CPU Socket 478 for Intel®Micro FC-PGA2 Pentium®4 processor

Intel Pentium®4 533MHz/400MHz FSB

Support Intel ®Pentium ®4 (Northwood, 0.13 m) processor

 Support Intel ®Pentium ®4 Processor with HT Technology

2nd cache depend on CPU

Chipset Chipset 845PE HOST/AGP/Controller

ICH4 I/O Controller Hub

Memory 3 184-pin DDR DIMM sockets

Supports DDR333/DDR266 DDR DIMM

Supports up to 2GB DRAM (Max)

Supports only 2.5V DDR DIMM

I/O Control ITE8712

Slots 1 CNR(Communication and Networking Riser) Slot **

1 AGP slot 4X (1.5V only) device support

6 PCI slot supports 33MHz & PCI 2.2 compliant

On-Board IDE 2 IDE controllers on the Intel ICH4 PCI chipset

provides IDE HDD/CD-ROM (IDE1, IDE2) with PIO, Bus Master

(Ultra DMA33/ATA66/ATA100) operation modes.

IDE3 and IDE4 Compatible with RAID,Ultra ATA133/100.**

On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes.

1 Parallel port supports Normal/EPP/ECP mode

2 Serial ports (COMA & COMB)

6 USB 2.0/1.1 (2 port rear,4 ports by cable)

1 IrDA connector for IR/CIR

1 Front Audio connector

Chapter 1 Introduction

to be continued......

Features Summary



Due to (Intel 845PE/GE/GV) chipset architecture limitation, DDR 333 memory module is

only supported when using FSB 533 Pentium 4 processor. A FSB 400 Pentium 4 processor

will only support DDR 266 memory module

* For GA-8PE667 Pro Only ** For GA-8PE667 Ultra2 Only

- 6 -GA-8PE667 Ultra2 / Pro Motherboard

English

Hardware Monitor CPU/Power/System Fan Revolution detect

CPU/Power/System Fan Control

CPU Overheat Warning

System Voltage Detect

On-Board Sound Realtek ALC650 CODEC

Line Out / 2 front speaker

Line In / 2 rear speaker(by s/w switch)

Mic In / center& subwoofer(by s/w switch)

SPDIF out / SPDIF In

CD In / AUX In / Game port

On-Board RAID ** Onboard Promise PDC20276

Supports data striping (RAID 0) or mirroring (RAID 1)

Supports concurrent dual ATA133 IDE controller operation

Support ATAPI mode for CD ROM, DVD ROM ..etc.

Supports IDE bus master operation

Support ATA133/RAID mode switch by BIOS

Mirroring supports automatic background rebuilds

Features LBA and Extended Interrupt 13 drive translation in

controller onboard BIOS

On-Board SATA RAID ** Onboard Silicon Image Sil3112A

Supports Disk striping (RAID0) or DISK Mirroring (RAID1)

Supports UDMA up to 150 MB/sec

AIL UDMA and PIO Modes

Up to 2 SATA Device

ACPI and ATA/ATAPI6

On-Board LAN Intel Kenai-32 LAN PHY **

Data transfer rate 10/100/1000 supported

Intel Kinnereth-R LAN PHY *

Data transfer rate 10/100 supported

On-Board SCR IT8712 I/O Chipset (Smart Card Reader)

On-Board USB 2.0 Built in ICH4 Chipset

to be continued......

* For GA-8PE667 Pro Only ** For GA-8PE667 Ultra2 Only

Otros manuales para GA-8PE667 Pro

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte Z790 D AX Manual de usuario

Gigabyte

Gigabyte GA-N3050N-D3H Manual de usuario

Gigabyte

Gigabyte GA-M720-ES3 Manual de usuario

Gigabyte

Gigabyte GA-A320M-S2H Manual de usuario

Gigabyte

Gigabyte GA-6OXE Manual de usuario

Gigabyte

Gigabyte GA-M68M-S2P Manual de usuario

Gigabyte

Gigabyte GA-B150M-D3V DDR3 Manual de usuario

Gigabyte

Gigabyte Z790 EAGLE AX Manual de usuario

Gigabyte

Gigabyte GA-EP43-DS3L Manual de usuario

Gigabyte

Gigabyte P4 Titan GA-8S650GXM-P-C Manual de usuario

Gigabyte

Gigabyte GA-7PXSL Manual de usuario

Gigabyte

Gigabyte GA-Z97X-UD3H Manual de usuario

Gigabyte

Gigabyte GA-6CXB7 Manual de usuario

Gigabyte

Gigabyte GA-6VXD7 Manual de usuario

Gigabyte

Gigabyte GA-F2A88X-HD3 Manual de usuario

Gigabyte

Gigabyte GA-Z97P-D3 Manual de usuario

Gigabyte

Gigabyte H410M S2H V3 Manual de usuario

Gigabyte

Gigabyte AMD785G Manual de usuario

Gigabyte

Gigabyte GA-GC330UD Manual de usuario

Gigabyte

Gigabyte GA-8ST Series Manual de usuario

Gigabyte

Gigabyte Z790M AORUS ELITE Manual de usuario

Gigabyte

Gigabyte GA-8SRX Manual de usuario

Gigabyte

Gigabyte GA-Z77-HD4 Manual de usuario

Gigabyte

Gigabyte GA-E2100N Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
