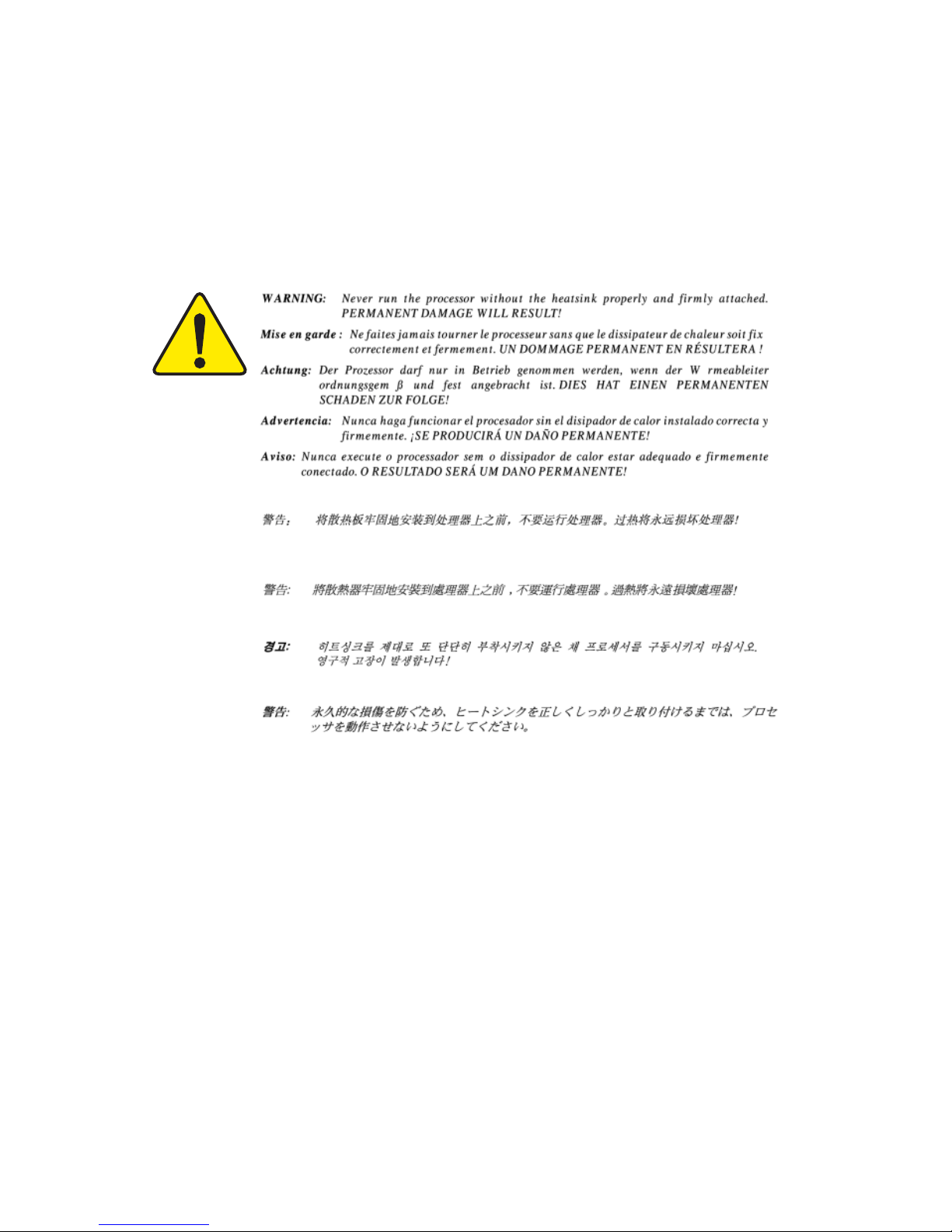

MThe author assumes no responsibility for

any errors or omissions that may appear in

this document nor does the author make a

commitment to update the information

contained herein.

MThird-party brands and names are the

property of their respective owners.

MPlease do not remove any labels on

motherboard, this may void the warranty of

this motherboard.

MDue to rapid change in technology, some of

the specifications might be out of date

before publication of this booklet.

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-8LS533

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive

!EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment

!EN 61000-3-2*

!EN 60555-2 Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Harmonics”

!EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment

!EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Voltage fluctuations”

!EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

!EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

!EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry

!EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment

!EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment

!EN 55082-2

!EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus

!ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)

!EN50091-2

!EN 55020

!DIN VDE 0855

!part 10

!part 12

(EC conformity marking)

!CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use

!EN 60950

!EN 60065

Safety of household and similar

electrical appliances

!EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : Nov. 29, 2002

!EN 60555-3

Timmy Huang

!EN 50091-1

Safety for information technology equipment

including electrical bussiness equipment

General and Safety requirements for

uninterruptible power systems (UPS)

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109

(a),Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:

Address:

Phone/Fax No:

hereby declares that the product

Product Name:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

causeharmfuland(2)thisdevicemustacceptanyinferencereceived,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric LuEric Lu

Eric LuEric Lu

Eric Lu

Supplementary Information:

Model Number:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Motherboard

GA-8LS533

Date:

ERIC LU

Nov. 29, 2002

USER'S MANUAL

GA-8LS533 Series

P4 Titan-SDRAM Motherboard

Pentium®4 Processor Motherboard

Rev. 1001

12ME-8LS533-1001

- 2 -GA-8LS533 Series Motherboard

English

Table of Content

Item Checklist .........................................................................................4

WARNING!...............................................................................................4

Chapter 1 Introduction............................................................................5

Features Summary...................................................................................... 5

GA-8LS533 Motherboard Layout ................................................................7

GA-8LS533-C Motherboard Layout ............................................................8

Chapter 2 Hardware Installation Process...............................................9

Step 1: Install the Central Processing Unit (CPU).....................................10

Step 1-1: CPU Installation..............................................................................................10

Step 1-2: CPU Heat Sink Installation ............................................................................ 11

Step 2: Install memory modules................................................................12

Step 3: Install expansion cards .................................................................13

Step 4: Connect ribbon cables, cabinet wires and power supply ............14

Step 4-1: I/O Back Panel Introduction...........................................................................14

Step 4-2: Connectors Introduction.................................................................................16

Chapter 3 BIOS Setup .........................................................................27

The Main Menu (For example: BIOS Ver. : F1)........................................28

Standard CMOS Features.........................................................................30

Advanced BIOS Features ..........................................................................33

Integrated Peripherals ..............................................................................35

Power Management Setup .......................................................................39

PnP/PCI Configurations.............................................................................42

Table of Content

English

- 3 -

PC Health Status........................................................................................43

Frequency/Voltage Control........................................................................44

Top Performance ......................................................................................46

Load Fail-Safe Defaults.............................................................................47

Load Optimized Defaults...........................................................................48

Set Supervisor/User Password..................................................................49

Save & Exit Setup.......................................................................................50

Exit Without Saving ....................................................................................51

Chapter 4 Technical Reference ...........................................................53

Block Diagram...........................................................................................53

@BIOS™Introduction.................................................................................54

EasyTune™4 Introduction .........................................................................55

Flash BIOS Method Introduction...............................................................56

Chapter 5 Appendix.............................................................................73

- 4 -GA-8LS533 Series Motherboard

English

Item Checklist

TheGA-8LS533Seriesmotherboard

IDE cable x 1 / Floppy cable x 1

CDformotherboarddriver&utility

GA-8LS533Seriesuser'smanual

I/O Shield*

QuickPCInstallationGuide

RAIDManual

2 Port USB Cable x 1

4 Port USB Cable x 1

SPDIF KIT x 1 (SPD-KIT)

IEEE 1394 Cable x1

Center/SubwooferCablex1(SURROUND-KIT)

MotherboardSettingsLabel

Computermotherboards and expansion cardscontainvery delicate Integrated Circuit(IC) chips.To

protectthemagainstdamagefromstaticelectricity,youshouldfollowsomeprecautionswheneveryou

workon yourcomputer.

1. Unplugyourcomputerwhenworkingontheinside.

2. Useagroundedwriststrapbeforehandlingcomputercomponents.Ifyoudonothaveone,touch

bothofyourhandstoasafelygroundedobjectortoametalobject,suchasthepowersupply

case.

3. Holdcomponents bytheedgesandtrynottouchtheIC chips, leads or connectors, orother

components.

4. Placecomponentsonagroundedantistaticpadoronthebagthatcamewiththecomponents

wheneverthecomponentsareseparatedfromthesystem.

5. EnsurethattheATXpowersupplyisswitchedoffbeforeyoupluginorremovetheATXpower

connectoronthemotherboard.

Ifthemotherboardhasmountingholes,buttheydon'tlineupwiththeholesonthebaseandthere

are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the

mountingholes.Justcutthebottomportionofthespacers(thespacermaybealittlehardtocutoff,so

becarefulofyourhands).Inthiswayyoucanstillattachthemotherboardtothebasewithoutworrying

aboutshortcircuits.Sometimesyoumayneedtousetheplasticspringstoisolatethescrewfromthe

motherboardPCBsurface,becausethecircuitwiremaybenearbythehole.Becareful,don'tletthe

screwcontactanyprintedcircuitwriteor parts on the PCB that are near the fixing hole, otherwiseit

maydamagetheboardorcauseboardmalfunctioning.

Installing the motherboard to the chassis…

WARNING!

* Only for GA-8LS533.

Introduction

English

- 5 -

FormFactor —19.5cm x 24.3cm MicroATX size form factor, 4 layers PCB

Motherboard —GA-8SLS533SeriesMotherboard:

GA-8LS533orGA-8LS533-C

CPU —Socket478 forIntel®MicroFC-PGA2Pentium®4processor

—SupportsIntel®Pentium®4(Northwood,0.13 m)processor

—Intel Pentium®4 400MHz FSB

—2ndcachedependsonCPU

Chipset —Intel®Chipset82845GLHOST/AGP/Controller

—Intel®ICH4 I/O Controller Hub

Memory —2 168-pin SDRAM DIMM sockets

—Supports PC-133 SDRAM

—Supports only 3.3V SDRAM DIMM

—Supports up to 1.0GB SDRAM (Max)

I/O Control —ITE8702F

Slots —3 PCI slot supports 33MHz & PCI 2.2 compliant

On-BoardIDE —2 IDE controller on the Intel ICH4 PCI chipset provides

IDE HDD/CD-ROM with PIO, Bus Master (Ultra DMA33/ATA66/

ATA100)operationmodes

—CanconnectuptofourIDEdevices

On-BoardPeripherals —1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M

and2.88Mbytes

—1Parallel port supports Normal/EPP/ECPmode

—1 Serial port (COMA), 1 VGA port, COMB on Board

—6 x USB 2.0/1.1 (2 x Rear, 4 x Front by cable)

—1FrontAudioconnector

On-Board VGA —BuiltinIntel845GLChipset

Chapter 1 Introduction

tobecontinued......

Features Summary

- 6 -GA-8LS533 Series Motherboard

English

Pleasesetthe CPUhostfrequencyinaccordancewith your processor'sspecifications.

We don't recommend you to set the system bus frequency over the CPU's specification

becausethesespecificbusfrequenciesarenotthestandardspecificationsforCPU,chipset

and most of the peripherals. Whether your system can run under these specific bus

frequenciesproperlywilldependonyourhardwareconfigurations,includingCPU,Chipsets,

SDRAM, Cards…etc.

On-Board Sound —ALC101codec

—1 Buzzer

—Line In / Line Out / Mic In / CD In /AUX In / Game Port

On-Board LAN* —BuilitinRTL8101LChipset*

—1RJ45port*

PS/2Connector —PS/2Keyboardinterfaceand PS/2Mouseinterace

BIOS —LicensedAWARD BIOS, 2M bit FWH

AdditionalFeatures —PS/2 Keyboard password power on

—PS/2 Mouse power on

—STR(Suspend-To-RAM)

—AC Recovery

—Supports @BIOS™

—SupportsEasyTune™4

* Only for GA-8LS533.

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-A75-D3H Manual de usuario

Gigabyte

Gigabyte GA-X99-SOC Force Manual de usuario

Gigabyte

Gigabyte GA-945P-DS3 Manual de usuario

Gigabyte

Gigabyte GA-Z77-D3H Manual de usuario

Gigabyte

Gigabyte GA-790XTA-UD4 Manual de usuario

Gigabyte

Gigabyte GA-AX370-Gaming K7 Manual de usuario

Gigabyte

Gigabyte B660M GAMING AC DDR4 Manual de usuario

Gigabyte

Gigabyte GA-8IP900MK Manual de usuario

Gigabyte

Gigabyte MSH87DI-SI Manual de usuario

Gigabyte

Gigabyte GA-6RX Manual de usuario

Gigabyte

Gigabyte GA-Q67M-D2H-B3 Manual de usuario

Gigabyte

Gigabyte GA-7VR Manual de usuario

Gigabyte

Gigabyte B550 AORUS PRO AC Manual de usuario

Gigabyte

Gigabyte GA-7PESH3 Manual de usuario

Gigabyte

Gigabyte GA-Z77X-UD3H Manual de usuario

Gigabyte

Gigabyte GA-EP43T-UD3L Manual de usuario

Gigabyte

Gigabyte GA-MA78GPM-UD2H Manual de usuario

Gigabyte

Gigabyte Z370 AORUS Gaming 7 Manual de usuario

Gigabyte

Gigabyte R281-2O0 Manual de usuario

Gigabyte

Gigabyte GA-9ILDTH Manual de usuario

Gigabyte

Gigabyte GA-MA790FX-DQ6 Manual de usuario

Gigabyte

Gigabyte B660M GAMING AC DDR4 Manual de usuario

Gigabyte

Gigabyte GA-H97TN Manual de usuario

Gigabyte

Gigabyte X399 AORUS Gaming 7 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
