Gigabyte GA-A75-D3H Manual de usuario
GA-A75-D3H
User's Manual
Rev. 1002
12ME-A75D3H-1002R
Motherboard
GA-A75-D3H
Jun. 13, 2011
Jun. 13, 2011
Motherboard
GA-A75-D3H
Copyright
©2011 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE with-
out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com

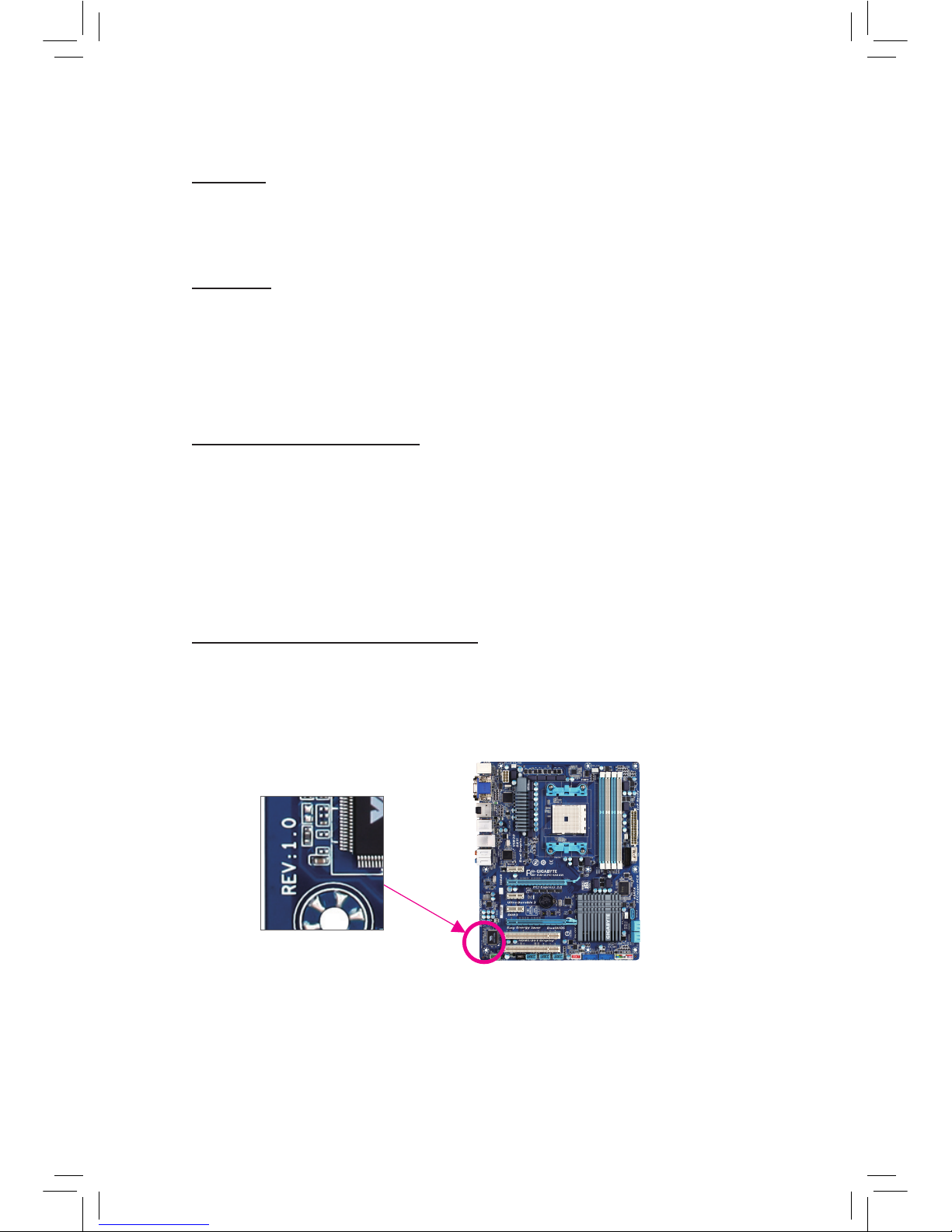

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-A75-D3H Motherboard Layout ..................................................................................7
GA-A75-D3H Motherboard Block Diagram......................................................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 Product Specications.................................................................................... 10
1-3 Installing the APU and APU Cooler................................................................ 13
1-3-1 Installing the APU ...................................................................................................13
1-3-2 Installing the APU Cooler........................................................................................15
1-4 Installing the Memory..................................................................................... 16
1-4-1 Dual Channel Memory Conguration .....................................................................16
1-4-2 Installing a Memory ...............................................................................................17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Setup of the AMD Dual Graphics Conguration............................................. 19
1-7 Back Panel Connectors.................................................................................. 20
1-8 Internal Connectors........................................................................................ 23
Chapter 2 BIOS Setup ..................................................................................................31
2-1 Startup Screen ............................................................................................... 32
2-2 The Main Menu .............................................................................................. 33
2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 35
2-4 Standard CMOS Features.............................................................................. 40
2-5 Advanced BIOS Features .............................................................................. 42
2-6 Integrated Peripherals.................................................................................... 44
2-7 Power Management Setup............................................................................. 47
2-8 PC Health Status............................................................................................ 49
2-9 Load Fail-Safe Defaults.................................................................................. 51
2-10 Load Optimized Defaults................................................................................ 51
2-11 Set Supervisor/User Password ...................................................................... 52
2-12 Save & Exit Setup .......................................................................................... 53
2-13 Exit Without Saving........................................................................................ 53
- 5 -
Chapter 3 Drivers Installation........................................................................................55
3-1 Installing Chipset Drivers ............................................................................... 55
3-2 Application Software ...................................................................................... 56
3-3 Technical Manuals.......................................................................................... 56
3-4 Contact........................................................................................................... 57
3-5 System ........................................................................................................... 57
3-6 Download Center ........................................................................................... 58
3-7 New Utilities ................................................................................................... 58
Chapter 4 Unique Features...........................................................................................59
4-1 Xpress Recovery2.......................................................................................... 59
4-2 BIOS Update Utilities ..................................................................................... 62
4-2-1 Updating the BIOS with the Q-Flash Utility.............................................................62
4-2-2 Updating the BIOS with the @BIOS Utility .............................................................65
4-3 EasyTune 6 .................................................................................................... 66
4-4 Q-Share.......................................................................................................... 67
4-5 SMART Recovery........................................................................................... 68
4-6 Auto Green..................................................................................................... 69
Chapter 5 Appendix ......................................................................................................71
5-1 Conguring SATA Hard Drive(s) .................................................................... 71
5-1-1 Conguring SATA Controllers ................................................................................71
5-1-2 Installing the SATA RAID/AHCI Driver and Operating System ...............................77
5-2 Conguring Audio Input and Output............................................................... 81
5-2-1 Conguring 2/4/5.1/7.1-Channel Audio...................................................................81
5-2-2 Conguring S/PDIF Out..........................................................................................83
5-2-3 Enabling the Dolby Home Theater Function...........................................................84
5-2-4 Conguring Microphone Recording........................................................................85
5-2-5 Using the Sound Recorder .....................................................................................87
5-3 Troubleshooting.............................................................................................. 88
5-3-1 Frequently Asked Questions ..................................................................................88
5-3-2 Troubleshooting Procedure ....................................................................................89
5-3-3 Regulatory Statements...........................................................................................91
- 6 -
Box Contents
GA-A75-D3H motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
Four SATA cables
I/O Shield
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
COM port cable (Part No. 12CF1-1CM001-3*R)
3.5" Front Panel with 2 USB 3.0/2.0 ports (Part No. 12CR1-FPX582-0*R)
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
- 7 -

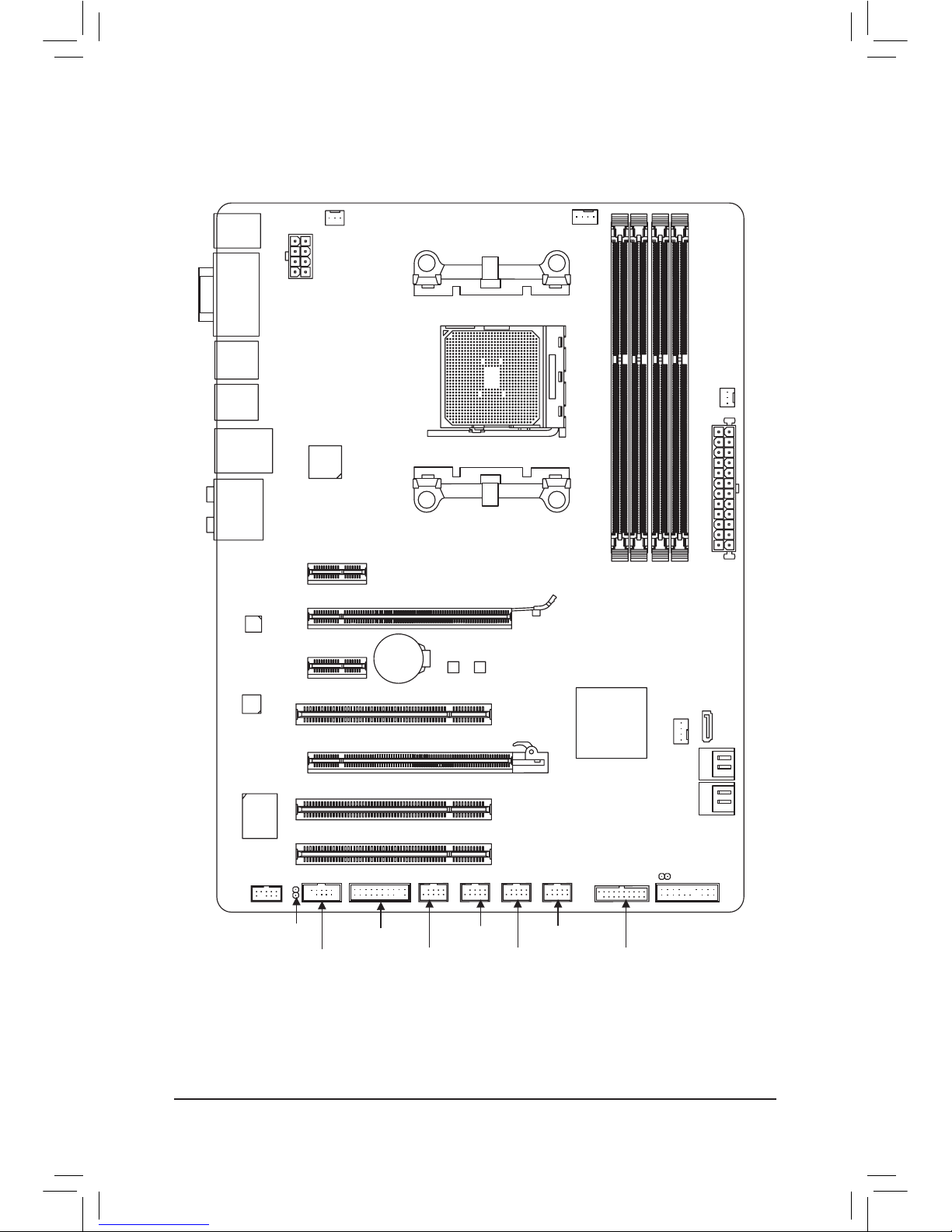

GA-A75-D3H Motherboard Layout
KB_MS_USB3
CPU_FAN
Socket FM1
ATX
GA-A75-D3H
AUDIO
PCIEX16
DDR3_4
DDR3_2
BAT
F_PANEL
COM
ATX_12V
AMD A75
PCIEX4
USB_ESATA
CODEC
PCI2
Realtek
RTL8111E
VGA_DVI
HDMI_SPDIF
USB30_LAN
PCIEX1_1
M_BIOS
B_BIOS
CLR_CMOS
SATA3_4
SATA3_0
SATA3_3
DDR3_3
DDR3_1
SPDIF_O
F_USB4
F_USB1
iTE
IT8720
SATA3_2
SYS_FAN2
F_AUDIO
SATA3_1
TPM
Etron
EJ168
PCI3
PCIEX1_2
F_USB3
F_USB2 F_USB30
SYS_FAN
PWR_FAN
PCI1
- 8 -

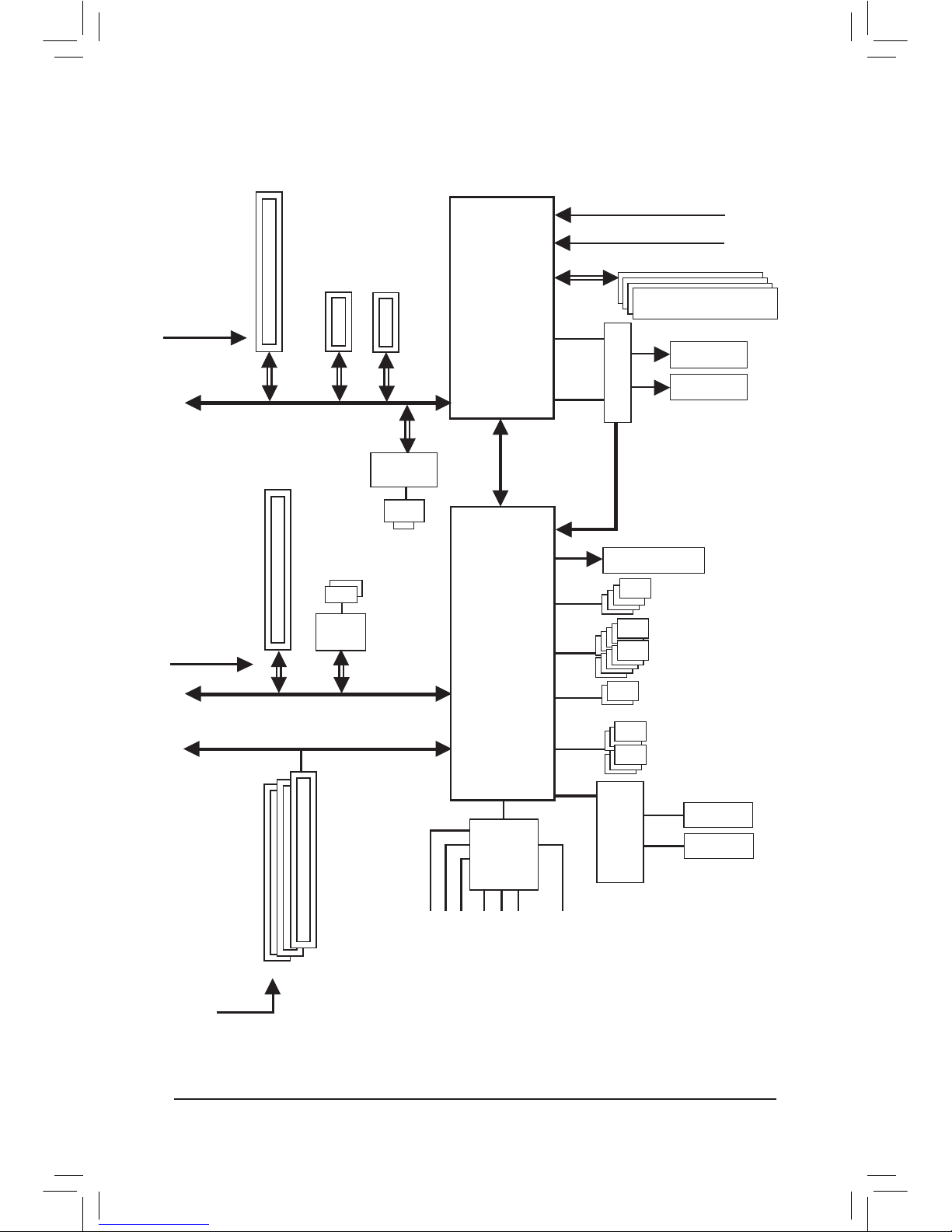

GA-A75-D3H Motherboard Block Diagram
2 USB 3.0/2.0
Etron
EJ168
AMD APU
UMI
APU CLK+/- (100 MHz)
DDR3 2400(O.C.)/1866/1600/1333/1066 MHz
Dual Channel Memory
PCI Express Bus
PCIe CLK
(100 MHz)
1 PCI Express x16
1 PCI Express x4
x4
iTE
IT8720
COM Port
LPC
Bus
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
3 PCI
PCI Bus
PCI CLK
(33 MHz)
Dual BIOS
PCIe CLK
(100 MHz)
PCI Express Bus
PS/2 KB/Mouse
4 USB 3.0/2.0
D-Sub
LAN
RJ45
x1
Realtek
RTL8111E
x1
2 PCI Express x1
x16
10 USB 2.0/1.1
x1
x1
DVI-D
HDMI
Switch
6 SATA 6Gb/s
AMD A75
DISP CLK+/- (100 MHz)
- 9 - Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, APU or memory. If you do not have an ESD wrist strap,
keep your hands dry and rst touch a metal object to eliminate static electricity.
•
Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power sup-
ply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hard-
ware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to sys-
tem components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
Chapter 1 Hardware Installation
Hardware Installation - 10 -
1-2 Product Specications
APU FM1 Socket:
- AMD A series processors/AMD E2 series processors
(Go to GIGABYTE's website for the latest APU support list.)
Chipset AMD A75
Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 2400(O.C.)/1866/1600/1333/1066 MHz memory modules
* The 1866 MHz (or above) memory speed is supported only when one or two DDR3
1866 MHz (or above) DIMMs are installed. It is not supported when four DIMMs
are installed. (Dual channel memory mode must be enabled when installing two
DIMMs.)
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Onboard
Graphics
APU:
- 1 x D-Sub port
- 1 x DVI-D port, supporting a maximum resolution of 2560x1600
* The DVI-D port does not support D-Sub connection by adapter.
*
The resolution of 2560x1600 is supported only when Dual Link DVI mode is enabled.
- 1 x HDMI port, supporting a maximum resolution of 1920x1200
(All integrated graphics ports do not support Hot plug. If you want to change to
another graphics port when the computer is on, be sure to turn off the computer
rst.)
Audio Realtek ALC889 codec
High Denition Audio
2/4/5.1/7.1-channel
Support for Dolby®Home Theater
Support for S/PDIF Out
LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed,
be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All PCI Express slots conform to the PCI Express 2.0 standard.)
3 x PCI slots
Multi-Graphics
Technology
Support for AMD CrossFireX™technology
* The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX™is enabled.
Support for AMD Dual Graphics technology
* Only A series APUs support AMD Dual Graphics.
Otros manuales para GA-A75-D3H
1
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Otros manuales de Placa madre de Gigabyte
Gigabyte
Gigabyte GA-6PXSV3 Manual de usuario
Gigabyte
Gigabyte GA-A320M-HD2 Manual de usuario
Gigabyte
Gigabyte B360M HD3 Manual de usuario
Gigabyte
Gigabyte Z490 UD AC Manual de usuario
Gigabyte
Gigabyte GA-7VEML Manual de usuario
Gigabyte
Gigabyte GA-8I915P Dual Graphic Manual de usuario
Gigabyte
Gigabyte GA-M68MT-S2 Manual de usuario
Gigabyte
Gigabyte GA-B75M-D3P Manual de usuario
Gigabyte
Gigabyte R281-Z91 Manual de usuario
Gigabyte
Gigabyte GA-8N-SLI Royal Manual de usuario
Gigabyte
Gigabyte GA-EP45C-UD3 Manual de usuario
Gigabyte
Gigabyte GA-8I945PL-G Manual de usuario
Gigabyte
Gigabyte GA-F2A55M-HD2 Manual de usuario
Gigabyte
Gigabyte 6ZOZ Manual de usuario
Gigabyte
Gigabyte GA-6JIEV-RH Manual de usuario
Gigabyte
Gigabyte 6EX Manual de usuario
Gigabyte
Gigabyte B360 HD3 Manual de usuario
Gigabyte
Gigabyte M5NM1I Manual de usuario
Gigabyte
Gigabyte 6OXET Series Manual de usuario
Gigabyte
Gigabyte GA-X99-UD4P Manual de usuario
Manuales populares de Placa madre de otras marcas
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manual de usuario
Texas Instruments
Texas Instruments ADS8372EVM Manual de usuario
Commell
Commell MS-C73 Manual de usuario
IBT Technologies
IBT Technologies MB860 Manual de usuario
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manual de usuario
Biostar
Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación
