Gigabyte GA-8I848P Manual de usuario

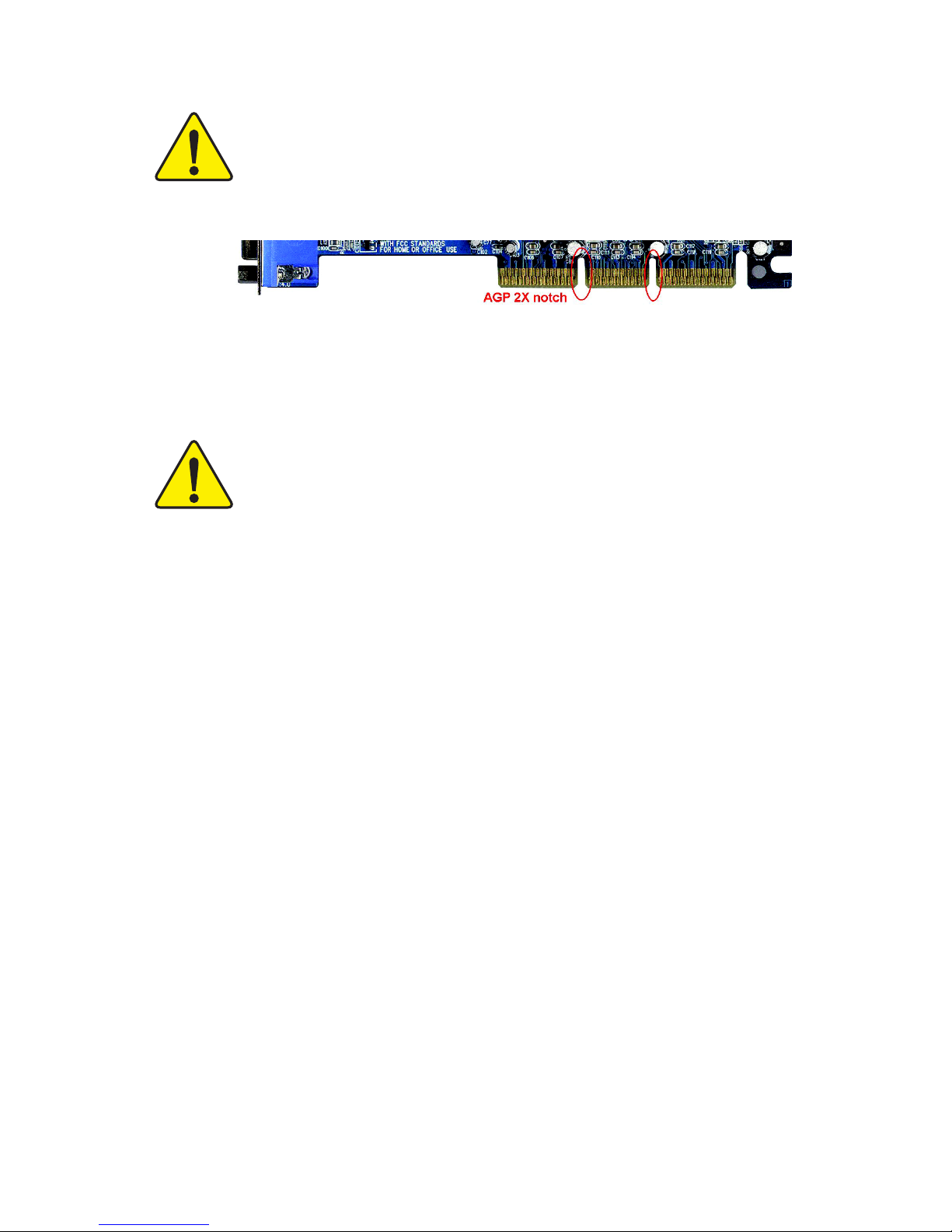

When you installing AGP card, please make sure the following

notice is fully understood and practiced. If your AGP card has

"AGP 4X/8X (1.5V) notch"(show below), please make sure your

AGP card is AGP 4X/8X (1.5V).

Caution: AGP 2X card is not supported by Intel®845(GE/PE) / 845(E/

G) / 850(E) / E7205 / 865(G/PE/PL/P) / 875P / 848P. You might

experience system unable to boot up normally. Please insert an AGP

4X/8X card.

Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X

mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X(1.5V)

mode by adjusting the jumper. The factory default for this card is

2X(3.3V). The GA-8I848P(-G) (or any AGP 4X/8X only) motherboards

might not function properly, if you install this card without switching the

jumper to 4X(1.5V) mode in it.

Example 2: Some ATi Rage 128 Pro graphics cards made by "Power Color",

the graphics card manufacturer & some SiS 305 cards, their golden finger

is compatible with 2X(3.3V)/4X(1.5V) mode AGP slot, but they support 2X

(3.3V) only. The GA-8I848P(-G) (or any AGP 4X/8X only) motherboards

might not function properly, If you install this card in it.

Note: Although Gigabyte's AG32S(G) graphics card is based on ATi Rage

128 Pro chip, the design of AG32S(G) is compliance with AGP 4X(1.5V)

specification. Therefore, AG32S(G) will work fine with Intel®845(GE/PE) /

845(E/G) / 850(E) / E7205 / 865(G/PE/PL/P) / 875P / 848P based

motherboards.

AGP 4X/8X notch

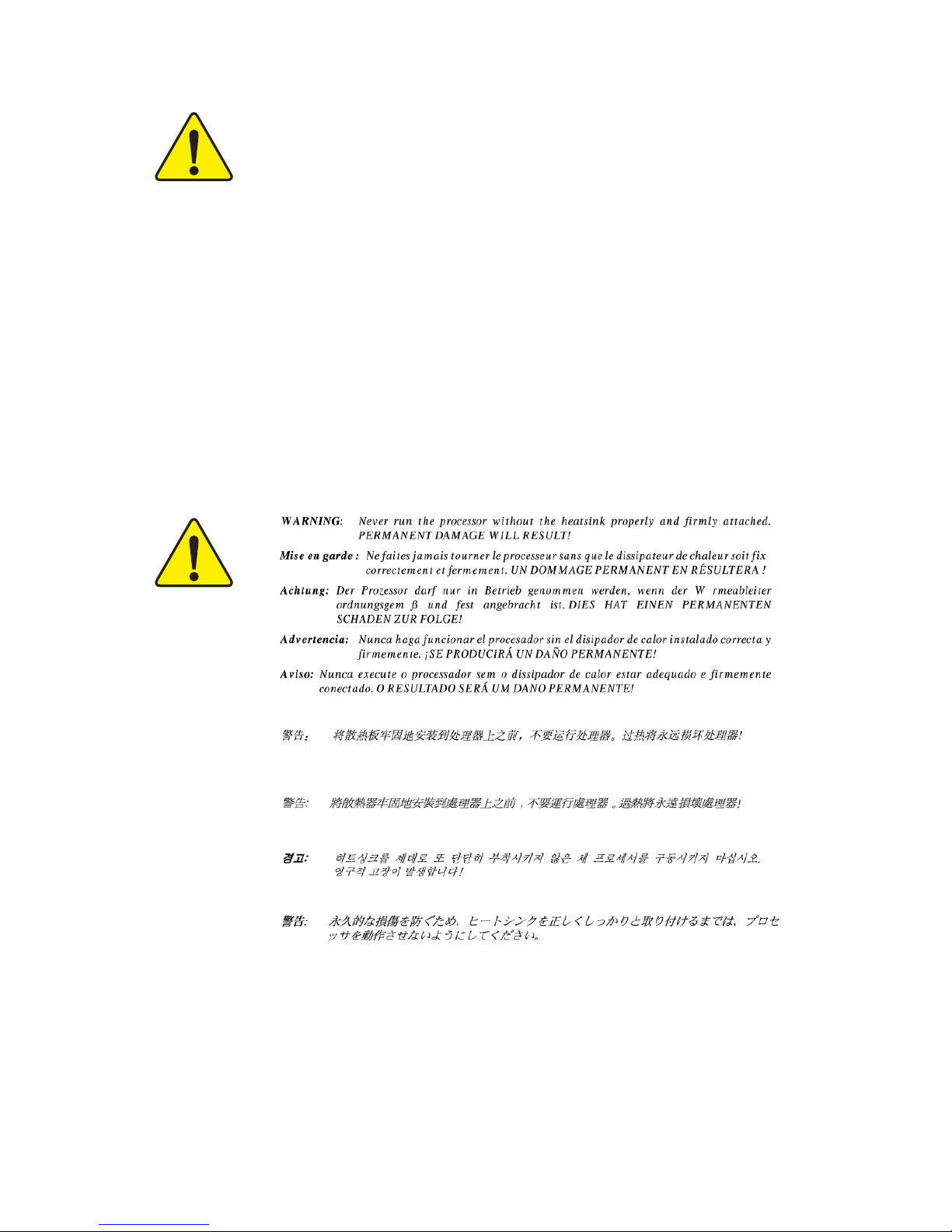

0The author assumes no responsibility for any errors

or omissions that may appear in this document nor

does the author make a commitment to update the

information contained herein.

0Third-party brands and names are the property of

their respective owners.

0Please do not remove any labels on motherboard, this

may void the warranty of this motherboard.

0Due to rapid change in technology, some of the

specifications might be out of date before publication

of this booklet.

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-8I848P-G/GA-8I848P

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive



EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial,scientific and medical (ISM

high frequency equipment



EN 61000-3-2*

7EN 60555-2

Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Harmonics”



EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment



EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Voltage fluctuations”



EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

7EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

7EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry



EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment



EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment



EN 55082-2

7EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus



ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)



EN50091-2



EN 55020



DIN VDE 0855



part 10



part 12

(EC conformity marking)

7CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use



EN 60950



EN 60065

Safety of household and similar

electrical appliances



EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : Feb. 06, 2004

7EN 60555-3

Timmy Huang



EN 50091-1

Safety for information technology equipment

including electrical bussiness equipment

General and Safety requirements for

uninterruptible power systems (UPS)

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109

(a),Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name:

Address:

Phone/Fax No:

hereby declares that the product

Product Name:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

Supplementary Information:

Model Number:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Motherboard

GA-8I848P-G/GA-8I848P

Date:

ERIC LU

Feb. 06, 2004

USER'S MANUAL

GA-8I848P(-G)

P4 Titan Series Motherboard

Pentium®4 Processor Motherboard

Rev. 2002

12ME-8I848P-2002

- 2 -GA-8I848P(-G) Motherboard

English

Table of Content

Item Checklist .......................................................................................... 4

Chapter 1 Introduction .............................................................................5

Features Summary ....................................................................................... 5

GA-8I848P(-G) Motherboard Layout ............................................................ 7

Block Diagram .............................................................................................. 8

Chapter 2 Hardware Installation Process .............................................. 10

Step 1: Install the Central Processing Unit (CPU) ...................................... 11

Step 1-1: CPU Installation ................................................................................................. 11

Step 1-2 : CPU Cooling Fan Installation .......................................................................... 12

Step 2: Install memory modules ................................................................. 13

Step 3: Install expansion cards .................................................................. 15

Step 4: Connect ribbon cables, cabinet wires, and power supply .............. 16

Step 4-1: I/O Back Panel Introduction .............................................................................. 16

Step 4-2: Connectors & Jumper Setting Introduction ....................................................... 18

Chapter 3 BIOS Setup .......................................................................... 31

The Main Menu (For example: BIOS Ver. : E1) .......................................... 32

Standard CMOS Features .......................................................................... 34

Advanced BIOS Features ........................................................................... 37

Integrated Peripherals ............................................................................... 39

Power Management Setup ......................................................................... 44

Table of Content

English

- 3 -

PnP/PCI Configurations ............................................................................. 46

PC Health Status ........................................................................................ 47

Frequency/Voltage Control ......................................................................... 49

Load Fail-Safe Defaults .............................................................................. 52

Load Optimized Defaults ............................................................................ 53

Set Supervisor/User Password .................................................................. 54

Save & Exit Setup ...................................................................................... 55

Exit Without Saving ................................................................................... 56

Chapter 4 Technical Reference ............................................................. 57

@ BIOSTM Introduction ............................................................................... 57

Easy TuneTM 4 Introduction......................................................................... 58

Flash BIOS Method Introduction ................................................................ 59

2- / 4- / 6- / 8- Channel Audio Function Introduction................................... 74

Jack-Sensing(UAJ) Introduction ................................................................. 80

Xpress Recovery2 Introduction ................................................................. 82

Chapter 5 Appendix ............................................................................... 85

- 4 -GA-8I848P(-G) Motherboard

English

Item Checklist

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

other components.

4. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

power connector on the motherboard.

If the motherboard has mounting holes, but they don't line up with the holes on the base and there

are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the

mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so

be careful of your hands). In this way you can still attach the motherboard to the base without worrying

about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the

motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the

screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may

damage the board or cause board malfunctioning.

Installing the motherboard to the chassis…

The GA-8I848P or GA-8I848P-G motherboard 2 Port USB Cable x 1

IDE cable x 2 / Floppy cable x 1 4 Port USB Cable x 1

CD for motherboard driver & utility SPDIF-KIT x 1 (SPDIF Out KIT)

GA-8I848P(-G) user's manual IEEE 1394 Cable x1

I/O Shield Audio Combo Kit x 1

Quick PC Installation Guide (SURROUND-Kit + SPDIF Out KIT)

RAID Manual Motherboard Settings Label

GC-SATA Card (Optional) SATA RAID Manual

(Manual; SATA cable x1; Power cable x 1) SATA cable x 1

Introduction- 5 -

English

Form Factor y30.5cm x 20.5cm ATX size form factor, 4 layers PCB.

CPU ySocket 478 for Intel®Micro FC-PGA2 Pentium®4 processor

ySupport Intel®Pentium®4 (Northwood, Prescott) processor

ySupport Intel®Pentium®4 Processor with HT Technology

yIntel Pentium®4 400/533/800MHz FSB

y2nd cache depends on CPU

Chipset yChipset Intel 848P HOST/AGP/Controller

yICH5 I/O Controller Hub

Memory y3 184-pin DDR DIMM sockets

ySupports DDR400/DDR333/DDR266 DIMM

ySupports 128MB/256MB/512MB/1GB unbuffered Non-ECC DRAM

ySupports 128-Mb, 256-Mb, 512-Mb technologies implemented as

x8/x16 devices

ySupports up to 2GB DRAM (Max)

I/O Control yITE8712

Slots y1 AGP slot supports 8X/4X mode

y5 PCI slot supports 33MHz & PCI 2.3 compliant

On-Board IDE y2 IDE bus master (UDMA33/ATA66/ATA100) IDE ports for up to

4 ATAPI devices

ySupports PIO mode3,4 (UDMA 33/ATA66/ATA100) IDE

& ATAPI CD-ROM

Serial ATA y2 Serial ATA connectors (SATA0/SATA1) in 150 MB/s operation

mode

yControlled by ICH5

On-Board Peripherals y1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes.

y1 Parallel port supports Normal/EPP/ECP mode

y2 Serial ports (COMA&COMB)

y8 USB 2.0/1.1 ports (4 x Rear, 4 xFront by cable)

y1 Front Audio Connector

y1 IrDA connector for IR

Chapter 1 Introduction

Features Summary

to be continued......

Due to chipset (Intel 875P/865G/865PE/848P) architecture limitation, a FSB 800 Pentium 4

processor will support DDR400/DDR333/DDR266 memory module. A FSB 533 Pentium 4

processor will support DDR333 and DDR266 memory module. A FSB 400 Pentium 4 processor

will only support DDR 266 memory module.

- 6 -GA-8I848P(-G) Motherboard

English

Hardware Monitor yCPU/System Fan Revolution detect

yCPU/System Fan Fail Warning

yCPU Temperature

ySystem Voltage Detect

On-Board Sound yRealtek ALC850 UAJ CODEC

ySupport Jack-Sensing

yLine Out / 2 front speaker

yLine In / 2 rear speaker(by s/w switch)

yMic In / center& subwoofer(by s/w switch)

ySPDIF Out /SPDIF In

yCD_In / Game Connector

ySurround Back speaker (by optional Surround-Kit)

On-Board LAN (*)yBuild in Marvell 8001 Chipset (10/100/1000 Mbit)

y1 RJ45 port

PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interface

BIOS yLicensed AWARD BIOS

ySupports Q-Flash

Additional Features yPS/2 Keyboard power on by password

yPS/2 Mouse power on

ySTR(Suspend-To-RAM)

yAC Recovery

yUSB KB/Mouse wake up from S3

ySupports EasyTune 4

ySupports @BIOS

Overclocking yOver Voltage (CPU/DDR/AGP) by BIOS

yOver Clock (CPU/DDR/AGP/PCI) by BIOS

Please set the CPU host frequency in accordance with your processor's specifications.

We don't recommend you to set the system bus frequency over the CPU's specification

because these specific bus frequencies are not the standard specifications for CPU,

chipset and most of the peripherals. Whether your system can run under these specific

bus frequencies properly will depend on your hardware configurations, including CPU,

Chipsets, Memory, Cards….etc.

HT functionality requirement content :

Enabling the functionality of Hyper-Threading Technology for your computer system requires

all of the following platform components:

- CPU: An Intel®Pentium 4 Processor with HT Technology

- Chipset: An Intel®Chipset that supports HT Technology

- BIOS: A BIOS that supports HT Technology and has it enabled

- OS: An operation system that has optimizations for HT Technology

(*) For GA-8I848P-G only.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-6LISL Manual de usuario

Gigabyte

Gigabyte GA-6VX7-1394 Manual de usuario

Gigabyte

Gigabyte GA-MA780G-UD3H Manual de usuario

Gigabyte

Gigabyte B450M GAMING Manual de usuario

Gigabyte

Gigabyte GA-8N775 Manual de usuario

Gigabyte

Gigabyte GA-8I915G-MFD Manual de usuario

Gigabyte

Gigabyte R281-3C0 Manual de usuario

Gigabyte

Gigabyte GA-X79-UD3 Manual de usuario

Gigabyte

Gigabyte GA-H61M-S2PT Manual de usuario

Gigabyte

Gigabyte GA-M85M-US2H Manual de usuario

Gigabyte

Gigabyte GA-8I915P Duo Pro-A Manual de usuario

Gigabyte

Gigabyte GA-990FXA-D3 Manual de usuario

Gigabyte

Gigabyte GA-H55-UD3H Manual de usuario

Gigabyte

Gigabyte GA-F2A88XN-WIFI Manual de usuario

Gigabyte

Gigabyte MNIC8CI Manual de usuario

Gigabyte

Gigabyte GA-K8NXP-SLI Manual de usuario

Gigabyte

Gigabyte GA-P61-S3-B3 Manual de usuario

Gigabyte

Gigabyte GA-8IDMR Manual de usuario

Gigabyte

Gigabyte GA-Z68M-D2H Manual de usuario

Gigabyte

Gigabyte Z370 AORUS Gaming 7 Manual de usuario

Gigabyte

Gigabyte H510M H Manual de usuario

Gigabyte

Gigabyte GA-7VEML Manual de usuario

Gigabyte

Gigabyte GA-Z68XP-UD3R Manual de usuario

Gigabyte

Gigabyte GA-G41MT-S2 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
