Gigabyte GA-7VM400A-FA Manual de usuario

USER'S MANUAL

GA-7VM400A-FA

AMD Socket A Processor Motherboard

AMD Athlon™/ Athlon™XP / Duron™Socket A Processor Motherboard

Rev. 1001

12ME-7VM400AFA-1001

- 2 -GA-7VM400A-FA Motherboard

English

Table of Content

Warning ...................................................................................................4

Features Summary ..................................................................................5

Chapter 1 Introduction .............................................................................5

GA-7VM400A-FA Motherboard Layout ......................................................... 7

Block Diagram .............................................................................................. 8

Chapter 2 Hardware Installation Process ..............................................10

Step 1: Set System Switch (SW1) .............................................................. 11

Step 2: Install the Central Processing Unit (CPU) ...................................... 12

Step 2-1: CPU Installation ................................................................................................ 12

Step 2-2: CPU Cooling Fan Installation ........................................................................... 13

Step 3: Install Memory Modules ................................................................. 14

Step 4: Install Expansion Cards ................................................................. 16

Step 5: Connect ribbon cables, cabinet wires, and power supply .............. 17

Step 5-1: I/O Back Panel Introduction .............................................................................. 17

Step 5-2: Connectors Introduction .................................................................................... 19

Chapter 3 BIOS Setup ..........................................................................31

The Main Menu (For example: BIOS Ver. : E4) .......................................... 32

Standard CMOS Features .......................................................................... 34

Advanced BIOS Features ........................................................................... 37

Integrated Peripherals ............................................................................... 39

Power Management Setup ......................................................................... 43

Table of Content

English

- 3 -

PnP/PCI Configurations ............................................................................. 46

PC Health Status ........................................................................................ 47

Frequency/Voltage Control ......................................................................... 48

Load Fail-Safe Defaults .............................................................................. 50

Load Optimized Defaults ............................................................................ 51

Set Supervisor/User Password .................................................................. 52

Save & Exit Setup ...................................................................................... 53

Exit Without Saving ................................................................................... 54

- 4 -GA-7VM400A-FA Motherboard

English

Warning

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or

other components.

4. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX

power connector on the motherboard.

If the motherboard has mounting holes, but they don't line up with the holes on the base and there

are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the

mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so

be careful of your hands). In this way you can still attach the motherboard to the base without worrying

about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the

motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the

screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may

damage the board or cause board malfunctioning.

Installing the motherboard to the chassis…

Introduction- 5 -

English

CPU Socket A processor

AMD AthlonTM/AthlonTM XP/ DuronTM (K7)

128K L1 & 512K/256K/64K L2 cache on die

200/266/333/400MHz FSB and DDR bus speeds

Supports 1.4GHz and faster

Chipset Northbridge:VIA KM400A

Southbridge:VIA VT8237

Memory 2 184-pin DDR DIMM sockets,supports up to 2GB DRAM (Max)

Supports DDR400/333/266/200 DIMM

Supports only 2.5V DDR DIMM

I/O Control IT8705F

Slots 1 AGP slot supports 8X/4X/2X mode

3 PCI slots

On-Board IDE 2 IDE bus master (UDMA33/ATA66/ATA100/ATA133) IDE ports

for up to 4 ATAPI devices

Supports PIO mode3,4 (UDMA 33/ATA66/ATA100/ATA133) IDE

& ATAPI CD-ROM

On-Board Floppy 1 Floppy port supports 2 FDD

On-Board Serial ATA 2 Serial ATA connectors

On-Board Peripherals 1 Parallel port supports Normal/EPP/ECP mode

1 Serial port (COMA), 1 VGA port, COMB on Board

8 USB 2.0/1.1 ports (4 x Rear, 4 xFront by cable)

1 Front Audio Connector

1 PS/2 keyboard

1 PS/2 mouse

On-Board VGA Build in VIA KM400A Chipset

On-Board LAN RealTek RTL8100C (10/100 Mbit)

1 RJ45 port

Features Summary

to be continued......

Chapter 1 Introduction

- 6 -GA-7VM400A-FA Motherboard

English

On-Board Sound Realtek ALC655 CODEC

Support Jack-Sensing

Line Out / 2 front speaker

Line In / 2 rear speaker(by s/w switch)

Mic In / center& subwoofer(by s/w switch)

SPDIF Out /SPDIF In

CD_In / Game connector

On-Board SATA RAID Built in VT8237

Supports Disk striping (RAID0) or DISK Mirroring (RAID1)

Supports UDMA up to 150 MB/sec

Up to 2 SATA Device

Hardware Monitor CPU/System FAN Revolution detect

CPU/System temperature detect

CPU/System FAN fail warning

System Voltage Detect

BIOS Licensed Award BIOS

Supports Q-Flash

Additional Features Support Thermal shutdown function

Supports @BIOS

Supports EasyTune

Overclocking Over Clock (DDR/CPU) by BIOS

Over Voltage (DDR/AGP) by BIOS

Form Factor 24.4cm x 23.3cm Flex ATX size form factor, 4 layers PCB.

Please set the CPU host frequency in accordance with your processor's specifications.

We don't recommend you to set the system bus frequency over the CPU's specification

because these specific bus frequencies are not the standard specifications for CPU,

chipset and most of the peripherals. Whether your system can run under these specific

bus frequencies properly will depend on your hardware configurations, including CPU,

Chipsets, Memory, Cards....etc.

Introduction- 7 -

English

GA-7VM400A-FA Motherboard Layout

KB_MS

COMA

LPT

CPU_FAN

ATX

RAM_LED

F_USB1 F_PANEL

F_USB2

SUR_CEN

SPDIF_IO

PWR_LED

CODEC

COMB

GA-7VM400A-FA

SOCKET A

FDD

IDE1

IDE2

VGA

RTL8100C

BIOS

CLR_CMOS

IT8705F

BAT

VT8237

VIA KM400A

PCI1

PCI2

PCI3

DDR1

AGP

SW1

CD_IN

DDR2

F_AUDIO AGP 8X

SYS_FAN

MIC_IN USB

LAN

LINE_IN

LINE_OUT

USB

SATA1

SATA0

ATX_12V

- 8 -GA-7VM400A-FA Motherboard

English

Block Diagram

VIA

KM400A

VIA

VT8237

CPUCLK+/- (100/133/166/200MHz)

System Bus

200/266/333/400MHz FSB

AGPCLK66 MHz

33 MHz

14.318 MHz

48 MHz

LPC BUS

AGP 2X/4X/8X

3 PCI

PCICLK

(33MHz)

RJ45

AC97 Link

8 USB

Ports

ATA33/66/

100/133

IDE Channels

RTL8100C

IT8705F

24 MHz

33 MHz

Game Port

Floppy

LPT Port

PS/2 KB/Mouse

2 COM Ports

MIC

LINE-IN

LINE-OUT

AMD-K7TM

Host CUP

6 Channel

CODEC

200/266/333/400MHz

DDR

BIOS

AGPCLK

66MHz

HCLK+/- (100/133/166/200MHz)

CLK

GEN

HCLK+/- (100/133/166/200MHz)

CPUCLK+/- (100/133/166/200MHz)

AGPCLK (66MHz)

PCICLK (33MHz)

USBCLK (48MHz)

14.318 MHz

33 MHz

PCI BUS 33MHz

66MHz V_Link

V_Link (66MHz)

VGA Port

Serial ATA

Channels

Introduction- 9 -

English

- 10 -GA-7VM400A-FA Motherboard

English

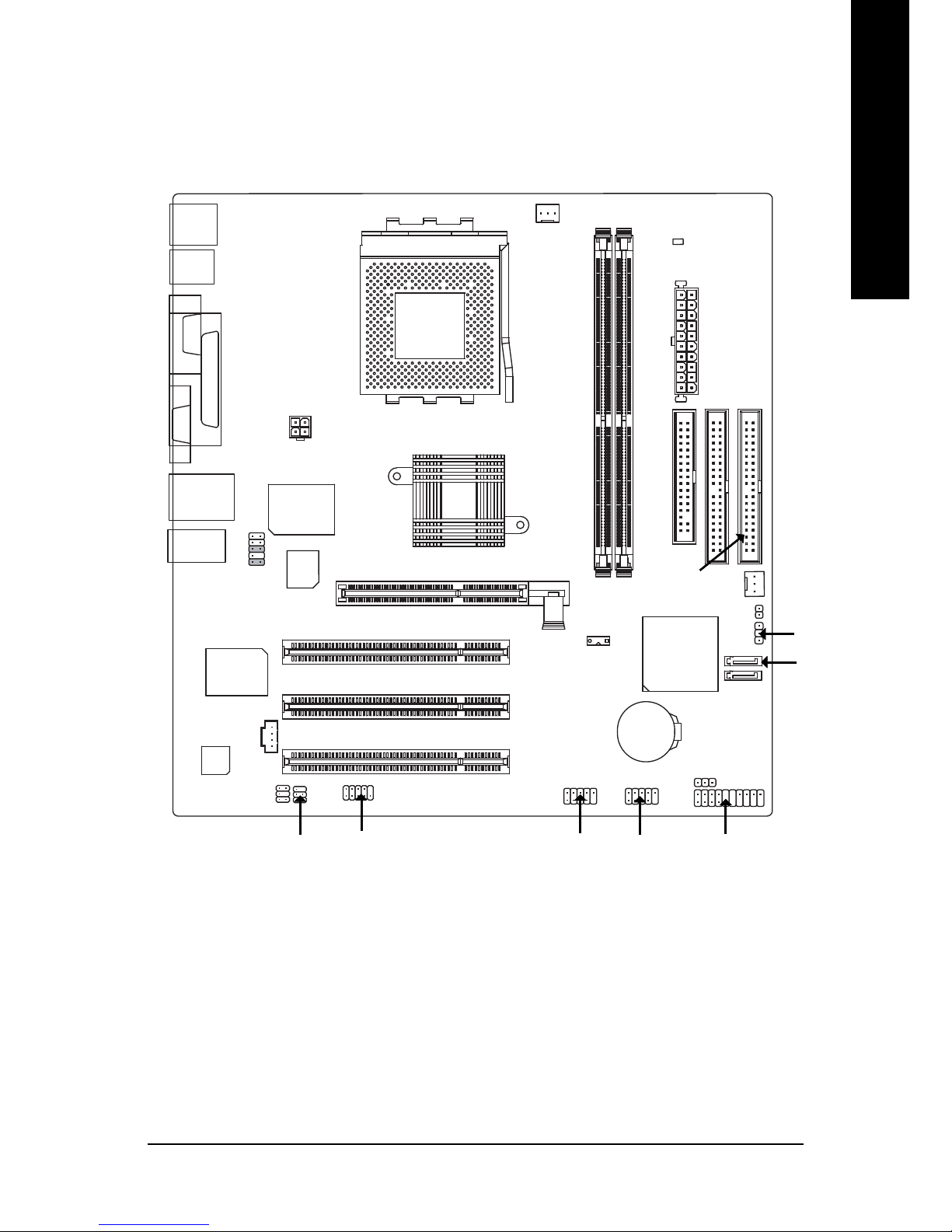

Chapter 2 Hardware Installation Process

Congratulations you have accomplished the hardware installation!

Turn on the power supply or connect the power cable to the power outlet. Continue with the BIOS/

software installation.

To set up your computer, you must complete the following steps:

Step 1- Set system Switch (SW1)

Step 2- Install the Central Processing Unit (CPU)

Step 3- Install memory modules

Step 4- Install expansion cards

Step 5- Install I/O Peripherals Cables

Step 3

Step 5

Step 2

Step 5

Step 1

Step 4

Step 5
