Gigabyte B760M GAMING X AX Manual de usuario

For more product details, please visit GIGABYTE's website.

https://www.gigabyte.com/Motherboard/B760M-POWER-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/B760M-POWER-DDR4-rev-10?m=ma#kf

B760M POWER

B760M POWER DDR4

User's Manual

Rev. 1002

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_quick-guide_am5.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

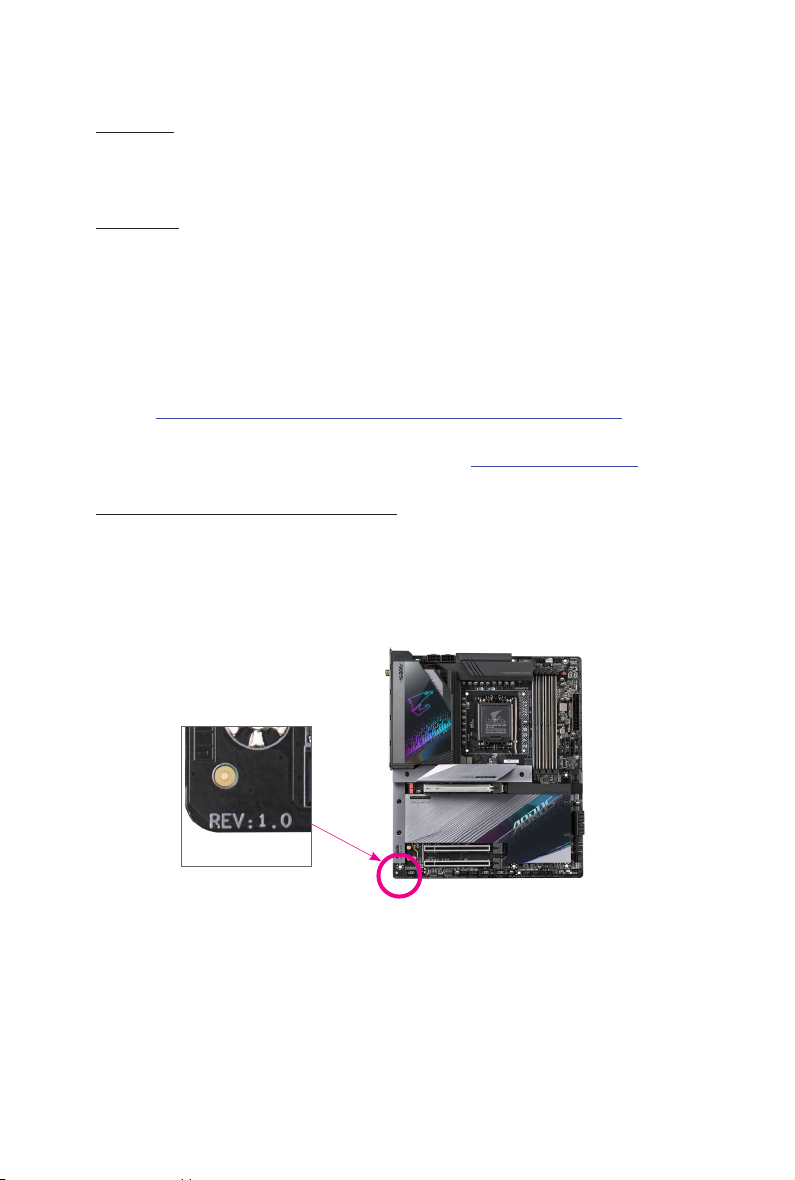

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Box Contents.................................................................................................... 6

Chapter 2 Hardware Installation .....................................................................................7

2-1 Installation Precautions.................................................................................... 7

2-2 Product Specications...................................................................................... 8

2-3 Installing the CPU and CPU Cooler ............................................................... 11

2-4 Installing the Memory..................................................................................... 14

2-5 Installing an Expansion Card ......................................................................... 15

2-6 Back Panel Connectors.................................................................................. 16

2-7 Internal Connectors........................................................................................ 18

Chapter 3 BIOS Setup ..................................................................................................29

Chapter 4 Installing the Operating System and Drivers................................................31

4-1 Operating System Installation ........................................................................ 31

4-2 Drivers Installation.......................................................................................... 32

Chapter 5 Appendix ......................................................................................................33

5-1 Conguring a RAID Set.................................................................................. 33

Regulatory Notices.................................................................................................... 34

Contact Us ................................................................................................................ 35

- 4 -

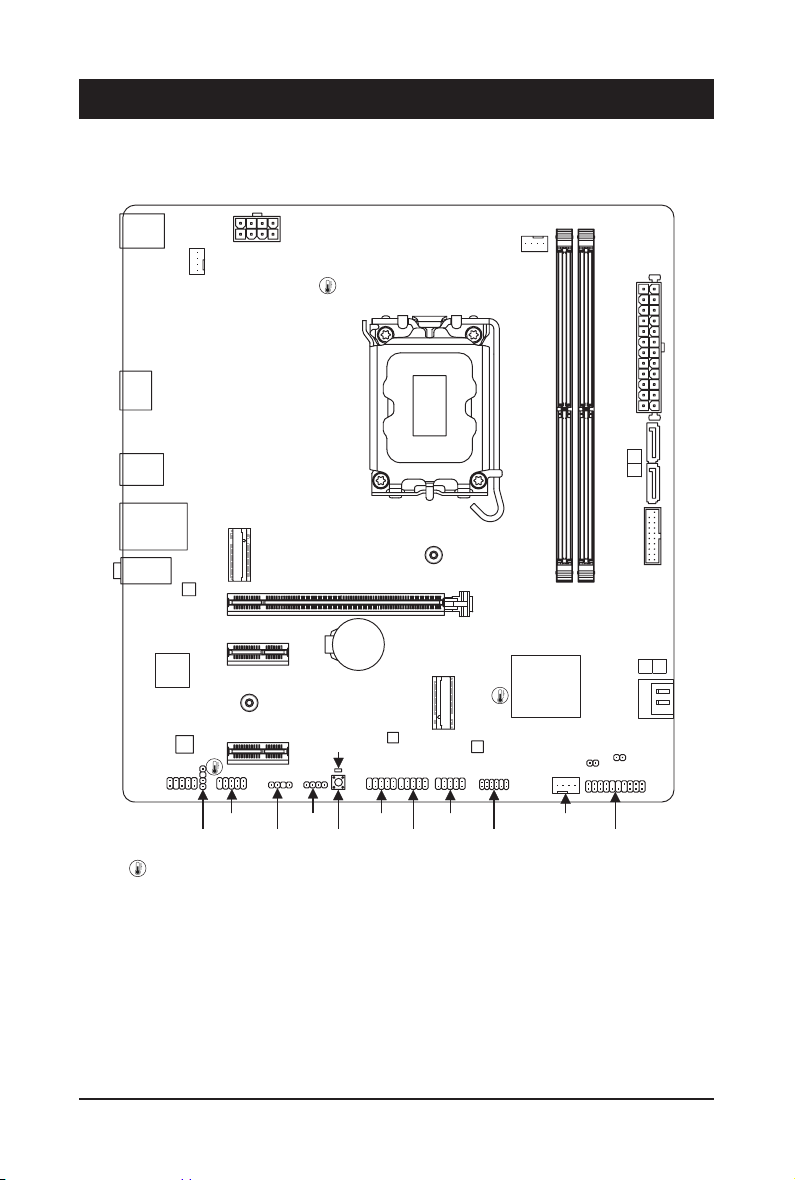

1-1 Motherboard Layout

Chapter 1 Product Introduction

Temperature sensor

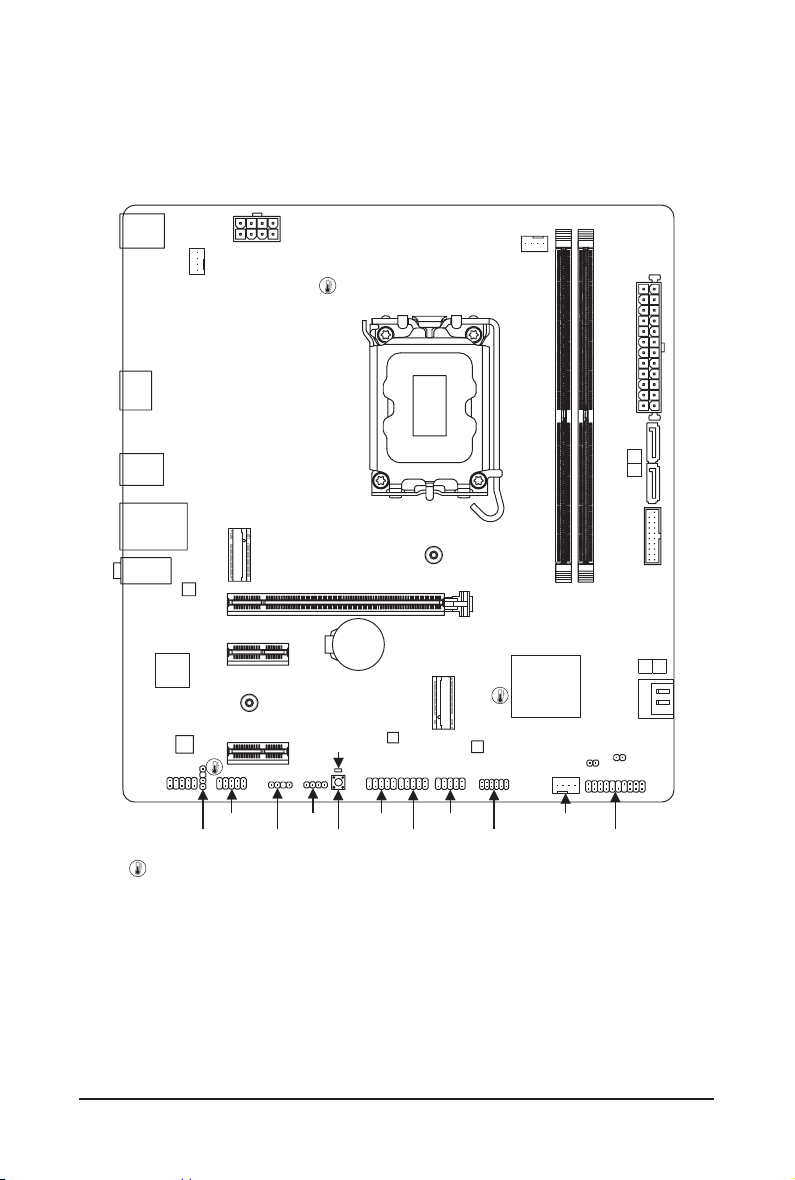

KB_MS_

USB CPU_FAN

LGA1700

ATX

B760M POWER

AUDIO

BAT

ATX_12V_2X4

F_U32

U32

CODEC

CLR_CMOS

M_BIOS

HDMI

U32_LAN

PCIEX1_1

PCIEX1_2

PCIEX16

iTE®

Super I/O

F_USB2 SPI_TPMQFLASH_

PLUS

F_PANELD_LEDSPDIF_O

F_USB1F_USB3COM

F_AUDIO

SYS_FAN2LED_C

SYS_FAN1

QFLED

RST

Intel®B760

M2P_SB

M2A_CPU

DDR5_A1

DDR5_B1

SATA3

5 4

USB 2.0 Hub

Realtek®

2.5GbE LAN

- 5 -

KB_MS_

USB CPU_FAN

LGA1700

ATX

B760M POWER DDR4

AUDIO

BAT

ATX_12V_2X4

F_U32

U32

CODEC

CLR_CMOS

M_BIOS

HDMI

U32_LAN

PCIEX1_1

PCIEX1_2

PCIEX16

iTE®

Super I/O

F_USB2 SPI_TPM F_PANELD_LEDSPDIF_O

F_USB1F_USB3COM

F_AUDIO

SYS_FAN2LED_C

SYS_FAN1

USB 2.0 Hub

RST

Intel®B760

M2P_SB

M2A_CPU

DDR4_1

DDR4_2

SATA3

5 4

Temperature sensor

QFLASH_

PLUS

QFLED

Realtek®

2.5GbE LAN

- 6 -

1-2 Box Contents

5B760M POWER or B760M POWER DDR4 Motherboard

5User's Manual

5Two SATA cables

5I/O Shield

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

- 7 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its

installation and/or grounding instructions.

Chapter 2 Hardware Installation

- 8 -

2-2 ProductSpecications

CPU LGA1700 socket: Support for the 13th and 12th Generation Intel®Core™, Pentium®

Gold and Celeron®Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B760 Express Chipset

Memory Support for DDR5 5600/5200/4800/4400 MT/s memory modules j

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules k

2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specications may vary depending on CPU support.)

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To congure

7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN Realtek®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

(M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

(M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

jOnly for B760M POWER.

kOnly for B760M POWER DDR4.

- 9 -

USB Chipset:

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

3 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x serial port header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling ow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

- 10 -

BIOS 1 x 128 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions

of each application may also vary depending on motherboard specications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidth management software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

https://www.gigabyte.com/Motherboard/B760M-POWER-rev-10?m=dl#support-dl

https://www.gigabyte.com/Motherboard/B760M-POWER-DDR4-rev-10?m=dl#support-dl

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version

of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

Otros manuales para B760M GAMING X AX

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte MJ11-EC0 Manual de usuario

Gigabyte

Gigabyte GA-M68M-S2P Manual de usuario

Gigabyte

Gigabyte GA-MA74GMT-S2 Manual de usuario

Gigabyte

Gigabyte GA-H110M-DS2V Manual de usuario

Gigabyte

Gigabyte 686LX Manual de usuario

Gigabyte

Gigabyte GA-5BXWL-RH Manual de usuario

Gigabyte

Gigabyte 6VTXE-A Manual de usuario

Gigabyte

Gigabyte GA-H61M-D2H Manual de usuario

Gigabyte

Gigabyte GA-6VX7-1394 Manual de usuario

Gigabyte

Gigabyte GA-G33-DS3R Manual de usuario

Gigabyte

Gigabyte GA-8I915MD-GV Manual de usuario

Gigabyte

Gigabyte Z690 A ELITE AX D4 V2 Manual de usuario

Gigabyte

Gigabyte H410M DS2V V3 Manual de usuario

Gigabyte

Gigabyte Z790 AORUS PRO X Manual de usuario

Gigabyte

Gigabyte GA-Z68X-UD3H-B3 Manual de usuario

Gigabyte

Gigabyte GA-990FX-Gaming Manual de usuario

Gigabyte

Gigabyte B650M GAMING X AX Manual de usuario

Gigabyte

Gigabyte GA-B75M-D3V Manual de usuario

Gigabyte

Gigabyte GA-8IAX Manual de usuario

Gigabyte

Gigabyte GA-F2A55-DS3 Manual de usuario

Gigabyte

Gigabyte GA-8I845PE Pro Manual de usuario

Gigabyte

Gigabyte 6ZXC Manual de usuario

Gigabyte

Gigabyte GA-8SMMLP Manual de usuario

Gigabyte

Gigabyte GA-H170M-DS3H Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
