Gigabyte B560I AORUS PRO AX Manual de usuario

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

B560I AORUS PRO AX

User's Manual

Rev. 1001

12ME-B56ARSI-1001R

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior

notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in

any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

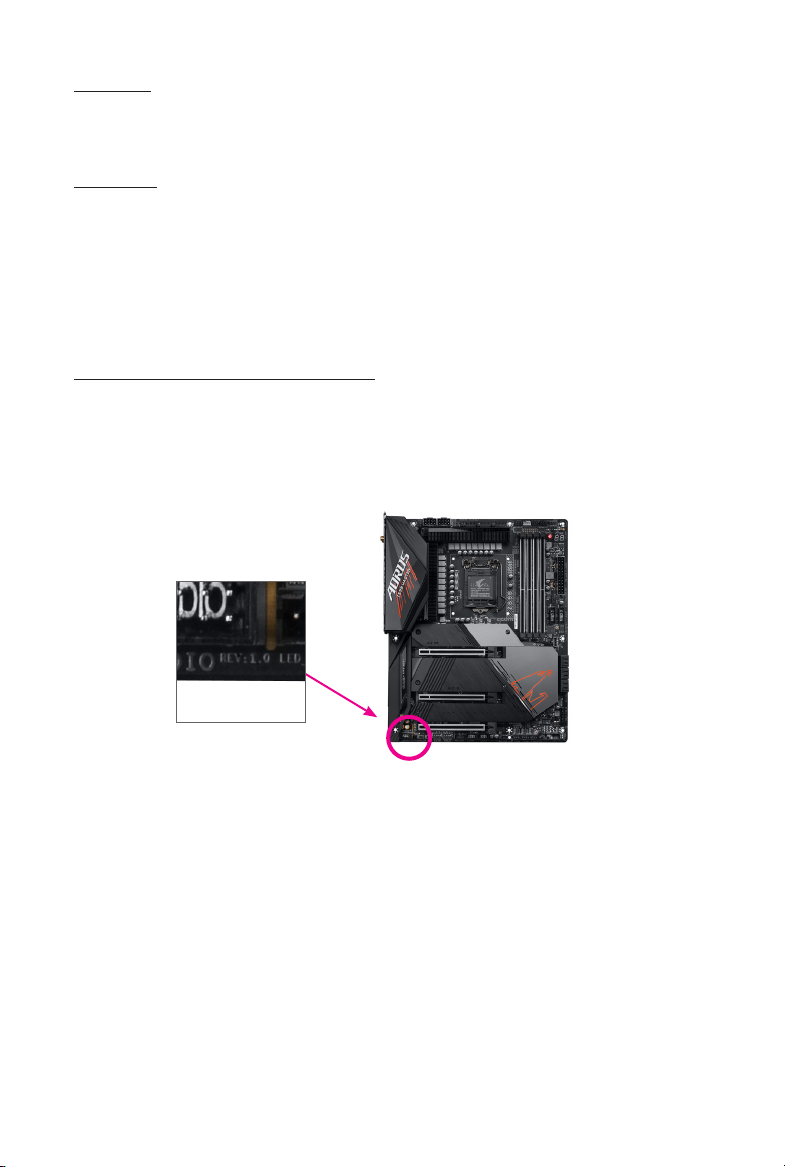

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

B560I AORUS PRO AX Motherboard Layout..................................................................4

B560I AORUS PRO AX Motherboard Block Diagram .....................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the CPU .......................................................................................... 10

1-4 Installing the Memory..................................................................................... 10

1-5 Installing an Expansion Card ......................................................................... 11

1-6 Back Panel Connectors.................................................................................. 11

1-7 Internal Connectors........................................................................................ 13

Chapter 2 BIOS Setup ..................................................................................................20

2-1 Startup Screen ............................................................................................... 20

2-2 The Main Menu .............................................................................................. 21

2-3 Smart Fan 6 .................................................................................................. 22

2-4 Favorites (F11) ............................................................................................... 23

2-5 Tweaker.......................................................................................................... 24

2-6 Settings .......................................................................................................... 29

2-7 System Info. ................................................................................................... 33

2-8 Boot................................................................................................................ 34

2-9 Save & Exit..................................................................................................... 37

Chapter 3 Appendix ......................................................................................................38

3-1 Installing Intel®Optane™Memory and Storage Management ........................ 38

3-2 Drivers Installation.......................................................................................... 39

Regulatory Notices.................................................................................................... 40

Contact Us ................................................................................................................ 44

Temperature sensors

- 4 -

B560I AORUS PRO AX Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5B560I AORUS PRO AX motherboard 5Two SATA cables

5User's Manual 5M.2 screw(s)/M.2 standoff(s)

5Motherboard driver disc 5One antenna

5One RGB LED strip extension cable 5Two fan header extension cables

(Note) The connector/chip is on the back of the motherboard.

U32_20

U32_LAN

RU32G2

U32C

DP_HDMI20

LGA1200

ATX

AUDIO

M2_WIFI

DDR4_A1

DDR4_B1

ATX_12V_2X4

Intel®B560

CLR_CMOS

LED_C

M_BIOS

PCIEX16

F_USB1

M2A_CPU

M2P_SB (Note)

CODEC

F_PANEL

SPEAKER

F_U32G1

F_AUDIO

BAT

D_LED

SYS_FAN2

SYS_FAN1

CPU_FAN

iTE®

Super I/O

6080

SATA3

Intel®

2.5GbE LAN (Note)

4 5

3 2

B560I AORUS PRO AX

QFLASH_PLUS

QFLED

F_U32CG1

60 (Note)

80 (Note)

BAT

USB 3.2 Gen 1 Hub

B560I AORUS PRO AX Motherboard Block Diagram

LGA1200 CPU

CPU CLK+/- (100~500 MHz)

PCI Express 4.0 (Note)/3.0 Bus

DMI 3.0

RJ45

SPI

Bus

PCI Express 3.0 Bus 4 USB 2.0/1.1

Intel®B560

BIOS

1 PCI Express x16

x16

4 SATA 6Gb/s

iTE®

Super I/O

2 USB Type-C®,

with USB 3.2 Gen 1 support

1 USB 3.2 Gen 2

Type A

Center/Subwoofer Speaker Out

Line Out

MIC

Line In

Rear Speaker Out

CODEC

DDR4 3200 (Note)/3000 (Note)/2933 (Note)/

2666/2400/2133 MHz

DDI

DisplayPort

Intel®

2.5GbE LAN

DDI

HDMI 2.0

1 M.2 Socket 3

(M2A_CPU) (Note)

1 M.2 Socket 3

(M2P_SB)

M.2 WIFI

eSPI

Bus

4 USB 3.2 Gen 1

USB 3.2

Gen 1

Hub

2 USB 3.2 Gen 1

- 5 -

(Note) Actual support may vary by CPU.

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 6 -

1-2 ProductSpecications

CPU LGA1200 package:

- 11th Generation Intel

Core

™

i9 processors/Intel

Core

™

i7 processors/

Intel

Core

™

i5 processors

- 10th Generation Intel

Core

™

i9 processors/Intel

Core

™

i7 processors/Intel

Core

™

i5 processors/Intel

Core

™

i3 processors/Intel

Pentium

processors/

Intel

Celeron

processors*

* Limited to processors with 4 MB Intel®Smart Cache, Intel®Celeron®G5xx5 family.

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B560 Express Chipset

Memory 11th Generation Intel®Core™i9/i7/i5 processors:

- Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory

modules

10th Generation Intel®Core™i9/i7 processors:

- Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel®Core™i5/i3/Pentium®/Celeron®processors:

- Support for DDR4 2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specications may vary depending on CPU support.)

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you need to open the audio software and select

Device advanced settings > Playback Device to change the default setting rst.

LAN Intel®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless

Communication

Module

Intel®Wi-Fi 6 AX200

- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

- BLUETOOTH 5.1

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 4.0 standard.) (Note)

(Note) Supported by 11th Generation processors only.

- 7 -

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD

support) (M2A_CPU) (Note)

Chipset:

- 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type

2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

Intel®Optane™Memory Ready

USB Chipset:

- 2 x USB Type-C®ports, with USB 3.2 Gen 1 support (1 port on the back

panel, 1 port available through the internal USB header)

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

Chipset+1 USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB Type-C®header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Clear CMOS jumper

1 x chassis intrusion header

Back Panel

Connectors

1 x DisplayPort

1 x HDMI port

1 x USB Type-C®port, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

2 x SMA antenna connectors (2T2R)

3 x audio jacks

(Note) Supported by 11th Generation processors only.

- 8 -

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- RGB Fusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

cFosSpeed

Operating

System Support for Windows 10 64-bit

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

- 9 -

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

DualChannelMemoryConguration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory

is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

The two memory sockets are divided into two channels and each channel has one memory socket as following:

Channel A: DDR4_A1

Channel B: DDR4_B1

Please visit GIGABYTE's website for details on hardware installation.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Triangle Pin One Marking on the CPU

NotchNotch

LGA1200 CPU

Alignment Key

LGA1200 CPU Socket

Pin One Corner of the CPU Socket

- 10 -

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-B85N-WIFI Manual de usuario

Gigabyte

Gigabyte GA-6WMMC7 Manual de usuario

Gigabyte

Gigabyte GA-Z77X-UP7 Manual de usuario

Gigabyte

Gigabyte GA-B150M-DS3H Manual de usuario

Gigabyte

Gigabyte GA-MA69VM-S2 Manual de usuario

Gigabyte

Gigabyte GA-880GMA-USB3 Manual de usuario

Gigabyte

Gigabyte GA-8I865GMFK-775 Manual de usuario

Gigabyte

Gigabyte GA-A320M-HD2 Manual de usuario

Gigabyte

Gigabyte B650M GAMING X AX Manual de usuario

Gigabyte

Gigabyte R260-R3C Manual de usuario

Gigabyte

Gigabyte MZ33-AR0 Manual de usuario

Gigabyte

Gigabyte GA-B85-D3V-A Manual de usuario

Gigabyte

Gigabyte 6VA Manual de usuario

Gigabyte

Gigabyte GA-970A-UD3 Manual de usuario

Gigabyte

Gigabyte GA-MA790X-UD3P Manual de usuario

Gigabyte

Gigabyte GA-Z170N-Gaming 5 Manual de usuario

Gigabyte

Gigabyte GA-P67A-UD3P Manual de usuario

Gigabyte

Gigabyte GA-Z270-Gaming K3 Manual de usuario

Gigabyte

Gigabyte MDH11JI Manual de usuario

Gigabyte

Gigabyte GA-B75M-HD3 Manual de usuario

Gigabyte

Gigabyte GA-F2A68HM-DS2H Manual de usuario

Gigabyte

Gigabyte GA-8VT880P Combo Manual de usuario

Gigabyte

Gigabyte GA - 586ATX2 Manual de usuario

Gigabyte

Gigabyte GA-8I865G775-G Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
