Gigabyte GA - 586ATX2 Manual de usuario

GA - 586ATX2

USER'S MANUAL

¯Auto detect CPU Voltage.

¯Support MMX CPU.

¯Auto CPU Over heat Protect System (A.C.O.P.S.)

¯Switching mode Voltage regulator on Board.

¯Modem-Ring-On.

¯Support Cyrix / IBM 6x86MX & AMD-K6 CPU.

¯In CASE you want to Power OFF System Before

Boot up please press Soft-Power more than 4-

Secs.

¯FOR 5V CMOS ISA CARD, PLS insert in Slot7.

CPU

¯JP5 : ON System After AC BACK : Full_ON.

¯JP5 : OFF System After AC BACK : Soft_OFF.

Pentium



Processor PCI - ISA BUS MAINBOARD

REV. 1.0 First Edition

Release Date 97.07.17

GA-586ATX2

I. Quick Installation Guide:

CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

1. Pentium



Processor 90 MHz ON OFF OFF OFF OFF OFF ON OFF

2. Pentium



Processor 100 MHz OFF OFF OFF OFF OFF OFF ON OFF

3. Pentium



Processor 120 MHz ON ON OFF OFF OFF OFF ON OFF

4. Pentium



Processor 133 MHz OFF ON OFF OFF OFF OFF ON OFF

5. Pentium



Processor 150 MHz ON ON ON OFF OFF OFF ON OFF

6. Pentium



Processor 166 MHz OFF ON ON OFF OFF OFF ON OFF

7. Pentium



Processor 180 MHz ON OFF ON OFF OFF OFF ON OFF

8. Pentium



Processor 200 MHz OFF OFF ON OFF OFF OFF ON OFF

9. Intel MMX-150MHz ON ON ON OFF OFF OFF ON OFF

10. Intel MMX-166MHz OFF ON ON OFF OFF OFF ON OFF

11. Intel MMX-200MHz OFF OFF ON OFF OFF OFF ON OFF

12. Intel MMX-233MHz OFF OFF OFF OFF OFF OFF ON OFF

13. P54CT-150 MHz ON ON ON OFF OFF OFF ON OFF

14. P54CT-166 MHz OFF ON ON OFF OFF OFF ON OFF

15. P54CTB-150 MHz ON ON ON OFF OFF OFF ON OFF

16. P54CTB-166 MHz OFF ON ON OFF OFF OFF ON OFF

Table of Contents

CPU SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8

17. P54CTB-180 MHz ON OFF ON OFF OFF OFF ON OFF

18. P54CTB-200 MHz OFF OFF ON OFF OFF OFF ON OFF

19. AMDK5-PR133 OFF ON OFF OFF OFF OFF ON OFF

20. AMDK5-PR166 OFF ON ON OFF OFF OFF ON OFF

21. AMD-K6/166 (2.9V) OFF ON ON OFF OFF ON ON OFF

22. AMD-K6/180 (2.9V) ON OFF ON OFF OFF ON ON OFF

23. .AMD-K6/200 (2.9V) OFF OFF ON OFF OFF ON ON OFF

24. AMD-K6/233 (3.2V) OFF OFF OFF ON OFF OFF ON OFF

25. Cyrix / IBM 6x86-120 MHz-PR150+ ON ON OFF OFF OFF OFF ON OFF

26. Cyrix / IBM 6x86-133 MHz-PR166+ OFF ON OFF OFF OFF OFF ON OFF

27. Cyrix / IBM 6x86L- PR150+ (2.8V) ON ON OFF OFF OFF OFF ON OFF

28. Cyrix / IBM 6x86L-PR166+ (2.8V) OFF ON OFF OFF OFF OFF ON OFF

29. Cyrix/IBM 6x86MX-PR166GP(2.9V)∗ON ON ON OFF OFF ON ON OFF

30. Cyrix/IBM 6x86MX-PR200GP(2.9V)∗OFF ON ON OFF OFF ON ON OFF

31. Cyrix/IBM 6x86MX-PR233GP(2.9V)∗OFF OFF ON OFF OFF ON ON OFF

¬Note : If Cyrix 6x86 is being used, please check the CPU Date Code after 605.

¬Note :Cyrix/IBM 6x86MX-PR166GP (60*2.5) , Cyrix/IBM 6x86MX-PR200GP (66*2.5) ,

Cyrix/IBM 6x86MX-PR233GP (66*3) .

GA-586ATX2

1. Pentium



Processor 90 MHz

CPU

Pentium Processor 90 MHz

OFF

Table of Contents

2. Pentium



Processor 100 MHz

CPU

Pentium Processor 100 MHz

OFF

GA-586ATX2

3. Pentium



Processor 120 MHz

CPU

Pentium Processor 120 MHz

OFF

Table of Contents

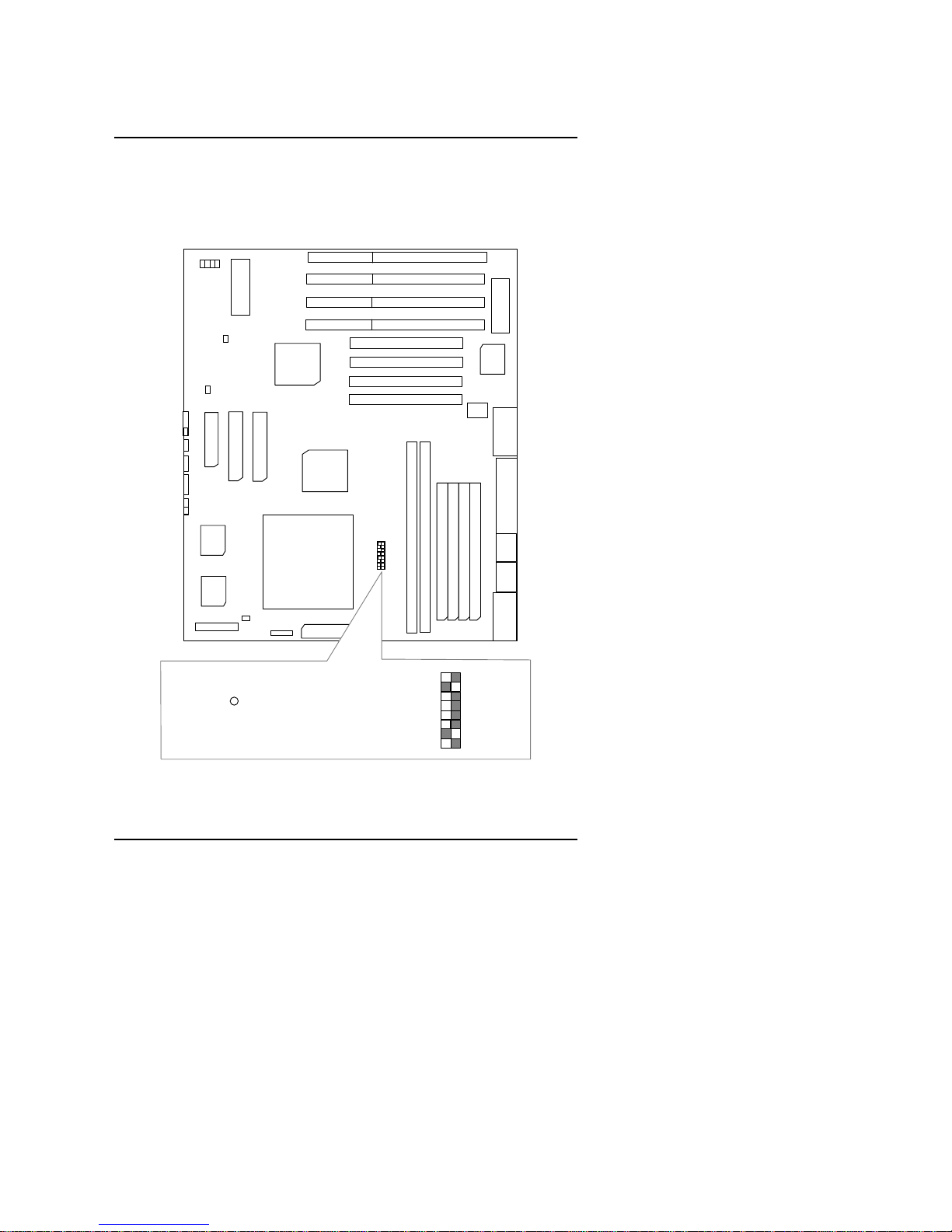

4. Pentium



Processor 133 MHz

CPU

Pentium Processor 133 MHz

OFF

GA-586ATX2

5. Pentium



Processor 150 MHz

CPU

Pentium Processor 150 MHz

OFF

Table of Contents

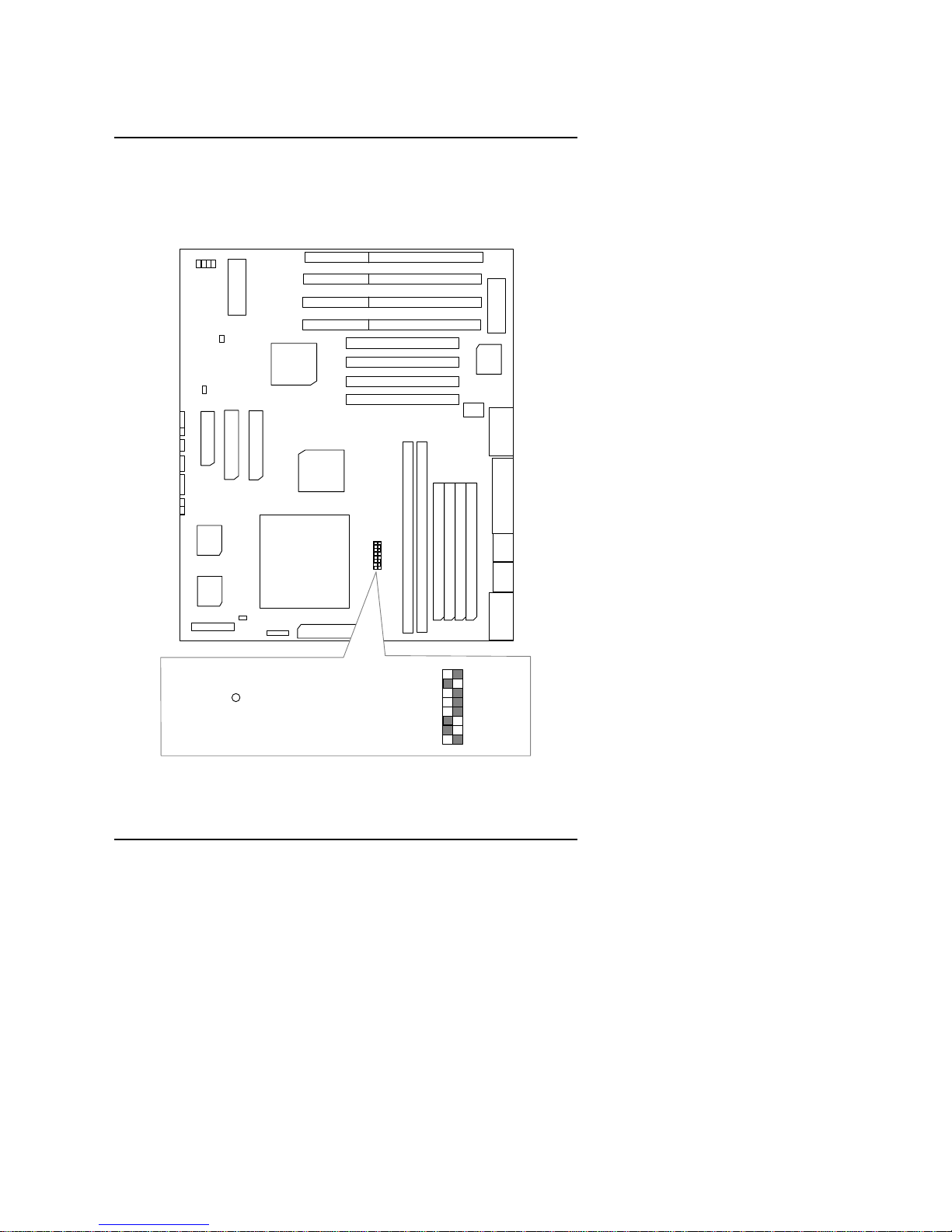

6. Pentium



Processor 166 MHz

CPU

Pentium Processor 166 MHz

OFF

GA-586ATX2

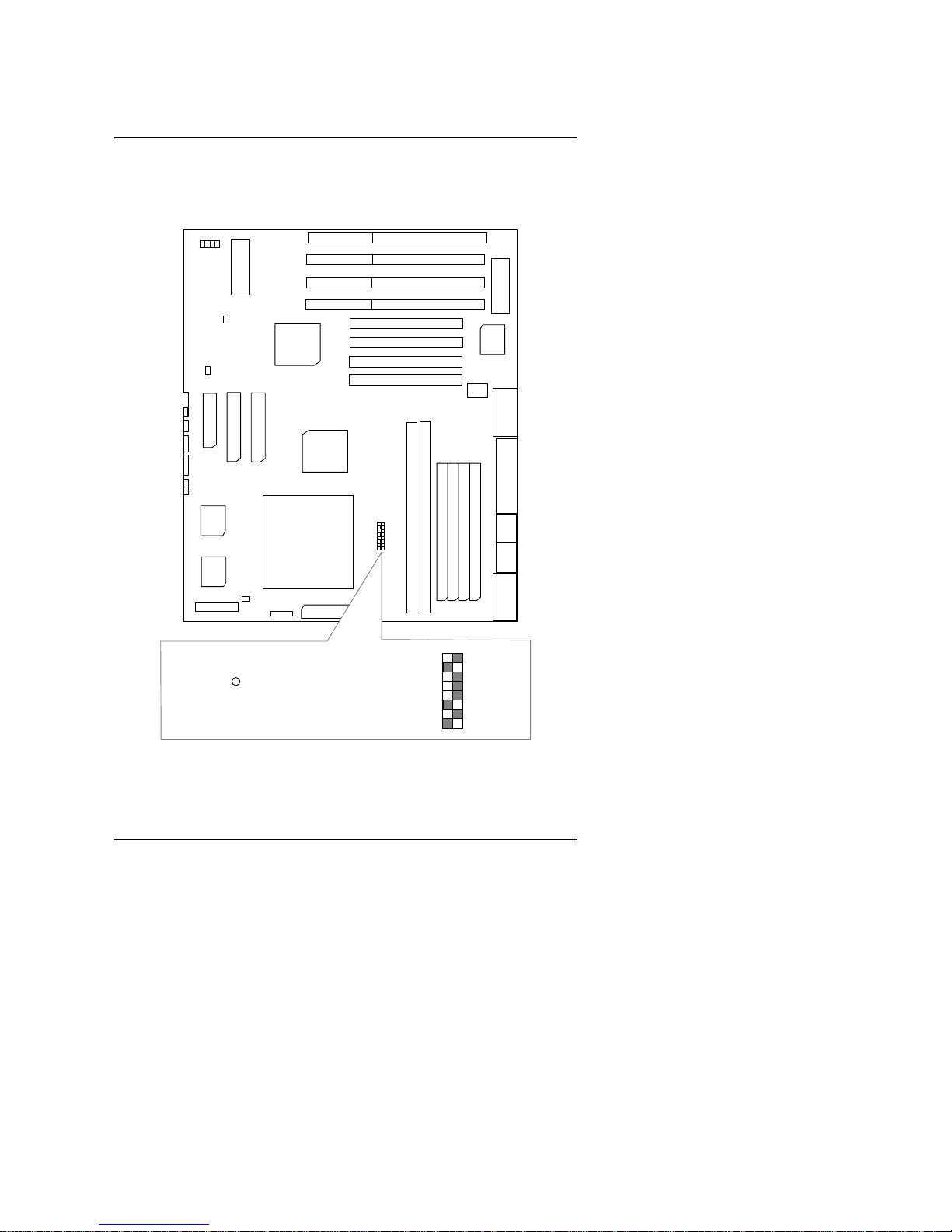

7. Pentium



Processor 180 MHz

CPU

Pentium Processor 180 MHz

OFF
