B360M D3P

User's Manual

Rev. 1001

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or

by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

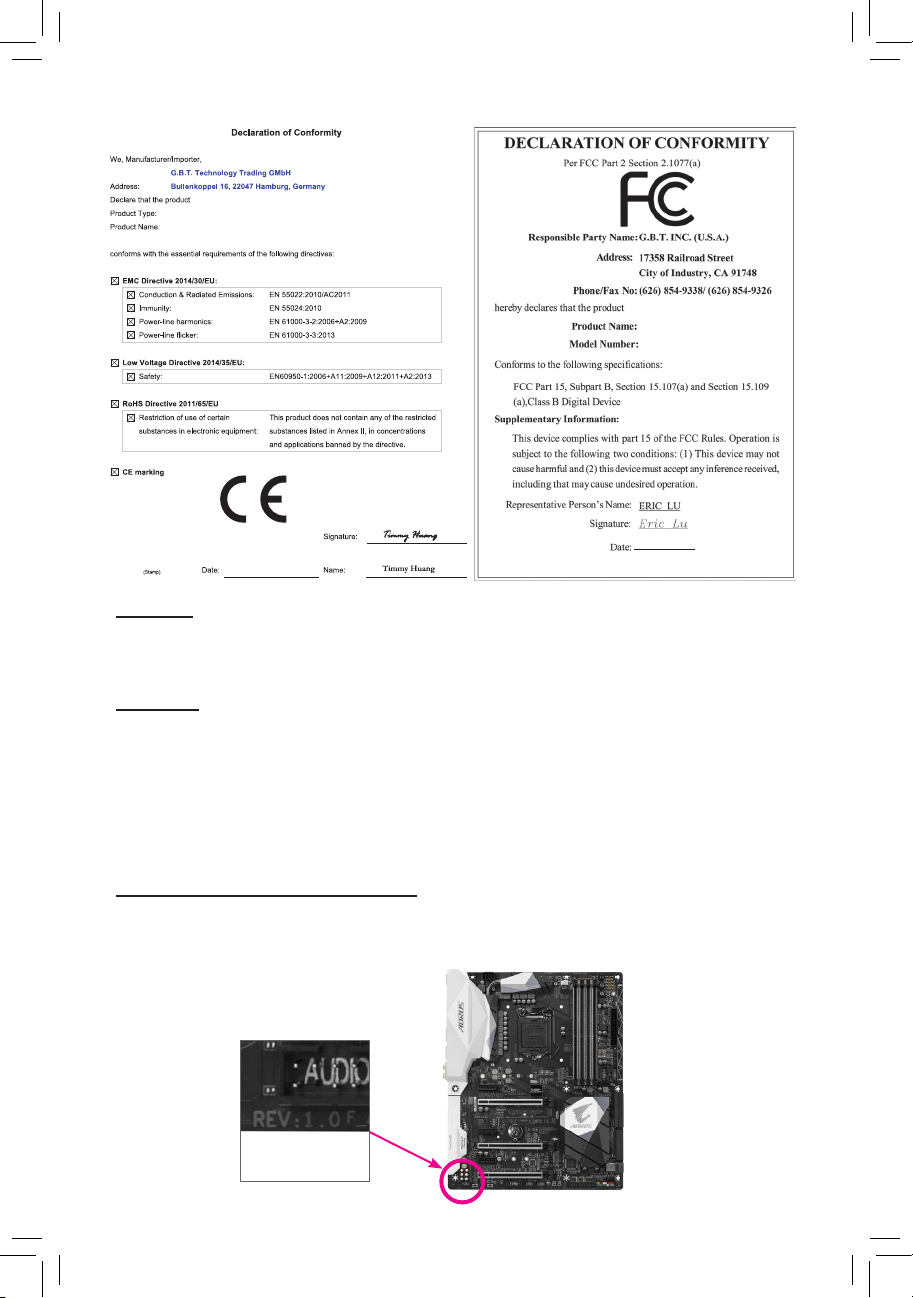

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Motherboard

B360M D3P

Mar. 9, 2018

Motherboard

B360M D3P

- 3 -

Table of Contents

B360M D3P Motherboard Layout....................................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 13

Chapter 2 BIOS Setup ..................................................................................................19

2-1 Startup Screen ............................................................................................... 19

2-2 The Main Menu .............................................................................................. 20

2-3 M.I.T. .............................................................................................................. 21

2-4 System ........................................................................................................... 27

2-5 BIOS............................................................................................................... 28

2-6 Peripherals..................................................................................................... 31

2-7 Chipset........................................................................................................... 34

2-8 Power............................................................................................................. 35

2-9 Save & Exit..................................................................................................... 37

Chapter 3 Appendix ......................................................................................................38

3-1 Installing an Intel®Optane™Memory.............................................................. 38

3-2 Drivers Installation.......................................................................................... 39

Regulatory Statements.............................................................................................. 40

Contact Us ................................................................................................................ 44

- 4 -

B360M D3P Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5B360M D3P Motherboard

5Motherboard driver disk 5Two SATA cables

5User's Manual 5I/O Shield

F_USB30

SATA 3 SATA 3

3 1

2 0

KB_MS_USB CPU_FAN

LGA1151

ATX

AUDIO

BAT

ATX_12V_2X4

CODEC

CLR_CMOS

M_BIOS

DVI_I

USB30_LAN

PCIEX16

PCIEX1_1

PCIEX4

SYS_FAN2

SYS_FAN1

USB31

TYPEC

DUAL_DP

SYS_FAN3

F_USB2 F_PANEL

COM F_USB1

F_AUDIO

SPDIF_O

THB_C

Intel®

GbE

LAN

iTE®

Super I/O

80110 60 42

M2M_32G

B360M D3P

Intel®B360

DDR4_2

DDR4_4

DDR4_3

DDR4_1

PCIEX1_2

CNVI

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU Support for 8th Generation Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/

Intel®Celeron®processors in the LGA1151 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B360 Express Chipset

Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel®

Core™i7/i5 processor.

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x DVI-I port, supporting a maximum resolution of 1920x1200@60 Hz

- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.

Support for up to 3 displays at the same time

Maximum shared memory of 1 GB

Audio Realtek®ALC892 codec

HighDenitionAudio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN Intel®GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

1 x M.2 Socket 1 connector for an Intel®CNVi wireless module only (CNVI)

Multi-Graphics

Technology Support for AMD Quad-GPU CrossFire™and 2-Way AMD CrossFire™technologies

Storage Interface Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and

PCIe x4/x2 SSD support)

- 6 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA

connectors.

Intel®Optane™Memory Ready

- 6 -

USB Chipset:

- 1 x USB Type-C™port on the back panel, with USB 3.1 Gen 2 support

- 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

- 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

the internal USB headers)

* The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi

module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to

the F_USB2 header becomes unavailable.

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x M.2 Socket 3 connector

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x Thunderbolt™add-in card connector

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port headers

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x DVI-I port

2 x DisplayPorts

1 x USB 3.1 Gen 2 Type-A port (red)

1 x USB Type-C™port, with USB 3.1 Gen 2 support

2 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1x128Mbitash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

- 7 -

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- 3D OSD

- @BIOS

- AutoGreen

- Cloud Station

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- Platform Power Management

- Smart Backup

- Smart Keyboard

- Smart TimeLock

- Smart HUD

- System Information Viewer

- USB Blocker

- V-Tuner

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

cFosSpeed

Operating

System Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 23.0cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit the Support\Utility List page on GIGABYTE's website to download the latest version

of apps.

Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

- 8 -

1-3 Installing the CPU

DualChannelMemoryConguration

This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

Please visit GIGABYTE's website for details on hardware installation.

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

Alignment

Key

Alignment

Key

LGA1151 CPU Socket

Pin One Corner of the CPU Socket

LGA1151 CPU

Triangle Pin One Marking on the CPU

Notch

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

- 9 -

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

Channel A: DDR4_2, DDR4_4

Channel B: DDR4_1, DDR4_3

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory

of the same capacity, brand, speed, and chips be used.

DualChannelMemoryCongurationsTable

DDR4_4 DDR4_2 DDR4_3 DDR4_1

2 Modules - - DS/SS - - DS/SS

DS/SS - - DS/SS - -

4 Modules DS/SS DS/SS DS/SS DS/SS

(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

DVI-I Port

TheDVI-IportconformstotheDVI-Ispecicationandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports DVI-I

connection to this port.

DisplayPort

DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission.

DisplayPort can support both DPCP and HDCP 2.2 content protection mechanisms. It provides improved

visuals supporting Rec. 2020 (Wide Color Gamut) and High Dynamic Range (HDR) for Blu-ray UHD

playback. You can use this port to connect your DisplayPort-supported monitor. Note: The DisplayPort

Technology can support a maximum resolution of 4096x2304@60 Hz but the actual resolutions supported

depend on the monitor being used.

1-6 Back Panel Connectors

•Tosetupatriple-displayconguration,youmustinstallmotherboarddriversintheoperating

systemrst.

•After installing the DisplayPort device, make sure to set the default sound playback device to

DisplayPort. (The item name may differ depending on your operating system.)

- 10 -

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-8S648 Manual de usuario

Gigabyte

Gigabyte GA-2AIEV-RH Manual de usuario

Gigabyte

Gigabyte GA-H67MA-UD2H Manual de usuario

Gigabyte

Gigabyte 686LX4 Manual de usuario

Gigabyte

Gigabyte GA-A75-DS3P Manual de usuario

Gigabyte

Gigabyte GA-G33M-S2H Manual de usuario

Gigabyte

Gigabyte GA-9IVDTH Manual de usuario

Gigabyte

Gigabyte G1.Assassin Manual de usuario

Gigabyte

Gigabyte MZ32-AR1 Manual de usuario

Gigabyte

Gigabyte GA-945PL-S3G Manual de usuario

Gigabyte

Gigabyte GA-H110M-D3H R2 Manual de usuario

Gigabyte

Gigabyte GA-Z68XP-UD4 Manual de usuario

Gigabyte

Gigabyte GA-F2A88XM-HD3P Manual de usuario

Gigabyte

Gigabyte 6LMM7 Manual de usuario

Gigabyte

Gigabyte GA-8I915ME Series Manual de usuario

Gigabyte

Gigabyte MZ31-AR0 Manual de usuario

Gigabyte

Gigabyte X399 AORUS Gaming 7 Manual de usuario

Gigabyte

Gigabyte G1.ASSASSIN 2 Manual de usuario

Gigabyte

Gigabyte GA-7VCSV Manual de usuario

Gigabyte

Gigabyte GA-X99M-Gaming 5 Manual de usuario

Gigabyte

Gigabyte GA-B150M-DS3H Manual de usuario

Gigabyte

Gigabyte H610M GAMING WIFI DDR4 Manual de usuario

Gigabyte

Gigabyte GA-7DX Manual de usuario

Gigabyte

Gigabyte GA-A55M-S2V Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
