Gigabyte H663 Manual de usuario
© Copyright Feb, 2006
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual,
nor any of the material contained herein, may be reproduced without written
consent of Giga-byte Technology Co., Ltd.
The information in this document is subject to change without notice. The
manufacturer makes no representations or warranties with respect to the contents
hereof and specifically disclaims any implied warranties of merchantability or
fitness for any particular purpose. The manufacturer reserves the right to revise
this publication and to make changes from time to time in the content hereof
without obligation of the manufacturer to notify any person of such revision or
changes.
Trademark Recognition
Gigabyte and Giga-byte are trademarks of Giga-byte Technology Co., Ltd.
Microsoft and Windows XP are trademarks of Microsoft Corporation.
All other product names used in this manual are the properties of their respective
owners and are acknowledged.
I
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Changes or modifications not expressly approved by the parties responsible for compliance
could void the user’s authority to operate the equipment.
Important Safety Information
We recommend that you read this section carefully before using the H663 / H663-RH.
These safety and usage instructions will ensure that you enjoy many years safe use of the
H663 / H663-RH. Keep this manual for future reference.

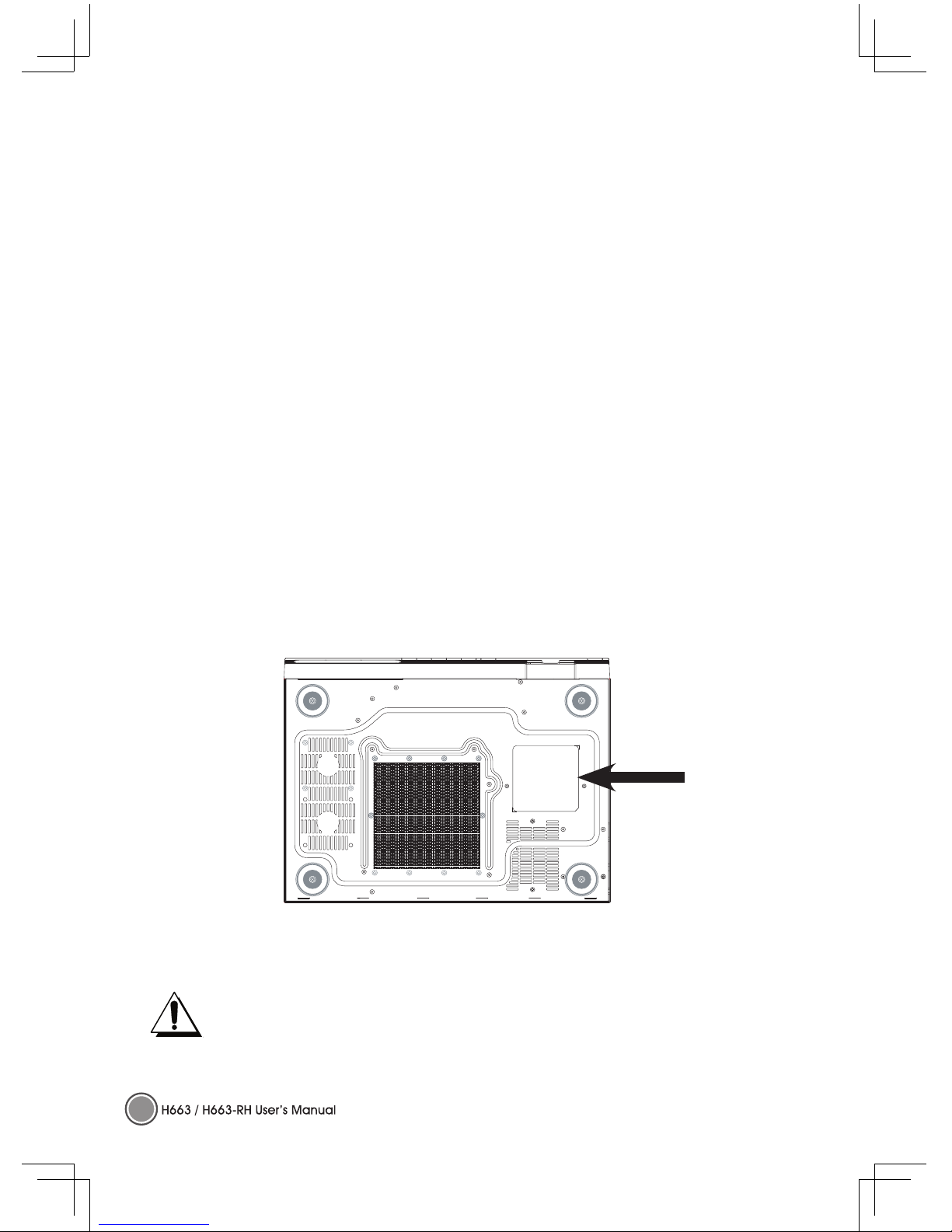

Warning Symbols on the H663 / H663-RH Case
Be sure to read the power rating label on the bottom of the H663 / H663-RH before
operation.
Caution:
Before connecting power to the H663 / H663-RH, make sure the power source is
within the range of AC 100~240V, 50~60 Hz.
Do not attempt to service the H663 / H663-RH yourself. If the unit gets wet or
you think it is damaged, have the unit serviced. Do not open the unit case for any
reason.
RATING
LABEL
II
General Safety Information
• Do not place heavy objects such as books or bags on the unit.
• Avoid placing objects with strong magnets built in too close to the
unit. If you suspect stereo speakers may interfere with the unit, try
moving the speakers away from the unit.
• Avoid using the system in direct sunlight, or near a heating device.
• To prevent the unit from overheating, do not cover the air
ventilation openings on the top, sides, or the rear.
• Do not open the unit case. Do not attempt to service the H663
/ H663-RH yourself. For servicing, contact qualified service
personnel.
• Do not place the unit on an unstable surface, cart, or stand.
• Avoid exposing the H663 / H663-RH to moisture or excessive
humidity.
• Follow all warnings and cautions in this manual and on the unit case.
III
Power Safety
• Only use the supplied power cord.
• Do not place anything on the power cord. Place the power cord where it will not be in the
way of foot traffic.
• Remove the batteries from the remote control when storing or not in use for a prolonged
period.
• Before connecting power to the H663 / H663-RH, make sure the power source is within
the range of AC 100~240V, 50~60 Hz.
HDD Partition:
It is strongly recommend not to partitioning the hard disk.
Manual Styles
The following styles are used in this manual to alert you to important information.
Note Style
Provides additional information on the topic at hand.
Provides information that should not be overlooked.
Alerts you to situations that may damage the unit or cause personal injury.
Provides helpful information on the topic at hand.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
IV
CONTENTS
Chapter One Getting Started
1.1 Packing Checklist .................................................................................. 1
1.2 Features at a Glance ........................................................................... 2
Front View .............................................................................................. 2
Rear View ............................................................................................... 3
1.3 VFD (Vacuum Fluorescent Display) Message .................................... 4
1.4 Remote Control Functions ................................................................... 8
1.5 Inserting the Remote Control Batteries ............................................... 9
1.6 Keyboard Functions .............................................................................. 9
Using the Trackball and Buttons .......................................................... 10
Shortcut Buttons .................................................................................... 10
1.7 Inserting the Keyboard Batteries ......................................................... 10
1.8 Set Up for Keyboard Linkage ............................................................... 11
1.9 Remote Control and Kayboard Operating Range .......................... 11
Chapter Two Connecting Input Devices
2.1 Basic Connections for the H663 / H663-RH ........................................12
Chapter Three Maintenance
3.1 Cleaning the H663 / H663-RH ...............................................................13
3.2 Troubleshooting ......................................................................................13
Appendix A Specifications .........................................................................15
1

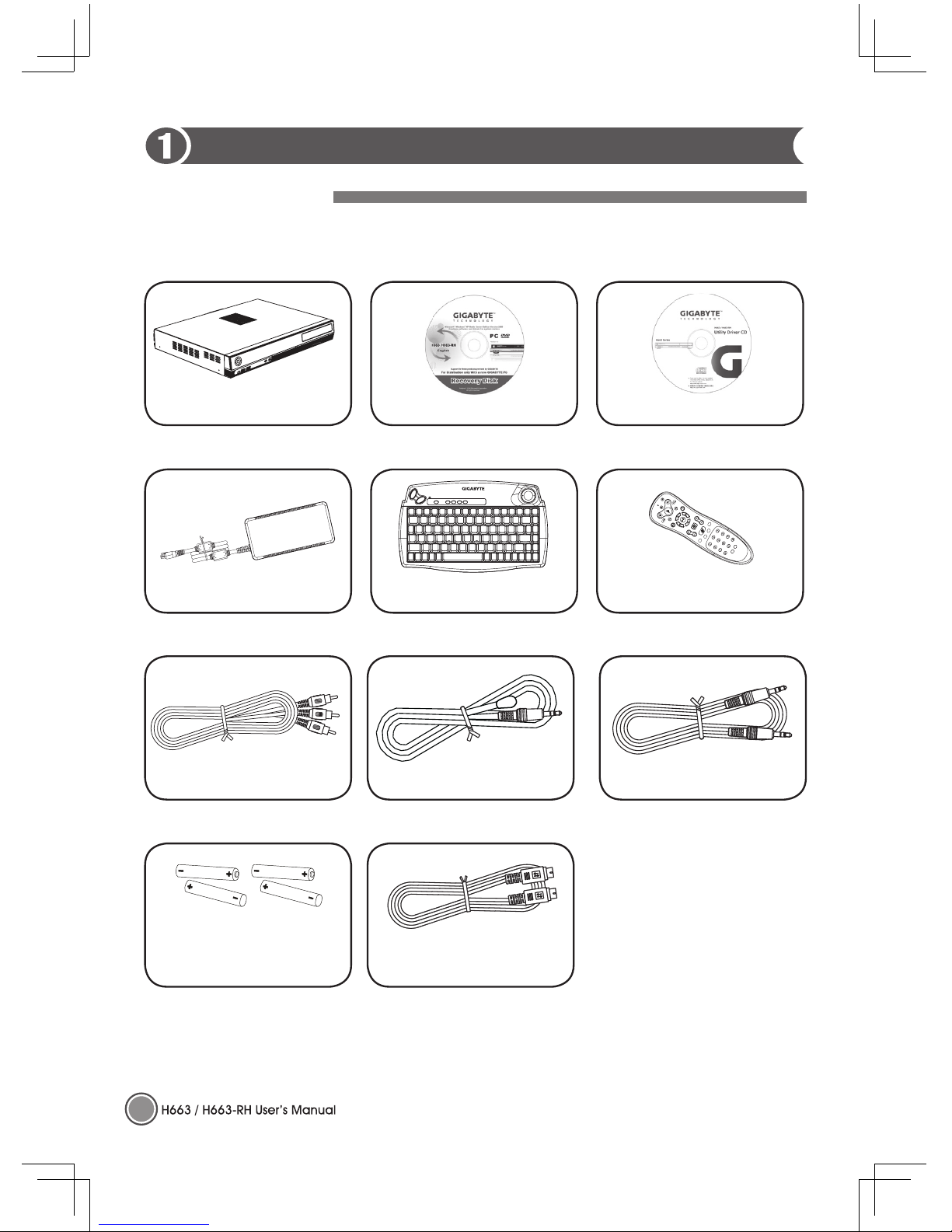

Packing Checklist
Carefully unpack the H663 / H663-RH and check that besides this User Manual the following items
are included:
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not
work.
Getting Started
Two AA for RF keyboard &
two AA for remote controller
(MCE) (Option)
Adapter
3.5 RCA Cable
H663 / H663-RH
RF Keyboard (Option)
Utility Driver CDRecovery CD (Option)
3.5 x 2 Audio Cable
IR Cable for
Set Top Box (Option)
S Cable (RCA Cable)
(4 pin)
Remote Control (Option)
2
►Front View
Item Description
1. Power Button
Press the power button to turn the H663 / H663-RH on. Press
the pwer button again to set H663 / H663-RH in Suspend
mode. Press and hold the power button few seconds to turn
the H663 / H663-RH off.
2. IEEE 1394 (4-pin) Connects IEEE 1394-enabled devices.
3. USB 2.0 Port(s) Two USB ports allows user to connect USB devices such as
external game pads, pointing devices, and keyboard.
4. RF Receiver Switch RF Keyboard learning button.
5. LED Indicator RF Keyboard LED status indicator.
6. IR Window Interfaces with infrared devices ( for MCE RC only).
7. Menu / Exit Button Invoke main menu or exit current screen.
8. Arrow Buttons Navigated in the menu.
9. Enter Button Confirm selected items.
10. Return Button Backward to the previous screen.
11. VFD VFD (Vacuum Fluorescent Display).
See page 4 for more detailed information.
12. Card Reader 6-in-1 card reader.
13. DVD Super Multi DVD-Multi Recoder.
14. DVD Eject Push to enject a disc from the DVD drive.
Features at a Glance
1 2 4 5 7 8 12
314
9 106 11 13
3
►Rear View
Item Description
1. Power Jack Connects the power cord DC Jack here.
2. MIC-In Accepts microphone line-in devices
3. Line-Out Connects to audio line-out devices
(e.g., speakers, headphones, an amplifier).
4. Line-In Accepts audio line-in devices
(e.g., audio CD players).
5. S/PDIF decoder Digital audio output connector.
6. VGA Port (15-pin) Connects to a display device
(e.g., external monitor, LCD projector).
7. USB 2.0 Port(s) Two USB ports allows user to connect USB devices such as
external game pads, pointing devices, and keyboard.
8. IEEE 1394 Port (6-pin) Connects to IEEE 1394 devices.
9. Network Jack Connects to an Ethernet 10/100/1000-based network.
*10. S-Video Port S-Video input.
*11. CATV Cable-TV input.
12. Video Out Connector for video output.
13. DVI-I Port Connects to digital monitor.
14. IR Blaster(s) (Option)
This IR blaster can be taught the remote control codes for any
set-top box and provides control of a wide range of other PC
applications.
* The position of port may be varied by models.
1 2 4 53 6 7 9
8
12
IR BLASTER
1 2
10 11
13 14
4

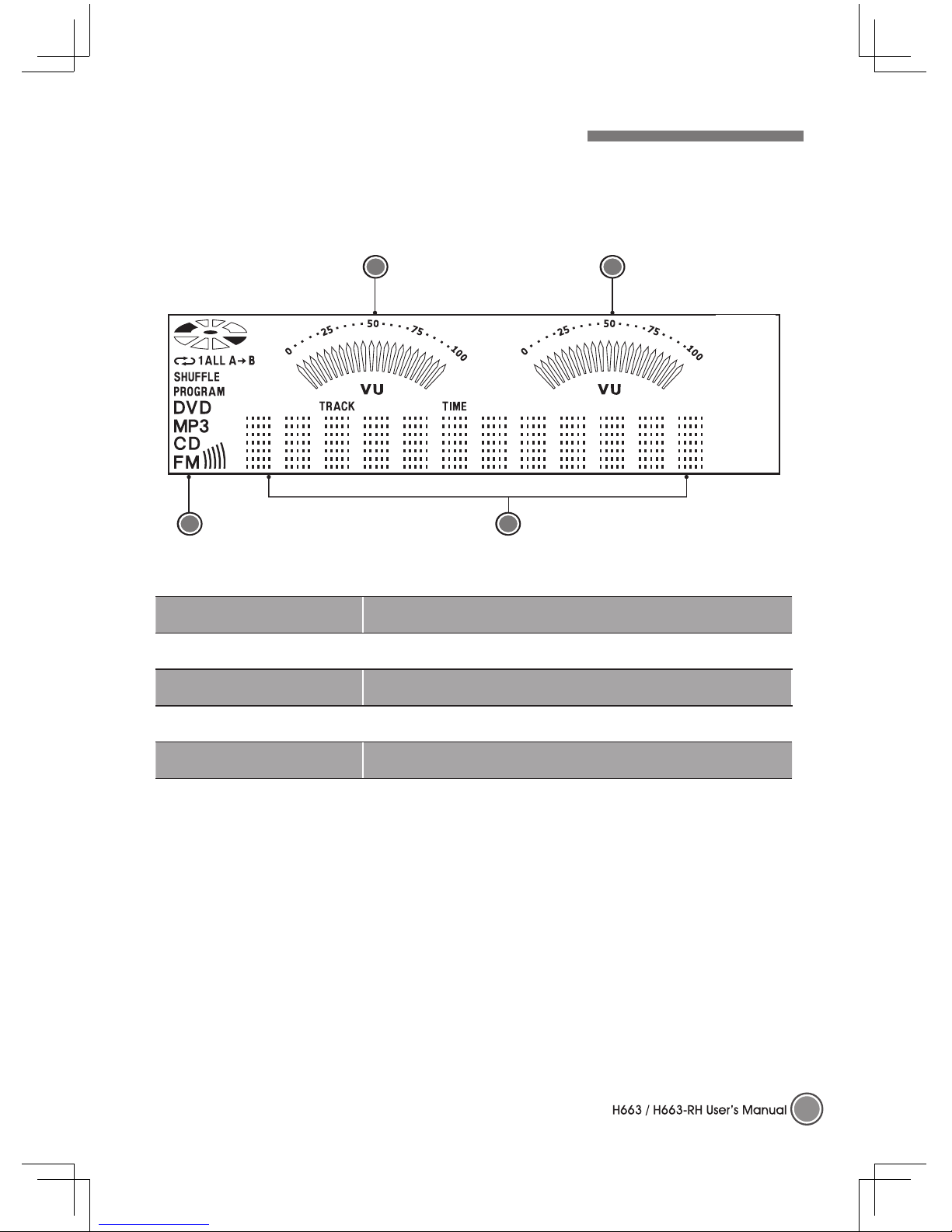

VFD (Vacuum Fluorescent Display) Message
The LED display on the front of the H663 / H663-RH displays status information. As well
as disc
information, the following messages display in the LED display:
Item Description
1. Volume Level Displays the volume level.
2. Volume Level Displays the volume level.
3. Mode Displays the current mode.
4. Status Bar Display time information, media play time, and mode status.
3
2
4
1
5
►Normal Windows Mode (Media Center Applications are not run) / Sleep Mode
Status:
1. The system is turn on in normal Windows mode. Media Center applications are not run.
2. System is sleeping.
Description:
1. Time is shown. The clock control by VFD MCU.
2. Volumes of audio in left and right are shown.
3. Run Disk is stop.
►Start to run Media Center Applications / On Meida Center Home Frame
Status:
1. Press “Start” button to run Media Center applications
and the system is in Media Center Home frame.
2. User can use ▲ and ▼ to choose the wanted multi-
media in MCE.
Description:
1. No display information
shown.
2. Run Disk is stop.
►My Video Mode
Status:
When “My Videos” is selected, the screen is on video frame and stop mode.
Description:
1. “VIDEO” is shown
2. Run Disk is stop till the
media is played.
