TA Series User’s Manual

P. 1

Introduction

Thank you for purchasing TA series. Please read the following instructions carefully to ensure

you can use this product safely.

 Please follow the warning signs and instructions of the product.

 Please disconnect the product from the power source before unloading and cleaning it.

 Do not rub the inside of the product with a wet cloth or expose the product to water in

any case.

 Please turn the power off before connecting or assembling any peripheral.

10/2002

TA Series User’s Manual

P. 2

Warning

Improper battery installation may cause explosion.

Use only the same or equivalent batteries for replacement.

Dispose batteries as instructed by their manufacturers.

■Product features

TA sereies has been equipped with the motherboards developed by Gigabyte Technology to

ensure the best performance under Windows environment.

Rack-mounted case design provides easy assembly and maintenance, and makes system upgrade

a piece of cake!

■Specifications

Product specification

PC case

Gigabyte motherboard GA-TC2000MB

Power supply unit (100~240Vac、60/50Hz、2.0A)

24X Slim CD-ROM or DVD-Rom (Optional)

PCMICA Slot (optional)

2.5-inch Slim HDD (Optional)

Power cord

Keyboard and mouse (Optional and subject to real products at shipment)

Accessories

System Assembly Manual

Driver CD

Ribbon cable

Screws for Slim HDD and Slim CD-ROM

TA Series User’s Manual

P. 3

■System Packing 圖

TA Series User’s Manual

P. 4

1. PC case

■ Overall dimension

With side cover: 70(W)mm x 236(H)mm x 213(D)mm

Without side cover: 64(W)mmx230(H)mmx213(D)mm

Materials of the case has been tested to comply with the UL specification and designed for

space and screw saving purposes. Users simply need to remove one screw from the back to

unload the case cover and access to the inside of the case. Moreover, the case has been

designed with anti EMI function and complies with standard PC safety standards.

TA Series User’s Manual

P. 5

2. System equipment installation

■Unload case

Step 1: Remove the screw from the bottom of the case.

Step 2: Grasp the handle on the panel and pull out the case.

TA Series User’s Manual

P. 6

■Installing hard drive

Step 1: Fix the hard drive on the base with 4 screws and connect the hard drive with the IDE ribbon

cable. (Attention! Install hard drive on top of the screw stands on the base.)

(Attention! Make sure that the red (fool-proof) wire on the ribbon cable should be connected to PIN

1 of the hard drive as shown below.)

Red (fool-proof) wire should be

connected to PIN 1.

Screw stands

TA Series User’s Manual

P. 7

Step 2: Fix the hard drive with its rack on the four posts and connect the ribbon cable to the IDE

connector (J1).

TA Series User’s Manual

P. 8

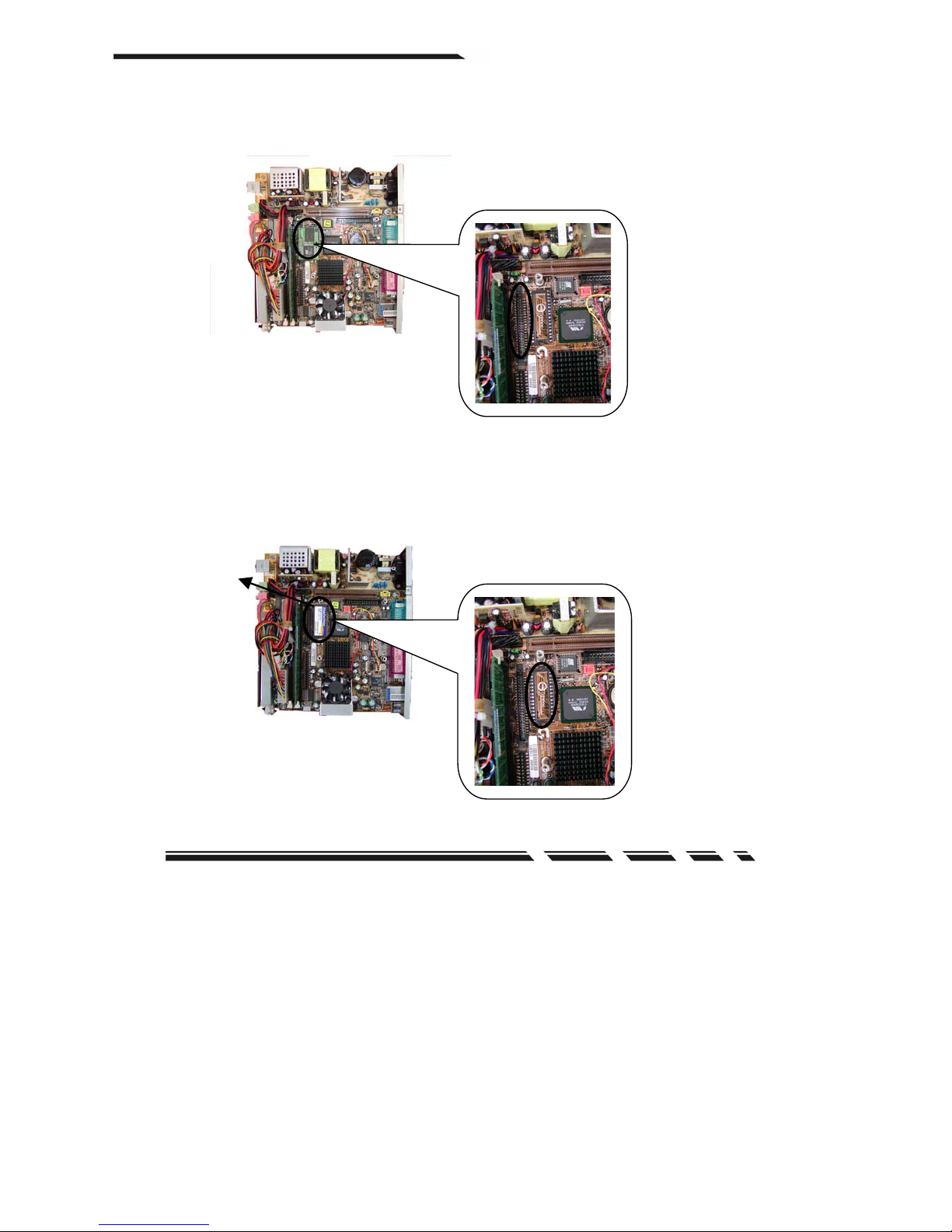

■Installing DOM (DISK On Module)

Step 1: Install DOM on the DOM slot (J1).

Attention!Make sure that DOM and HDD cannot be used at the same time.

■Installing DOC (Disk On Chip)

Step 1: Install DOC on the DOC slot (U12)

Attention! Use 3.3V DOC.

Pin1

TA Series User’s Manual

P. 9

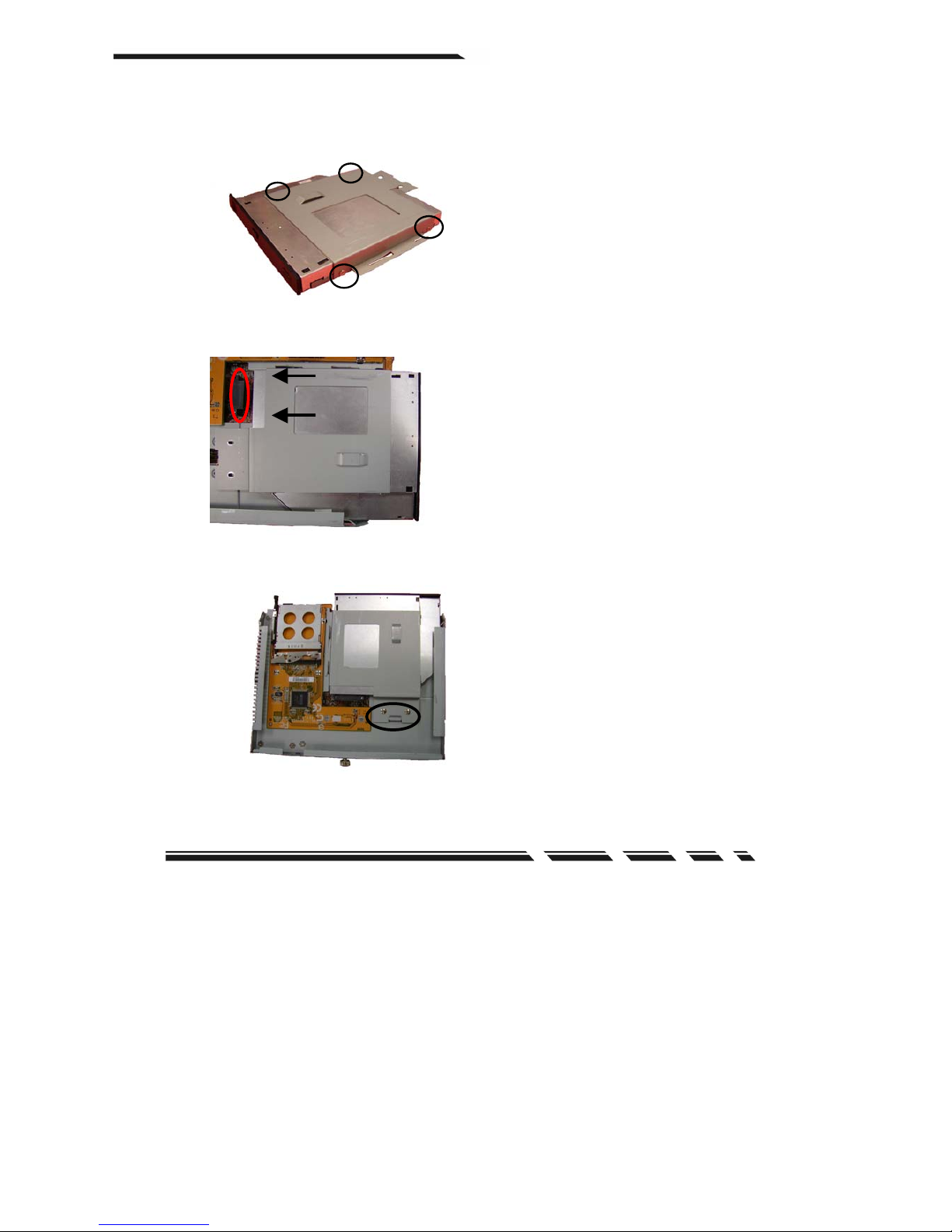

■Installing CD-ROM

Step 1: Fix the slim CD-ROM on the base with 4 screws (2 on each side).

Step 2: Slide slim CD-ROM and the base to the rack (J4).

Step 3: Fix the CD-ROM and the base on the rack with 2 screws.

TA Series User’s Manual

P. 10

■Installing PCMCIA

Step 1: Fix PCMCIA card next to the Slim CD-ROM with 2 screws.

Step 2: Unload the hard drive from another side of the PC. Then fix the PCMCIA card on the bolts

between the 4 posts on which the hard drive is fixed.
