GFA TS 971 Manual de usuario
Installation instructions
Door control
TS 971
Automatic control panel with radio
Version: 51171521
-en-
Version: i / 04.2019
0000000 0000 51171521 XXXXX
2
GfA ELEKTROMATEN GmbH & Co. KG
Wiesenstraße 81 • 40549 Düsseldorf
www.gfa-elektromaten.de
3
Contents
1General safety information .............................................................................................. 6
2Technical data ................................................................................................................ 7
3Mechanical installation .................................................................................................... 8
4Electrical installation ....................................................................................................... 9
Connection cable connection overview ........................................................................... 10
Limit switch configuration, screwable version up to year of construction in 1997 ............ 11
Limit switch configuration, single limit switches ............................................................... 11
Carrying out the electrical installation.............................................................................. 12
Mains supply ................................................................................................................... 13
Mains supply to control ................................................................................................... 13
Completing the electrical installation ............................................................................... 13
Overview of control ......................................................................................................... 14
5Starting up the control ................................................................................................... 15
DES: Rapid adjustment of final limit positions ................................................................. 15
NES: Rapid adjustment of final limit positions ................................................................. 16
6Advanced electrical installation ..................................................................................... 17
Connection of spiral cable / Light curtain X2 ................................................................... 17
Door safety switch / Crash switch X2 .............................................................................. 18
External supply X1 .......................................................................................................... 18
Emergency stop X3 ......................................................................................................... 18
Automatic closing, On/Off X4 .......................................................................................... 18
External Control device X5 .............................................................................................. 19
Photo cell X6 ................................................................................................................... 19
Light curtain X6 ............................................................................................................... 19
Radio receiver X7 ........................................................................................................... 20
Pull switch X7 .................................................................................................................. 20
Intermediate open X8 ...................................................................................................... 20
Red/green traffic lights X20 / X21 ................................................................................... 20
Magnetic brake X20 / X21 ............................................................................................... 20
WSD door-module (Wireless Safety Device) .................................................................. 21
Electrical safety edge 8K2 to WSD door-module ............................................................ 21
Optical safety edge OSE System 1 to WSD door-module ............................................... 21
Optical safety edge OSE System 2 to WSD door-module ............................................... 22
4
Door safety switch on "WSD" door module ..................................................................... 22
Teach-in of WSD door-module ........................................................................................ 23
Completing the advanced electrical installation ............................................................... 23
7Control programming .................................................................................................... 24
8Table menu items .......................................................................................................... 25
Door operating modes ..................................................................................................... 25
Door positions ................................................................................................................. 26
Door functions, ................................................................................................................ 27
Safety functions ............................................................................................................... 31
DI/FI settings ................................................................................................................... 32
Extended door functions .................................................................................................. 33
Maintenance cycle counter .............................................................................................. 34
Readout of Data memory ................................................................................................ 35
Deleting / readout ............................................................................................................ 35
Reading out WSD door-module data ............................................................................... 36
9Safety devices ............................................................................................................... 37
X2: Input, door safety switch function .............................................................................. 37
X2: Input for safety devices ............................................................................................. 39
Installation of the spiral cable .......................................................................................... 40
Integrated WSD door-module .......................................................................................... 43
EMERGENCY operation ................................................................................................. 45
X3: Input, emergency stop .............................................................................................. 45
10 Functional description ................................................................................................... 46
X: 24 VDC voltage supply ............................................................................................... 46
X1: Mains supply of the control and supply of external devices ...................................... 46
X4: Input, automatic closing Off/On ................................................................................. 47
X5: Input, control device .................................................................................................. 47
X6: Input "Through / reflective photo cell" resp. light curtain ........................................... 48
X7: Input pull switch/radio receiver .................................................................................. 51
Internal radio receiver ...................................................................................................... 52
Teach-in of radio transmitter ........................................................................................... 52
Deleting an individual radio transmitter ........................................................................... 53
Deleting all radio transmitters .......................................................................................... 53
X8: Input, intermediate stop On/Off ................................................................................. 54
5
X20 / X21: Potential-free relay contacts .......................................................................... 55
Force monitoring (DES only) ........................................................................................... 55
Travel time monitoring (NES only) .................................................................................. 56
UBS system .................................................................................................................... 57
UBS connection .............................................................................................................. 57
Reversing duration adjustment ....................................................................................... 57
Maintenance cycle counter ............................................................................................. 58
Short-circuit/overload display .......................................................................................... 58
Display for active WSD door-module wireles safety device ............................................ 58
Standby function ............................................................................................................. 5 8
Illumination of the built in push button of the door control ............................................... 58
11 Status display ............................................................................................................... 5 9
Faults .............................................................................................................................. 59
Commands ...................................................................................................................... 64
Status indications ............................................................................................................ 65
12 Explanation of symbols ................................................................................................. 66
13 Declaration of incorporation / Declaration of conformity ................................................. 68
Symbols
Warning - Risk of injury or danger to life!
Warning - Danger to life from electrical current!
Note - Important information!
▶ Prompt - Required action!
Illustrations show example products. Differences from the delivered product are possible.
6
1 General safety information
Specified use
The door control is intended for a power-operated door with a drive unit (NES/DES GfA limit
switch system).
The safe operation is only guaranteed with specified normal use. The drive unit is to be
protected from rain, moisture and aggressive ambient conditions. No liability for damage
caused by other applications or non-observance of the information in the manual.
Modifications are only permitted with the agreement of the manufacturer. Otherwise the
Manufacturer’s Declaration shall be rendered null and void.
Safety information
Warning ! Failure to follow these installation instructions may result in severe injury
or death.
Please read these instructions before using the product
Keep these instructions handy
Please include these instructions when you pass on the product
Installation and commissioning are to be performed by skilled personnel only.
Only trained electrical craftsmen are permitted to work on electrical equipment. They must
assess the tasks assigned to them, recognise potential danger zones and be able to take
appropriate safety measures.
Installation work is only to be carried out with the supply off.
Observe the applicable regulations and standards.
Coverings and protective devices
Only operate with corresponding coverings and protective devices.
Ensure that gaskets are fitted correctly and that cable glands are correctly tightened.
Spare parts
Only use original spare parts.
7
2 Technical data
Series TS 971
Dimensions W x H x D 155 mm x 386 mm x 90 mm
Installation Vertical, free of vibration
Operating frequency 50 Hz / 60 Hz
Supply voltage (+/- 10%)
1 N~220-230 V, PE
3 N~220-400 V, PE
3~220-400 V, PE
Output power for drive unit, maximum 3 kW
Protection per phase, on-site 10 A …… 16 A
External mains supply:
Internal electronic protection
24 V DC
0.35 A
External mains supply: X1/L, X1/N
Protection via F1 micro-fuse
1 N~230 V
1.6 A time-lag
Control inputs 24 V DC, type. 10 mA
Relay contacts 2 potential-free changeover contacts
Loading of relay contacts,
ohmic/inductive
230 V AC, 1 A
24 V DC, 0,4 A
Control power consumption 18 W
Temperature range Operation
Storage
-10 °C …… +50 °C
+0 °C ….... +50 °C
Air humidity, non-condensing up to 93 %
Protection class of housing with CEE-plug IP 54 / IP 65
Protection class of housing IP 65
Compatible GfA - limit switch NES (mechanical limit switch)
DES (digital limit switch)
Integrated radio receiver WSD
Radio
2.4 GHz
434 MHz
8
3 Mechanical installation
Control installation!
Indoor use only
Mounting only on even ground that is free of vibration
Only vertical mounting position allowed
Door must be in clear view from place of installation
Requirements
The permissible loads on walls, mountings, connection and transmission elements must not
be exceeded.
Mounting
The control is mounted via 4 elongated holes
9
4 Electrical installation
Warning - Danger to life due to electrical current!
Disconnect the cables (mains OFF) and check that the supply is off
Observe the applicable regulations and standards
Ensure proper electrical connection
Use suitable tools
On-site backup fuse and mains disconnector!
Only use all current sensitive earth leakage circuit breakers type B for FI-drive
units
Connection to the indoor installation via an all-pole disconnector unit, with current
≥ 10 A as per EN 12453 (e.g. CEE plug connector, main switch)
Note!
Connect this door control only to drive units that have a digital limit switch (DES)
with proof of performance level c (PLc)
Observe the installation instructions of the drive unit!
10

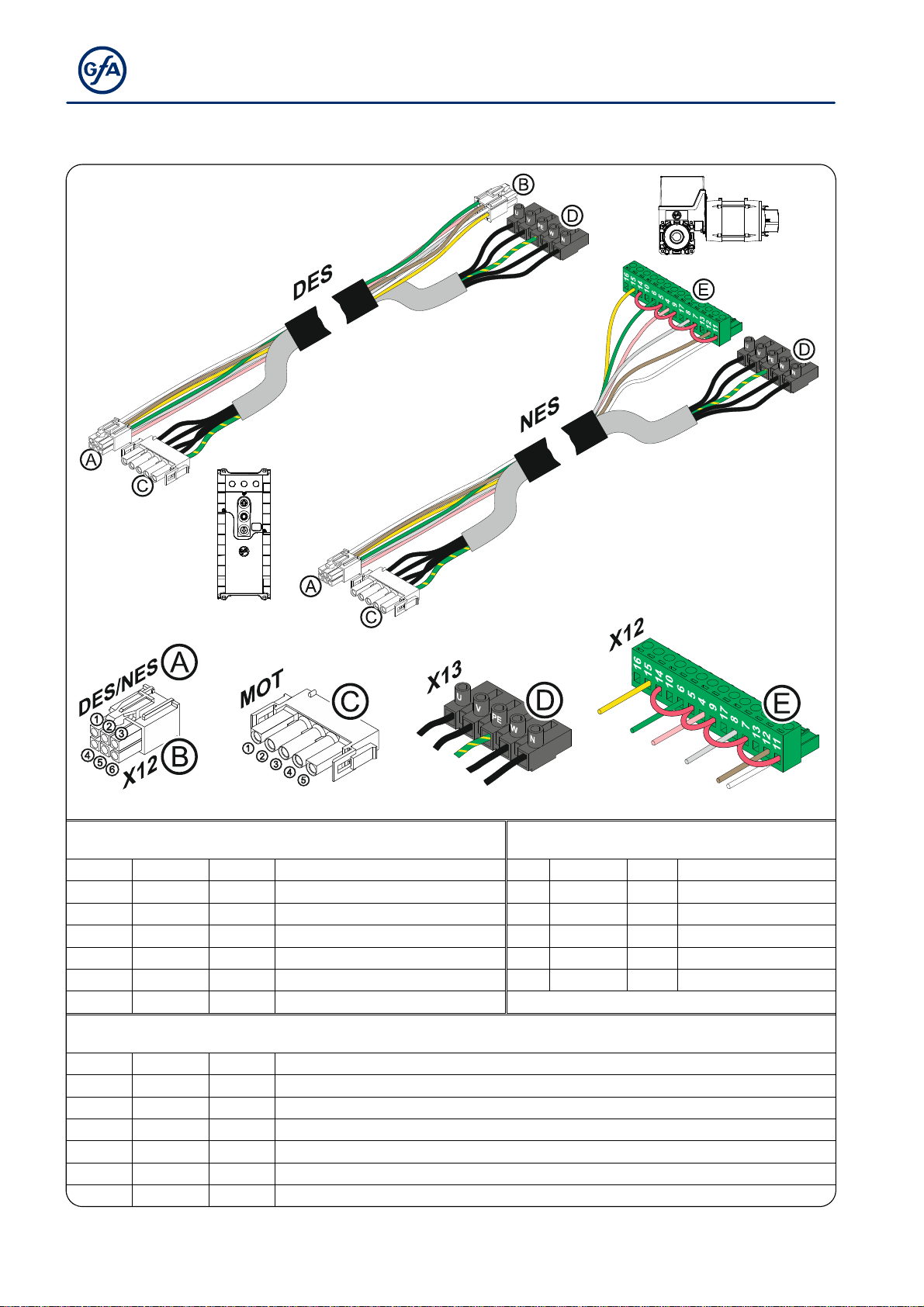

Connection cable connection overview
Ⓐ DES → Ⓑ X12 DES Ⓒ MOT → Ⓓ X13
Pin Core Pin Description: Pin Core Term. Description:
① 5/wh ① +24 V safety circuit ① 3 W Phase W
② 6/bn ② Channel B (RS485) ② 2 V Phase
V
③ 7/gn ③ Ground ③ 1 U Phase U
④ 8/ye ④ Channel A (RS485) ④ 4 N Neutral conductor (N)
⑤ 9/gy ⑤ Safety circuit ⑤ PE PE
⑥ 10/pk ⑥ 8 V DC supply voltage
Ⓐ NES → Ⓔ X12 NES
Pin Core Term. Description:
① 5/wh 11 Limit switch common +24 V, wire link to: 7, 9, 5, 14
② 6/bn 12 S5 Auxiliary limit switch
③ 7/gn 6 S3 Open limit switch
④ 8/ye 15 S6 Auxiliary limit switch
⑤ 9/gy 8 S4 CLOSE limit switch
⑥ 10
/
pk 4 Safety circuit
