Getac X500 Manual de usuario

3

. Notes and Precautions



You must connect the AC adapter for full I/O functionality.



DO NOT touch the connectors of the office dock.



DO NOT attempt to make connections if there is any object between

the computer and the office dock. Doing so could damage the

computer and the office dock.



DO NOT attempt to move the office dock when it is connected to the

computer.



If the computer malfunctions while the office dock is connected, turn

off the computer and disconnect the office dock. Connect the AC

adapter to the computer and check to see if the computer operates

normally. If the computer operates normally, the office dock may be

malfunctioning.



DO NOT place metal objects or containers of liquid on top of the office

dock. If metal objects (such as paper clips and coins) or any liquid spills

get inside the office dock, fire or electric shock may result. Immediately

unplug the power cable and remove the computer from the office

dock.



Unplug the power cord and remove the computer from the office dock

if any of the following occurs:

– the office dock is damaged

– smoke is emitted

– an unusual smell is emitted

– the office dock is unusually hot

Continuing to use the office dock while any of the above conditions

are present may result in fire or electric shock.

Rugged Mobile Computing Solutions

X500

OFFICE DOCK

QUICK START GUIDE

561512850002 R00

1

. Introduction

The office dock duplicates most of your computer’s ports.

With peripherals such as a keyboard, mouse, monitor, and printer all

connected to the office dock, you have a handy work area on your desk.

2

. Installation

1. Disconnect all cables from your X500 and turn off the power.

2. Slide and open the docking connector cover on the bottom of X500.

3. Align X500 with the corner brackets and guide pins on the office dock

and put down X500 on the dock.

4. Connect the peripherals’ cables to the corresponding connectors on

the office dock.

5. Connect the AC adapter to the office dock.

See reverse side for notes and precautions.

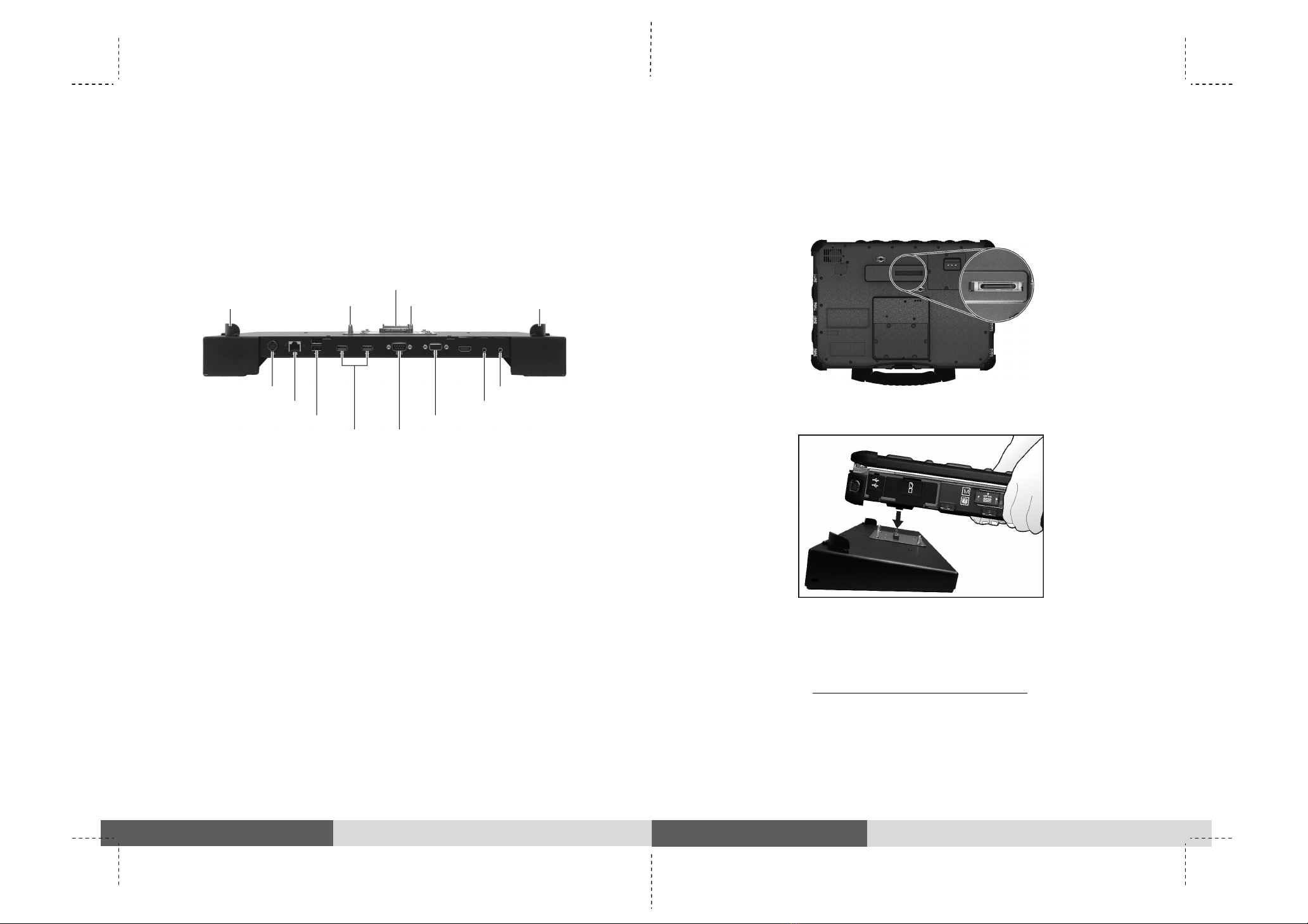

Power connector

Audio output connector

Microphone connector

RS232 serial port

Docking connector

Guide pin

RJ45 LAN1 connector

USB 3.0 port x 2

VGA connector

Guide pin Corner

bracket

Corner

bracket

USB 2.0 port x 2
