German pool GPN Manual de usuario

Shower Unit Electric Storage Water Heater

花灑儲水式電熱水器

GPN/GPNB

在使用之前請詳細閱讀「使用說明書」及「保用條例」

，並妥為保存。

Please read these instructions and warranty information carefully

before use and keep them handy for future reference.

GPN GPNB

型號 Model No.:

機身號碼 Serial No.:

購買商號 Purchase From:

發票號碼 Invoice No.:

購買日期 Purchase Date:

以下資料供貴戶維修時作核對之用，請妥善保存本保用證明書及產品發票正本。

The following information is required when you call in for repair services. Please save this

warranty handbook and the original purchase invoice for future reference.

貴戶須在購買本產品十天內，以下列其中

一種方式向本公司登記資料，保用手續方

正式生效﹕

1) 填妥本公司網頁內之保用登記表格

www.germanpool.com/warranty。

2) 填妥保用登記卡，連同發票副本一併郵

寄到客戶服務部 (本公司將不發還發票

副本或登記卡)。

This warranty is not valid until Customer’s

registration information is returned to and

received by our Service Centre within 10 days

of purchase via one of the following methods:

1) Visit our website and register online:

www.germanpool.com/warranty.

2) CompletealleldsontheattachedWarranty

Card and mail it back to our Customer Service

Centre along with a photocopy of the purchase

 invoice(WarrantyCardandinvoicecopywill

not be returned to Customer).

目錄 Table of Contents

產品特點 Features 04

配件裝置選擇 Component Options 05

安裝說明 Installation Instructions 06

電路圖 Wiring Diagram 08

使用說明 Operating Instructions 09

產品規格 Specications 10

保用條款 Warranty Terms & Conditions 11

不銹鋼內膽

Stainless Steel

Inner Tank

頂級耐腐蝕日本特殊不銹鋼內膽，採用氬弧轆焊技術，確保防銹、耐

壓，不受水質侵蝕。

Ultra-durable Japanese heavy gauge stainless steel inner tank is assembled

by TIG welding technology. It ensures an operation entirely free of rust,

corrosion, leakage and deformity.

保溫設計

Thermal Insulation

完密噴注式保溫層，使用先進合成樹脂纖維材料，保持熱水溫度，同

時將失溫程度減至最低，大大節省電能。

Optimal heat insulation is achieved by injected polyurethane foam.

發熱管

Heating Element

德國高質發熱管，發揮最高導熱效能，並內置超溫斷路器，確保安全。

German quality heating element with built-in thermal cut-out ensures maximum

thermalefciencyandsafety.

溫度調節器

Thermostat

溫度調節器自動恒溫，保持水溫在預調溫度，節省能源，並配合個人

使用熱水的習慣。

Thermostat provides automatic temperature control at preset temperature to

accommodate individual bathing habits and save energy.

外殼

Exterior Casing

採用堅固防侵蝕金屬片，原裝多層焗油。

Constructedofcorrosion-proofmetalwithmulti-layernishing.

符合規格

Conformity

機電工程署電氣產品(安全)規例。

Electrical Products (Safety) Regulations, Hong Kong.

認證標準

Certications

IEC 60335-2-21

IEC 60335-1

P.4

GPN及GPNB電熱水器配備原廠低壓式混合水龍

頭及花灑配件，適合於單點使用。

產品特點 Features

GPN and GPNB are a non-pressure water heaters

designed for single-point application.

警告 Warning

若用戶需要安裝任何非隨機配件，必須先與

本公司認可之技術人員聯絡，否則本公司將

有權拒絕提供任何保養服務。

Each unit is equipped with a standard open-outlet

mixer and a shower set. Please install water heater

in accordance to the instructions stated on this

booklet. German Pool will NOT provide warranty

service on any product installed with unauthorized

components or devices.

P.5

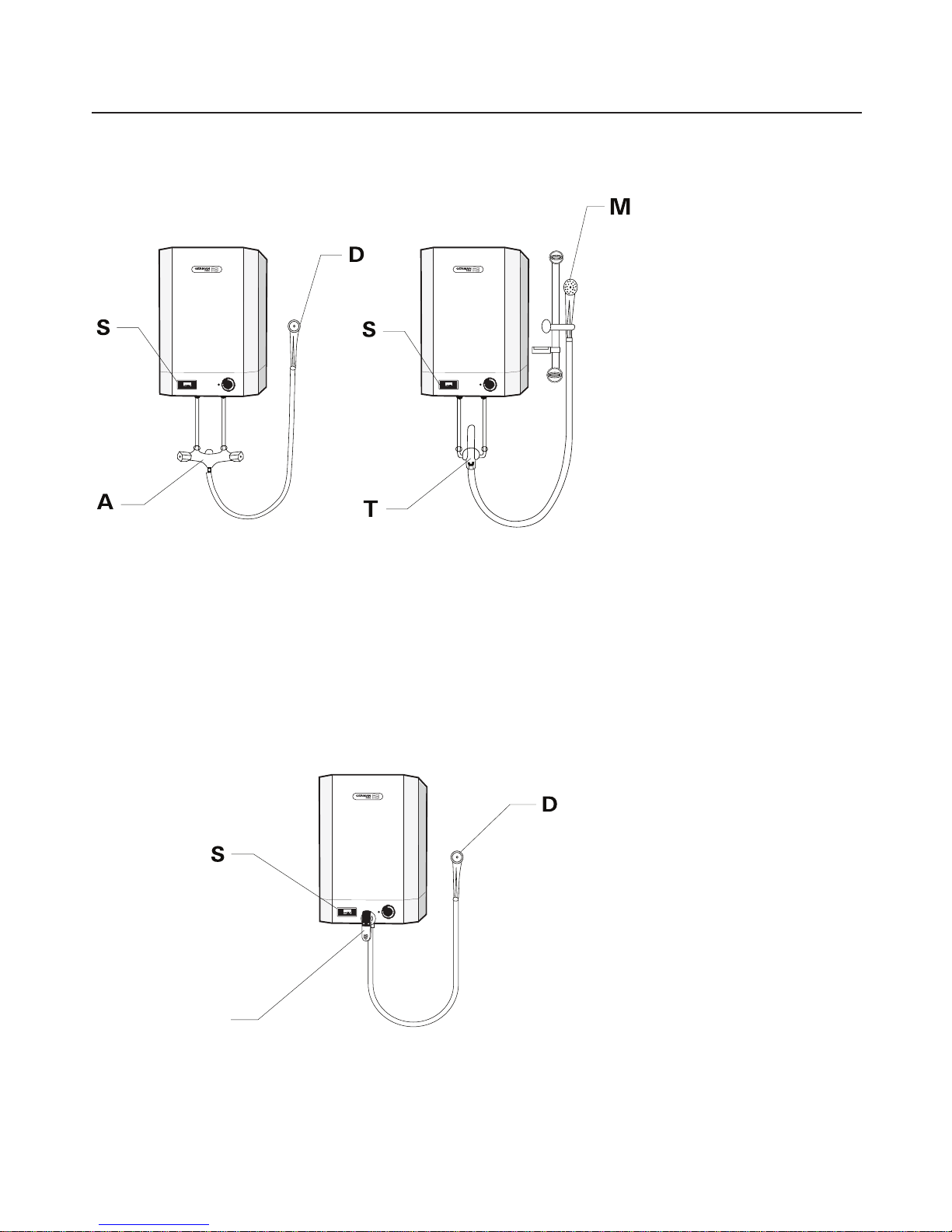

配件裝置選擇 Component Options

雙旋扭式混合龍頭

Dual Knob Mixer

插座式花灑頭

Plug-In Type Shower Head

溫度顯示器

Thermometer

直柱式花灑頭

Slide Bar Type Shower Head

單控式混合龍頭

Single Lever Mixer

搖擺式出水口 - 只適用於

2加侖型號 (上圖沒有展示)

Swivel Outlet – for 2 gallon

models only (not shown above)

內置單控式混合龍頭

Built-in Single Lever Mixer

溫度顯示器

Thermometer

插座式花灑頭

Plug-In Type Shower Head

A :

D :

S :

T :

L :

B :

S :

D :

GPN

GPNB

配件裝置選擇

Component Options

標準配件裝置

Standard Components

P.6

Pre-Installation Notice

Installation should be done by a licensed technician

using the supplied parts. German Pool is not

responsible for any defect or damage caused by

incorrect or unauthorized installation.

Positioning

Position water heater near water tap / point of use

in order to minimize heat loss. For wall-mount style,

appropriate anchor screws must be used and wall

should be strong enough to withstand the weight

of water heater. Keep a minimal distance between

wall and water heater.

Connecting Inlet and Outlet Pipes

The diameter of piping is ½” BSP. Make sure there

is no leaking at the joints. Turn on hot water tap

tolluptheinnertankuntilwaterowsfromthe

shower head. Turn off hot water.

Electric Wiring

Use an independent wire (refer to table below)

leading from the meter box and connect it to an

independent on/off switch outside bathroom.

Extend the wire through the grey wire grip on the

water heater. Dismount the bottom plate and wire

up Neutral (N), Life (L) and Earth ( ) terminals.

安裝前注意

安裝必須使用原廠配件。若不按指示方法安

裝及使用而引致任何損壞，本公司概不負責。

安裝工作應由專業持牌水電技術人員負責。

掛牆定位

先將熱水器背板以膨脹螺絲安裝於承重的牆壁

上，然後將熱水器背部凹孔扣在背板上，並調

整至緊貼牆壁及保持垂直為佳。花灑頭插座以

膨脹螺絲安裝於適當位置上。

水喉接駁

水喉管件直徑為½”英吋，接駁妥當後應試看

接駁位置有否漏水，妥當後即可將有紅點之熱

水掣打開注水，直至花灑頭噴水即表示內膽經

已注滿，並可將熱水掣關好。

接電方法

由電箱獨立伸延一條適合之電線(見下表)至浴室

門外接駁獨立開關掣，再將電線伸延至熱水器

穿進灰色線夾接到電線排上分別接上水線(N)，

火線(L)，及地線( )等。

安裝說明 Installation Instructions

發熱線功率 (千瓦)

HeatingElementRating(kW)

所需電源(安培)

Electric Current (A)

電源線最低要求(平方毫米)

Wiring(mm²)

1.5kW 8 A (單相1PE) 1.5mm²

2kW 10 A (單相1PE) 2.5mm²

3kW 15 A (單相1PE) 2.5mm²

4kW 20 A (單相1PE) 4.0mm²

發熱線功率 (千瓦)

HeatingElementRating(kW)

所需電源(安培)

Electric Current (A)

電源線最低要求(平方毫米)

Wiring(mm²)

2kW 10 A (單相1PE) 1.2mm²

3kW 15 A (單相1PE) 2.5mm²

4kW 20 A (單相1PE) 4.0mm²

GPN

GPNB

P.7

安裝說明 Installation Instructions

電源開關掣

設於熱水器外用以切斷電源供應之開關掣，應全

極切斷電源，兩極之間應保持最少3mm距離。

於浴室內安裝本電熱水器時必須遵照IEE之有關

電線安裝條例規格接駁。電源開關應採用有顯示

燈類型，當用戶需要作任何內膽清洗或維修，必

先切斷電源。

測試使用

水喉與電源接駁妥當及內膽注滿水後，便可進

行通電。此時指示燈會亮著，用戶便可將自動

恆溫旋鈕調校至最高度數。當溫度達到85℃

時，恆溫器即會自動停止加熱。選擇適當溫度

後不應以恆溫旋鈕當作開關掣使用，因此舉會

縮減該配件之使用壽命。

Power Switch

The external switch is used to completely disconnect

water heater from power supply. It should disconnect

all poles, and a contact separation of at least 3 mm

must be present.

IEE wiring regulations should be observed when the

water heater is installed in the bathroom.

Testing

Once the piping and wiring are connected and

inner tank has been filled up with water, switch

on the power. The indicator light will be lit. Turn

control knob to the desired temperature (Max.

temperature is 85°C). Do not use the control

knob as an on/off switch.

安裝圖 Installation Diagram

熱水器

WaterHeater

混合水掣

Mixing Valve

GPNB

安裝說明 Installation Instructions

P.8

220 伏特 A.C. -單相

220 Volt A.C. - Single Phase

恆溫器

Thermostat

保險絲

Fuse

顯示燈

Light 發熱線

Heating Element

電路圖 Wiring Diagram

GPN 及GPNB

P.9

停水期間

停水時不應將熱水器內之存水用盡，否則會導

致發熱線損壞。恢復供水後，應先扭開熱水掣

直至有水從花灑流出。待內膽注滿水後，用戶

便可重新開啟電源。

水質問題

若來水水源為河水、井水、地下水或礦物質含

量較高，用戶必需經常定期清洗發熱線以確保

發熱線正常運作及發揮最佳製熱效能。

花灑頭滴水

因冷縮熱脹原理，熱水器內膽當達到高溫時便

會有少量水在花灑頭流出。

出水位

出水位乃本熱水器之排氣管，除德國寶指定之

花灑配件外，不得接駁任何其他水喉配件或

裝置。

Water Shortage

During water shortage, do not drain water from

inner tank. The heating element would be damaged

ifitisnotsubmergedunderwater.Whenwater

supply resumes, turn on hot water tap and let water

owsthroughtheshowerheadbeforeswitchingon

the power.

Source of Water Supply

If the water source is a river, a well, underground

water or has relatively high mineral content, user

must clean the heating element regularly to ensure

itwilloperateatoptimumthermalefciency.

Dripping

Due to thermal expansion, small amount of water

may drip off from the shower head when the inner

tank temperature is very high.

Outlet

The outlet of the water heater is supposed to act

as a vent and should not be connected to any

unauthorized piping attachment or device.

使用說明 Operating Instructions

警告

1. 必須嚴密看管兒童，防止他們接觸及把玩

熱水器，以免燙傷、觸電或受傷。

2. 嚴禁兒童及殘疾人士在無監護人看管的情

況下單獨使用熱水器，他們應在成人指導

下使用本產品。

3. 若設置溫度超過50°C，會有燙傷危險，所

以必須混合冷水後才使用。

4. 電源進線段應加裝漏電保護裝置，漏電保

護裝置的額定動作電流應不大於30mA。

Warning

1. Do not allow children to touch or play with the

water heater. Supervision is required during

use, in order to prevent the danger of a scald,

electrical shock or any other injuries.

2. This water heater is not intended to be operated

by children or disabled persons alone. They must

be supervised by adults responsible for their safety.

3.Ifthetemperatureissetabove50˚C,coldwater

must be mixed in to prevent the danger of a scald.

4. An electric-leakage protection device must be

installed to the power inlet. The electric current

of this protection device should be below 30mA.

! !

P.10

產品規格 Specications

GPN-2 GPN-4 GPN-6 GPNB-5 GPNB-5C

電壓

Voltage

220 V 220 V 220 V 220 V 220 V

功率

Power

2/3kW 2/3/4kW 2/3/4kW 2/3/4kW 2/3/4kW

尺寸

Dimensions

(mm)

(H) 425

(W)290

(D) 200

(H) 470

(W)330

(D) 241

(H) 650

(W)330

(D) 241

(H) 560

(W)330

(D) 250

(H) 560

(W)330

(D) 250

容量

Capacity

2 gal / 7.6 L 4 gal / 15 L 6 gal / 23 L 5 gal / 18 L 5 gal / 18 L

淨重

NetWeight

7.1 kg 10 kg 12.6 kg 11.1 kg 11 kg

防水等級

Water

Resistance

IPX4 IPX4 IPX4 IPX4 IPX4

測試水壓

Testing Pressure

5 Bar / 0.5 MPa 5 Bar / 0.5 MPa 5 Bar / 0.5 MPa 5 Bar / 0.5 MPa 5 Bar / 0.5 MPa

Otros manuales para GPN

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Calentador de agua de German pool

German pool

German pool GPNB Series Manual de usuario

German pool

German pool DB Manual de usuario

German pool

German pool GPI-M6 Manual de usuario

German pool

German pool GPN Manual de usuario

German pool

German pool GPUB-6SSL Manual de usuario

German pool

German pool DBX Manual de usuario

German pool

German pool GPU Manual de usuario

German pool

German pool GPU Series Manual de usuario

German pool

German pool GPI-M8 Manual de usuario

German pool

German pool cex9 Manual de usuario

German pool

German pool GPU-3.5 Manual de usuario

German pool

German pool GPI-M5 Manual de usuario

German pool

German pool GPS212-LG-U Manual de usuario

German pool

German pool GPS12 Manual de usuario

German pool

German pool CRH9 Manual de usuario

German pool

German pool GPU Series Manual de usuario

German pool

German pool GPN Series Manual de usuario

German pool

German pool DCX Manual de usuario

German pool

German pool GPI-M6 Manual de usuario

German pool

German pool GPU-6SSM Manual de usuario

German pool

German pool GPN Series Manual de usuario

German pool

German pool GPI-M5 Manual de usuario

German pool

German pool DEX12 Manual de usuario

German pool

German pool CEX21 ELECTRONIC MPS Manual de usuario

Manuales populares de Calentador de agua de otras marcas

Kenmore

Kenmore 153.582400 Manual de usuario

Applimo

Applimo Edel AIR Manual de usuario

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manual de usuario

clage

clage E-Mini Series Manual de usuario

Toyotomi

Toyotomi Oil Miser OM-180 Manual de usuario

Bradford White

Bradford White EF Series Manual de usuario

Eccotemp

Eccotemp 40-H Manual de usuario

Dimplex

Dimplex ECSd125-580 Guía

Dux

Dux 32FCR6N Manual de usuario

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guía de solución de problemas

Noritz

Noritz N-132M Manual de instrucciones

TESY

TESY GCV7/4S 10047 Hoja de especificaciones

A.O. Smith

A.O. Smith Gphe 50 Manual de usuario

Koryo

Koryo KWHZF15Y Manual de usuario

Pentair

Pentair PSC-14-4-02 Manual de usuario

GE 40M06AAG Instrucciones de montaje

Thermor

Thermor AEROMAX SPLIT 2 Manual de usuario

American Hometec

American Hometec AHQ-B03X Manual de usuario
