煙導式抽油煙機

Chimney Type Range Hood

在使用之前請詳細閱讀「使用說明書」及「保用條例」

，並妥為保存。

Please read these instructions and warranty information carefully

before use and keep them handy for future reference.

P6356 / P7356 / P8356 / P9356 /

P6457 / P7457 / P8457 / P9457 /

P6482 / P7482

P.2

Please register your warranty information now !

For Warranty Terms & Conditions,

please refer to the last page of these operating instructions.

有關保用條款細則，請看本說明書最後一頁。

請即進行保用登記﹗

P.3

目錄 Table of Contents

注意事項 Notice Before Use 04

產品結構 Product Structure

- M28 - P6356 / P7356 / P8356 / P9356 06

- M28 - P6457 / P7457 / P8457 / P9457 07

- M28 - P6482 / P7482 08

安裝說明 Installation Instructions 10

電路圖 Wiring Diagram 11

操作說明 Operating Instructions 12

清潔與保養 Care & Maintenance 14

常見故障及處理 Troubleshooting 15

技術規格 Technical Specications 16

保用條款 Warranty Terms & Conditions 19

Please register your warranty information now !

For Warranty Terms & Conditions,

please refer to the last page of these operating instructions.

有關保用條款細則，請看本說明書最後一頁。

請即進行保用登記﹗

P.4

重要說明

 為安全起見，初次使用產品前請先細閱本說

 明書，並保存說明書，以便作參考之用。

 本產品只供家居使用。請必須依照本說明書

 內的指示安裝及操作。

1.本產品並不適用於兒童、身體或心智殘障、

 缺乏經驗或知識的人士使用，除非該人士得

 到負責保障其安全的人士的監管或指引。

2.請將產品遠離兒童。不要讓兒童單獨使用本

 產品。

3.為免發生危險，若發現電源線有任何損壞，

 必須停止使用產品，並立即聯絡本公司或合

 資格技術人員進行更換。

4.清潔、維修或拆除抽油煙機前應先切斷電源。

5.電源插座必須安裝接地線。

6.請接駁獨立排氣喉將油煙排往室外。

7.抽油煙機不可與燃氣或使用其他能源之器具

 共同使用同一排放管道。

8.抽油煙機頂部的圓形接駁口須接駁風管，

 將油煙排出室外，須用6吋直徑風管。

9.抽油煙機安裝於氣體爐上方時，抽油煙機底

 部距離爐面700±50mm之間為宜。

10.安裝、清潔、更換燈泡及拆除抽油煙機時請

 戴上安全手套，以免受傷。

11.請勿直接潑水噴淋機身，以免損壞電器機件。

注意事項 Notice Before Use

Important

For safety purpose, you should read the instructions

carefully before using the appliance for the rst time.

Save the instructions for future reference.

The appliance is designed for domestic use and may

only be installed and operated in accordance with

these instructions for use.

1. The appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or any

individual lacking of experience and knowledge,

unless they have been given supervision or

instruction.

2. Keep children away from the appliance. Do not

let them use the appliance without supervision.

3. If the power supply cord is damaged, do not

operate the appliance. Contact German Pool

or licensed technician for a replacement

immediately.

4. Disconnect the power supply before cleaning,

repairing or dismantling the range hood.

5. The range hood must be earthed.

6. Connect the range hood with an independent air

vent to exhaust lampblack.

7. The air must not be discharged into a venting

pipe that is used for exhausting fumes from

appliances burning gas or other fuels.

8. The connection opening at the top of the range

hood must be connected to the exhaust pipe for

exhausting fumes to the outdoors. Exhaust pipe

of 6 inches in diameter should be used.

9. The appliance should be positioned 700±50mm

above the cooking range.

10. Please wear safety gloves for installation,

cleaning, light bulb changing and dismantling, in

order to prevent injuries.

11. To protect electrical parts, do not splash or

spray the range hood with water.

P.5

注意事項 Notice Before Use

12.德國寶抽油煙機抽吸力特強，大部分油煙在

 抽油煙機操作時已被抽出室外，故此集油器

 的油污量很少，請放心使用。

13.當使用抽油煙機時，如房間內同時使用燃氣或

 其他能源的器具，房間必須有足夠通風。

14.用戶必須遵照有關排放空氣的條例來安裝及使

 用本產品。

15.抽油煙機易沾油污的部份之表面均須最少每星

 期進行清洗一次，避免油污因長時間積聚而引

 致火警危險。

16.切勿在抽油煙機下直接燃點明火。

12. German Pool range hood has high venting

efciency. Most of the grease vapor will be

exhausted through the air vent when the range

hood is in operation. Only very little amount of

residual oil will be collected in the Oil Collecting

Tray.

13. There should be adequate ventilation in the

room when the range hood is used along with

appliances that burn gas or other fuels.

14. Regulations concerning the discharge of air

have to be fullled.

15. To prevent re hazard in case of oil build-up, the

easily-soiled parts must be cleaned at least

once a week.

16. Do not ignite a ame under the range hood.

P.6

產品結構 Product Structure

1. 摩打風箱

2. 安裝螺孔

3. 機身

4. 照明燈

5. 控制面板

6. 金屬底板

(內附集油杯)

1. Motor Cover

2. Screw Hole

3. Body

4. Light

5. Control Panel

6. Metal Panel

(oil collector inside)

M28 - P6356 / P7356 / P8356 / P9356

6 4 5

2 2

P.7

6 5

2 2

產品結構 Product Structure

1. 摩打風箱

2. 安裝螺孔

3. 機身

4. 照明燈

5. 控制面板

6. 金屬底板

(內附集油杯)

1. Motor Cover

2. Screw Hole

3. Body

4. Light

5. Control Panel

6. Metal Panel

(oil collector inside)

M28 - P6457 / P7457 / P8457 / P9457

P.8

產品結構 Product Structure

1. 摩打風箱

2. 安裝螺孔

3. 機身

4. 照明燈

5. 控制面板

6. 金屬底板

(內附集油杯)

1. Motor Cover

2. Screw Hole

3. Body

4. Light

5. Control Panel

6. Metal Panel

(oil collector inside)

M28 - P6482 / P7482

6 4 5

P.9

隨機配件 Accessories

1. 風口連接冚

2. 固定碼

a. 獨立式掛牆安裝用

b. 廚櫃嵌入式安裝用

1. Exhaust Pipe Connector

2. Mounting Bracket

a. for free-standing installation

b. for cabinet built-in installation

P.10

周圍環境

抽油煙機四周應避免門窗過多，而產生過大之空

間對流。如果油煙未上升至25cm有效吸力範圍，

抽油煙機則無法發揮正常效果。

安裝高度

抽油煙機底部距離爐面700±50mm之間為宜，

距離越接近700mm，抽油煙效果越佳

(如圖A)。

機體保持水平

確定安裝位置時，機體應保持前後左右水平，

若機體傾斜積油會漏出 (如圖B)。

安裝方法

根據抽油煙機兩掛耳之間的距離及掛耳兩孔間距

的大小，在牆上打孔裝上膨脹螺絲固緊，將抽油

煙機上的掛耳掛入螺絲中，用螺母旋緊即可。

風管長度

抽油煙機頂部的圓形接駁口須接駁風管，將油煙

排出室外，須用6吋直徑風管。風管長度之標準

接法 (如圖C)。排風出口至機體之距離，應儘量縮

短，以免氣流擠壓於風管內，影響其排風效果。

Installation Environment

For efcient air extraction, avoid opening too many

windows surrounding range hood for this will cause air

convection which prevents cooking fumes from rising to

25 cm (the effective suction / exhaust area).

Height of Installation

The appliance should be positioned 700 ± 50mm above

the cooking range. A distance that is near 700mm

results in higher venting efciency (Fig A).

Keep the Hood Level

The installation of the hood should remain level, in order

to prevent oil from spilling over from oil collectors (Fig B).

Installation Method

Drill holes in the wall according to the distance between

the 2 mounting brackets and the diameter of the 2 holes

on the mounting bracket. Install the anchor screws in

the holes. Fix the range hood onto the screw and secure

with nuts.

Length of Exhaust Pipe

The connection opening at the top of the range hood

must be connected to the exhaust pipe for exhausting

fumes to the outdoors. Exhaust pipe of 6 inches in

diameter should be used. The length of the exhaust pipe

should be minimized to avoid air turbulence inside the

pipe (Fig C).

安裝說明 Installation Instructions

安裝前注意

必須由專業合資格技術人員安裝及維修抽油

 煙機。

安裝前先接上電源檢查照明與摩打開關是否

 正常操作。

Pre-installation Notice

The range hood must be installed and repaired by

authorized qualied technicians.

Before installation, plug in and check if all switches

are functional.

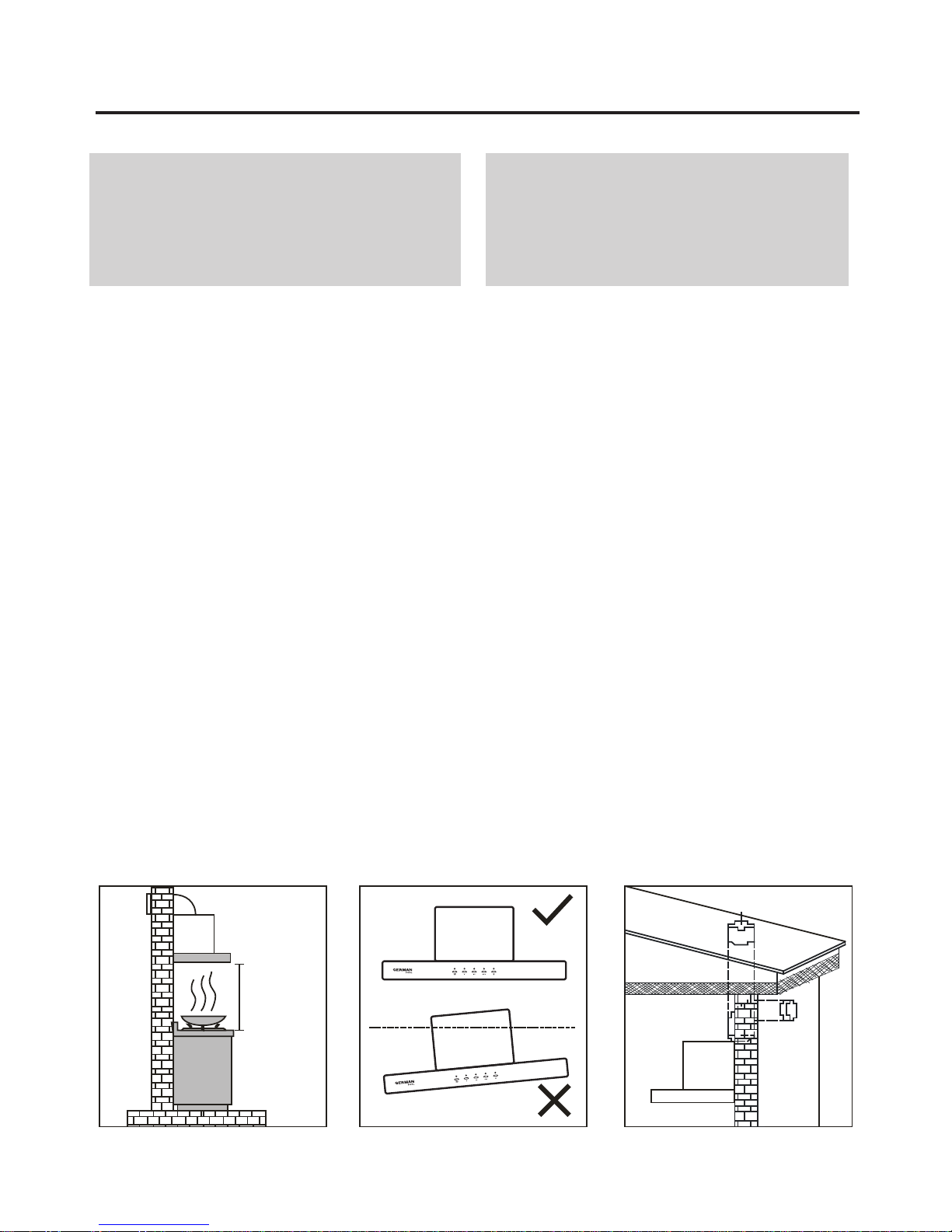

圖B Fig B圖A Fig A 圖C Fig C

700±50mm

Level

Tilted
