German pool 6328 Manual de usuario

P.1

在使用之前請詳細閱讀「使用說明書」及「保用條例」

，並妥為保存。

Please read these instructions and warranty information carefully

before use and keep them handy for future reference.

RHM

SERIES

煙導式抽油煙機

Chimney Type Range Hood

6328 / 7328 / 8328 / 9328 /

6428 / 7428 / 8428 / 9428 /

P.2

目錄 Table of Contents

注意事項 Notice Before Use 03

產品結構 Product Structure 05

安裝說明 Installation Instructions 06

電路圖 Wiring Diagram 07

操作說明 Operating Instructions 08

清潔與保養 Care & Maintenance 11

常見故障及處理 Troubleshooting 12

技術規格 Technical Specications 13

保用條款 Warranty Terms & Conditions 15

P.3

重要說明

 為安全起見，初次使用產品前請先細閱本說

 明書，並保存說明書，以便作參考之用。

 本產品只供家居使用。請必須依照本說明書

 內的指示安裝及操作。

1.本產品並不適用於兒童、身體或心智殘障、

 缺乏經驗或知識的人士使用，除非該人士得

 到負責保障其安全的人士的監管或指引。

2.請將產品遠離兒童。不要讓兒童單獨使用本

 產品。

3.為免發生危險，若發現電源線有任何損壞，

 必須停止使用產品，並立即聯絡本公司或合

 資格技術人員進行更換。

4.清潔、維修或拆除抽油煙機前應先切斷電源。

5.電源插座必須安裝接地線。

6.請接駁獨立排氣喉將油煙排往室外。

7.抽油煙機不可與燃氣或使用其他能源之器具

 共同使用同一排放管道。

8.抽油煙機頂部的圓形接駁口須接駁風管，

 將油煙排出室外，須用6吋直徑風管。

9.抽油煙機安裝於氣體爐上方時，抽油煙機底

 部距離爐面700±50mm之間為宜。

10.安裝、清潔、更換燈泡及拆除抽油煙機時請

 戴上安全手套，以免受傷。

11.請勿直接潑水噴淋機身，以免損壞電器機件。

注意事項 Notice Before Use

Important

For safety purpose, you should read the instructions

carefully before using the appliance for the rst time.

Save the instructions for future reference.

The appliance is designed for domestic use and may

only be installed and operated in accordance with

these instructions for use.

1. The appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or any

individual lacking experience and knowledge,

unless they have been given supervision or

instruction.

2. Keep children away from the appliance. Do not

let them use the appliance without supervision.

3. If the power supply cord is damaged, do not

operate the appliance. Contact German Pool

or a licensed technician for a replacement

immediately.

4. Disconnect the power supply before cleaning,

repairing or dismantling the range hood.

5. The range hood must be earthed.

6. Connect the range hood with an independent air

vent to exhaust lampblack.

7. The air must not be discharged into a venting

pipe that is used for exhausting fumes from

appliances burning gas or other fuels.

8. The connection opening at the top of the range

hood must be connected to the exhaust pipe for

exhausting fumes to the outdoors. Exhaust pipe

of 6 inches in diameter should be used.

9. The appliance should be positioned 700±50mm

above the cooking range.

10. Please wear safety gloves for installation,

cleaning, light bulb changing and dismantling in

order to prevent injuries.

11. To protect electrical parts, do not splash or

spray the range hood with water.

P.4

注意事項 Notice Before Use

12.德國寶抽油煙機抽吸力特強，大部分油煙在

 抽油煙機操作時已被抽出室外，故此集油器

 的油污量很少，請放心使用。

13.當使用抽油煙機時，如房間內同時使用燃氣或

 其他能源的器具，房間必須有足夠通風。

14.用戶必須遵照有關排放空氣的條例來安裝及使

 用本產品。

15.抽油煙機易沾油污的部份之表面均須最少每星

 期進行清洗一次，避免油污因長時間積聚而引

 致火警危險。

16.切勿在抽油煙機下直接燃點明火。

12. German Pool range hood has high venting

efciency. Most of the grease vapor will be

exhausted through the air vent when the range

hood is in operation. Only very little amount of

residual oil will be collected in the Oil Collecting

Tray.

13. There should be adequate ventilation in the

room when the range hood is used along with

appliances that burn gas or other fuels.

14. Regulations concerning the discharge of air

have to be fullled.

15. To prevent re hazard in case of oil build-up, the

easily-soiled parts must be cleaned at least

once a week.

16. Do not ignite a ame under the range hood.

P.5

65 23

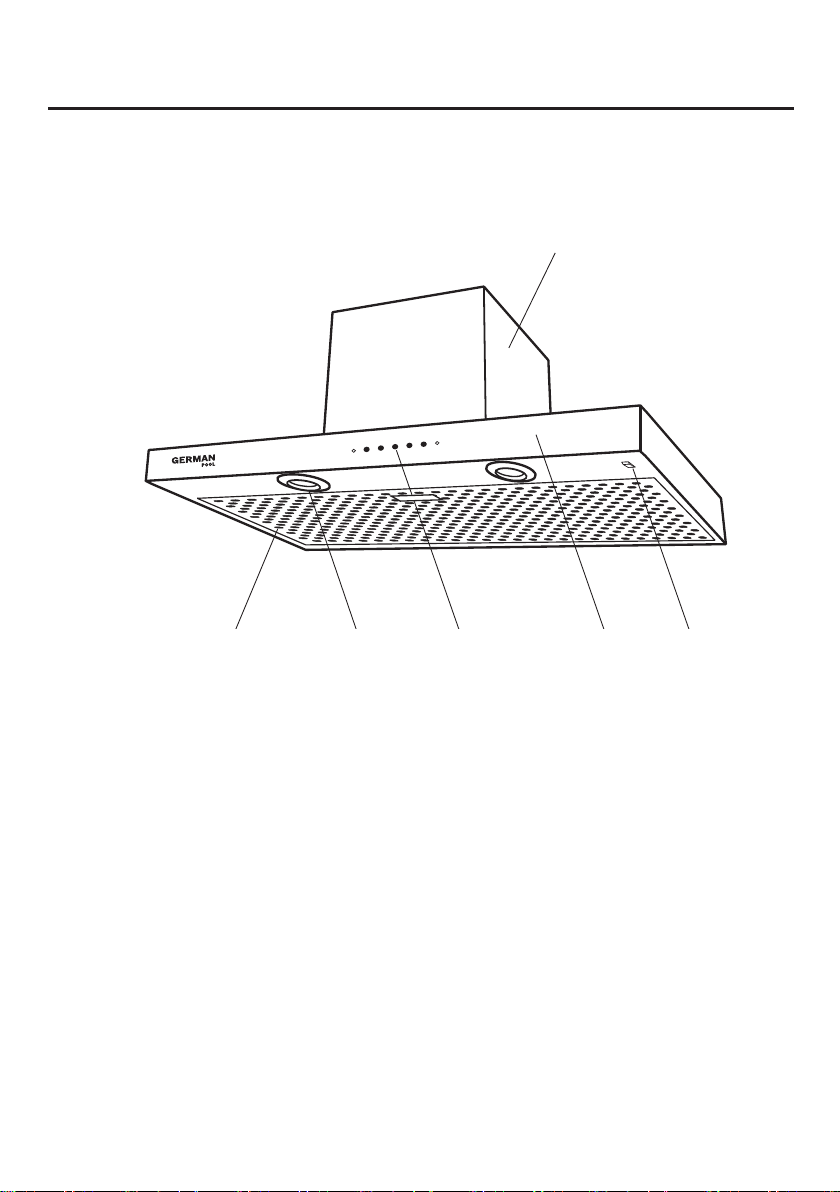

產品結構 Product Structure

1. 摩打風箱

2. 機身

3. 照明燈

4. 操作面板

5. 金屬底板(內附集油杯)

6. 總開關掣

1. Motor Cover

2. Body

3. Light

4. Control Panel

5. Metal Panel (oil collector inside)

6. Main Power Switch

P.6

周圍環境

抽油煙機四周應避免門窗過多，而產生過大之空

間對流。如果油煙未上升至25cm有效吸力範圍，

抽油煙機則無法發揮正常效果。

安裝高度

抽油煙機底部距離爐面700±50mm之間為宜，

距離越接近700mm，抽油煙效果越佳

(如圖A)。

機體保持水平

確定安裝位置時，機體應保持前後左右水平，

若機體傾斜積油會漏出 (如圖B)。

安裝方法

根據抽油煙機兩掛耳之間的距離及掛耳兩孔間距

的大小，在牆上打孔裝上膨脹螺絲固緊，將抽油

煙機上的掛耳掛入螺絲中，用螺母旋緊即可。

風管長度

抽油煙機頂部的圓形接駁口須接駁風管，將油煙

排出室外，須用6吋直徑風管。風管長度之標準

接法 (如圖C)。排風出口至機體之距離，應儘量縮

短，以免氣流擠壓於風管內，影響其排風效果。

Installation Environment

For efcient air extraction, avoid opening too many

windows surrounding range hood for this will cause air

convection which prevents cooking fumes from rising to

25 cm (the effective suction / exhaust area).

Height of Installation

The appliance should be positioned 700 ± 50mm above

the cooking range. A distance that is near 700mm

results in higher venting efciency (Fig A).

Keep the Hood Level

The installation of the hood should remain level, in order

to prevent oil from spilling over from oil collectors (Fig B).

Installation Method

Drill holes in the wall according to the distance between

the 2 mounting brackets and the diameter of the 2 holes

on the mounting bracket. Install the anchor screws in

the holes. Fix the range hood onto the screw and secure

with nuts.

Length of Exhaust Pipe

The connection opening at the top of the range hood

must be connected to the exhaust pipe for exhausting

fumes to the outdoors. Exhaust pipe of 6 inches in

diameter should be used. The length of the exhaust pipe

should be minimized to avoid air turbulence inside the

pipe (Fig C).

安裝說明 Installation Instructions

安裝前注意

必須由專業合資格技術人員安裝及維修抽油

 煙機。

安裝前先接上電源檢查照明與摩打開關是否

 正常操作。

Pre-installation Notice

The range hood must be installed and repaired by

authorized qualied technicians.

Before installation, plug in and check if all switches

are functional.

圖B Fig B圖A Fig A 圖C Fig C

OFF Autostart

Night

light

OFF

Autostart

Night

light

700±50mm

Level

Tilted

機身平衡

機身傾斜

P.7

電路圖 Wiring Diagram

NIGHT LIGHT INDICATOR

自動智能感溫啟動燈

P.8

操作說明 Operation Instructions

重要事項

1. 抽油煙機風管必須連接於屋外，嚴禁直接

排進屋內。

2. 使用氣體爐或其他燃料烹飪時，室內必須有

足夠通風空間。

3. 抽油煙機之排氣管嚴禁與氣體管或其他燃料

排氣管相通。

4. 通電前須注意電源電壓是否與機身銘牌標

示之電壓一致。

Important

1. The exhaust duct must be exposed outdoors.

2. There should be adequate ventilation in the

room when a gas cooking range or other fuels

are in use for cooking.

3. The air from the range hood must not be

discharged into a venting pipe that is used for

exhausting fumes from appliances burning

gas or other fuels.

4. Ensure the electrical rating shown on the

rating plate corresponds with the power supply

in your house before switching on the power

supply.

操作面板 Control Panel

OFF Auto start

Night

light

感光指示燈

Night Light Indicator

低速鍵

Low Speed

高速鍵

High Speed

極速鍵

Turbo Speed

風扇關閉鍵

Fan Off

LED 燈鍵

LED Light

自動智能感溫啟動燈

Auto Start

總開關鍵

Main Power Switch

OFF

P.9

Note:

- After the rst activation of auto start,

you need to press the desired Fan Speed

if you want to keep the

fan running.

操作說明 Operation Instructions

I. 總開關

- 當總開關掣切換至ON時，抽油煙機即接上

電源，處於待機狀態，可啟動機上任何功

能。

- 當總開關掣切換至OFF時，機上所有功能，

包括自動感應輔助夜間照明及自動智能感

溫，將不能啟動。如要使用任何功能，總

開關鍵必先切換至ON。

lI. 風速

- 選擇風速：開啟抽油煙機後按所需風速

鍵，選擇風扇速度。

- 關閉風扇：欲關閉風扇只須按風扇關閉

鍵。

注意：切勿同時按兩個風速鍵，否則會引

致摩打損壞。

IlI. 自動智能感温啟動

注意：使用自動智能感溫啟動前，請先確認

本機處於待機狀態。

- 當煮食爐或電爐正在使用中而並未啟動抽

油煙機風扇時，只要抽油煙機底下的溫度

達55-60℃(130-140°F)時，自動感溫將會

啟動風扇以高速運轉1分30秒後停止。

- 若自動運轉完畢而用戶仍未啟動任何風

速，只要抽油煙機底下的溫度達55-

60℃(130-140°F)時，風扇仍會如上一步

驟啟動。

I. Main Power Switch

- When it is switched to ON, the range hood is

connected with power and at stand-by status.

All functions can be activated.

- When it is switched to OFF, all functions including

Heat-Activated Auto Start and Automatic Night

Light cannot be activated. To activate any

functions, it must be switched to ON.

lI. Fan Speed

- Select fan speed: After pressing the Main

Power Switch, select fan speed with one of

the Fan Speed buttons.

- Fan off: To turn off the fan, just press the Fan

Off button.

Note: Do not press two Fan Speed buttons at the

same time or else the motor will be damaged.

lII . Heat-Activated Auto Start

Note: Make sure the range hood is at stand-by

status thus heat-activated auto start can

operate.

- When the gas cooking range is working without

the fan turned on, and the air temperature under

the range hood reaches 55-60ºC (130-140°F),

thermal sensor will activate the fan to run at high

speed for 1.5 minutes automatically.

- If the temperature under the range hood still

reaches 55-60ºC (130-140°F) after the auto

start has completed, the fan will be activated

again as described in the step above.

OFF OFF

註：

- 自動智能感溫經第一次啟動，當風扇停止

運轉後，若要持續保持風扇運轉，須按下

所需風速鍵。

低速高速極速 Low

speed High

speed Turbo

speed

Auto start Auto start

OFF

P.10

操作說明 Operation Instructions

IV. LED 燈

- 注意：使用LED照明前，請先確認

本機處於待機狀態。

- 按LED燈鍵開啟照明。

- 再按一次LED燈鍵關掉照明。

V. 自動感應夜間輔助照明

注意：使用自動夜間感應輔助照明，

請先確認本機處於待機狀態。

- 當抽油煙機四周環境已漸暗或全暗時，

感光指示會以LED燈原亮之20%自動啟動

夜間照明功能。

- 當抽油煙機四周環境已漸亮或全亮時，

輔助照明將自動熄滅。

IV. LED Light

- Note: Make sure the range hood is in stand-by

status before activating LED lighting.

- Press the LED Light button to turn it on.

- Press the button again to turn it off.

V. Automatic Night Light

Note: Make sure the range hood is in stand-by

status before activating night light function.

- When the surroundings are getting darker or

completely dark, the night light function will be

automatically activated at 20% of LED light’s

normal brightness.

- When the surroundings are getting brighter or

completely bright, the senor will turn off the

night light function automatically.

Night

light

Night

light

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Campana de ventilación de German pool

German pool

German pool TOS-723D Manual de usuario

German pool

German pool GPR-DL900L Manual de usuario

German pool

German pool TF-600W Manual de usuario

German pool

German pool TFT-700 Manual de usuario

German pool

German pool RDC-S Series Manual de usuario

German pool

German pool GPR-W700/S Manual de usuario

German pool

German pool TOR-721 Manual de usuario

German pool

German pool DCR-7508-SC Manual de usuario

German pool

German pool GPR-I900 Manual de usuario

German pool

German pool WRY-723 Manual de usuario

German pool

German pool GPR-DL900 Manual de usuario

German pool

German pool 6328S Manual de usuario

German pool

German pool GPR-V600 Manual de usuario

German pool

German pool XRZ-723 Manual de usuario

German pool

German pool RDS Series Manual de usuario

German pool

German pool tos-723 Manual de usuario

German pool

German pool RDC Series Manual de usuario

German pool

German pool GPR-S700L Manual de usuario

German pool

German pool RHM 7328S Manual de usuario

German pool

German pool 2102-28 Manual de usuario

German pool

German pool 2100 Manual de usuario

German pool

German pool TFT Series Manual de usuario

German pool

German pool M28-P6356 Manual de usuario

German pool

German pool GPR-GY900L Manual de usuario

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
