Genie HDI221 Manual de usuario

Model: HDI221

Digital Day/Night HD-SDI 2.1MP

Internal Dome Camera

User Guide

- 3 -

Digital Day/Night HD-SDI Internal Dome Camera

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

This installation should be made by a qualified service person and

should conform to all local codes.

CAUTION: To prevent electric shock and risk of fire hazards.

Do NOT use power sources other than those specified.

Do NOT expose this appliance to rain or moisture.

- 4 -

Digital Day/Night HD-SDI Internal Dome Camera

Contents

Dimensions

Package Contents

Focus Adjustment

Installation

General Features

Safety Instructions

Precautions

Specification

Troubleshooting

Menu Set Up

• OSD Control Keys

• Set Up Menu

• Menu Set Up

• Lens

• Exposure

• Back Light Compensation

• Day & Night

• White Balance

• DNR

• Image

• Motion Detection

• System

• Exit

- 5 -

Digital Day/Night HD-SDI Internal Dome Camera

Camera Dimensions

Package Contents

Φ150

Φ100

Φ150

114

56.5

VIDEO TEST CABLE 1EA

INSTRUCTION MANUAL 1EA

SCREW TS T1, 4X25 2EA

GREEN TERMINAL 2P MAIL 1EA SCREW PH M4X8, BK, 3EA

FOCUS CONTROL SCREW 1E

- 6 -

Digital Day/Night HD-SDI Internal Dome Camera

Adjusting screw for focus(Near-Far)

Adjusting screw for fix(Fix)

Adjusting screw for angle of view(TELE-WIDE)

Focus Adjustment

1) Loosen the screw in the middle.

2) Ajust angle of view by using the controller.

3) Adjust focus by using the controller.

4) Tighten the screw in the middle.

- 7 -

Digital Day/Night HD-SDI Internal Dome Camera

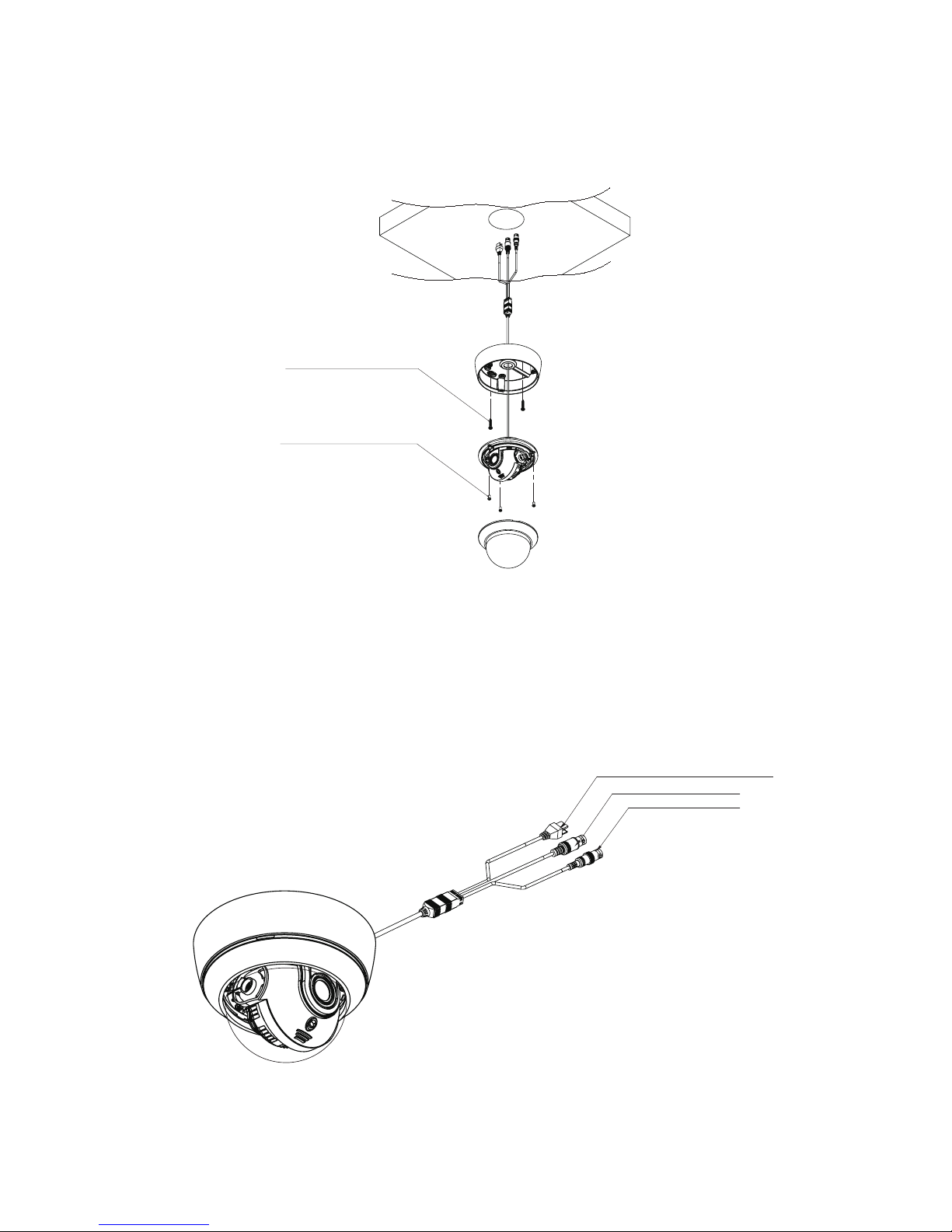

Camera + Installation

Cable Connection

TAPPING SCREW 4X20, 2EA

MACHINE SCREW M4X8, 3EA

SDI Output Connector

Video Output Connector

Power Input Te rminal : AC24V/DC12V

- 8 -

Digital Day/Night HD-SDI Internal Dome Camera

General Features

DNR (Digital Noise Reduction)

DNR technology utilises both an adaptive 2D filter which reduces noise in the brightness of the image

and an adaptive 3D filter which reduces noise caused by movement. The result is that the HD-SDI

camera supports Motion Adaptive DNR which removes noise and greatly reduces motion blur.

HD (High Definition) Surveillance

HD-SDI cameras provide superb surveillance images compared to a normal VGA camera.

WDR (Wide Dynamic Range)

WDR is a powerful and ultra advanced technology that captures cleaner and superior high resolution

images even where they appear dark due to a strong back light presence.

HLC (High Light Compensation)

High Light Compensation function is especially effective for reading car number plates at night time. Users

can select and define the required observation area for the target object and ignore strong highlight areas.

Illumination

With an incredible minimum illumination of 0.5 Lux, images can be captured even in extremely low light

conditions and signal noise is significantly reduced by the ultra advanced DNR (Digital Noise Reduction)

technology.

Privacy Zone

Privacy Zones can be set to block viewing for specific areas in the picture.

Additional Functions

OSD - On Screen Display menu

rivacy Masking - 32 zones, Sens-Up - x64 times, Digital Zoom - x8

DNR

Digital

Reduction

Noise

Illumination

Minimum

High Definition

DSP

3D-DNR

OSD

Privacy Zone

HLC

Wide Dynamic Range

Digital

WDR

DNR

Digital

Reduction

Noise

Illumination

Minimum

High Definition

DSP

3D-DNR

OSD

Privacy Zone

HLC

Wide Dynamic Range

Digital

WDR

DNR

Digital

Reduction

Noise

Illumination

Minimum

High Definition

DSP

3D-DNR

OSD

Privacy Zone

HLC

Wide Dynamic Range

Digital

WDR

DNR

Digital

Reduction

Noise

Illumination

Minimum

High Definition

DSP

3D-DNR

OSD

Privacy Zone

HLC

Wide Dynamic Range

Digital

WDR

DNR

Digital

Reduction

Noise

Illumination

Minimum

High Definition

DSP

3D-DNR

OSD

Privacy Zone

HLC

Wide Dynamic Range

Digital

WDR

DNR

Digital

Reduction

Noise

Illumination

Minimum

High Definition

DSP

3D-DNR

OSD

Privacy Zone

HLC

Wide Dynamic Range

Digital

WDR

DNR

Digital

Reduction

Noise

Illumination

Minimum

High Definition

DSP

3D-DNR

OSD

Privacy Zone

HLC

Wide Dynamic Range

Digital

WDR

- 9 -

Digital Day/Night HD-SDI Internal Dome Camera

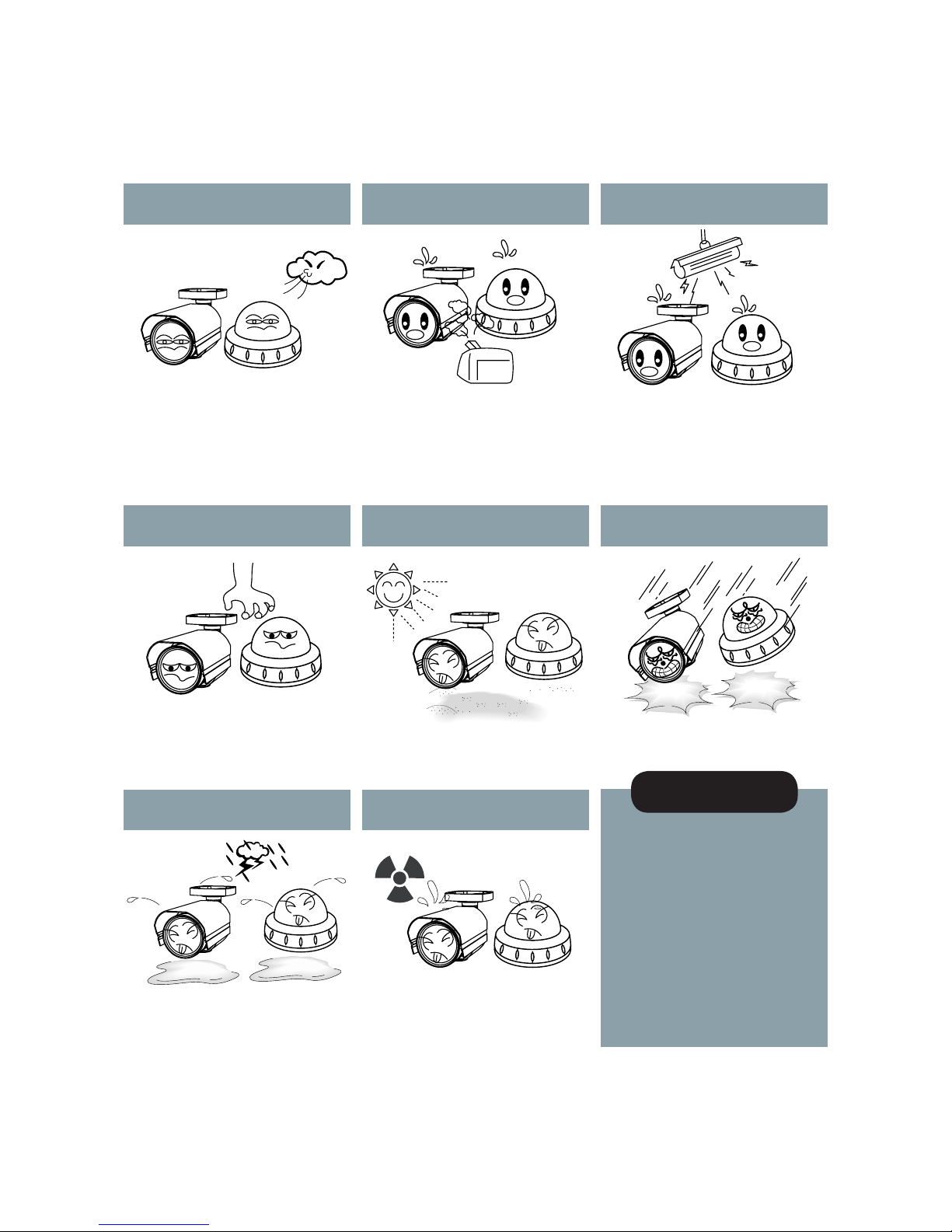

Do not install the camera in

extreme temperature conditions.

Do not touch the front lens of the

camera.

Do not expose the camera to rain

or spill liquids on it.

Do not install or use the camera in an

environment where the humidity is high.

Never keep the camera pointed

directly at strong light.

Do not expose the camera to

radioactivity.

Do not install the camera under

unstable lighting conditions.

Do not drop the camera or subject

it to physical shocks.

Only use the camera under conditions

where temperatures are between

-20°C and +50°C. Be especially careful to

provide ventilation when operating under

high temperatures.

This is one of the most important parts of

the camera. Be careful not to leave

fingerprints on the lens cover.

If it gets wet, wipe dry immediately.

Liquids can contain minerals that

corrode the electronic components.

If exposed to radioactivity the CCD

will fail.

NOTE

Precautions

Do not install or use the camera in an

environment where the humidity is high.

* If the camera is exposed to

spotlight or object reflecting

strong light, smear or blooming

may occur.

* Please check that the power

satisfies the normal

specification before connecting

the camera.

Severe lighting which changes or flickers

can cause the camera to work improperly.

- 10 -

Digital Day/Night HD-SDI Internal Dome Camera

Safety Instructions

Precautions for use

Please handle this camera carefully

This camera should be installed by a qualified person only.

There are no user serviceable parts inside.

Do not disassemble this camera other than to make initial adjustments.

Only use a CE approved regulated DC12V, or AC24V power supply.

Use appropriate low voltage power cable to prevent fire or electrical shock.

Please ensure that your installation area can support the weight of the camera.

Do not use strong or abrasive detergents when cleaning the camera.

Only use soft non-abrasive materials to clean the polycarbonate dome.

Do not expose the camera to direct sun.

Do not install the camera in places where humidity is high.

Do not install near cooling or heating devices.

Do not expose the camera to rain or moisture.
