Genelec PowerPak 8030A Manual de usuario

WALL MOUNT for GENELEC 8030A, 8040A, 8050A max. load 15 kg, easy handling, adjustable direction and angle

instruction manual

1. separate swivel joint from wall bracket 3. wall mount options

1.a

Loosen lower

bolted assembly

1.b

Gather swivel joint from

wall bracket

2.a

Adjust wall

plate vertically

2.b

Anchor holes drilling (4x)

diameter

-6 mm steel-anchor-bolt

-8 mm universal frame fixing set

2. wall bracket fastening

concrete wall - e.g.: steel-anchor-bolt M6 x 65 mm

-drill and blow out hole, place anchor, wall bracket and

washer, tighten hexnut

perforated bricks - e.g.: unsiversal frame fixing set 8 x 80 mm

-drill, countersink and blow out hole, place anchor and bracket, fix hexagon

head wood screw

C injection-molded-anchor

without sieve bushing for concrete wall - with sieve bushing for perforated bricks / optional with threaded bolt M6 or threaded bushing M6

Advantages: fixing without pressure, enables repeated mounting, capable for diverse wall materials

Advantages: (please notice instructions of anchor manufacturers).

GENELEC Oy

Olvitie 5, Fin-74100 Iisalmi, www.genelec.com

24475-000-55/57 Rev.03 03-80-486-00 7/06

-Max. load capacity: 15 kg

-Use four anchors per wall bracket

-Choose a position and mounting method compliant with local

-building codes and regulations

-For use only by trained installers

-For use only at proper walls with adequate anchors (see 3.)

-Not suitable are fragile walls. Beware of power supply lines and water conduits.

-In case ask an expert.

-Inspect bolted assemblies periodly

-For indoor use only

WALL MOUNT for GENELEC 8030A, 8040A, 8050A max. load 15 kg, easy handling, adjustable direction and angle

instruction manual

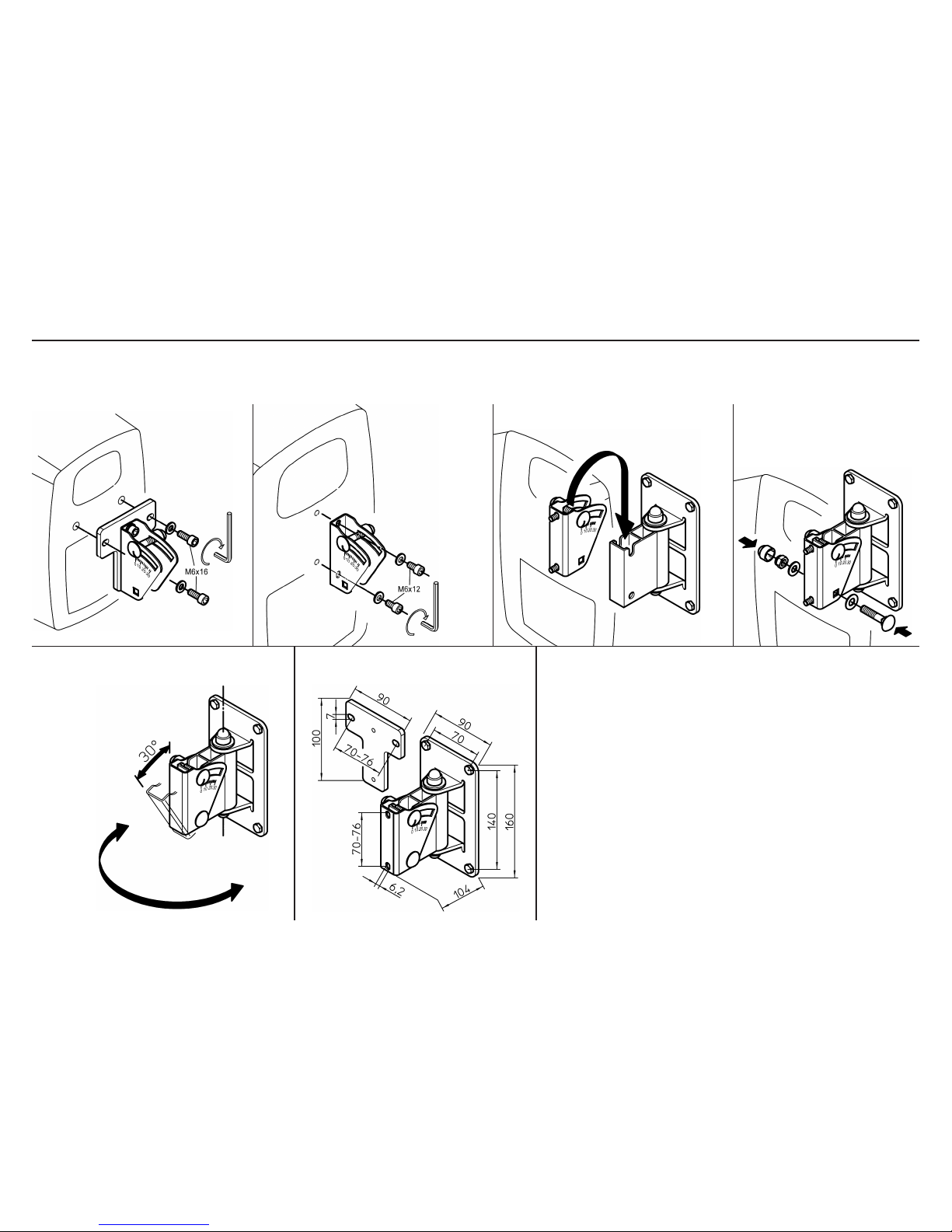

4. installation

5. settings 6. dimensions safety instructions

4.a

Bolt to T-Adaptor for:

-vertical mounting

-(8030A)

-horizontal mounting

-(8040A, 8050A)

4.a

(alternative)

Remove T-Adaptor for:

-horizontal mounting

-(8030A)

-vertical mounting

-(8040A, 8050A)

-with swivel joint

5.a

Continuously adjustable up to 30°,

by fixing the upper bolted assembly

Weight: 0.9 / 1.2 kg

5.b

Pivoting attachment

around vertical axis

4.b

Replace swivel joint (with mounted GENELEC)

into wall bracket

4.c

Secure swivel joint to the wall bracket

by tightening lower bolted assembly
