GEFLEX-ETHERNET
INDEX
1Introduction 2
2Features 2
3Dip-switch function 2
4Setup PC Connection 3
5Test Board Connection Using PING Command 7
6Connect the Board to your LAN 7
7Serial line information 8
8Getting process variables map information 8
9GEFLEX-ETH’s Modbus TCP/IP implemented command 9
10 Memory map 13
INSTALLATION AND
OPERATION MANUAL
Software Version: 1.x
Code: 80367 / Edition 01 - 0708 ENGLISH
280367_MSW_GEFLEX-ETHERNET_0708_ENG
1 • Introduction
The Geflex GEFLEX-ETH is IEEE 802.3 compliant supporting Ethernet operation for MODBUS TCP/IP communica-
tion architecture
2 •Features
•IEEE 802.3 compliant
•Full-duplex and half-duplex modes
•Capable of supporting both 10 Mbps and 100 Mbps data rates
•Single RJ45 connection with leds indicator (yellow = link , green = activity)
•One socket available
•All MODBUS/TCP ADU are sent via TCP on registered port 502
•Default address: 192.168.1.100
•Subnet mask: 255.255.255.0
•Default gateway: 192.168.1.1
MODBUS
TCP/IP
CLIENT
MODBUS
TCP/IP
CLIENT
MODBUS
TCP/IP
SERVER
MODBUS
TCP/IP
SERVER
MODBUS
SERIAL
CLIENT
Client
TCP/IP
MODBUS
GEFLEX
SLAVE n GEFLEX
SLAVE n + 1
GEFLEX-ETH
MODBUS Serial
GEFLEX NETWORK
Resetting Parameters to Factory Defaults
At any moment, all of the GTR ETH board parameters can be restored to
the factory default settings. To do so:
1. Set Dip Switch S1 dip 1 = ON (located near RJ45 connector ) ;
2. Restart GTR ETH board;
3. Set Dip Switch S1 dip 1 = OFF ;
S1 dip 2 off = 100Mb (DEFAULT)
S1 dip 2 on = 10Mb
3 •Dip-switch Function
3
80367_MSW_GEFLEX-ETHERNET_0708_ENG
4 •Setup PC Connection
All the information in this quick guide require that the GEFLEX-ETH communicates with the host PC through a LAN
connection.
In this pages you’ll learn how to configure the PC to communicate with the GEFLEX-ETH using an Ethernet cross
cable or hub/switch. The following steps are based on a Windows XP system.
1. Open the Windows Control Panel and open the Network. Connections item:
2. If a Local Area Connection is already available, go to step 8.
Otherwise, run the “New Connection”wizard.
480367_MSW_GEFLEX-ETHERNET_0708_ENG
3. The following dialog box will appear. Click Next.
4. On the next dialog box, select the “Connect to the Internet”option and click the “Next”button.
5. On the next dialog box, select the “Set up my connection manually option and click the “Next”button.
5
80367_MSW_GEFLEX-ETHERNET_0708_ENG
7. When the last dialog box appears, click the “Finish”button.
8. Open the newly created connection (or the existing connection if you are coming from step 2) and click the
“Properties”button.
6. On the next dialog box, select the “Connect using a broadband connection that is always on”option and click the
“Next”button.
680367_MSW_GEFLEX-ETHERNET_0708_ENG
Click the “OK”button on all LAN setup dialog boxes.
9. Select the “Internet Protocol (TCP/IP)”item and click the “Properties”button.
10. If you have started from an existing connection, write down all of the TCP/IP parameters. You’ll need them later to
restore your LAN settings to the original parameters.
11. Select the manual settings and type in the following values:
IP address: 192.168.1.101
Subnet mask: 255.255.255.0
7
80367_MSW_GEFLEX-ETHERNET_0708_ENG

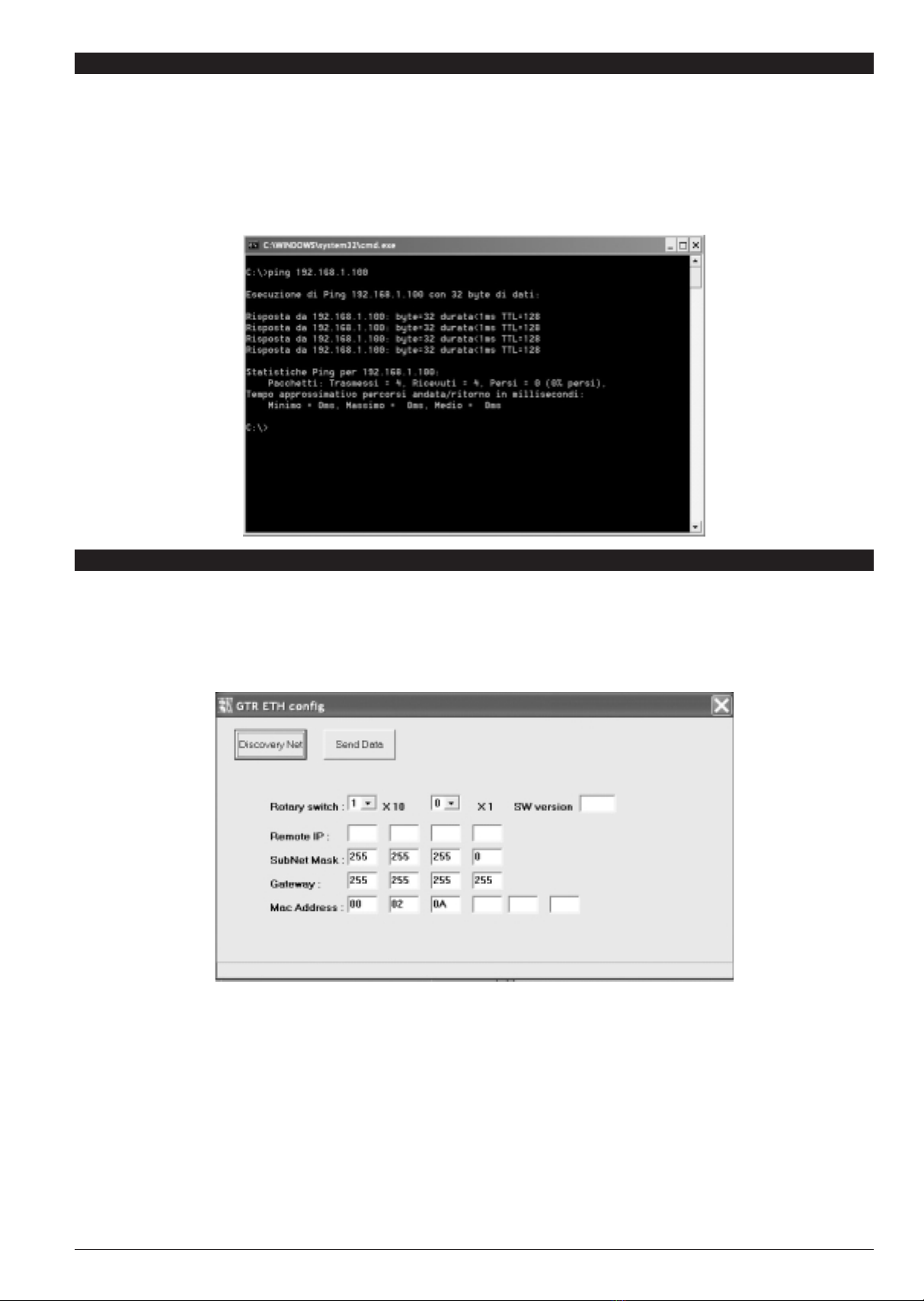

5 •Test Board Connection Using PING Command
1. Power up the board and verify the POWER led turn on.
2. Connect the GEFLEX-ETH to the PC through an Ethernet cross cable or hub / switch.
3. Open a Command Prompt window (on Windows XP, from the Windows Start menu, select Run, enter CMD and
click the “OK”button).
4. At the command prompt, type: PING 192.168.1.100
5. If the connection has been properly setup, the PING command will return a positive feedback.
6 •Connect the Board to Your LAN
Before connecting the GEFLEX-ETH board to your LAN, the IP address must be changed to match the LAN
settings.
To change the GEFLEX-ETH’s IP address, do the following.
1. With the GEFLEX-ETH still connected to the PC via the Ethernet cross cable or hub /switch, launch the
GtrEthConfig.exe utility that is located in the CD-ROM.
2. Set the Rotary Switch combobox to match your actual GEFLEX-ETH’s Rotary value.
3. Press the Discovery Net button. You can see actual IP address , subnet mask , default gateway and MAC
adress.
4. Set your parameter and after click on Send Data button.
5. Restart the GEFLEX-ETH Board.
6. Goto to step 2 if you want to see new parameter.
880367_MSW_GEFLEX-ETHERNET_0708_ENG
7 •Getting Serial baud Information
Using this option to get serial baud information from serial network. Send Baud has no effect
8 •Getting Process Variables Map Information
Using this option to get / set Process Variables map
9
80367_MSW_GEFLEX-ETHERNET_0708_ENG
9 •GEFLEX-ETH’s Modbus TCP/IP implemented command
•01 (0x01) Read Coils
•02 (0x02) Read Discrete Inputs
PDU Example: Read bit 0 from zone 10
Rotary
switch Function
code Hi Lo Hi Lo
10 200 0 1
Rotary
switch Function
code Byte
count Inputs
10 2 1 0
Request Starting Address Quantity of Inputs
•03 (0x03) Read Holding Registers / 04 (0x04) Read Input Registers
PDU Example: Read word 138 from zone 10
Rotary
switch Function
code Hi Lo Hi Lo
10 20138 0 1
Rotary
switch Function
code Byte
count
10 42
Request Starting Address Quantity of words
Hi Lo
1144
Data Value = 400 (hex 190)Resp.
Resp.
•05 (0x05) Write Single Coil
PDU Example: Writing to zone 10 single bit address = 1 data value =0xff00
Rotary
switch Function
code Hi Lo Hi Lo
10 5010xFF 0
Rotary
switch
10
Request Starting Address Output Value
Resp.
Function
code Hi Lo Hi Lo
5 0 1 0xFF 0
Starting Address Output Value
10 80367_MSW_GEFLEX-ETHERNET_0708_ENG
•06 (0x06) Write Single Register
PDU Example: Writing to zone 10 single word address = 400 data value = 1
Rotary
switch Function
code Hi Lo Hi Lo
10 6 1 144 0 1
Rotary
switch Function
code
10 6
Request Word Address Word Value
Resp.
Hi Lo Hi Lo
1144 0 1
Word Address Output Value
•15 (0x0F) Write Multiple Coils
PDU Example: Writing to zone 10 Multiple Bits address = 10, quantity of bits =2, bits value=3
Rotary
switch Function
code Hi Lo
10 15 010 1 3
Request Quantity of bits Bits Value
Hi Lo
02
Byte countStarting Address
Rotary
switch Function
code
10 15
Resp.
Hi Lo Hi Lo
010 0 2
Starting Address Quantity of bits
•16 (0x10) Write Multiple registers
PDU Example:
Writing to zone 6 Multiple Words address = 20, quantity of words =2, word 1 value =0 , word 2 value =1000
Rotary
switch Function
code Hi Lo Hi
10 16 020 4 0
Request Quantity of words Word 1
Value
Hi Lo
02
Byte countStarting Address
Rotary
switch Function
code
10 16
Resp.
Hi Lo Hi Lo
020 0 2
Starting Address Quantity of Words
Lo
0
Hi
3
Lo
232
Word 2
Value
