Gefen EXT-DVI-441DL Manual de usuario

4x1 DVI DL Switcher

EXT-DVI-441DL

User Manual

www.gefen.com

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday PST

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

4x1 DVI DL Switcher is a trademark of Gefen, LLC

All trademarks are the property of their respective companies.

Rev A10

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Panel Descriptions

6 Connecting and Operating The 4x1 DVI DL Switcher

7 RMT-4IR Remote Control Description

8 4x1 DVI DL Switcher Remote Installation

9 4x1 Remote and Switcher Conﬁguration

10 EDID Modes

12 DL (Dual Link) Only Modes

13 RS-232 Serial Control

14 RS-232 Serial Control Commands

14 EDID Management

20 Routing Commands

22 Rack Mount Installation

23 Speciﬁcations

24 Warranty

INTRODUCTION

Congratulations on your purchase of the 4x1 DVI DL Switcher. Your complete

satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen 4x1 DVI DL Switcher

The rack-mountable Gefen 4x1 DVI DL Switcher offers an economical solution by

eliminating the need to purchase many displays for each DVI source in a studio

or lab situation. A plug-and-play solution, the 4x1 DVI DL Switcher shares one

dual-link display with up to four computers or other DVI video sources, saving

space on your desktop. The source computer is selected using the included IR

remote control or through RS-232 control.

How It Works

The DVI monitor is connected to the switcher’s output. Up to four DVI sources

connect to the switcher’s DVI inputs using included high quality DVI cables.

The included power supply is connected to the switcher via the locking power

plug and then to a power outlet. The currently selected computer’s video signal

appears on the shared monitor. Video sources are selected/switched using the

RMT-4IR remote control, RS-232 control, or the input selector push button on the

front panel of the switcher.

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE GEFEN 4X1 DVI DL SWITCHER

• The 4x1 DVI DL Switcher will take any of up to four (4) DVI dual-link or

single-link resolution inputs and switch them, one at a time, to a DVI output

device such as a display/monitor or projector. Resolutions can be up to

3840x2400.

• The 4x1 DVI DL Switcher is housed in a metal box for better RF shielding.

• By default, the EDID of the attached display is copied to all the local inputs.

Make sure that the display is connected to the switcher before applying

power.

FEATURES

Features

• Switches easily between any four DVI-SL or DVI DL sources

• Maintains highest resolution dual link DVI

• Supports resolutions up through 3840x2400

• EDID Storage and programming for best source/display compatibility

• Extends the range of the video signal on the DVI outputs up to 50 feet

• Discrete IR remote control included

• Serial RS-232 port for switching input sources via automated control or PC

• Supports DDWG standards for DVI monitors

• Rack ears included

Package Includes

(1) 4x1 DVI DL Switcher

(4) 6-ft Dual Link DVI cables (M-M)

(1) 5V DC Power Supply

(1) User’s Manual

(1) IR remote control

(1) Set of Rack Ears

PANEL LAYOUT

Back Panel

Front Panel

PANEL DESCRIPTIONS

1 External IR Port

For connection of external IR extension device such as the Gefen IR Extender

(part # EXT-RMT-EXTIR).

2 IR Receiver

Receives IR signal from the handheld Infrared remote control unit included with

the product.

3 DVI Signal Status LEDs 1-4

Provide visual conﬁrmation of the currently selected DVI input signal out of the

four DVI input ports.

4 DVI Input Selector

Push-button switch cycles the next DVI input 1-4 in a forward sequence starting

again at 1.

5 Power Indicator LED

Indicates when the 4x1 DVI DL Switcher is receiving 5V DC power from its

included AC power supply.

6 5V Locking Power Receptacle

Supplies power to the 4x1 DVI DL Switcher from the included external 5V DC

power supply. The 5V power supply has a locking power tip which screws into

this receptacle.

7 DVI Input Ports 1-4

DVI video sources one through four attach to the 4x1 DVI DL Switcher.

8 DVI Output Port

This DVI output port is connected to the display device (Monitor, Projector).

9 RS-232 Serial Communications Interface

Provided for external control of the 4x1 DVI DL Switcher.

CONNECTING AND OPERATING THE 4X1 DVI DL SWITCHER

How to Connect the 4x1 DVI DL Switcher to your devices:

1. Connect user supplied DVI cables from the DVI sources into the 4x1 DVI

Switcher’s Inputs.

2. Connect the cable from your display (monitor or projector) into the DVI Out

of the 4x1 DVI DL Switcher.

3. Connect the 5V power supply, then plug it into the wall. Turn on the DVI

display or projector ﬁrst, then the video sources (computers). Turn on

the 4x1 DVI DL Switcher by screwing its 5V DC power supply tip into the

receptacle in the rear of the chassis.

Note: The Switcher retrieves device resolution and video timing capability

information called EDID from the display and feeds it to all connected input

sources. This mode of operation is called LOCAL EDID mode. It allows

a much faster setup time and improved operational stability since input

sources do not need to individually collect and store EDID on their own.

If some sources do not display correctly, you can individually conﬁgure each

input source and/or program custom EDIDs (such as standard compatible

resolutions) into the Switcher, or alternately set each input source to directly

read EDID from the display device (with the Local EDID Mode turned OFF).

These procedures are covered in detail on pages 10-11 along with EDID

concepts in general.

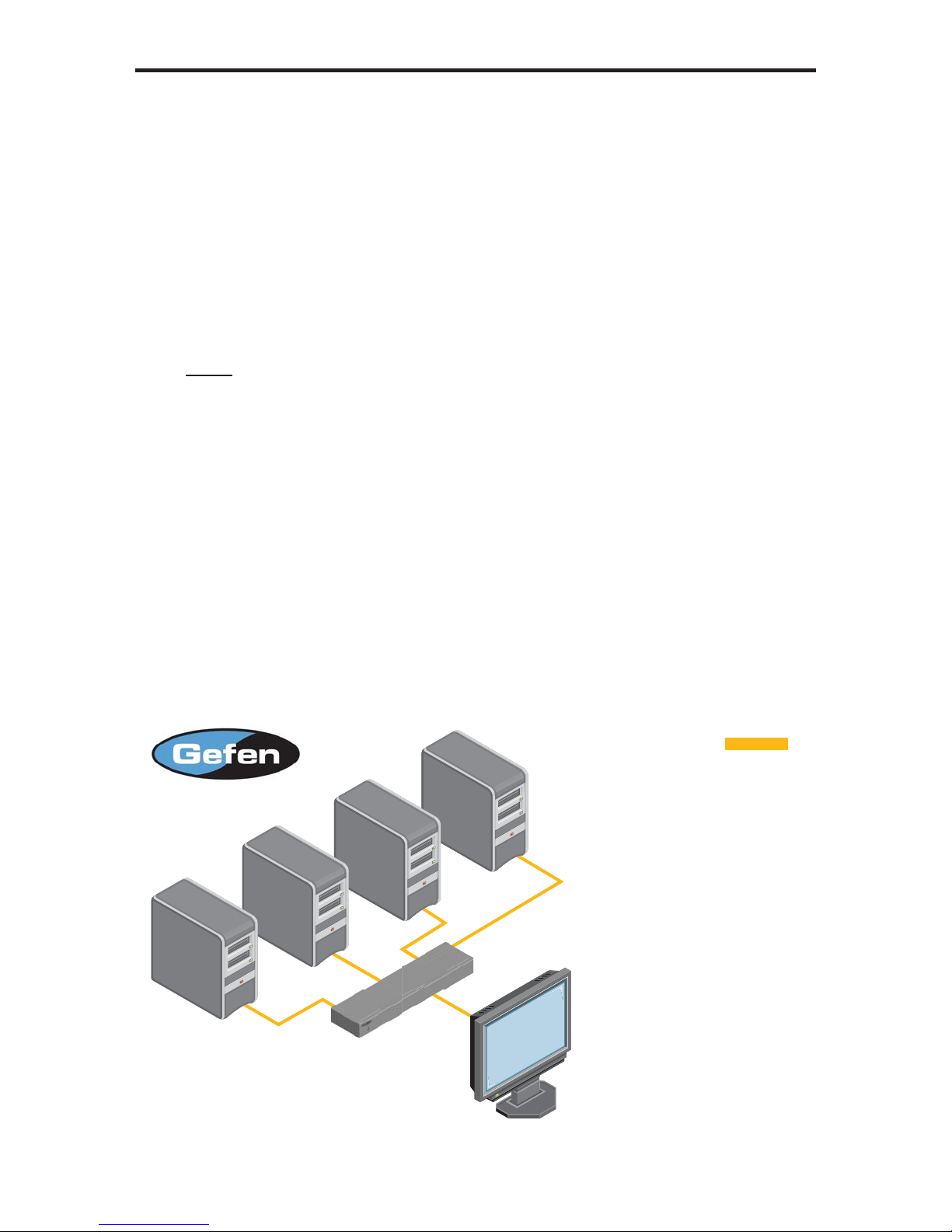

Wiring Diagram for the 4x1 DVI DL Switcher

EXT-DVI-441DL

Computer

Switcher

Dual Link DVI Display

DUAL LINK DVI CABLE

4X1 DVI DL SWITCHER REMOTE DESCRIPTION

Input Selection

Buttons

The RMT-4IR remote control will allow the user to select which of 4 DVI sources will

be displayed. Please use the information below when selecting the desired source

for output to a display or other DVI video receiving device.

RMT-4IR Button DVI Source

LED Indicator
