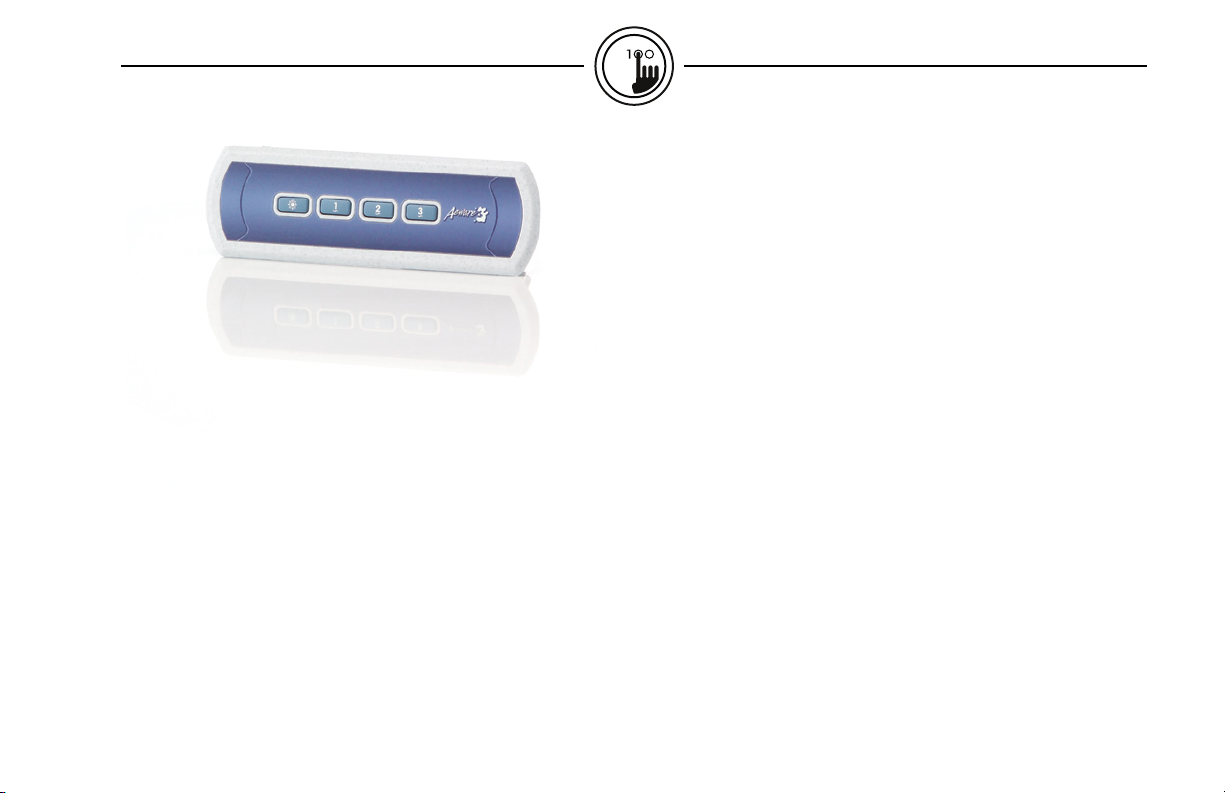

in.k100 overview
in.k100
Advanced series of auxiliary keypads that gives
complete control to wet fingers!
In.k100 is a compact auxiliary keypad designed to be used with
in.xm spa systems.
Available in dual pump & blower or three pump configurations,
in.k100 offers OEMs and spa users the flexibility of a secondary
control.
Its waterproof plastic enclosure is available in 3 colors (light gray,
dark gray and marble). Easy to install, in.k100 comes with an in.link
connector.
4
in.k100

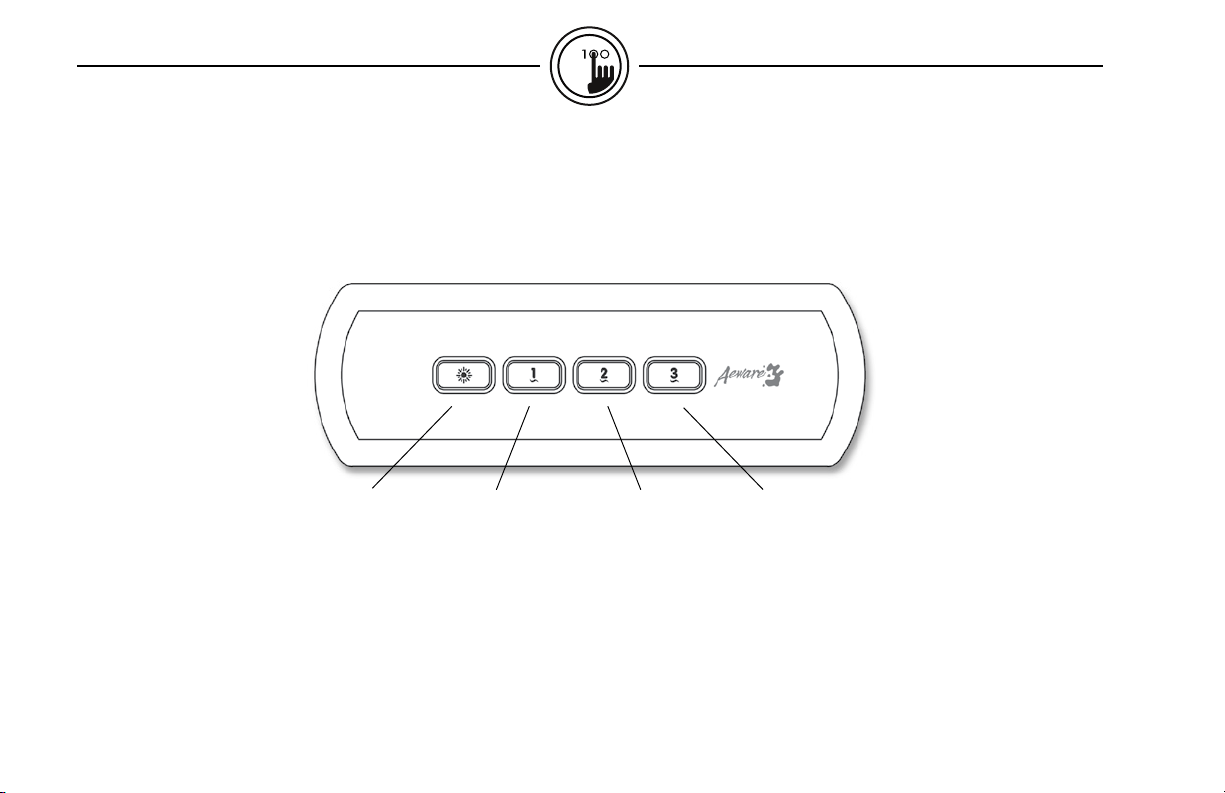

Light key Pump 1 key Pump 3/blower key
Pump 2 key
function description
5
in.k100
General specifications:
Environmentals:
Storage temperature: 70˚C (158˚F) to –30˚C (-22˚F)
Operating temperature: 60˚C (140˚F) to –20˚C (-4˚F)
Humidity: 100% condensing
Mechanical Specs:
Weight: 0.41 kg (0.9 lbs)
Dimensions (W x H x D): Front Panel:
130.2 mm x 42.9 mm x 52.4 mm
(5 1/8" x 1 11/16" x 2 11/16") Soft gasket
Standards: UV resistance (ASMT D4329)
UL, CSA, TUV and CE
general specifications
Dimensions:
1 11/16"
(42.9 mm)
2 1/16"
(52.4 mm)
5 1/8"
(130.2 mm)
Specications and design are subject to change without notice.
6
in.k100
Light key
Press Light key to turn light on
at high intensity.
Pressing a second and a third
time reduces light intensity.
A fourth time turns light off.
A built-in timer automatically
turns light off after 2 hours,
unless it has been manually
deactivated first.
Pump 1 key
Press Pump 1 key to turn
pump 1 on at low speed.
Press a second time to turn
pump to high speed (with a
dual-speed pump).
A third time turns pump off.
A built-in timer automatically
turns pump off after 20 min-
utes, unless pump has been
manually deactivated first.
Pump 2 key
Press Pump 2 key to turn
pump 2 on at low speed.
Press a second time to turn
pump to high speed (with a
dual-speed pump).
A third time turns pump off.
A built-in timer automatically
turns pump off after 20 min-
utes, unless pump has been
manually deactivated first.
Pump 3/blower key
Press Pump 3/blower key
to turn pump 3/blower on.
Press a second time to turn
pump off.
A built-in timer automatically
turns pump off after 20 min-
utes, unless pump has been
manually deactivated first.
instructions
7
in.k100

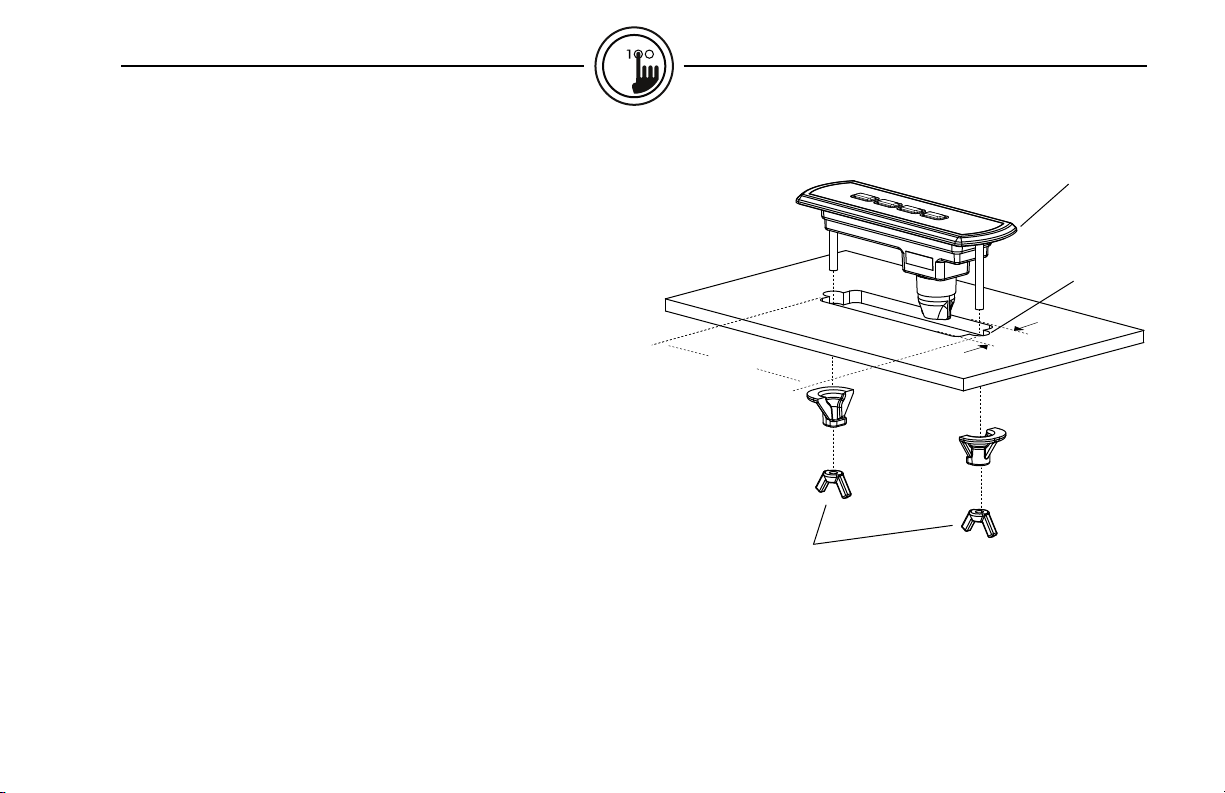

Installing the in.k100
To install the in.k100, use the drilling template provided in this
section. Determine the mounting location and stick the template
on chosen place. You must cut out a rectangular shape opening of
4 3/32" by 1 3/32" according to the drilling template (see illustration).
Clean the installation surface and peel the adhesive gasket from the
back of the keypad.
Insert keypad and align it correctly, then ensure it's properly glued
by gently pressing evenly on the entire surface.
4
3/32
"
∅ 7/16"
Gasket with or
without adhesive
installation & connections
Optional
Wing Nuts
1
3/32
"
8
in.k100
Drilling Template
104 mm
4 3/32"
100 mm
3 15/16"
27,8 mm
1 3/32"
3,2 mm
∅
1/8"
11,1 mm
∅
7/16"
installation & connections
9
in.k100
Connecting in.k100 auxiliary keypad to in.xm
* A main keypad is needed to fully access all functions
Main keypad *
in.k600 or in.k400
in.k100
Connect the auxiliary keypad
in.k100 as indicated here.
installation & connections
The in.k100 comes with a 20 ft
cable and an in.link connector.
To connect the in.k100, simply
insert its in.link connector
into the appropriate keypad
connector (as illustrated).
