GE Digital Energy

LanPro 33

Installation and

commissioning guide

Purpose of this document is to be a guide for the

person in charge involved in the installation and the

startup of the UPS, as a step by step procedure.

Preliminary

While every precaution has been taken to ensure the completeness

and accuracy of this document, GE Digital Energy

•

IMV assumes

no responsability nor liability for damages or errors resulting from the

the use of the information contained in this document.

After unpacking the UPS(s) check carefully for any visible

damages, which could have occurred during transport.

Do never try to startup a UPS which shows mechanical or

electrical damage. Contact your next service centre for help.

The following material accompanies the UPS:

•The UPS operating manual.

•The PIOR of this UPS. (Putting into operation report)

•4 Bottom panels which are removed for transport.

•A plastic bag, containing: 3 Battery fuses, 6 cable ties

for the fastening of input and output cables and

5 Eyelet terminals for the connection of Neutral and

Earth cables to the Input / Output section of the UPS.

The description for the installation and startup of the UPS is

based on a STANDARD CONFIGURATION, i.e. single UPS

with integrated Battery and single Mains (Utility) input.

A description of procedures in case of a parallel system or

external Batteries follows seperately this basic instructions.

Before paralleling UPS’s they must have been running as

single units.

Description of the install procedure for optional equipment:

•Separate Mains input: See operating manual, chapter

4.8.2., page 31.

•External Battery cabinet: See operating manual

chapter 7.2, page 65.

For a description of procedure for the paralleling of UPS’s,

refer to the document:

“Installation guide for the RPA kit”

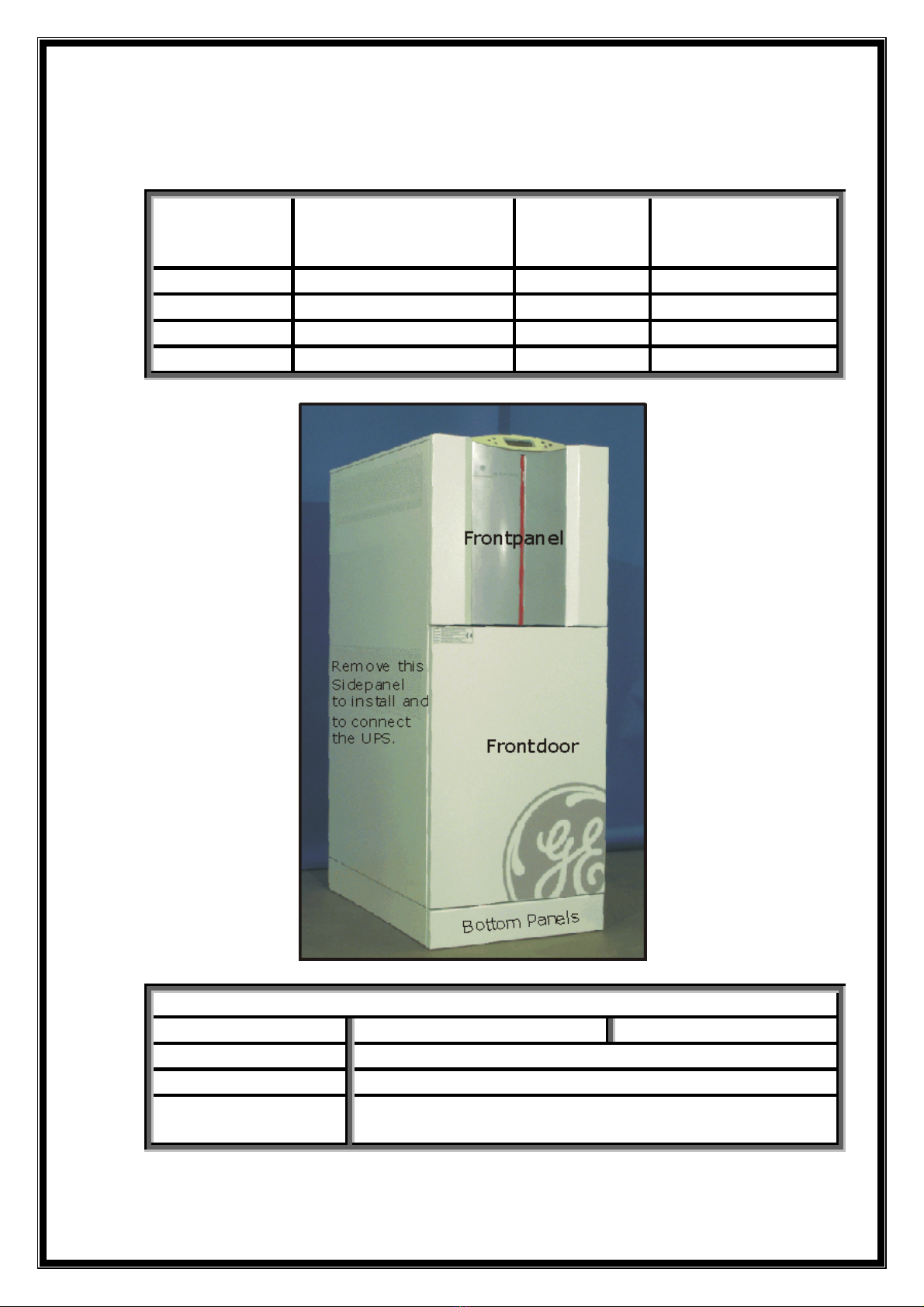

Cabinet Lanpro 33

UPS

rating

Dimension

W x D x H

Weigh

without

Battery

Weight with

standard

Battery

10kVA 500x780x 1280 113kg 247kg

20kVA 500x780x 1280 140kg 372kg

30kVA 660x780x 1280 172kg 520kg

Panel remove

Frontpanel Pressed on, remove with screw driver

Sidepanels Fixed wit 3 Allen screws on each side

Bottom

Panels

Front and Rear: Pressed on

Side:Fixed with 2 Allen screws each side

Panel and Display

Key To access Key Function

metering

Measurements,

Statistics and

ID-Number

Move to next page,

or scroll in edit

mode

alarms Messages and

Alarms −

Move to previous

page in metering

and alarms, or in

edit mode, change

value

Commands

Reset

Lamptest

Parameters

Press to execute a

command or enter

in edit mode to

change

Parameters.

Confirm change of

Parameter.

Consult the operating manual for a detailed

descriptions of the displayed pages and a listing

of alarms and messages and descripton of their

particular meaning.

UPS Input / Output connection

Cable sections (European standard) Input / Output

10kVA 20kVA 30kVA

5 x 4 mm2 5 x 10 mm2 5 x 10 mm2

Use the eyelet terminals from the plastic bag, for the

connection of Neutrals and Earth to Input / Output.

UPS Frontview with Frontdoor open

UPS commissioning procedures

(Standard product, single UPS)

Preliminary and mechanical checks

After unpacking and placing of the UPS, verify for any

mechanical damage. Do never try to startup a damaged

UPS.

Make sure to maintain a minimum clearance of 10cm of the

UPS’s lateral parts, for adequate ventilation with UPS’s on

wheels.

Without wheels, in case of maintenance, a minimum

clearance of 50cm (20 inches) must be maintained !!)

Remove the Frontpanel and open the Frontdoor. Loosen the

3 screws on each side of the Sidepanes, to take them off.

See page UPS cabinet.

Before making any connections we recommand a thorough

mechanical check, including verification of loose bolts or

components, correct inserted plugs and no loose wires or

cables. Make sure fans spin freely.

If any problems with this installation are found that pose a

threat to persons or equipment, do not proceed until the

problem has been corrected!!!

Installation

Connect Input and Output cables and fix them with the

enclosed cable ties.

Insure for adequate size of cables, (see table) and verify for

correct phase rotation.

Replace all the previously removed panels.

Verify for Q1 and Q2 to be open.

Open Mains Rectifier fuses, F1, F2, F3.

Open Battery fuses F9, F10, F11 !!

System checks

Switch ON the Mains (Utility) voltage from the input

distribution.

At this stage the electronic power supply is switched ON

and at the end of a selftest on the display should appear

“SELF TEST OK” and the buzzer sounds, followed by

showing the main page. Press “alarm” for reset.

In case of negative self test, the message “Mainboard

failure” would appear. Do not proceed with commissioning

but call the nearest service centre in this case.

Verify in “User Parameters” for correct Date and Time, if

necessary adjust.

Verification of Parameter settings

The setting of Parameters allows the programming and

setting of certain functions and values of the UPS.

If not otherwise specified, the UPS will leave the factory in

a standard configuration, which corresponds to the values

in the attached PIOR. Verify if this values conform to the

actual situation on site and if necessary adapt.

Important: Keep the PIOR updated whenever Parameter(s)

are changed !!!!

To access Parameters:

Go in the “menu” to the page PARAMETER MENU.

User Parameters can be accessed without Password, since

these have no influence on the function of the UPS, while

Service Parameters can be accessed only via Password.

Password: Change the string XXXXXXXX into YYYYYYYY.

To change Parameters:

•Move the cursor with “-“ to the Parameter to change.

•Press “ok” to enter edit mode.

•Scroll with “+” and change values with “-“.

•Press “ok” to confirm and install new Parameter and

to exit edit mode.

Listing of second level Parameters

Below a listing of the Parameters:

•Battery type

•Floating voltage adjust

•Battery capacity

•Battery charge current limitation

•Number of Battery cells

•Autonomy (Backup) time in Minutes

•Stop operation time in Battery discharge

•Bypass locked (enable / disable Bypass)

•Tolerance of Mains Bypass voltage

•Programming of Automatic Battery test

•Manual Battery test

•Commands (Inverter ON) Local, Remote, Both

•Input filter (Rectifier input voltage)

•Mains filter (Bypass voltage)

•Sync filter (Alarm not synchronizerd)

The delay time , in seconds, installed in one of the

above Parameters has effect on the signals from the

Panel, the events memory and the Customer Interface

•Programming of the 6 output relays on the Customer

Interface.

•Programming of the 2 input relays on the Customer

Interface.

See the operating manual for possible programming

signals, or scroll simply through them.

•Inverter output voltage (220, 230, 240 Volt)

Startup in Service Mode (Q1 open)

Connect Mains voltage (Utility) to the UPS.

The Electronics are now powered. Control selftest on the

display. At the end of selftest, the first page is displayed

Example of first page (Series 0)

The yellow LED on the Frontpanel should now be constantly

ON, indicating Q1 to be open, thus the UPS in service mode.

Startup in Service Mode

•Close Mains (Utility) fuses.

•Verify in measurements for identical values of the Bypass

(Mains)and Rectifier voltages.

•Press now simultaneously the keys "metering" and " +".

•Precharge of the DC Capacitors starts and at ca. 250 Volts

K4 will close. Press metering and verify for voltages UDCP

and UDCN a value of ca. 315V, with Mains voltage = 230V.

•Press again simultaneously keys "metering" and "+" to

start the Booster, which will bring the DC Voltages up to

+/- 400 Volt. Verify again in "metering" for UDCP and

UDCN show a correct reading of these voltages.

•Go now in the menu to Inverter ON / OFF page, and start

the Inverter. Verify in measurements for correct voltages.

(220, 230, 240 Volt) Compare with PIOR.

•Press Inverter ON a second time to activate the Bypass

(K6 and SSM) but also K7 closes while the Inverter is shut

down. Verify for identical reading of Load and Bypass.

voltages, since the Bypass is now connected to the output

•At this point the ventilators must be running.

•Press Inverter ON a third time to transfer the output from

Utility to Inverter, at this moment the Inverter restarts

again, however without softstart, but with full output

voltage. Verify for Inverter output voltages in the

measurement screen for Load.
