GE GCG1700II Manual de usuario

Installation

Instructions

15" Built-In Compactors

6C61580 SS

6C61500 BB

6061500 WW

GCG1700I1"

ZC6S150 SS

ZCGP150I1"

*For ZCGP150II and 6C61700 II,

also refer to the instructions

provided on the template packed

with those models.

Safety information

BEFORE YOU BEGIN

Read these instructions completely and

carefully.

•IMPORTANT- Save these instructions for

local inspector's use.

•IMPORTANT- Observe all governing codes

and ordinances.

Note to Installer - Be sure to leave these

instructions with the Consumer.

•Note to Consumer- Keep these instructions with

your Owner's Manual for future reference.

•Skill Level- Installation of this appliance requires

basic mechanical and electrical skills.

•Completion time - 1 hour.

•Proper installation isthe responsibility of the installer.

Product failure due to improper installation is not

covered under the Warranty. See Owner's Manual

for warranty information.

iMPORTANT

•Use this compactor only for its intended purpose.

•This compactor is designed for BUILT-IN

installations ONLY.

WARNING!

Do not allow items to fall or collect behind

the compactor. Failure to follow this

instruction could result in a fire.

CAUTION:

For personal safety, remove house fuse or

oven circuit breaker before beginning

installation to avoid severe or fatal

shock injury.

CONTENTS

Design Information

Models Available ..............................................................3

Product Dimensions and Clearances ............................3

Tools Required ..................................................................3

Parts Supplied ..................................................................3

Advance Planning

Clearances ........................................................................4

Models with a Custom Drawer Panel ..........................4

Installation Preparation

Electrical Requirements ................................................5

Grounding Requirements ................................................5

Unpacking the Compactor ..............................................6

Leveling the Compactor ..................................................7

Adjusting the Retaining Bracket ....................................7

Adjusting the Base Toekick ............................................7

Installation Instructions

Position the Compactor under the Countertop ............8

Attach the Compactor to the Countertop ....................8

Reinstall the Compactor Drawer ....................................9

Installation of the Trash Bag Caddy ..............................9

Finalize Installation ..........................................................9

Design information

MODELS AVAILABLE

GCG1580SS

GCG1500BB

GCG1500WW

GCG1700I1"

ZCGS150SS

ZCGP150I1"

*For ZCGP150II and GCG1700II, also refer

to the instructions provided on the template

packed with those models.

PRODUCT DIMENSIONS AND CLEARANCES

24" (61cm)

min 15-1/8"

(38.4cm)

min 34" (86.4cm)

35" !88.9 cm)

Locate the outlet 18" (45.7 cm) rain

from the floor, 3" (7.6 cm}rain from

either side

23" (58.4 cm)

33-3/4"

(85.8cm)

min.

35" (88.9 cm)

max.

• Allow 23" (58.4 cm)

clearance atthe front for

a full drawer opening,

• Allow 6"(15.2 cm)

clearance on the right

side to the nearest

vertical wall or cabinet

for bag removal.

• Nete: This compactor is

designed for built-in

applications only.

TOOLS REQUIRED

.Level

•Phillips Screwdriver

• Pliers

•Gloves

• Measuring Tape

PARTS SUPPLIED

•6 mounting screws (located in the literature package)

•2 countertop retaining brackets

•2 side mounting clips

ADVANCE PLANNING

CLEARANCES

You should be able to fully open the compactor

drawer. Six inches (15.2 cm)is required on the right

side of the compactor for bag removal.

• Allow 23 inches (58.4 cm) in front of the compactor

to remove the drawer.

This compactor is designed as a built-in

appliance only. It may be located in any

convenient space under a countertop.

DO NOT OPERATEFREE-STANDING.

The compactor may be installed beneath

countertops of stone or other materials that will

not accept screws. No trim kit is required.

The compactor must be securely installed in a cabinet

that is firmly attached to the house structure. Weight

on the compactor drawer could cause the compactor

to tip and result in injury. Never allow anyone to

climb, sit or hang on the compactor drawer.

MODELS WiTH A CUSTOM

DRAWER PANEL

Models ZCGP150 II and GCG1700 II

The custom drawer panel and custom handle of your

choice should be secured to the compactor before

installation begins. A template with instructions and

installation hardware is provided with those models.

For planning purposes, you may order the template in

advance. Order Pub. No. 31-30597. Complete panel

installation instructions are included on the template.

CUSTOM PANELSiZE REQUIREMENTS:

Maximum panel weight is 12 LBS (5.4 kg).

3/4"

(1.9 cm)

Thick

Custom 29-5/16"

Panel (74.5 cm)

_ 14-7/8"

(37.8 cm)

Installation Preparation

ELECTRICAL REQUIREMENTS

WARNING!

FORPERSONAL SAFETY: Remove house

fuse or open circuit breaker before

beginning installation. Do not use an

extension cord or adapter plug with

this appliance.

• The power supply cord and plug should be brought

to a separate 15 or 20 ampere branch circuit single

grounded receptacle. The outlet box should be

located within reach of the 36" (91.4 cm) power cord.

*This appliance must be supplied with 120V,60Hz

and connected to an individual properly grounded

branch circuit, protected by a 15or 20 ampere

circuit breaker or time delay fuse.

• If the electrical supply does not meetthe above

requirements, call a licensed electrician before

proceeding.

iMPORTANT: Observe all governing codes and

ordinances.

GROUNDING REQUIREMENTS

WARNING!

The improper connection of the equipment

grounding conductor can result in a risk of

electric shock. Check with a qualified

electrician or service representative if you

are in doubtthatthe appliance is properly

grounded.

• Electrical Ground is REQUIREDon this compactor.

• DO NOT ground to a gas pipe.

• DO NOT change the power supply cord plug. If it

does not fit the outlet, have a proper outlet installed

by a qualified electrician.

• DO NOT have a fuse in the neutral or grounding

circuit. Afuse in the neutral or grounding circuit

could result in an electrical shock.

• DO NOT use an extension cord with this compactor.

Failure to follow these instructions could result in

death or serious injury.

Recommended Grounding Method:

Foryour personal safety,this appliance must be grounded.

This appliance is equipped with a power supply cord having

a 3-prong grounding plug. Tominimize possible shock

hazard,the cord must be plugged into a mating 3-prong

grounding type wall receptacle, grounded in accordance

with the National Electrical CodeANSI/NFPA70--1atest

edition* and all local codes and ordinances. If a mating wall

receptacle is not available, it is the personal responsibility

and obligation of the customer to have a properly grounded

3-prong wall receptacle installed bya qualified electrician.

3-prong grounding-type

wall receptacle

3-prong _--...._

grounding I

plug . I (| I_ I

ower'I

supply _.4_'_J' Groundin_

cord 71 plug

Copies of the standards

listed may be obtained from:

* National Fire

Protection Association

Batterymarch Park,

Quincy, MA 02260

Installation Preparation

UNPACKING THE COMPACTOR

•Move the compactor close to the installation

location.

• Use a section of the shipping carton to protectthe

finished floor.

• Do not use the handle to lift the compactor.

• Remove all protective packaging materials such as

tape or shipping pads. Remove waxy residue caused

by shipping material with a mild solution of liquid

household cleaner and water.

• Check thatthe power supply cord is attached to the

cord clip on the rear of the compactor.

_ Cord cli_

IMPORTANT: Use the shipping carton as a pad.

Do not slide the compactor across a finished floor.

Damage will occur.

UNPACKING THE COMPACTOR

(CONT.)

• Open the compactor drawer and remove any

shipping materials or other items shipped in the

drawer.

• Do not remove the compactor bag (if installed).

•Grasp the sides of the drawer and lift it out of the

compactor. Place the drawer on a protected surface.

The drawer can scratch a finished floor.

Installation Preparation

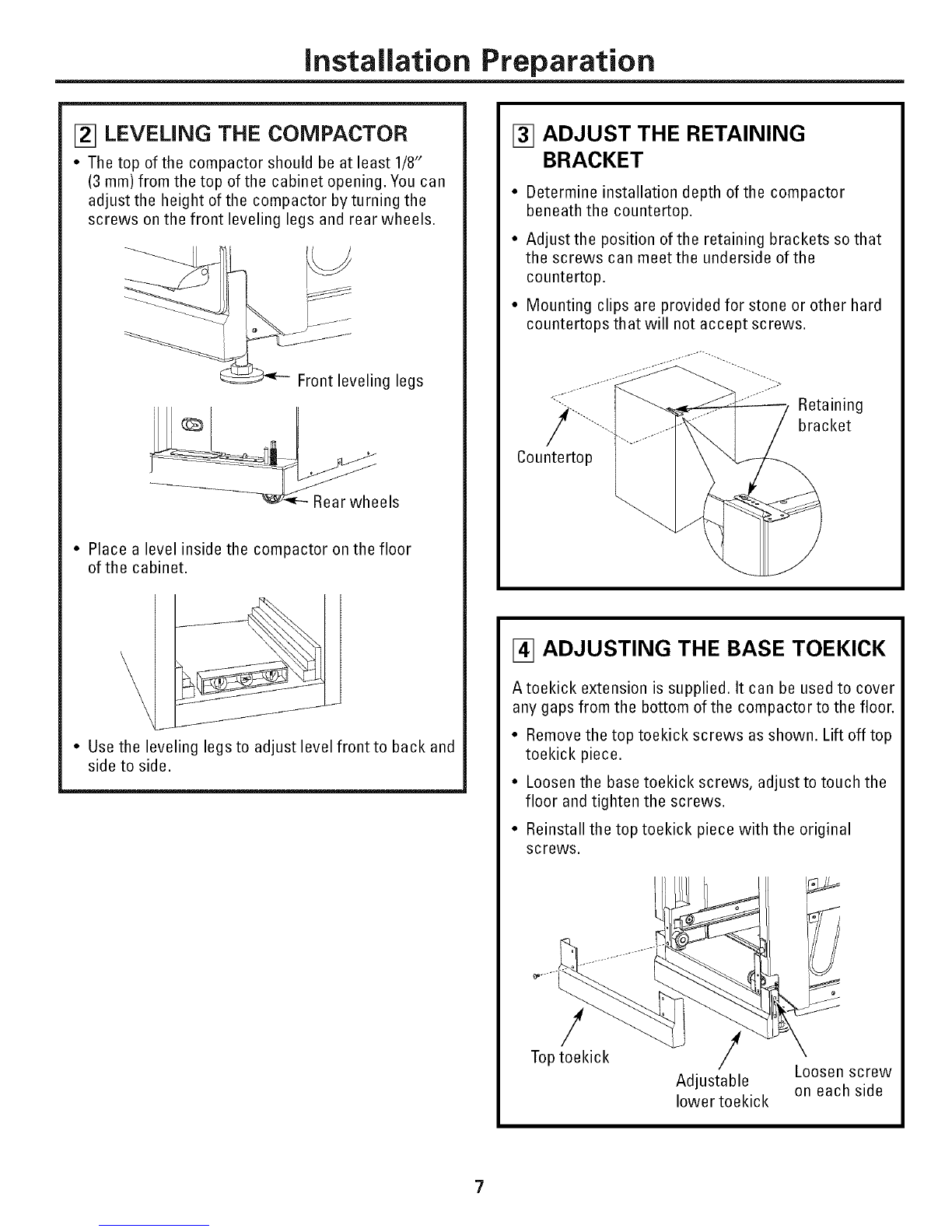

[_ LEVELING THE COMPACTOR

•The top of the compactor should be at least 1/8"

(3 ram) from the top of the cabinet opening. You can

adjust the height of the compactor by turning the

screws on the front leveling legs and rear wheels.

Front leveling legs

_els

• Place a level inside the compactor on the floor

of the cabinet.

• Use the leveling legs to adjust level front to back and

side to side.

I_ ADJUST THE RETAINING

BRACKET

Determine installation depth of the compactor

beneath the countertop,

Adjust the position of the retaining brackets so that

the screws can meet the underside of the

countertop.

Mounting clips are provided for stone or other hard

countertops that will not accept screws.

Retaining

bracket

Countertop

I_ ADJUSTING THE BASE TOEKICK

Atoekick extension is supplied. It can be used to cover

any gaps from the bottom of the compactor to the floor,

• Remove the top toekick screws as shown. Lift off top

toekick piece.

• Loosen the base toekick screws, adjust to touch the

floor and tighten the screws.

• Reinstall the top toekick piece with the original

screws.

Top toekick Loosen screw

Adjustable on each side

lower toekick

Installation

I_ POSITION COMPACTOR UNDER

THE COUNTERTOP

WARNING!

When moving the compactor, use gloves to

protect and cushion your hands.

To protect the finished flooring, use a dolly

to move the compactor near the installation

location.

Failure to follow these instructions could

result in injury.

• Plug the power cord into a properly grounded

receptacle.

• Carefully lift the front of the compactor slightly and

roll the unit into the cabinet opening until the

retaining brackets stop.

Lift here

I_ ATTACH THE COMPACTOR TO

THE COUNTERTOP

• Use two #8-18 x 1/2" (45.7 cm x 1.3 cm) mounting

screws to fasten the retaining brackets at the top

of the compactor to the underside of the countertop.

Retaining

bracket

_'_r--,,,, Mounting

screws

• If the brackets cannot be attached to the underside

of the countertop, attach mounting clips to the

bracket. Fasten the compactor to the cabinet front

with mounting screws through the mounting clips.

bracket

Mounting

screw

Mounting

clip

Installation

[_ REINSTALL THE COMPACTOR

DRAWER

• Grasp the sides of the drawer. Carefully slide the

drawer into the compactor.

iiiii

_] INSTALLATION OF THE TRASH

BAG CADDY (on some models)

• Set the bag caddy into the drawer and hook the

pre-punched holes in the caddy on the drawer

buttons.

• Setthe trash bag into the bag caddy and fold over.

• Hook the holes in the bag over the drawer buttons.

Trash

Drawer

buttons

_9qFINALIZE THE INSTALLATION

• Turn power on atthe source.

• Refer to your Owner's Manual for operating

instructions.

Notes

Otros manuales para GCG1700II

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Compactador de basura de GE

Manuales populares de Compactador de basura de otras marcas

NuTone

NuTone 1050 Manual de usuario

Rousseau

Rousseau R1C-SE19S Manual de usuario

Kenmore

Kenmore 665.1361 Series Manual de usuario

Newstripe

Newstripe Pack-Master Air Manual de usuario

KitchenAid

KitchenAid KCCC151 Manual de usuario

KitchenAid

KitchenAid KUCK03ITBL0 Manual de usuario

Whirlpool

Whirlpool GX900QPLQ - 15" Trash Compactor Manual de usuario

Vestil

Vestil FM-T-DUMP Manual de usuario

Euro Shatal

Euro Shatal RP4014-50 Manual de usuario

third coast equipment

third coast equipment SP3410 Manual de usuario

Cucine Oggi

Cucine Oggi EKKO CUBE 40 9000 Manual de usuario

Viking

Viking Designer Series Manual de usuario

Centro

Centro 85-1066-6 (A01001 Guía rápida

Whirlpool

Whirlpool 9872208 Manual de usuario

Jenn-Air

Jenn-Air TC607X2 Manual de usuario

Displays2go

Displays2go “THANK YOU” DUAL Manual de usuario

Jenn-Air

Jenn-Air TC507B1 Manual de usuario

Whirlpool

Whirlpool 800 SERIES Manual de usuario
