†Note: Check local codes for required breaker size.

Effective January 1, 1996, the National Electrical Code requires

that new construction (not existing) utilize a 4-conductor

connection to an electric range.

Receptacle Locations: Locally approved flexible service cord

or conduit must be used because terminals are not accessible

after range installation. See shaded area in drawing for location

of electrical outlet box. Recommended outlet locations allow

range to be installed directly against wall.

Note: 30" ranges conform to U.L. requirements for 0" spacing

from adjacent walls below countertops. To reduce possibility

of scorching walls, engineering recommends a minimum of

1-1/2" spacing to allow for possible extended, high-heat,

no-load heating element operation.

Installation information: Before installing, consult installation

instructions packed with product for current dimensional data.

Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

Specification Revised 6/07 321590

Dimension from wall to front of closed door handle is 27-3/4".

KW Rating

240V 13.0

208V 9.8

Breaker Size

40 Amps†

30

25

29-7/8

46-7/8

2-1/2

7-1/2

25-3/8

47-5/8

2-1/2

Acceptable electrical

outlet area

30_install_fse_ge.eps

Dimension from wall to front of

closed oven door handle is 27-3/4.

JBP80SM

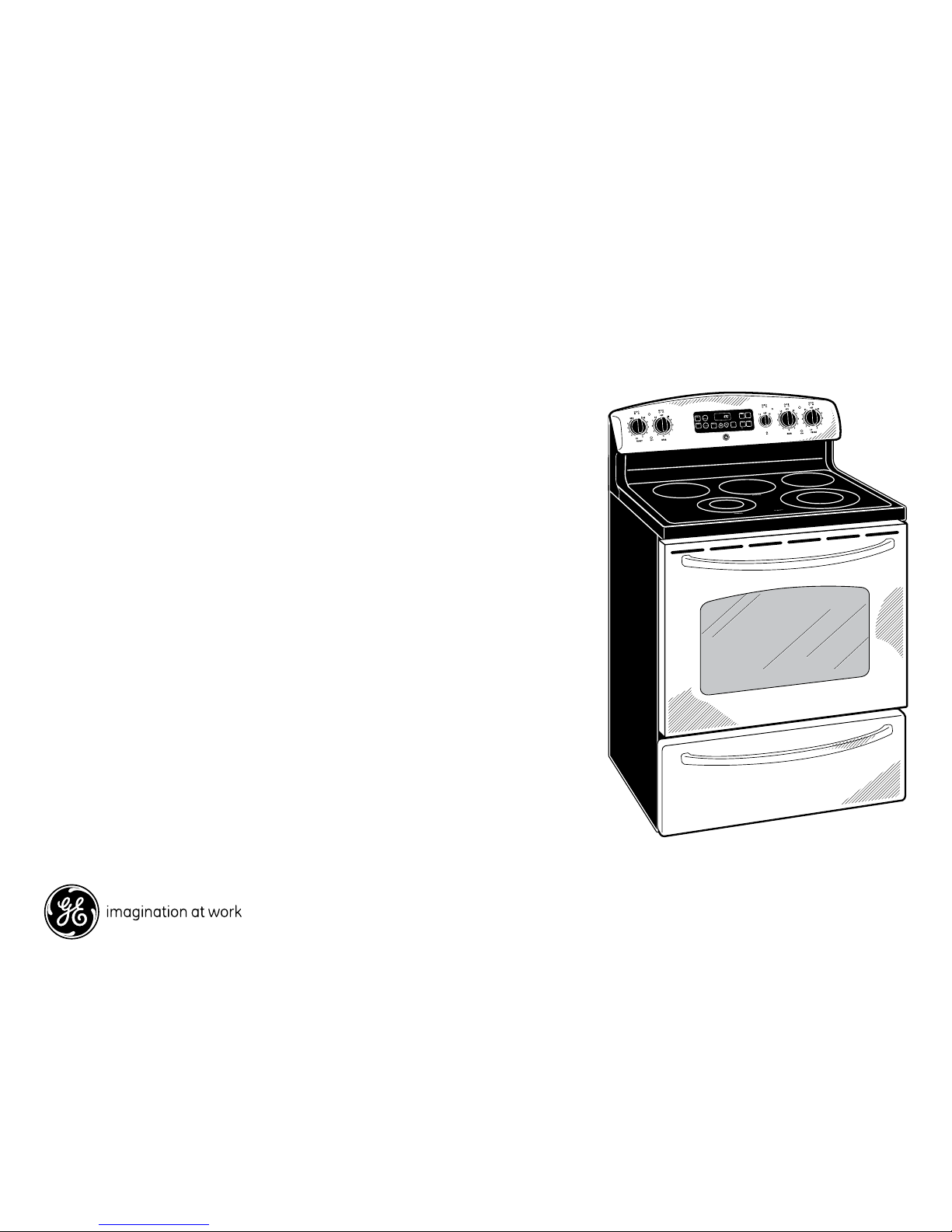

GE®30" Free-Standing CleanDesign™Electric Range

Specification Revised 6/07 321590

Features and Benefits

• Self-Clean Oven - Conveniently cleans the oven cavity without the need

for scrubbing

• Super-Large 5.3 Cu. Ft. Oven Capacity - Provides an impressively large oven

interior to cook more dishes and large meals at once

• TrueTemp™System - Delivers even heat distribution and maximum

oven control

• 6"/9" PowerBoil™Element - Accommodates various-size pots or pans and

3,000 watts of power speeds the boiling process

• Dual Size Ribbon Element - Offers a convenient choice of using a 9" or 12"

heating element, depending on the size of the pan

• Warming Zone - Provides low heat capability for foods, making meal

coordination simple

• QuickSet IV Oven Controls - Feature an easy to use design which allows you

to set precise cooking temperatures

• Self-Clean Heavy-Duty Oven Racks - Double coated porcelain-enameled

racks no longer require hand cleaning

• Model JBP80SMSS – Stainless steel

JBP80SM

WARMINGZONE

MED

SMALL

BURNER

LARGE

BURNER

FRONT

BURNER

BRIDGE

BURNER

BROIL SELF

CLEAN

OVEN

LIGHT

CLOCK

OVENCONTROLSTrueTemp

ON

TEMP

NORMAL

HILOOFF

KITCHEN

TIMER

ONOFF

BAKESTART

ON

CLEAR

OFF

TIMECONTROLS

COOKING

TIME

ONOFF

AUTOMATICOVEN

START

TIME

ONOFF

JBP80SM

GE®30" Free-Standing CleanDesign™Electric Range
